In modern industrial equipment, hydraulic systems are widely used for various functions such as lifting, propulsion and driving. In these systems, the synchronous operation of multiple hydraulic cylinders is an important part to ensure the efficient and safe operation of the equipment. The synchronization of hydraulic cylinders can not only improve the efficiency of work, but also avoid equipment damage caused by inconsistent movement.

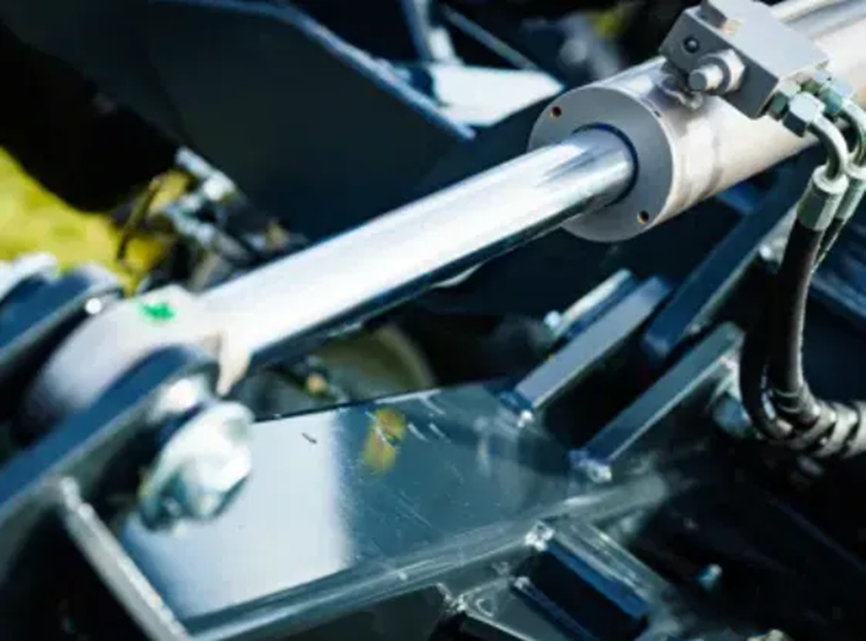

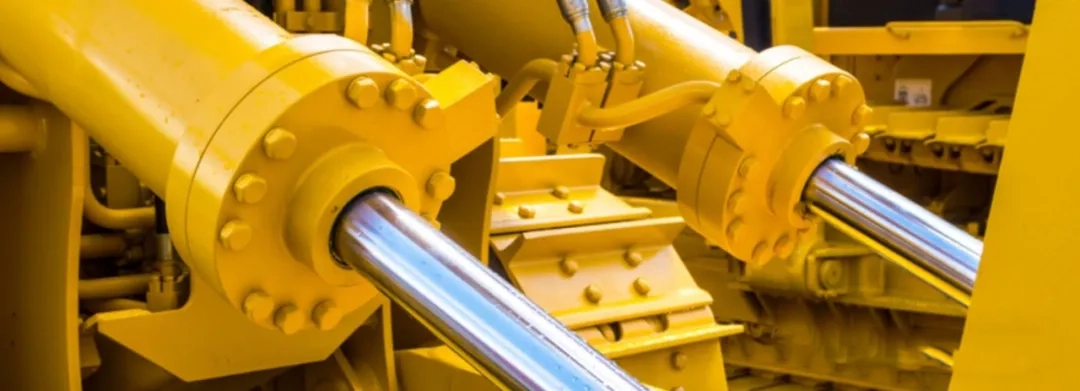

1. Working principle of hydraulic cylinder synchronization

Hydraulic cylinder synchronization refers to the expansion or contraction of multiple cylinders at the same speed and force at the same time. The core lies in the uniform distribution of hydraulic fluid and the precise control of pressure. The realization of synchronous operation depends on the following key factors:

(1) Fluid dynamics:

The basic principle of the hydraulic system is to use the incompressibility of liquid to convert pressure into power. By controlling the direction and flow rate of liquid flow, the synchronous movement of the cylinders can be achieved.

(2) Load balancing:

When multiple hydraulic cylinders share the load in a hydraulic system, it is critical to ensure that each cylinder is subjected to the same load to avoid desynchronization due to uneven loading. This helps to ensure that each hydraulic cylinder in the system is subjected to the same force during operation, thus maintaining system stability and efficiency.

(3) Real-time feedback:

Through sensors and control systems, the movement status of each cylinder is monitored in real time, and adjustments are made as needed to maintain synchronization.

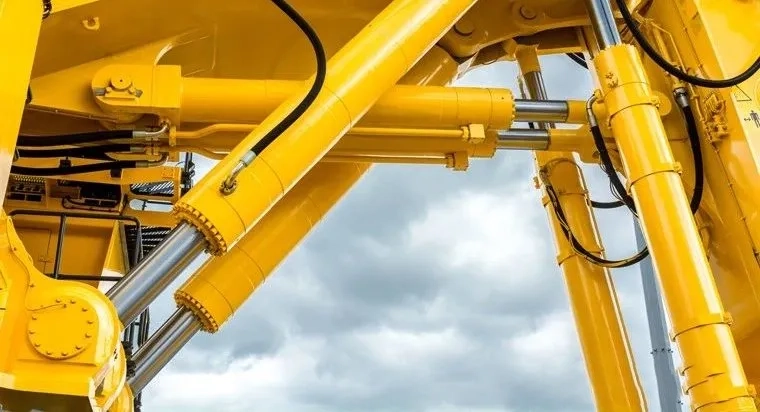

2. Common methods of hydraulic cylinder synchronization

(1) Mechanical linkage

Mechanical linkage is a method of achieving synchronization through physical connection. In this system, multiple hydraulic cylinders are connected to each other through mechanical components, such as synchronization rods or gear systems. The physical connection ensures that the displacement of each cylinder is the same when the cylinder moves. This method is usually used in situations where the synchronization accuracy is not high and is suitable for application scenarios with simple structure and low cost.

(2) Flow distributor

The flow distributor evenly distributes the hydraulic oil flow to each hydraulic cylinder. By adjusting the settings of the distributor, it can be ensured that each cylinder receives the same flow, thereby achieving synchronization. This method is usually used in parallel-connected hydraulic systems, such as applications where multiple hydraulic cylinders lift heavy objects together.

(3) Position sensor

When high-precision synchronization is required, position sensors and feedback control systems can be selected. Each hydraulic cylinder is equipped with a position sensor to monitor its real-time displacement and transmit this data to the controller through the feedback control system. The controller fine-tunes the hydraulic valve based on the feedback data to ensure that the movement of each hydraulic cylinder is always synchronized. The advantage is that it can achieve extremely high synchronization accuracy through real-time feedback and can adapt to dynamic changes in the load. The disadvantage is that the system is highly complex and relies on electronic components, and has high technical requirements for installation, commissioning and maintenance.

(4) Hydraulic valve control

① Diverter valve:

Diverter valves play a key role in hydraulic systems, ensuring that the flow supplied by a single oil source can be evenly or proportionally distributed to multiple actuators according to demand. Suitable for synchronous control of multiple hydraulic cylinders, by accurately controlling the flow distribution, ensuring that each actuator (such as a hydraulic cylinder) maintains the same speed

② Proportional valves:

These precision valves allow precise adjustment of the flow and pressure of the hydraulic oil and are combined with electronic signal input to achieve more accurate synchronization. They are usually combined with sensors and control systems to adjust the movement of each hydraulic cylinder in real time.

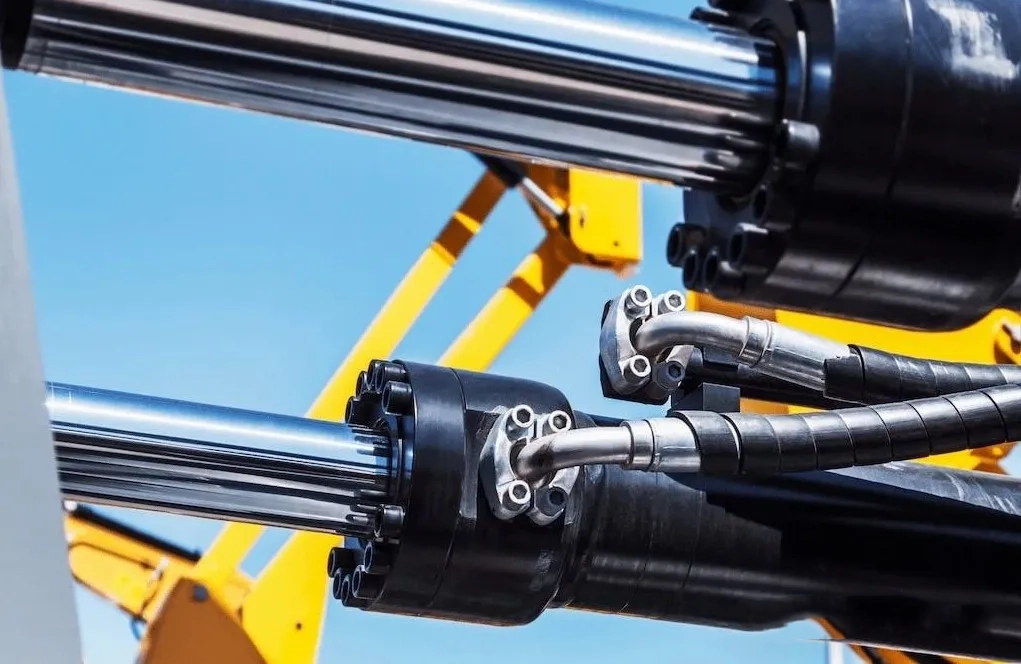

3. Technical Challenges of Hydraulic Cylinder Synchronization

(1) Load Imbalance

When multiple hydraulic cylinders share a load, the uneven distribution of the load may cause the movement of the cylinders to be asynchronous. For example, in a lifting operation, if a cylinder is subjected to a large load, it may cause its speed to lag. Therefore, the use of a flow control valve or a balancing valve can effectively alleviate the problem of load imbalance.

(2) Temperature and Pressure Fluctuation

The temperature change of the hydraulic oil affects its viscosity, which in turn affects the response speed of the cylinder. High temperature may increase the fluidity of the hydraulic oil, while low temperature may increase the viscosity of the hydraulic oil. In addition, pressure fluctuations may also cause the movement of the cylinders to be asynchronous, so the temperature and pressure must be monitored and adjusted regularly.

(3) Wear and aging

As the use time increases, the hydraulic cylinder and its components will wear, which may cause uneven movement and affect the synchronization effect. Therefore, regular maintenance and inspection are necessary to ensure that the system is in good condition.

(4) Complexity of the control system

While the control system provides high-precision performance, it also places higher demands on operation and maintenance due to its complex structure and potential failure risks. This requires operators to not only master system debugging skills, but also have professional fault diagnosis and maintenance capabilities to ensure stable operation of the system.

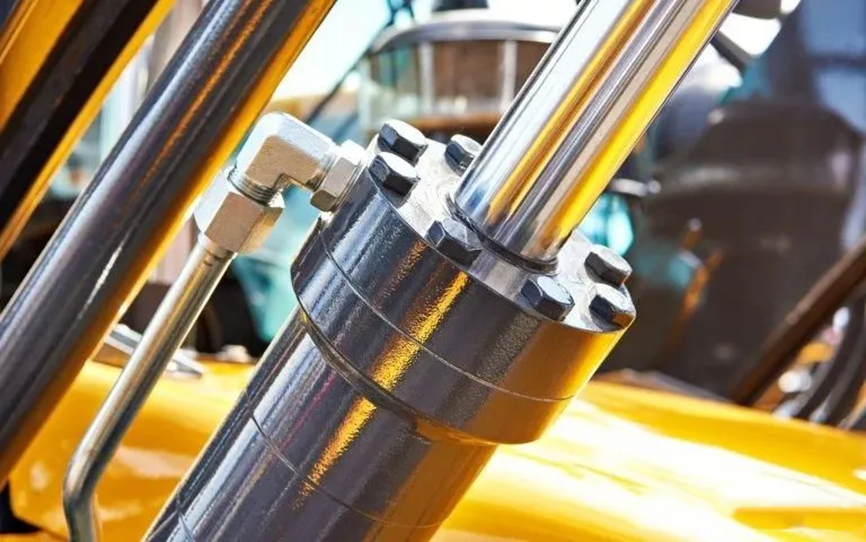

4. Precautions during operation

(1) Check in advance

Before performing synchronous operation, be sure to check the condition of all hydraulic cylinders, including the cylinder body, seals and oil pipes to ensure that there is no wear or leakage.

(2) Set reasonable flow and pressure

To maintain consistent movement of the cylinders in a hydraulic system, it is crucial to adjust the flow rate and pressure levels within optimal parameters. This adjustment is essential to prevent erratic cylinder behavior caused by either insufficient flow leading to sluggish movement or excessive pressure resulting in overload.

(3) Monitor temperature changes

During operation, the temperature changes of the hydraulic oil should be monitored to prevent overheating or low temperature from affecting the performance of the system.

(4) Pay attention to the operation sequence

In synchronized operations, it is vital to sequence the hydraulic cylinders correctly to prevent any asynchronous issues stemming from incorrect operational procedures. This meticulous sequencing ensures that the cylinders function in harmony, minimizing the risk of operational discrepancies due to mismanagement.

(5) Timely adjustment and correction

During the synchronous operation of multiple cylinders, if a cylinder is detected to have a movement lag or lead deviation, the operator should take immediate measures to restore all cylinders to the expected synchronous movement state by accurately adjusting key parameters such as system flow and pressure to ensure the normal operation of the equipment.
