4WE6J-L6X/EG24N9Z5L / 4WE10J-L6X/EG24N9Z5L Hydraulic Directional Control Valve Manifold Block (Solenoid Valve Group)
Maximize the efficiency of your pile driving rigs and heavy machinery with the 4WE6J-L6X and 4WE10J-L6X Hydraulic Directional Control Valve Manifold Block. This CE-certified, heavy-duty steel assembly features three NG6 and one NG10 24V DC solenoid valves, capable of handling high-pressure applications up to 350 bar. Equipped with DIN 43650 connectors, manual overrides, and integrated test ports, it delivers precise, reliable, and durable hydraulic control for demanding industrial environments.
4WE6J-L6X/EG24N9Z5L / 4WE10J-L6X/EG24N9Z5L Hydraulic Directional Control Valve Manifold Block

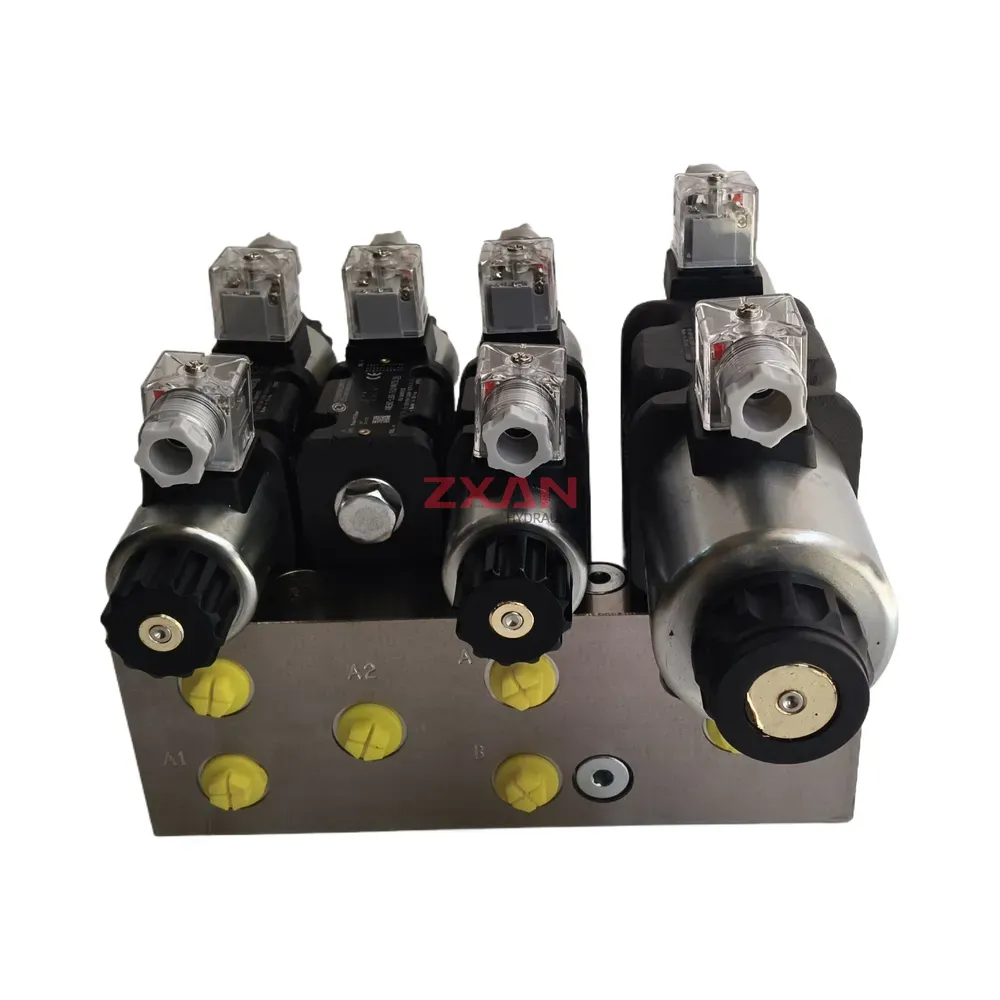

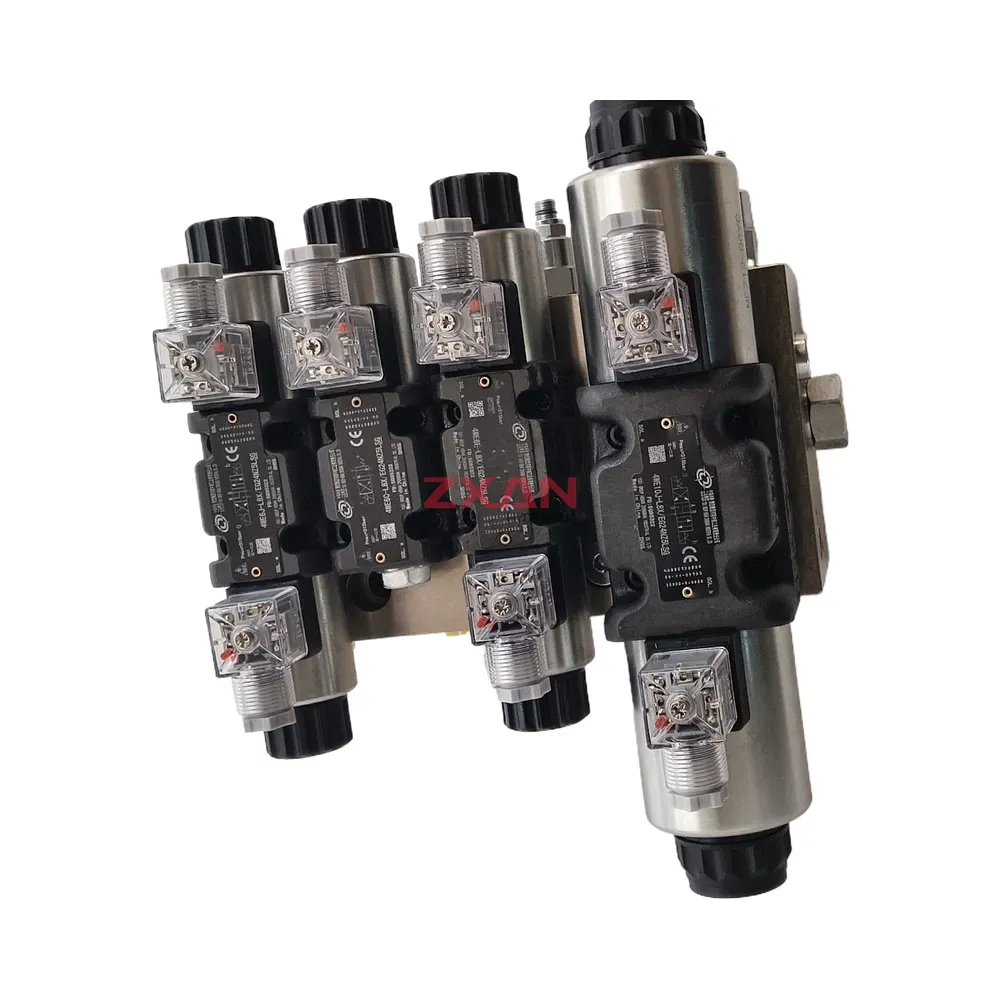

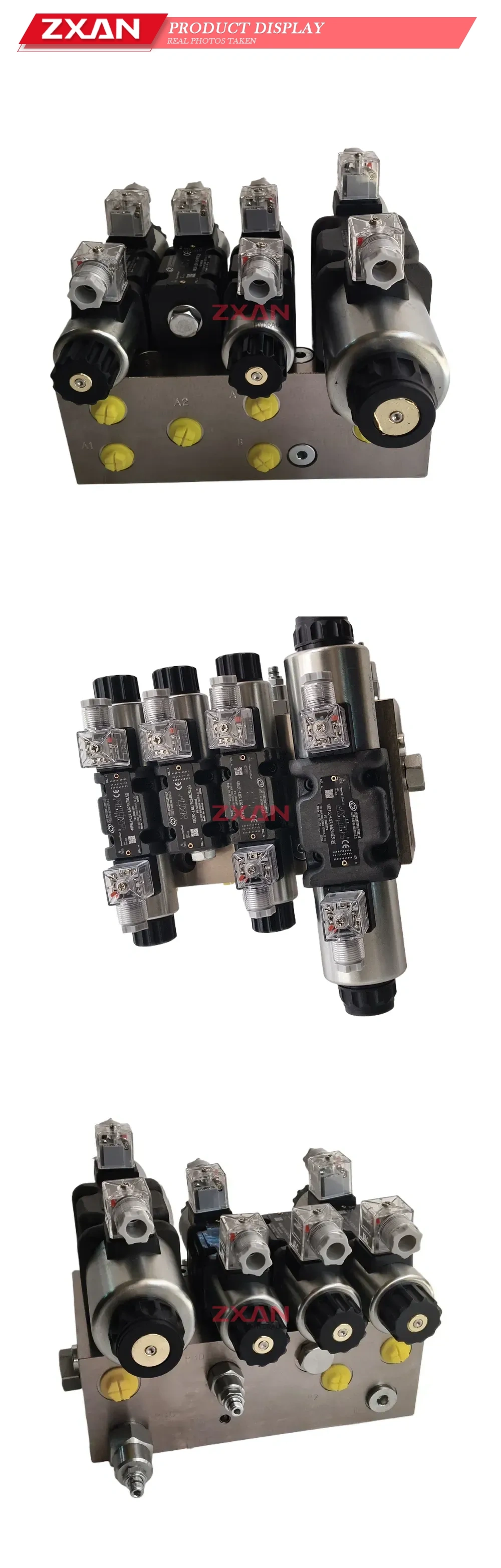

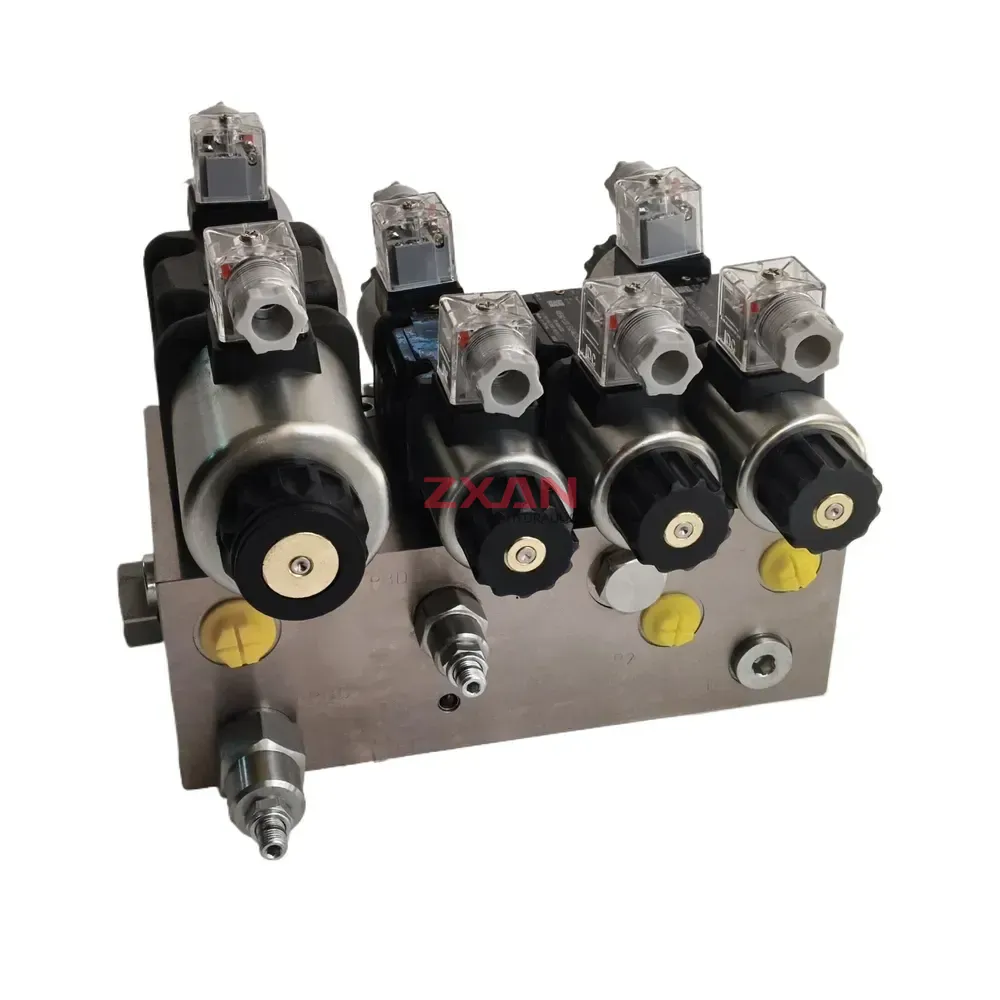

The 4WE6J-L6X/EG24N9Z5L and 4WE10J-L6X/EG24N9Z5L hydraulic directional control valve manifold block is a high-performance fluid power assembly specifically engineered for pile driving rigs and heavy-duty industrial machinery. This robust unit consists of a precision-machined steel manifold block fitted with four premium solenoid-operated directional control valves, including three NG6 (CETOP 3) size valves and one NG10 (CETOP 5) size valve. Each individual valve is equipped with a highly responsive 24V DC solenoid coil featuring a transparent DIN 43650 connector plug, a convenient manual override knob for emergency actuation or system testing, and a secure threaded coil retaining nut. Designed for optimal hydraulic fluid management, the manifold block provides clearly labeled working ports (A1, A2, A, B) protected by plastic caps during transit, alongside integrated pressure/test port fittings and standardized mounting holes. Capable of handling nominal pressures up to 350 bar, this CE-certified hydraulic valve group ensures precise directional control, exceptional durability, and seamless integration into demanding high-pressure hydraulic systems.
Technical Specifications:
- Model Numbers: 4WE6J-L6X/EG24N9Z5L (NG6) / 4WE10J-L6X/EG24N9Z5L (NG10)
- Valve Configuration: 3 x NG6 (Size 6) and 1 x NG10 (Size 10) solenoid-operated directional control valves
- Manifold Material: Heavy-duty steel block
- Operating Voltage: 24V DC
- Maximum Nominal Pressure: Up to 350 bar (5075 psi)
- Electrical Connection: Transparent DIN 43650 connector plugs
- Port Configuration: Labeled working ports (A1, A2, A, B) with pressure/test port fittings
- Actuation Features: Built-in manual override knob and threaded coil retaining nut
- Certification: CE Marked
- Primary Application: Pile driving rigs and heavy industrial hydraulic systems
| Model | 4WE6J-L6X/EG24N9Z5L / 4WE10J-L6X/EG24N9Z5L |
|---|
