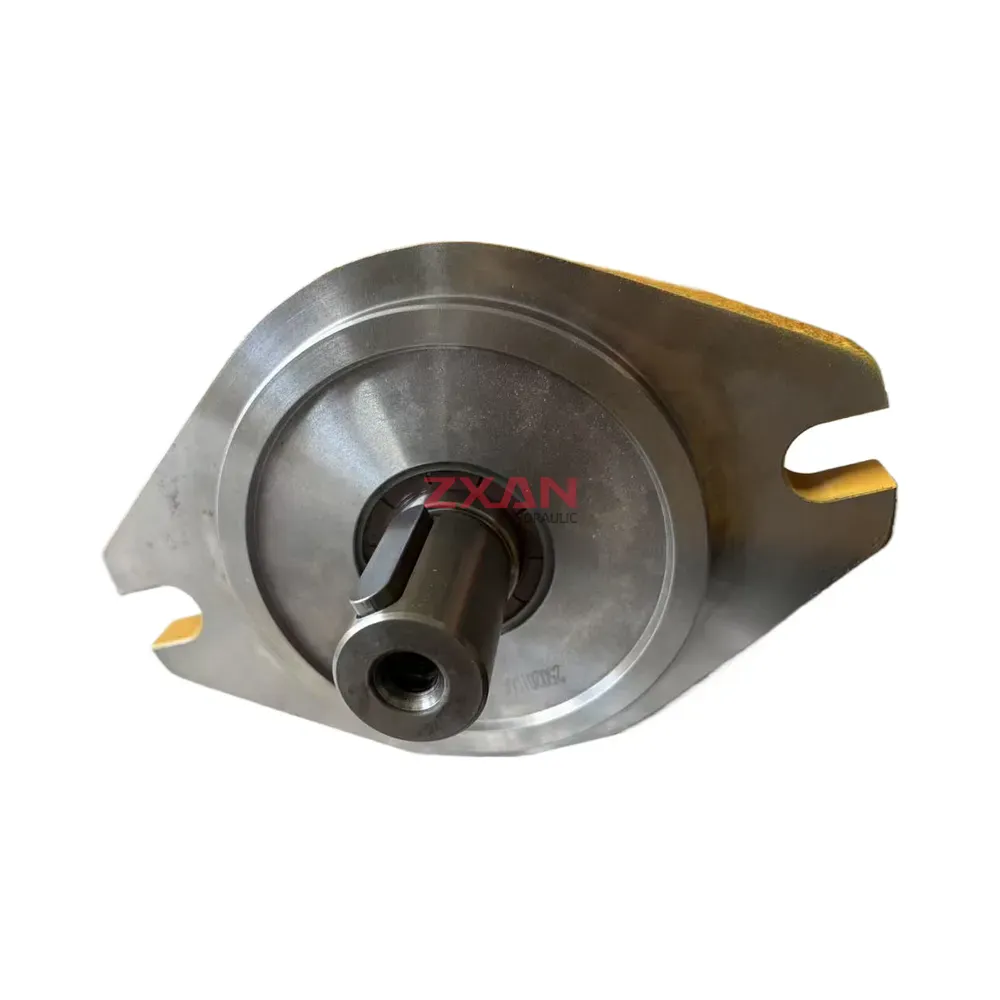

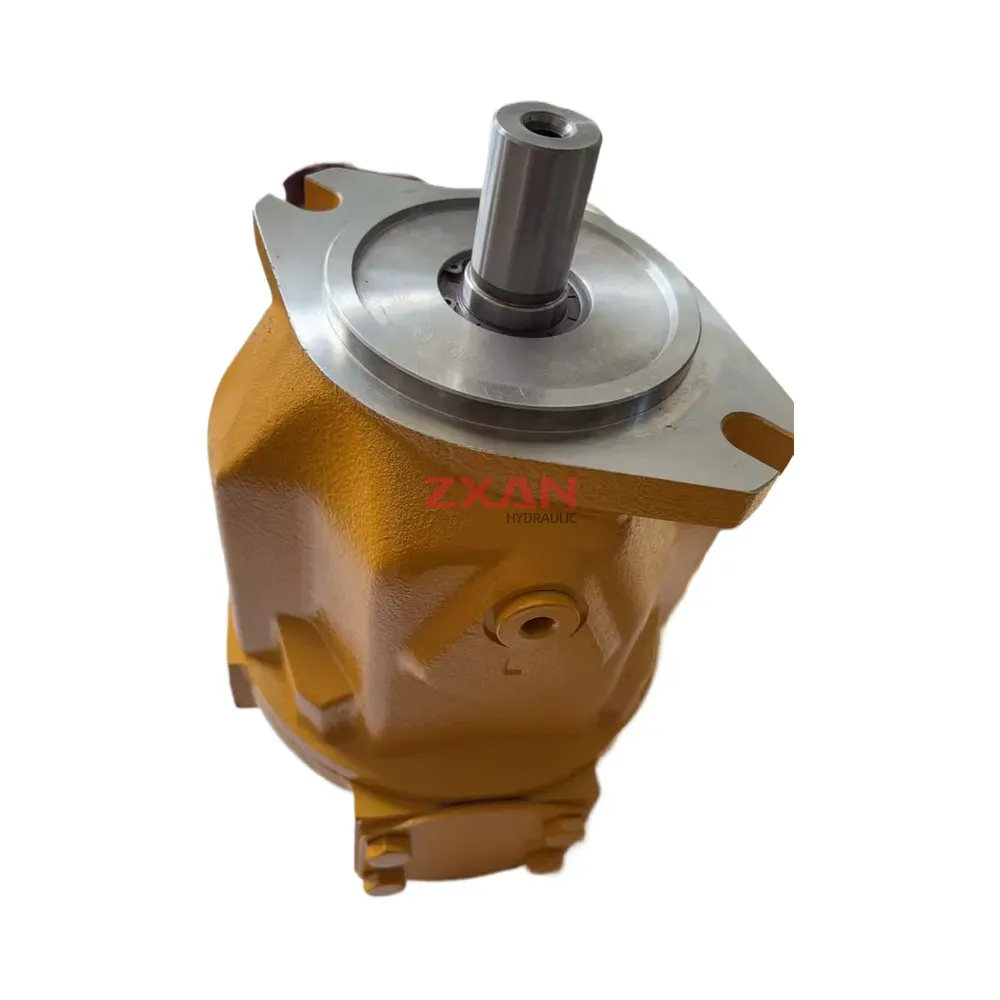

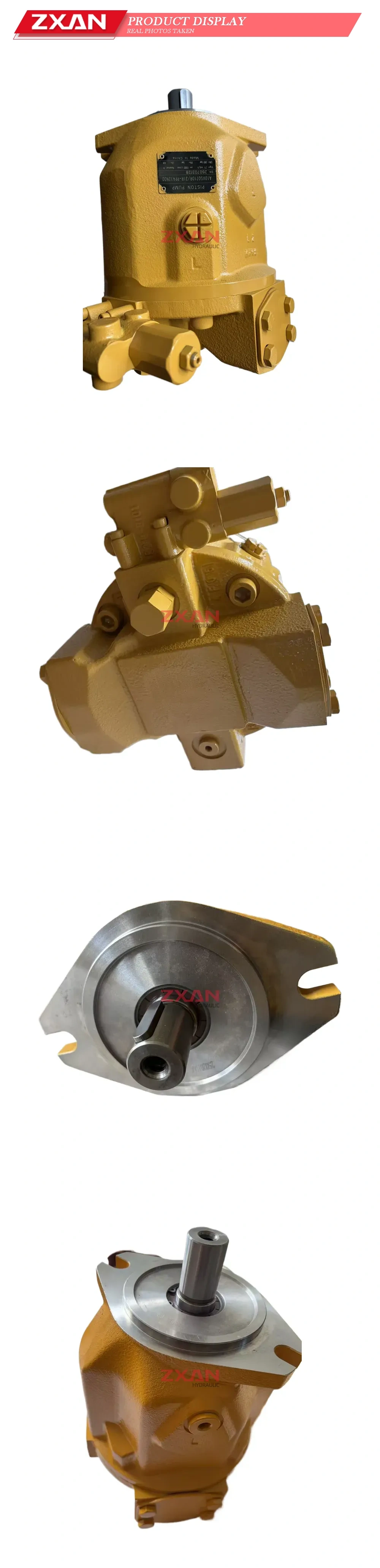

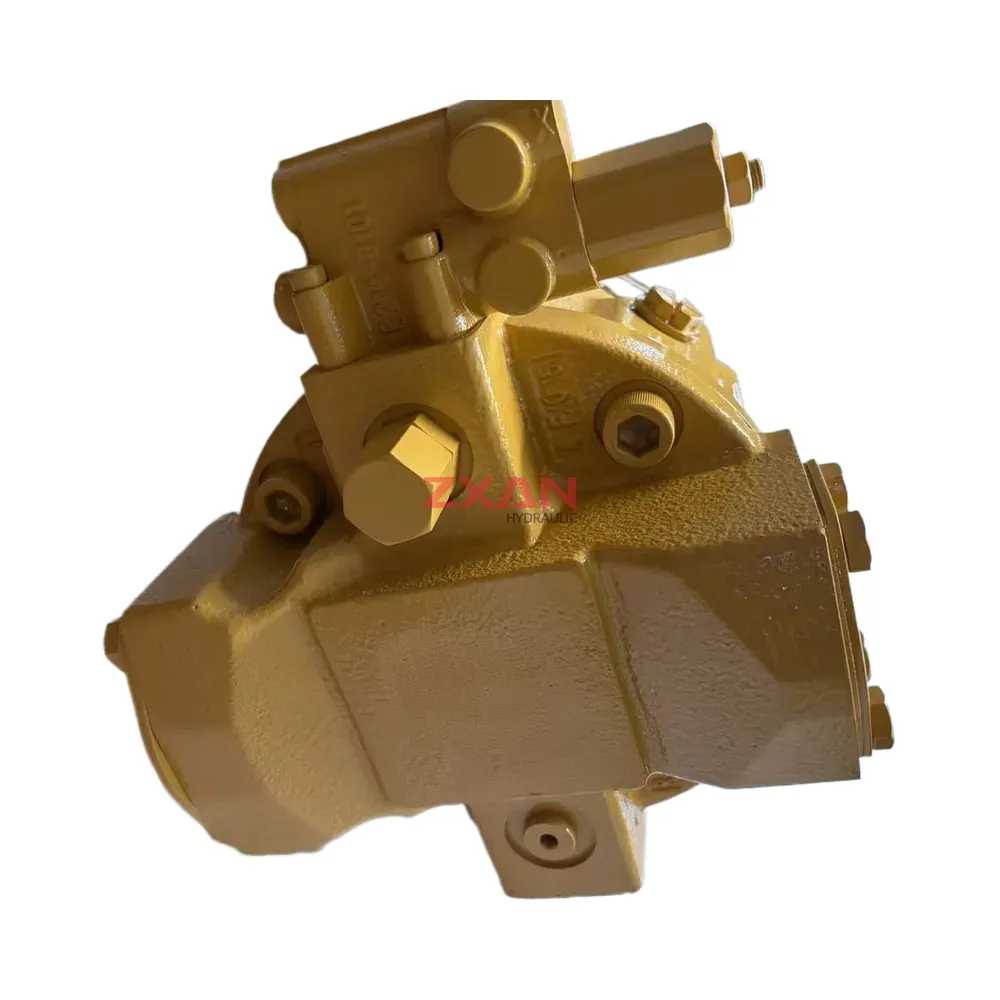

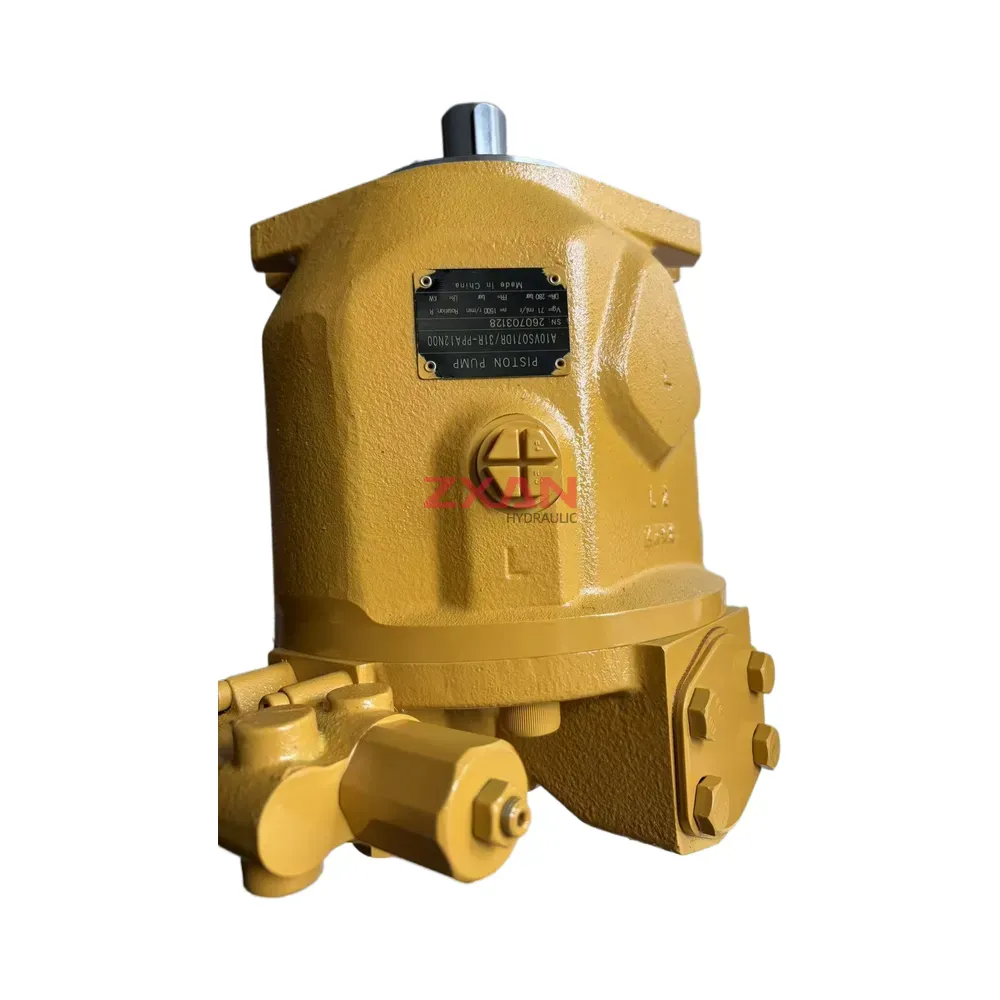

A10VSO71DR/31R-PPA12N00 Hydraulic Axial Piston Pump
Optimize your open-circuit hydraulic systems with the A10VSO71DR/31R-PPA12N00 Variable Axial Piston Pump. Delivering a 71 ml/rev displacement, 280 bar rated pressure, and integrated DR pressure control, this robust pump ensures reliable, energy-efficient performance for heavy-duty industrial machinery.
A10VSO71DR/31R-PPA12N00 Hydraulic Axial Piston Pump
The A10VSO71DR/31R-PPA12N00 is a premium variable displacement axial piston pump engineered for high efficiency in open circuit hydraulic systems. Utilizing a robust swashplate design, this pump provides reliable and continuous fluid power for a variety of demanding industrial and mobile applications. It boasts a maximum displacement of 71 ml/rev and operates at a nominal rated pressure of 280 bar, with the structural integrity to handle peak pressures up to 350 bar. Designed for straightforward installation, the unit features a standard flange mounting with a keyed drive shaft, a ported end cover, and an integrated DR pressure control valve block to ensure precise system regulation and optimal energy efficiency.
Technical Specifications:
- Model: A10VSO71DR/31R-PPA12N00
- Pump Type: Variable displacement axial piston pump (Open circuit)
- Maximum Displacement (Vgmax): 71 ml/r
- Rated Pressure (PN): 280 bar
- Maximum Pressure (PN max): 350 bar
- Maximum Drive Speed (nmax): 1800 r/min
- Mounting: Flange (FL) with keyed drive shaft
- Control Valve: Integrated DR (Pressure Control) block
| Model | A10VSO71DR/31R-PPA12N00 |
|---|
