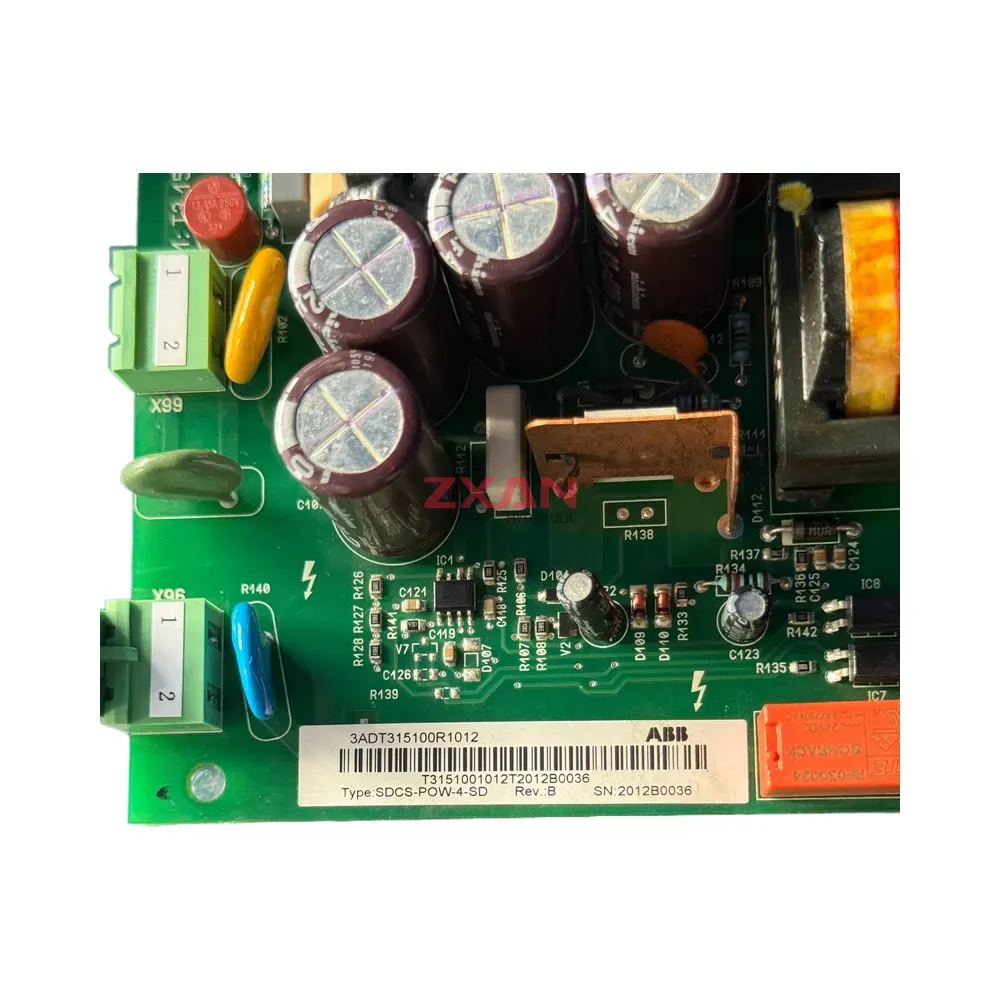

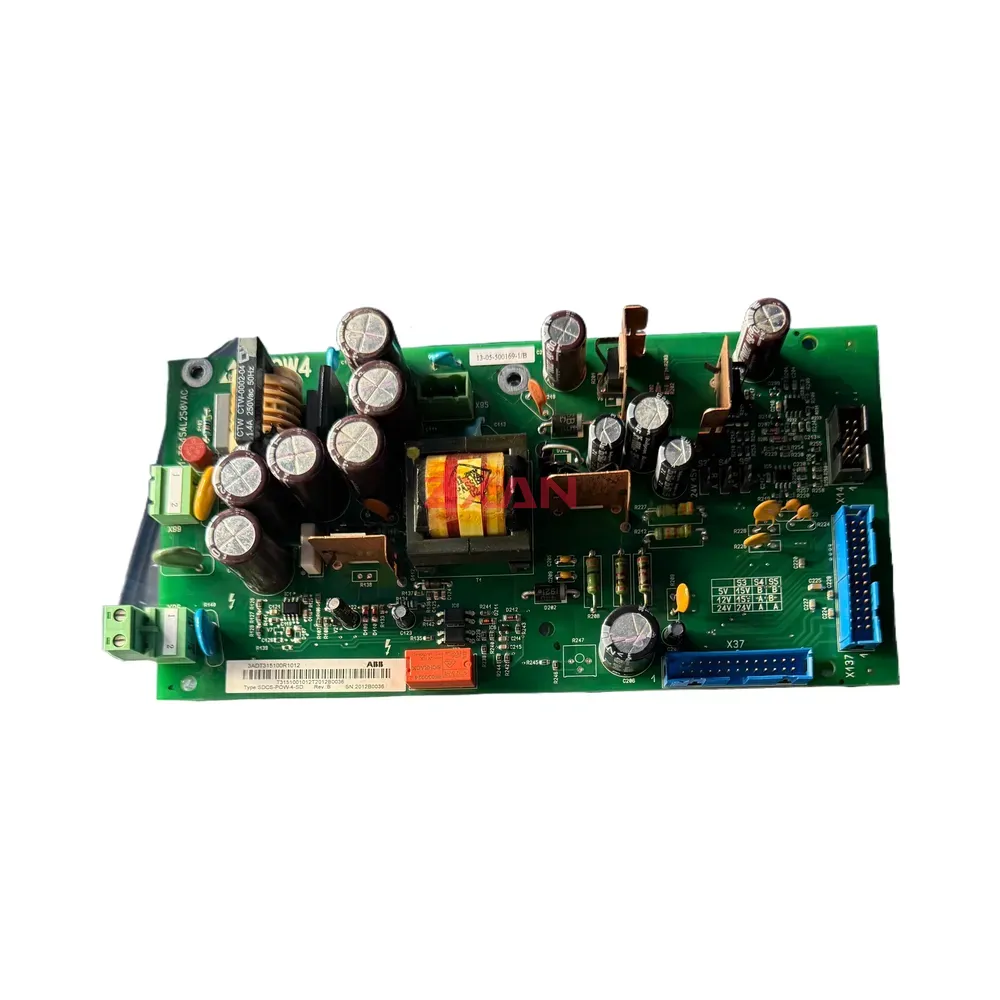

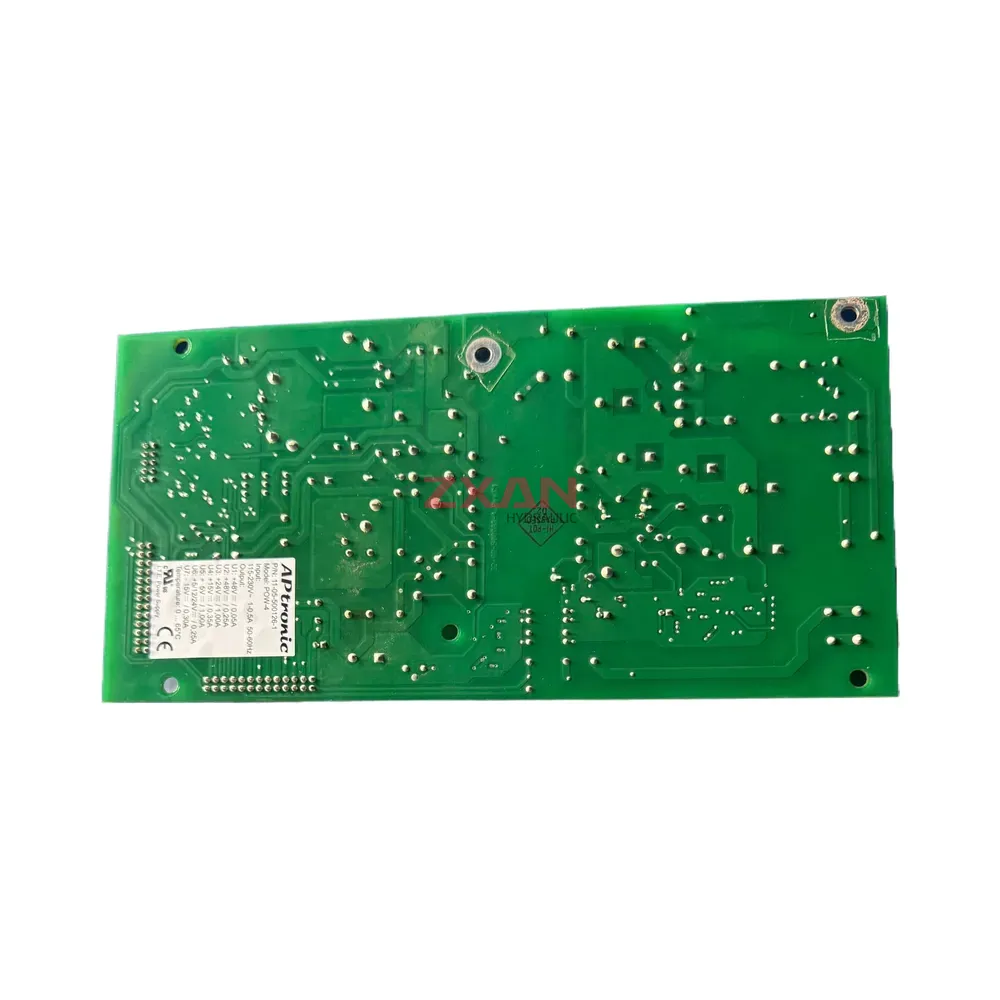

ABB 3ADT315100R1012 / SDCS-POW-4-SD Power Supply Board
Genuine ABB 3ADT315100R1012 (SDCS-POW-4-SD) Power Supply Board for DCS500 and DCS600 series DC drives. Features 100-240VAC input and multiple regulated DC outputs (+5V, ±15V, ±24V) for reliable, industrial-grade automation control.
ABB 3ADT315100R1012 / SDCS-POW-4-SD Power Supply Board
The ABB 3ADT315100R1012 (Type SDCS-POW-4-SD) is a high-performance power supply board engineered specifically for ABB DCS500 and DCS600 series industrial DC drive systems. Designed to deliver stable and continuous power to critical control circuits, this board accommodates a wide input voltage range of 100-240V AC (50-60Hz). It features multiple precisely regulated DC outputs, including +5Vdc, ±15Vdc, and ±24Vdc, ensuring optimal compatibility with complex drive architectures. Constructed with robust transformers, high-quality capacitors, and versatile input/output terminals, this Revision B power supply board guarantees exceptional reliability in demanding industrial automation environments. It is fully certified to CE and UL (File No. E195648) safety standards.
Technical Specifications:
- Brand: ABB
- Model / Type: SDCS-POW-4-SD
- Part Number: 3ADT315100R1012 (Revision B)
- Equipment Compatibility: ABB DCS500 / DCS600 Series DC Drives
- Input Power: 100-240V~ 1.0/0.5A 50-60Hz
- Output 1 (O1): +5Vdc / 6.00A
- Output 2 & 3 (O2, O3): +15Vdc / 1.00A, -15Vdc / 1.00A
- Output 4 & 5 (O4, O5): +24Vdc / 1.00A, -24Vdc / 0.50A
- Certifications: CE, UL Recognized (File No. E195648)
| Brand | ABB |
|---|---|
| Model | 3ADT315100R1012 / SDCS-POW-4-SD |
