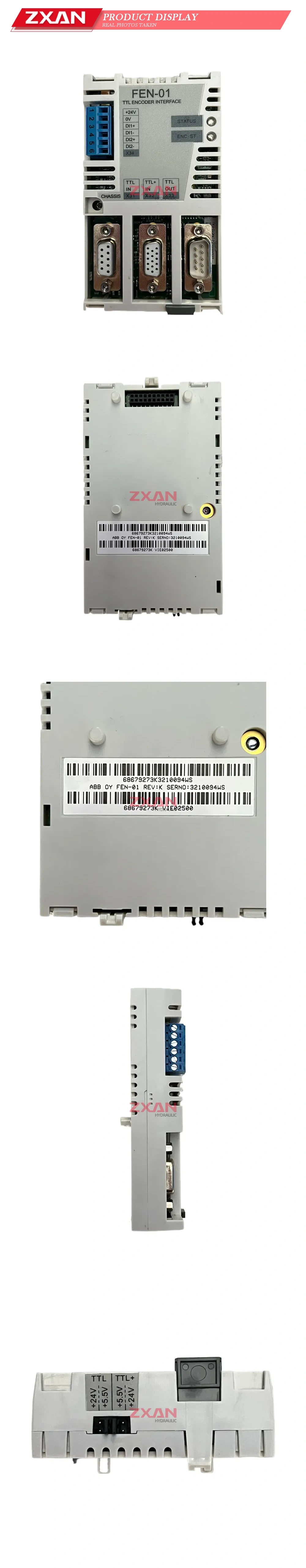

ABB FEN-01 TTL Encoder Interface Module
Optimize your industrial motor control with the ABB FEN-01 TTL Encoder Interface Module. Designed for seamless integration with ABB drive systems, this robust module features versatile D-sub connections, selectable +24V/+5.5V TTL voltages, and integrated LED diagnostics to deliver precise and reliable encoder feedback.
ABB FEN-01 TTL Encoder Interface Module

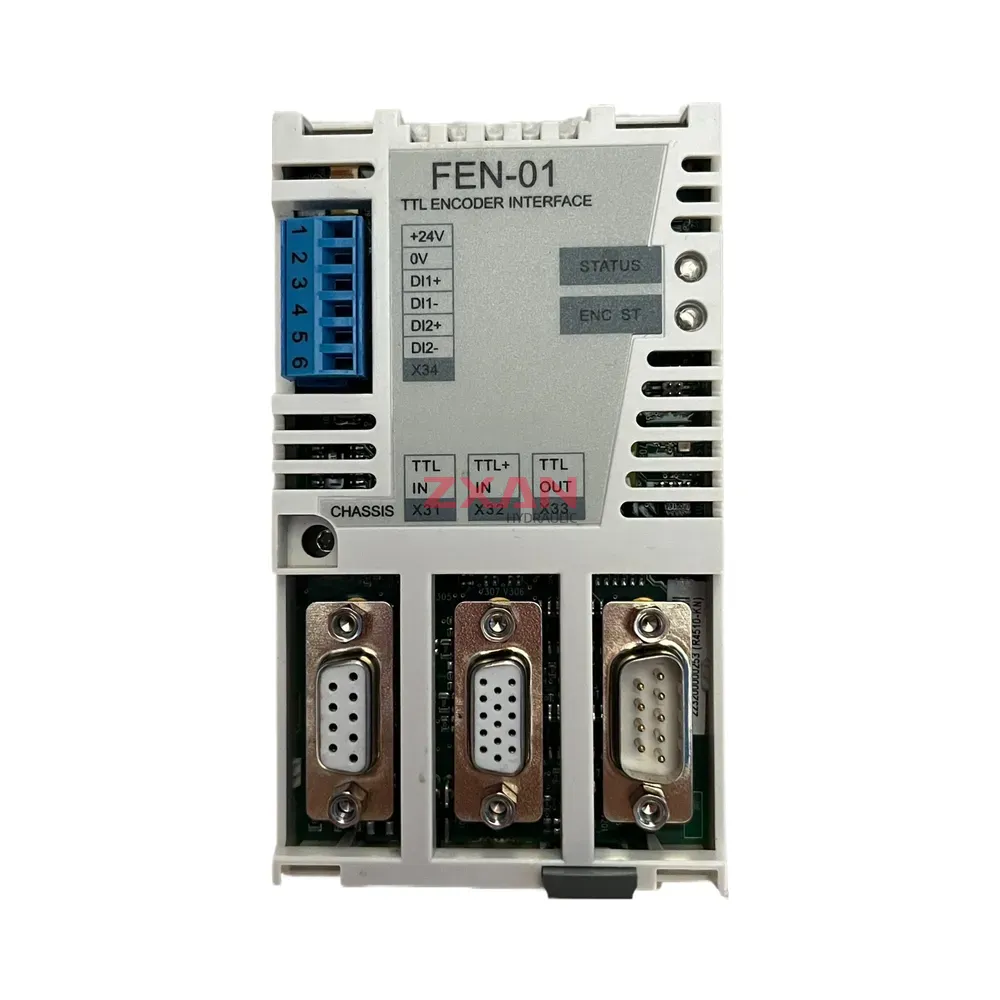

The ABB FEN-01 is a highly reliable TTL encoder interface module expertly designed for integration into industrial drive systems. This module facilitates precise speed and position feedback, which is essential for optimal motor control. It is equipped with three D-sub connectors clearly labeled for TTL IN (X31), TTL+ IN (X32), and TTL OUT (X33). Furthermore, the FEN-01 includes a convenient 6-position removable terminal block dedicated to power supply connections (+24V, 0V) and digital inputs (DI1+, DI1-, DI2+, DI2-). Built-in STATUS and ENC ST LEDs provide instant visual diagnostics to ensure seamless operation and quick troubleshooting. The module’s top interface also supports selectable voltage configurations, accommodating both +24V and +5.5V for TTL signals, making it highly adaptable to various industrial automation applications.
Technical Specifications:
- Brand: ABB
- Model: FEN-01
- Product Type: TTL Encoder Interface Module
- Interfaces: 3 x D-sub Connectors (TTL IN X31, TTL+ IN X32, TTL OUT X33)
- Terminal Block: 6-position removable (Power: +24V, 0V | Digital Inputs: DI1+, DI1-, DI2+, DI2-)

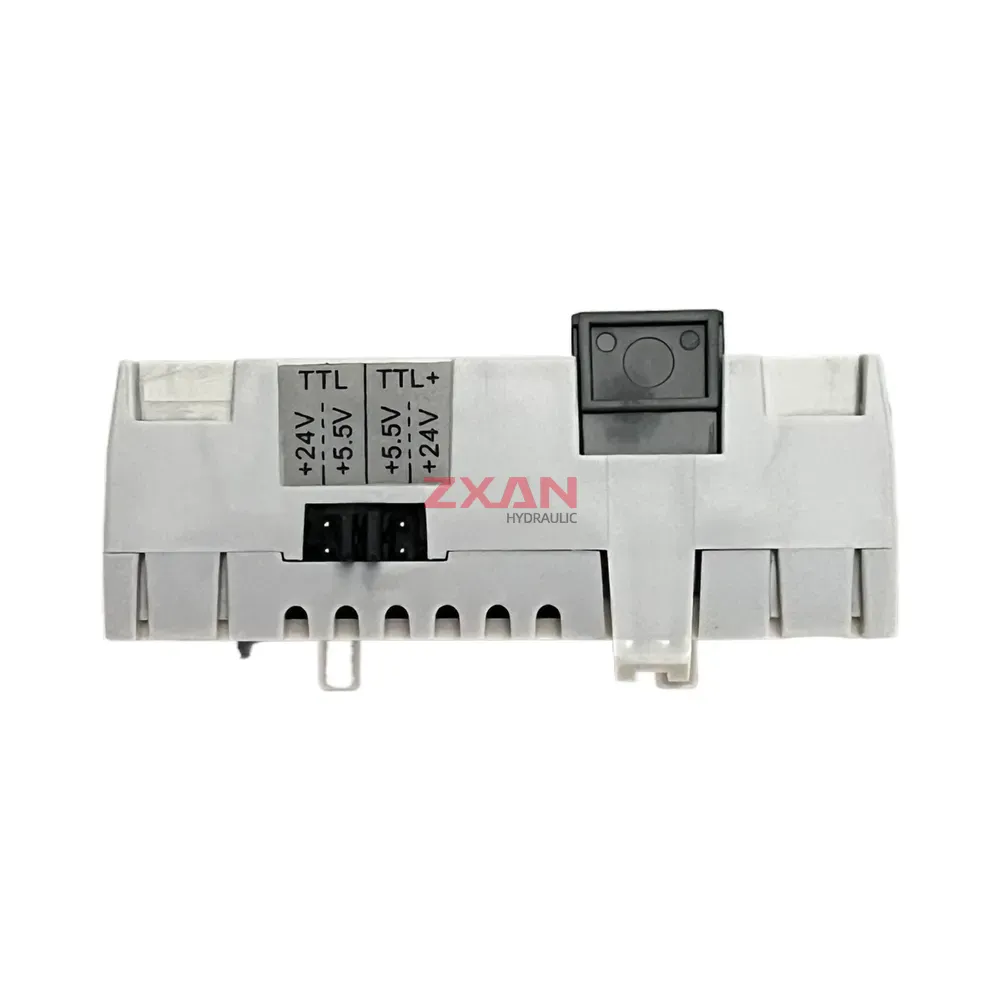

- Voltage Selection: Selectable +24V and +5.5V for TTL signals
- Diagnostics: Integrated STATUS and ENC ST LEDs

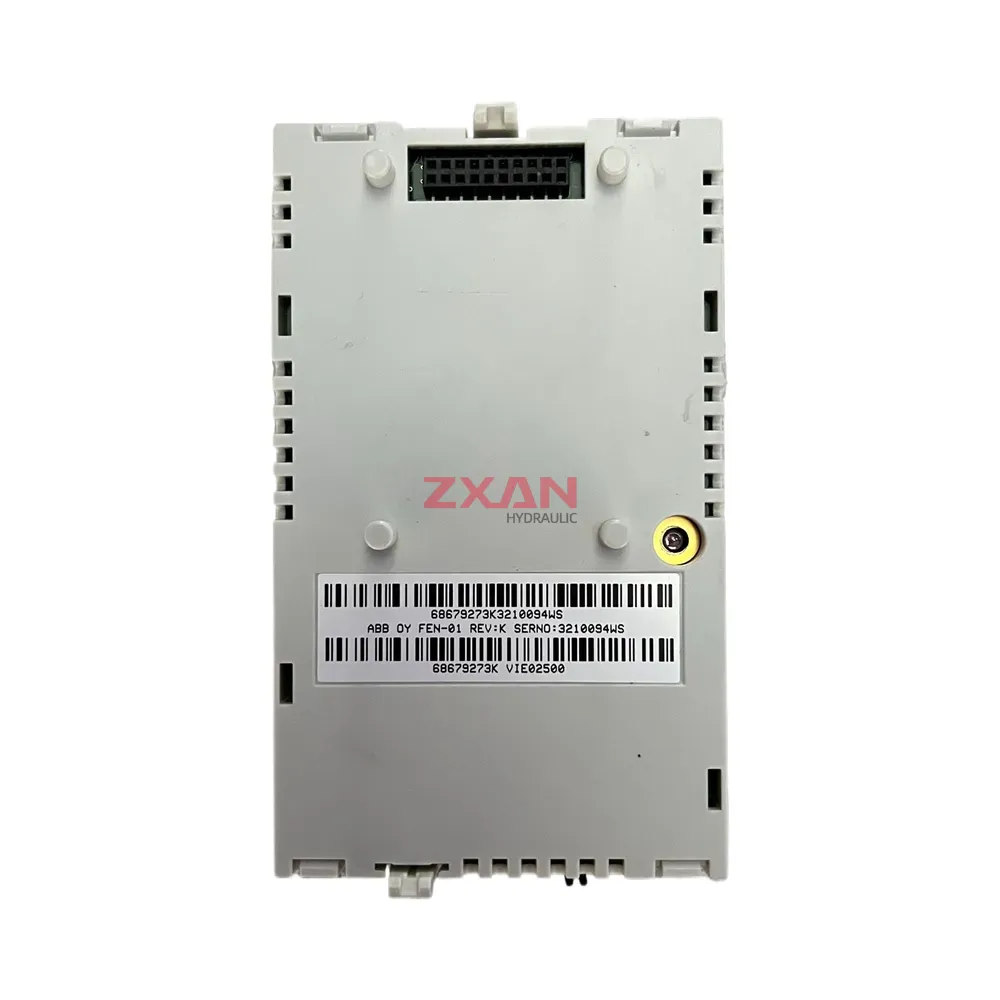

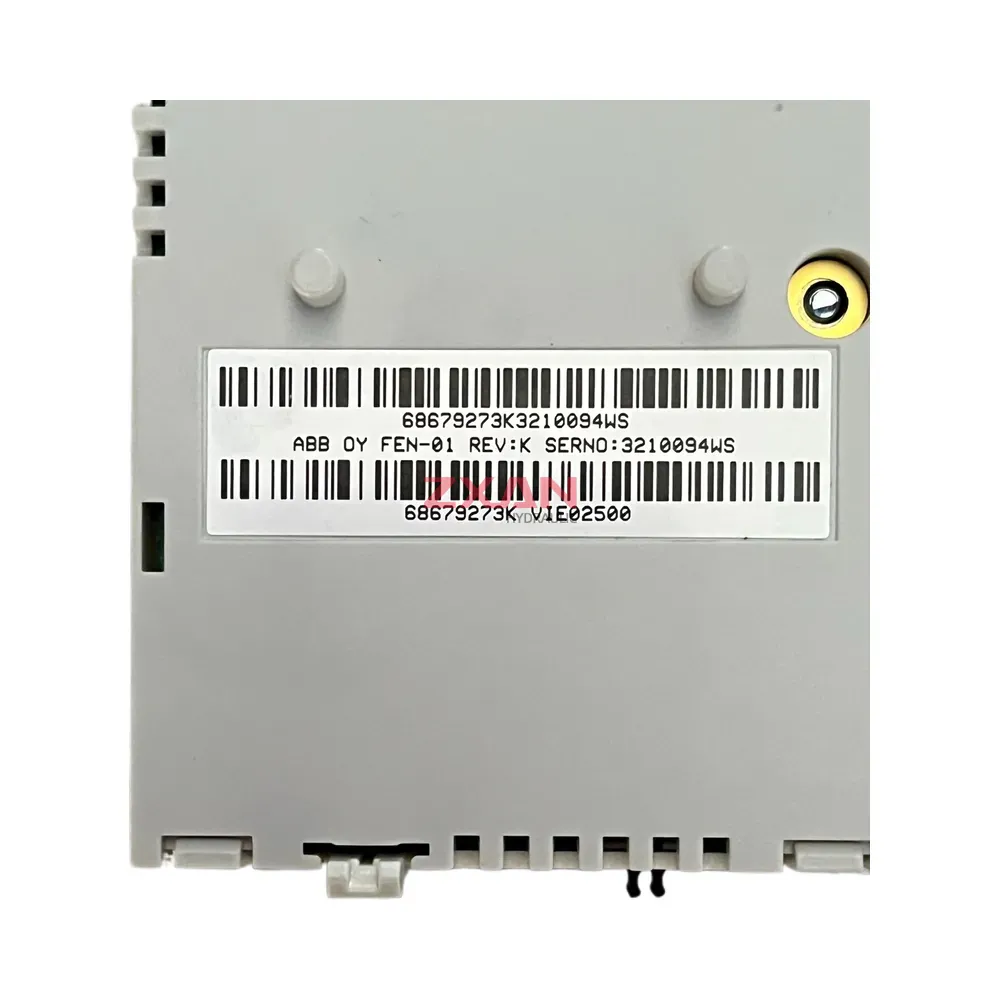

- Part Number: 68679273
| Brand | ABB |
|---|---|
| Model | FEN-01 |
