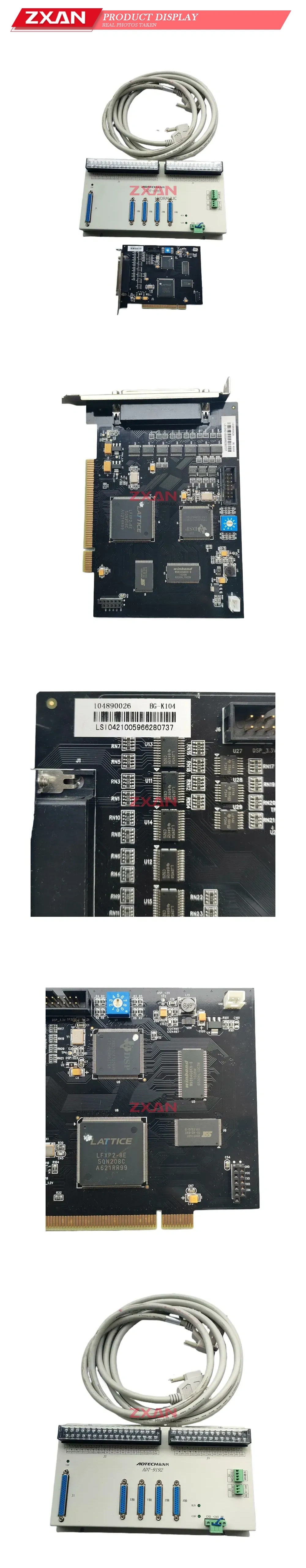

ADTECH ADT-9192 4-Axis Motion Control Card System
High-performance ADTECH ADT-9192 4-axis PCI motion control card system with DSP and FPGA. Ideal for CNC and industrial automation applications, includes an external terminal box for easy integration.
ADTECH ADT-9192 4-Axis Motion Control Card System

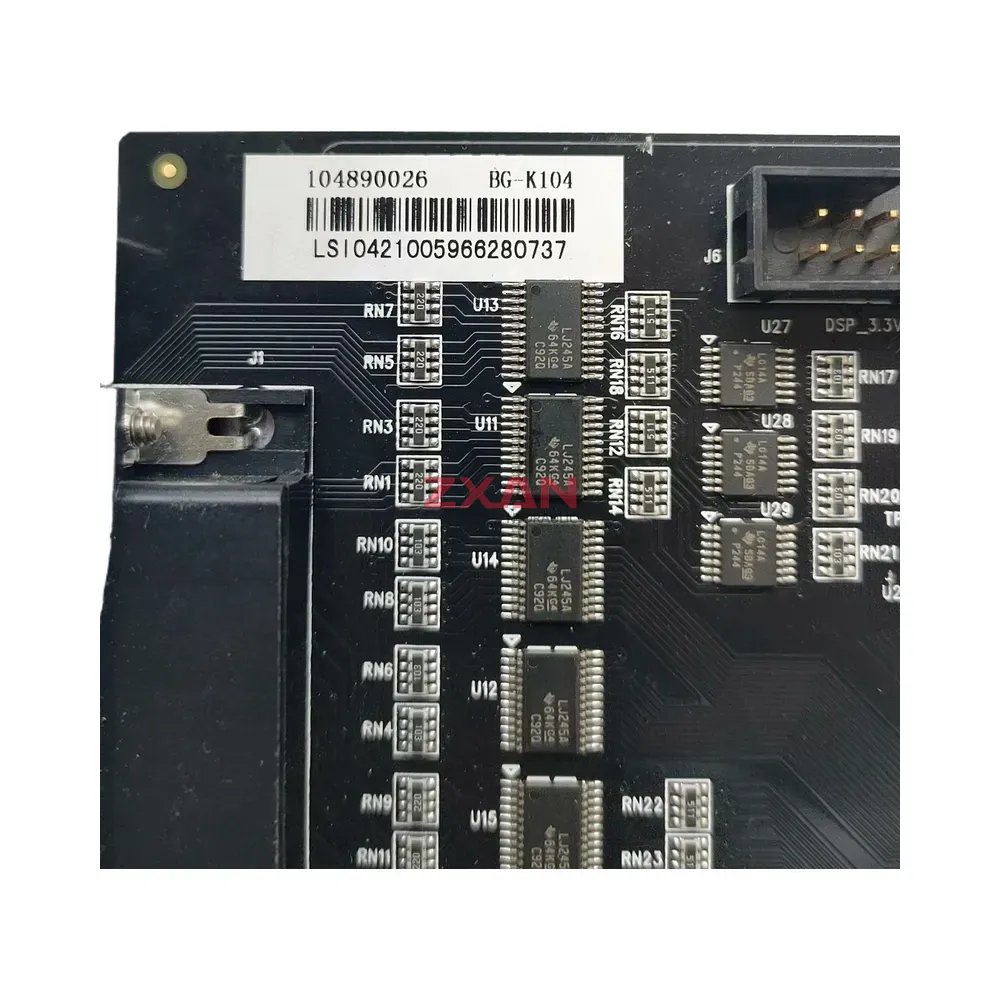

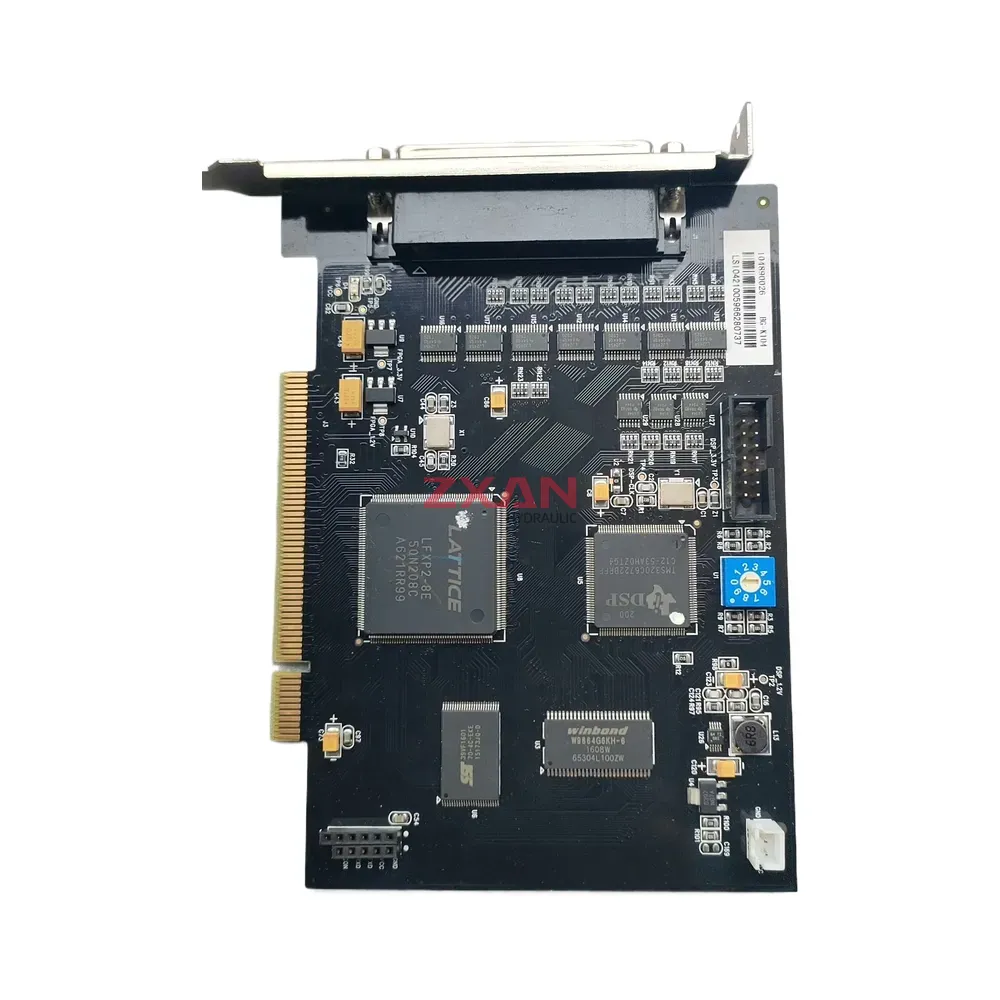

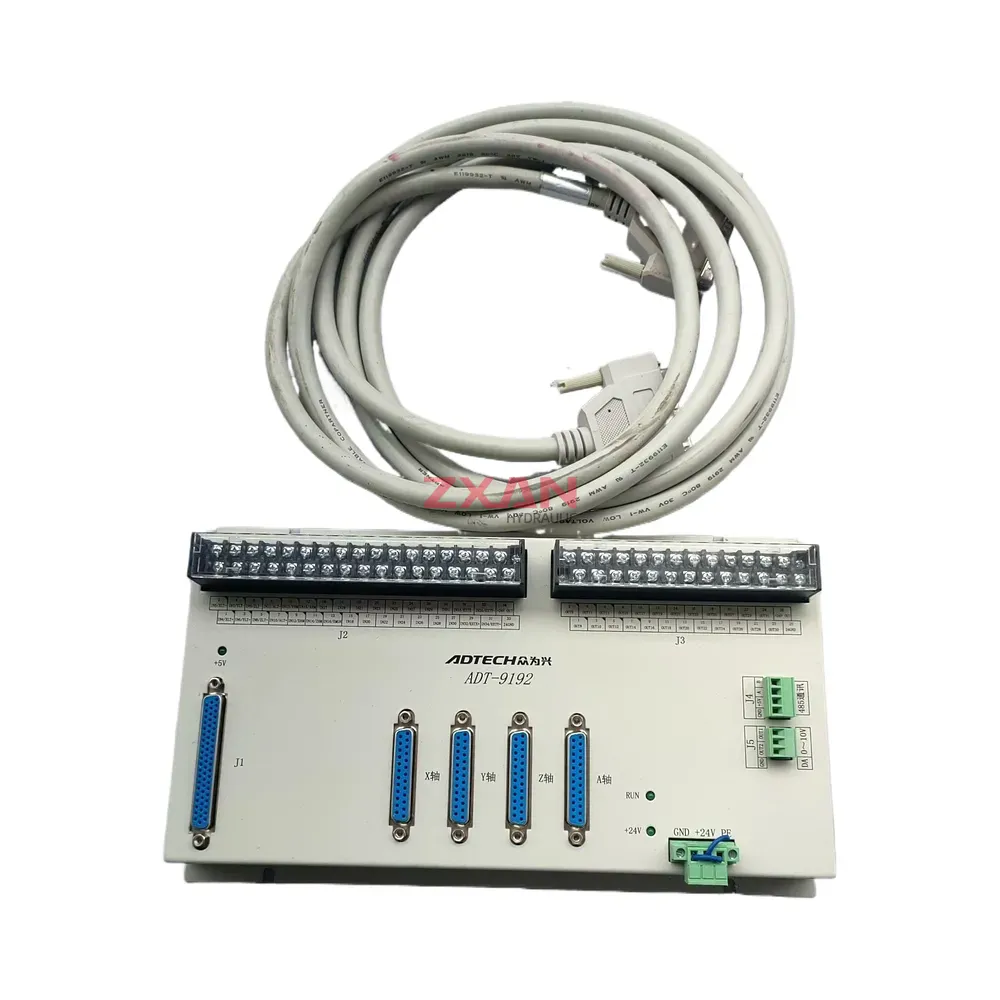

The ADTECH ADT-9192 is a robust 4-axis motion control system designed for demanding industrial automation and CNC applications. This system comprises a powerful PCI interface card and a convenient external terminal breakout box. The internal card is engineered with a high-performance DSP processor (TMS320F2812) and a Lattice FPGA, ensuring precise and reliable real-time control. The external unit simplifies wiring by providing dedicated DB25 connectors for four axes (X, Y, Z, A) and screw terminal blocks for general-purpose I/O and a stable 24V power supply. Ideal for retrofitting or building new automated machinery, the ADT-9192 offers a comprehensive solution for complex motion control tasks.
Technical Specifications:
- Model: ADT-9192
- Controlled Axes: 4 axes (X, Y, Z, A)
- Host Interface: PCI Bus

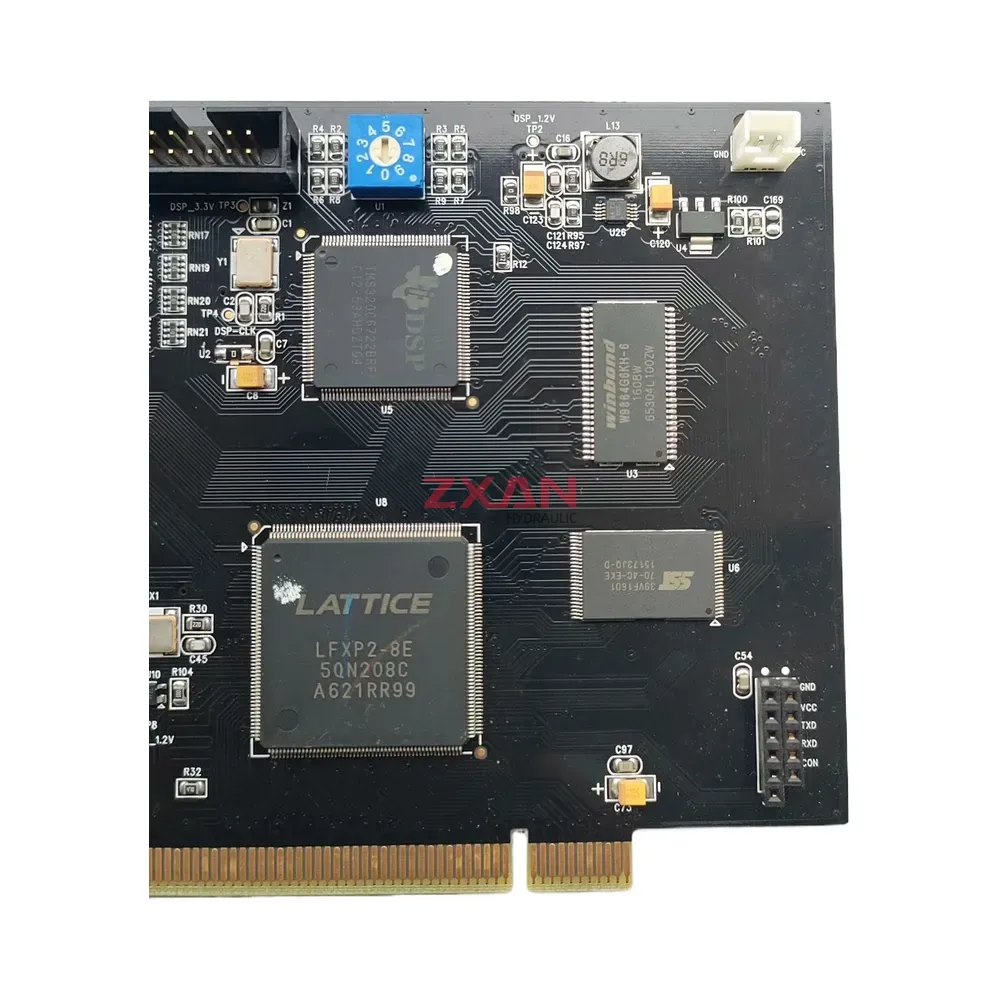

- Core Processors: DSP (TMS320F2812) & FPGA (Lattice LFXP2-8E)

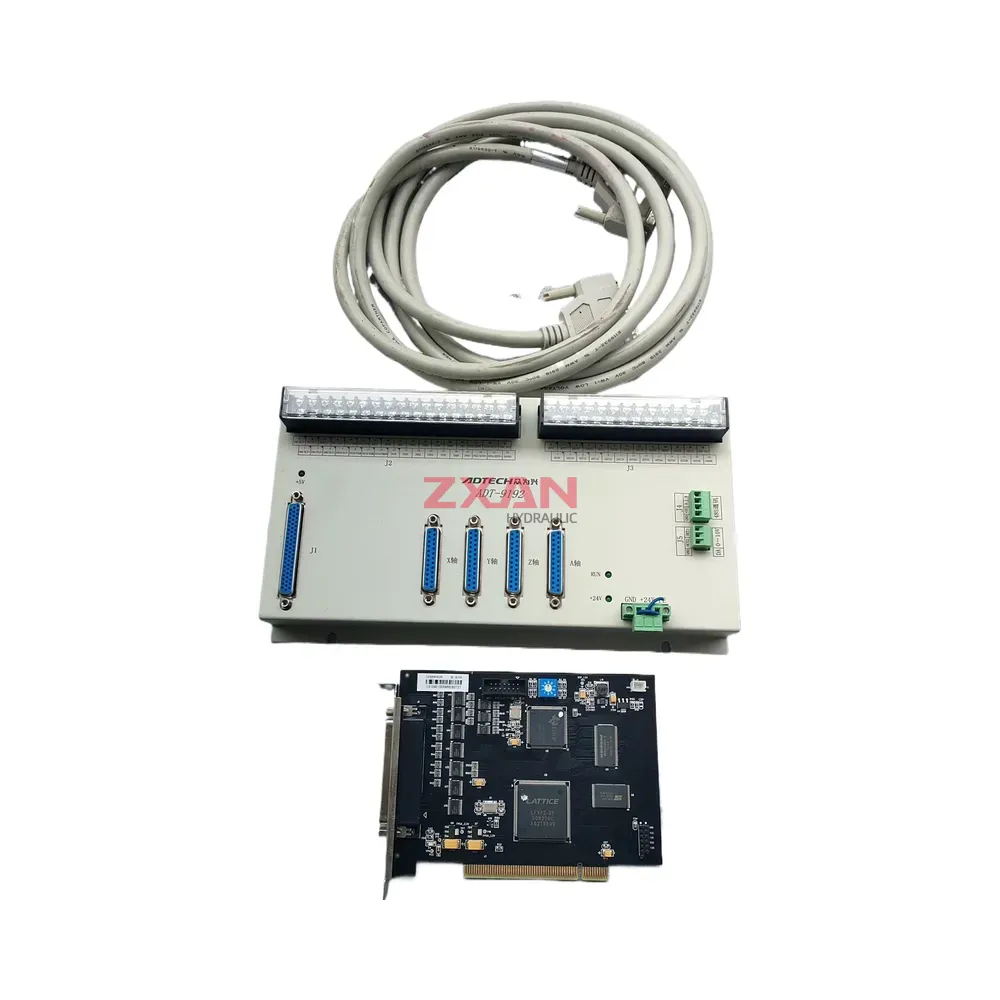

- System Components: Internal PCI Card and External Terminal Breakout Box
- Connectivity: DB25 connectors for axis control, screw terminals for general I/O
- Power Input: 24V DC
- Applications: CNC machinery, industrial automation, robotic control, motion systems
| Brand | ADTECH |
|---|---|
| Model | ADT-9192 |
