Allen-Bradley 1769-OB16 DC Sourcing Output Module
Upgrade your control system with the Allen-Bradley 1769-OB16 Compact I/O 16-Point DC Sourcing Output Module. Featuring a 20.4-26.4V DC operating range, Series B reliability, and Class I Div 2 hazardous location certification, this module is perfect for demanding industrial automation applications.
Allen-Bradley 1769-OB16 DC Sourcing Output Module

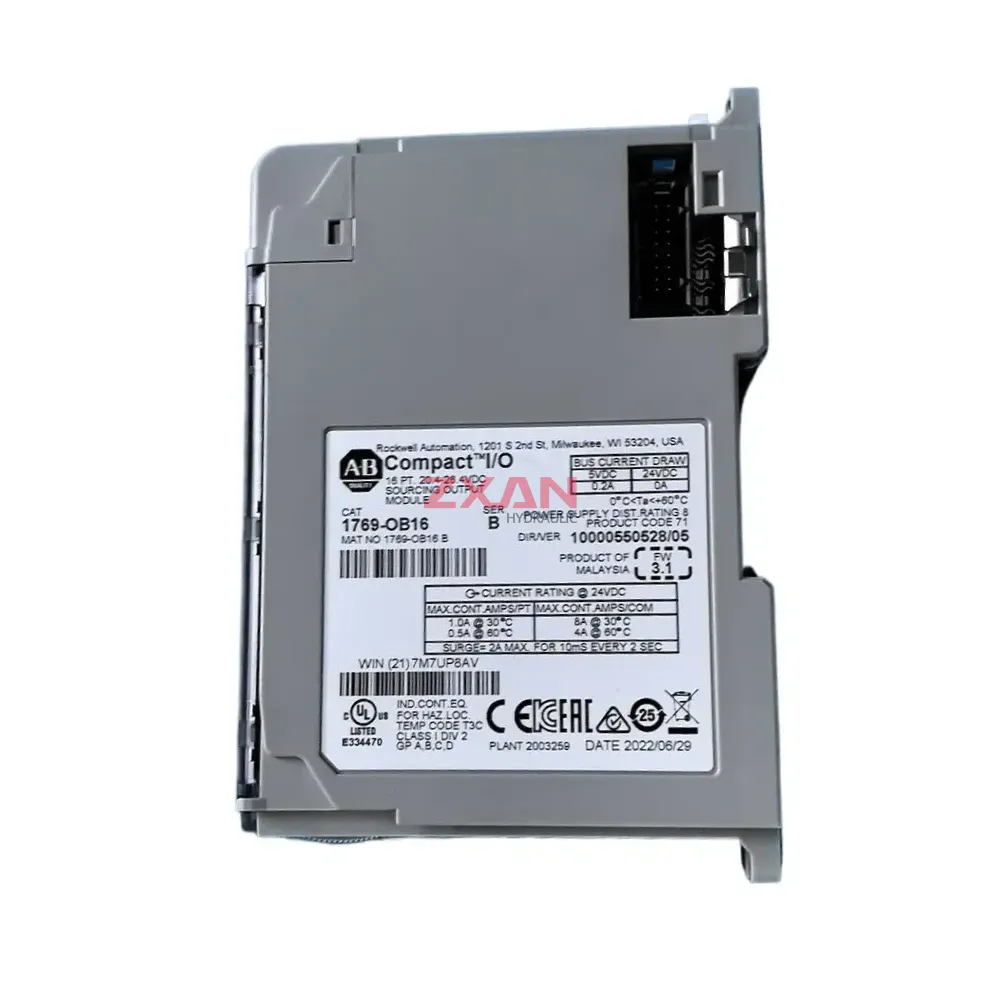

The Allen-Bradley 1769-OB16 is a highly reliable Compact I/O 16-point DC sourcing output module designed for seamless integration with Rockwell Automation programmable logic controllers. Operating within a voltage range of 20.4 to 26.4V DC, this Series B module delivers robust performance for modern industrial automation applications. It features a maximum continuous current of 1.0A per point at 30°C (0.5A at 60°C) and is engineered to withstand surges up to 2A for 10ms every 2 seconds. Certified for use in hazardous locations (Class I, Div 2, Groups A, B, C, D) with a T3C temperature code, the 1769-OB16 ensures maximum safety, efficiency, and longevity in demanding control environments.
Technical Specifications:
- Brand/Manufacturer: Allen-Bradley / Rockwell Automation
- Model/Catalog Number: 1769-OB16 (Series B)
- Module Type: Compact I/O 16-Point DC Sourcing Output Module
- Operating Voltage Range: 20.4 – 26.4V DC
- Bus Current Draw: 0.2A @ 5V DC / 0A @ 24V DC
- Max Continuous Current per Point: 1.0A @ 30°C / 0.5A @ 60°C
- Max Continuous Current per Common: 8A @ 30°C / 4A @ 60°C
- Surge Rating: 2A max for 10ms every 2 sec
- Power Supply Distance Rating: 8 modules
- Firmware Version: 3.1
- Certifications: UL Listed (E334470), Class I Div 2 (Groups A, B, C, D), Temp Code T3C
| Brand | Allen-Bradley |
|---|---|
| Model | 1769-OB16 |
