Aventics AS5-FRE-G1DD

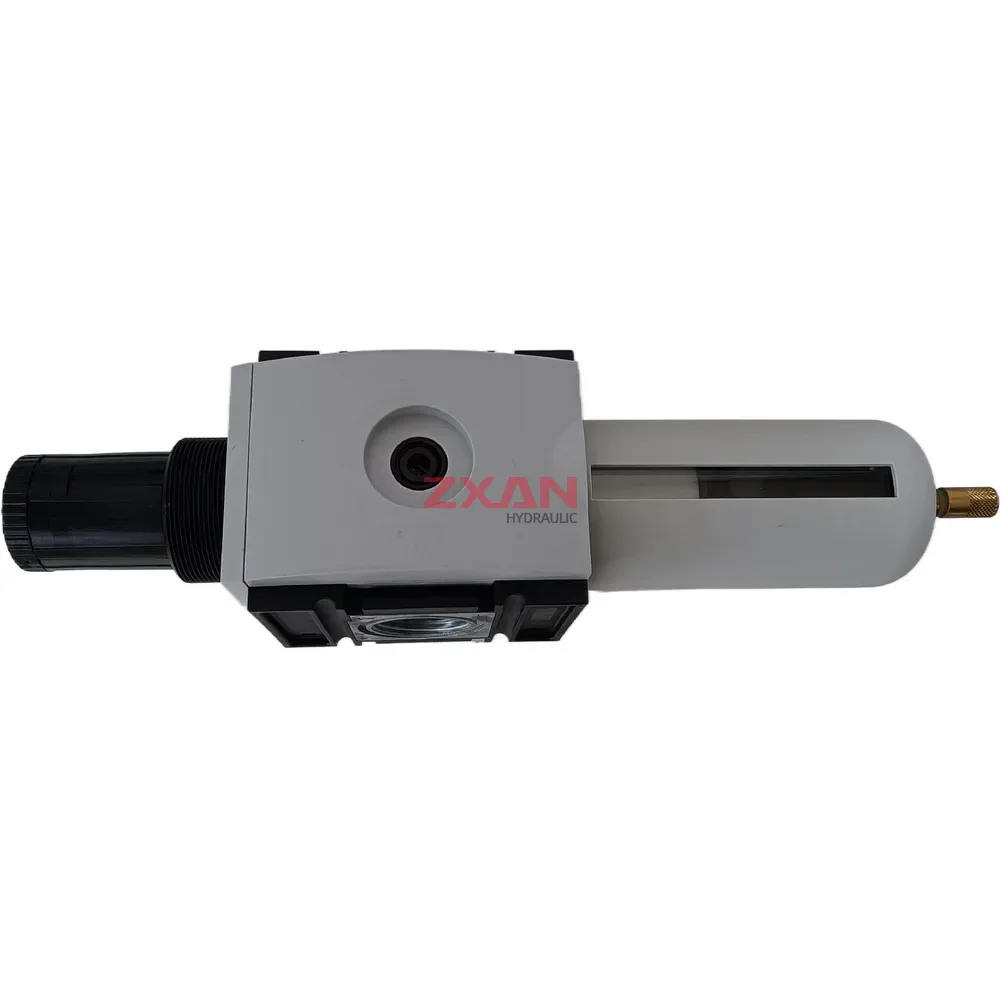

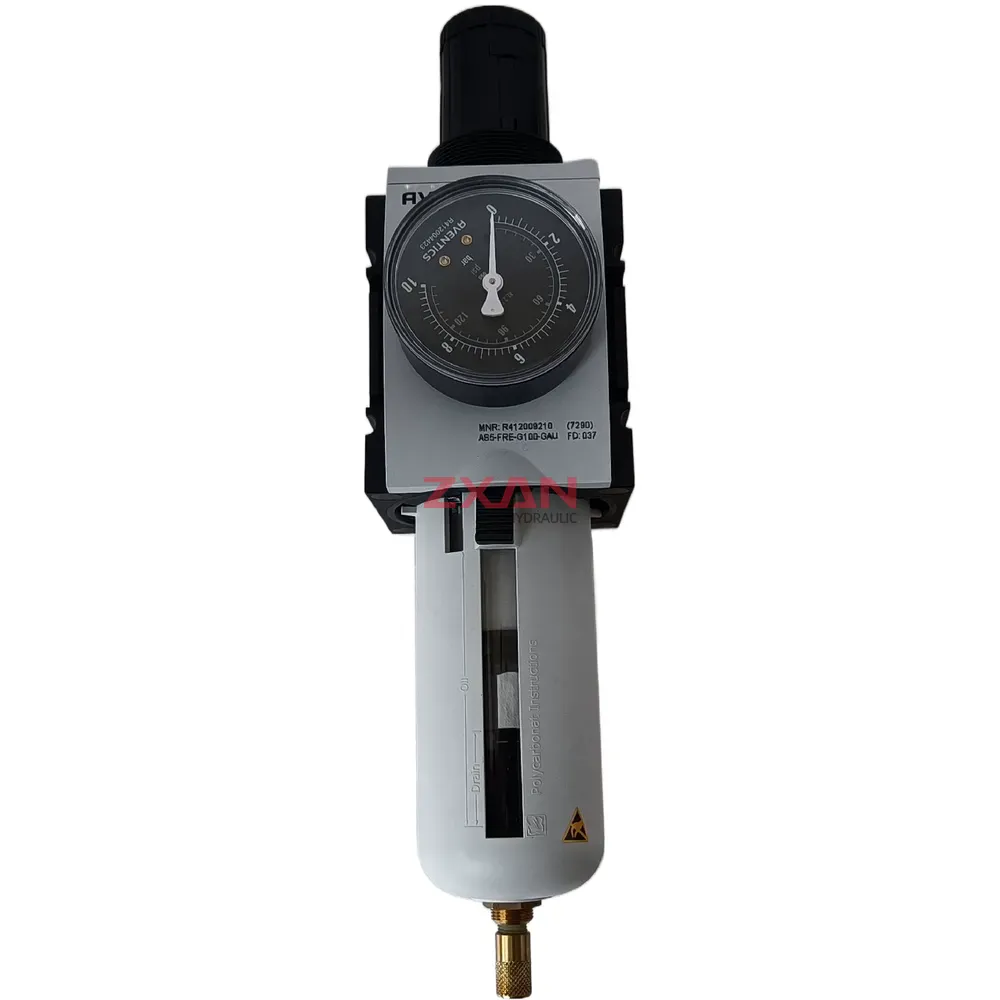

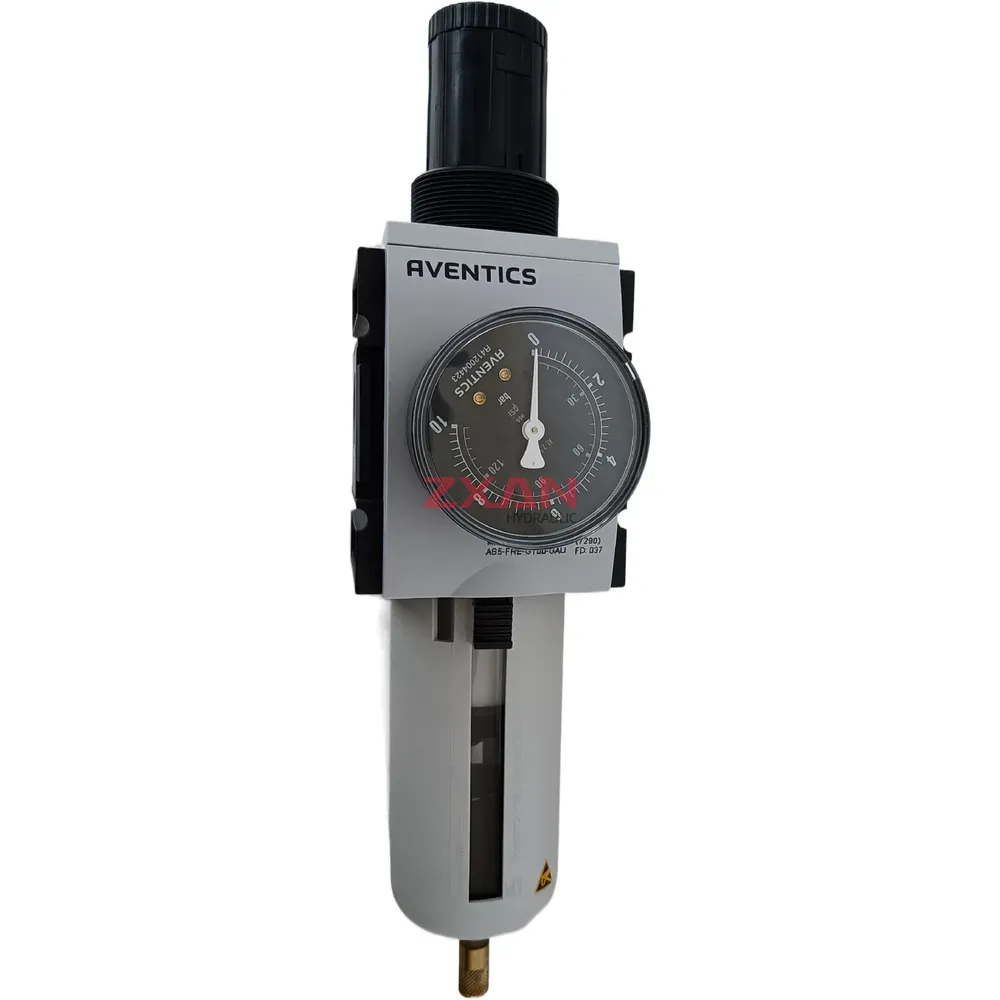

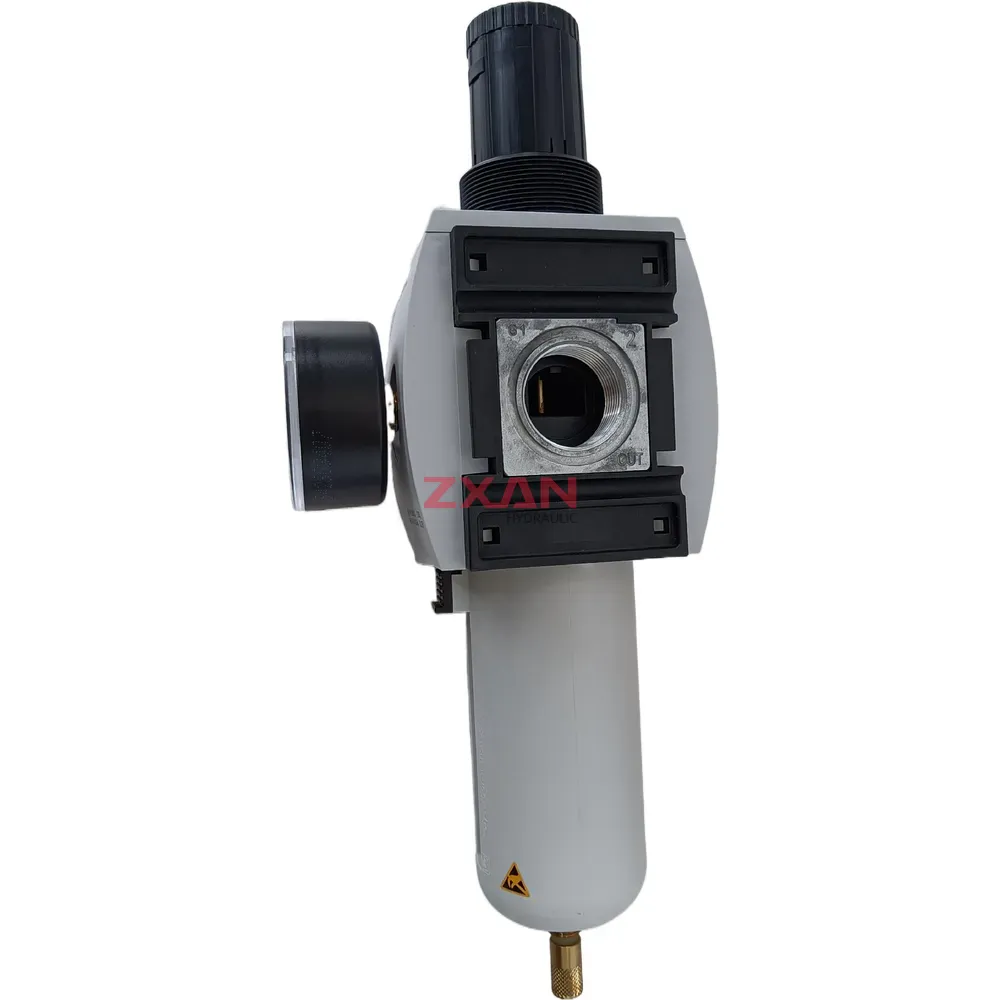

The Aventics AS5-FRE-G1DD is a high-performance filter regulator unit designed for compressed air preparation in demanding industrial applications. As part of the AS5 series, this component combines a filter and a pressure regulator into a single, space-saving device. It effectively removes solid particle contaminants and condensate from the compressed air supply while precisely regulating the downstream pressure to a constant, user-defined level. Featuring a robust polyamide housing, a transparent polycarbonate bowl for easy inspection, and an integrated pressure gauge, the AS5-FRE-G1DD ensures reliable operation and protects sensitive pneumatic equipment from damage, contributing to system longevity and efficiency.
Technical Specifications:
- Series: AS5
- Type: Filter Regulator
- Port Connection: G1

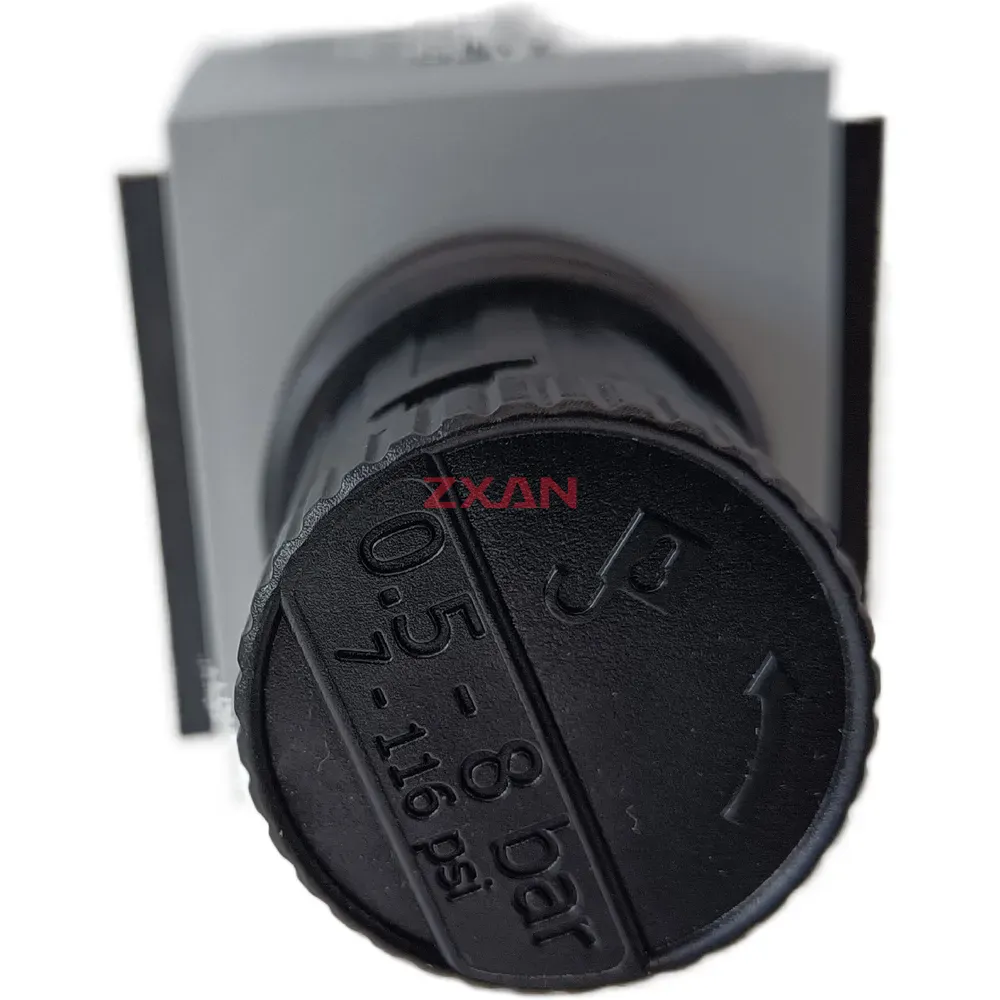

- Pressure Regulation Range: 0.5 bar – 12 bar
- Maximum Inlet Pressure: 16 bar
- Nominal Flow Rate (at 6 bar, Δp=1 bar): 13500 l/min
- Filter Porosity: 5 µm
- Drain Type: Semi-automatic, open without pressure
- Pressure Gauge: Included
- Medium: Compressed Air
- Ambient/Medium Temperature Range: -10°C to +50°C
- Housing Material: Polyamide
- Bowl Material: Polycarbonate
| Brand | AVENTICS |
|---|---|
| Model | AS5-FRE-G1DD |
