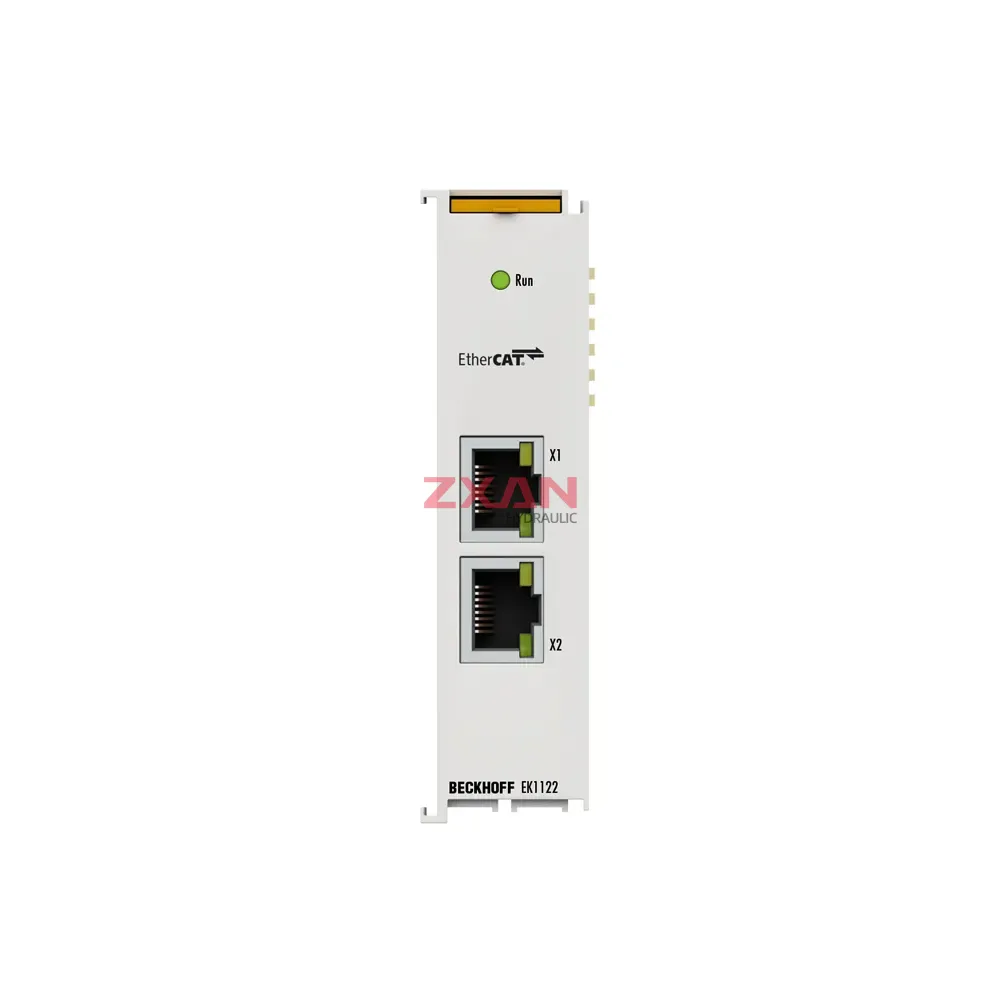

Beckhoff EK1122
High-performance Beckhoff EK1122 2-port EtherCAT junction for creating flexible star topologies in industrial networks. Features IP67 protection and M8 connectors for robust and reliable machine automation.
Beckhoff EK1122
The Beckhoff EK1122 is a versatile 2-port EtherCAT junction designed to create flexible network topologies within industrial automation systems. This compact module enables the configuration of EtherCAT star topologies, allowing for the branching of an EtherCAT line to connect different machine modules or segments. It can be placed anywhere between EtherCAT Terminals (EL/ES) and converts the 100BASE-TX physics to E-bus signal representation. A station consists of a coupler and the connected EtherCAT Terminals. The EK1122 is connected to the network via an M8 connector, and another M8 socket allows for the optional connection of further EtherCAT devices in the same segment. Its robust IP67-rated housing makes it suitable for direct installation in harsh industrial environments.
Technical Specifications:
Task: 2-port EtherCAT junction
Bus interface: 2 x M8 socket, shielded
Data transfer rates: 100 Mbit/s
Power supply: Via E-bus (typ. 100 mA consumption)
Protection class: IP67
| Brand | Beckhoff |
|---|---|
| Model | EK1122 |
