BIT-500-B.00/842-072 Industrial Communication Board
Optimize your industrial networking with the BIT-500-B.00/842-072 LCOM Communication Board. Featuring RS232, CAN bus, and Ethernet interfaces, this reliable module delivers secure data transmission, easy DIP switch configuration, and comprehensive LED diagnostics for advanced automation systems.
BIT-500-B.00/842-072 Industrial Communication Board

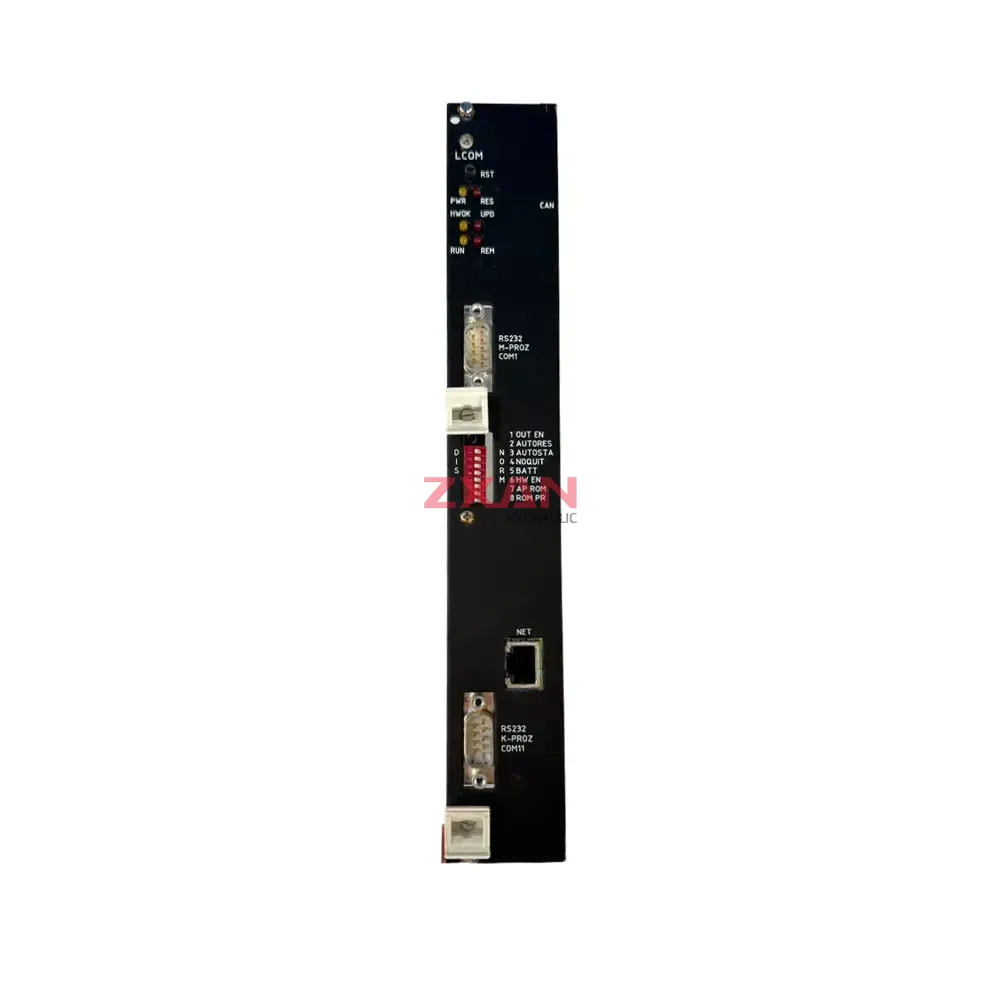

The BIT-500-B.00/842-072 is a robust LCOM industrial communication module engineered for seamless data exchange and advanced automation system integration. This versatile board supports multiple communication protocols, featuring RS232 interfaces (COM1 for H-PROZ and COM11 for K-PROZ), CAN bus, and Ethernet (NET) connectivity. To facilitate easy troubleshooting and real-time system monitoring, the module is equipped with dedicated status LEDs including PWR, RES, RUN, REM, H/WOK, and UPD. Additionally, an integrated 8-position DIP switch allows for precise on-site hardware configuration, making it highly adaptable for complex industrial networking environments. The board features secure D-sub connectors and terminal blocks to ensure stable and reliable physical connections.
Technical Specifications:
- Module Type: LCOM Industrial Communication Board
- Communication Interfaces: RS232 (H-PROZ COM1, K-PROZ COM11), CAN Bus, Ethernet (NET LAN)
- Hardware Configuration: 8-Position DIP Switch (1: OUT EN, 2: AUTORES, 3: AUTOSTA, 4: NOQUIT, 5: BATT, 6: H/W EN, 7: AP ROM, 8: ROM PR)
- Diagnostic Indicators: Status LEDs (PWR, RES, RUN, REM, H/WOK, UPD)

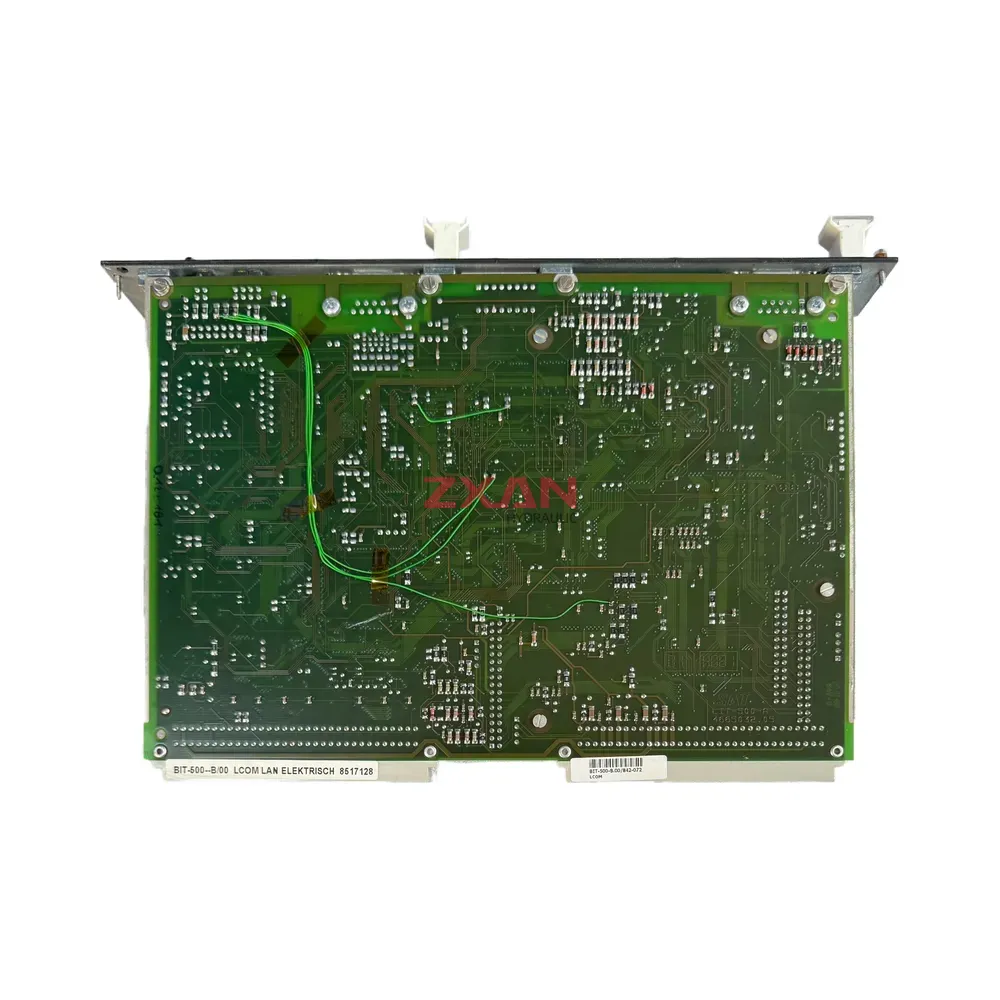

- Connection Types: D-sub connectors and industrial terminal blocks

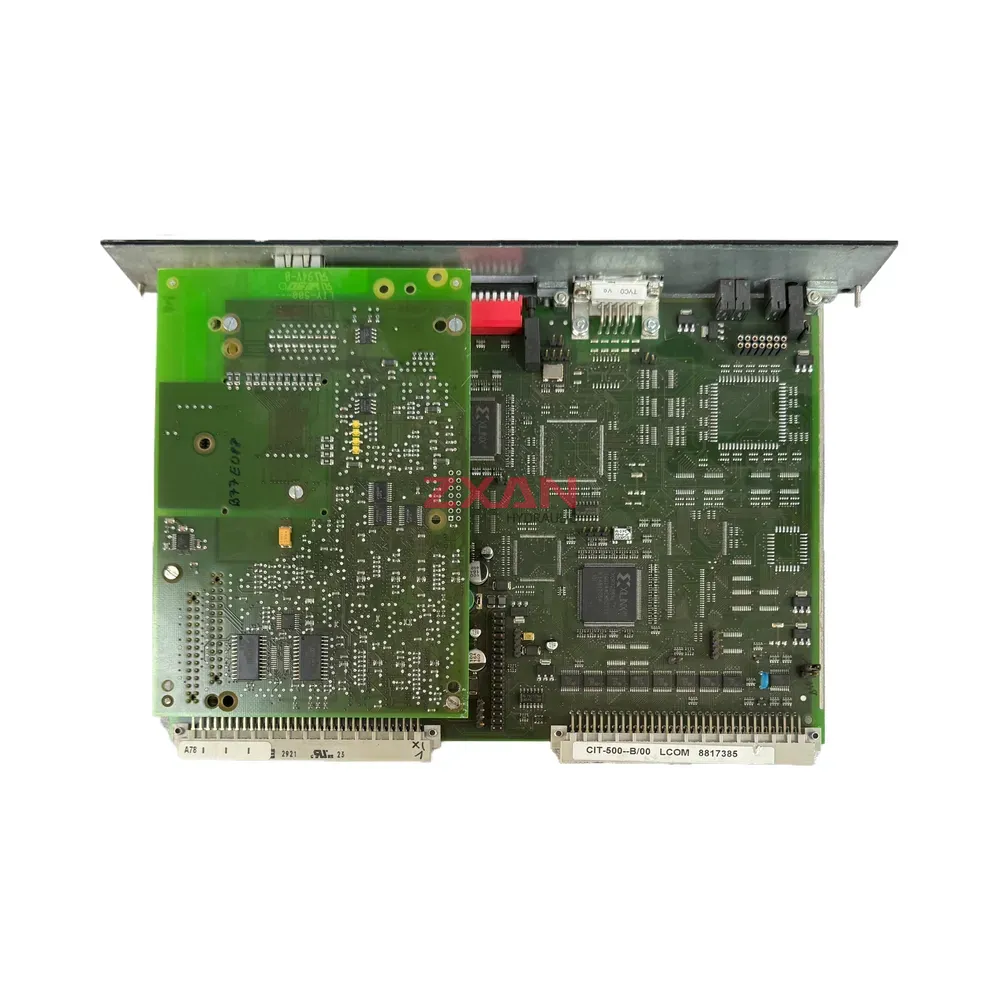

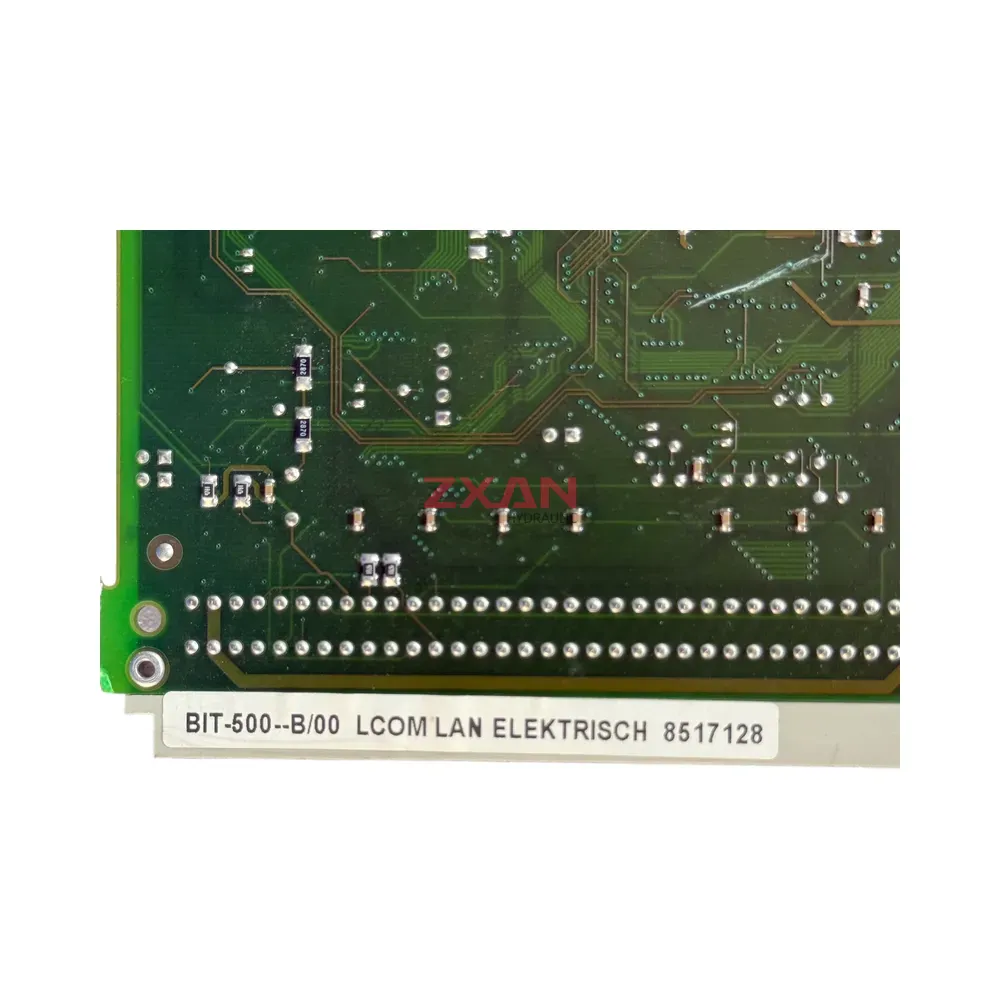

- Compatible Variants / Part Numbers: BIT-500–B/00 (8517128), CIT-500–B/00 (8817385)

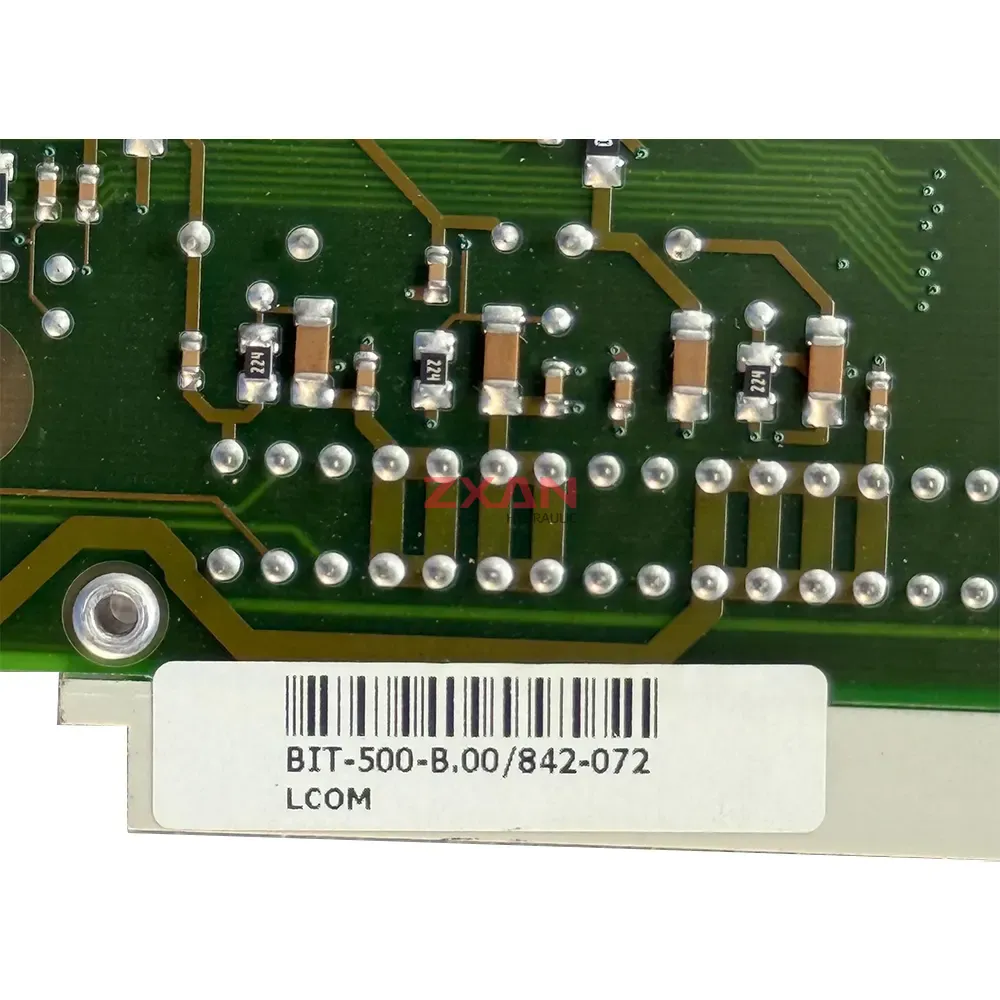

| Model | BIT-500-B.00/842-072 |
|---|
