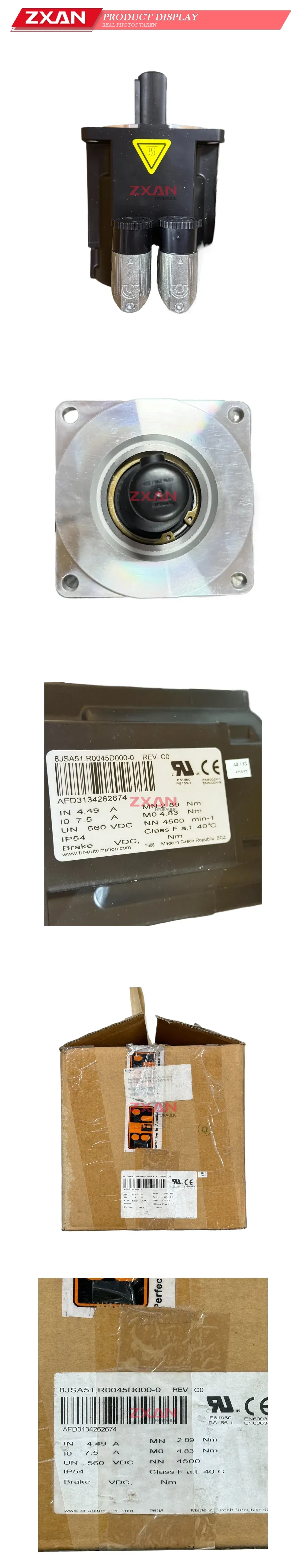

B&R 8JSA51.R0045D000-0 Servo Motor
Shop the B&R 8JSA51.R0045D000-0 Synchronous Servo Motor with integrated brake. This high-efficiency 560 VDC motor delivers 2.89 Nm nominal torque and 4500 RPM for precise industrial motion control. IP54 rated and CE/cRUus certified for reliable automation performance.
B&R 8JSA51.R0045D000-0 Servo Motor
The B&R 8JSA51.R0045D000-0 is a high-performance synchronous servo motor engineered for precision and reliability in advanced industrial automation systems. Manufactured by B&R Industrial Automation, this robust motor is equipped with an integrated holding brake and operates on a 560 VDC rated voltage. It delivers a nominal torque of 2.89 Nm and achieves a nominal speed of 4500 min-1, providing excellent dynamic response for demanding motion control and CNC applications. Designed for durability in harsh factory environments, the 8JSA51.R0045D000-0 features an IP54 protection rating and Class F insulation at a 40°C ambient temperature. It is fully certified with CE and cRUus standards, ensuring safe, efficient, and long-lasting operation across global manufacturing facilities.

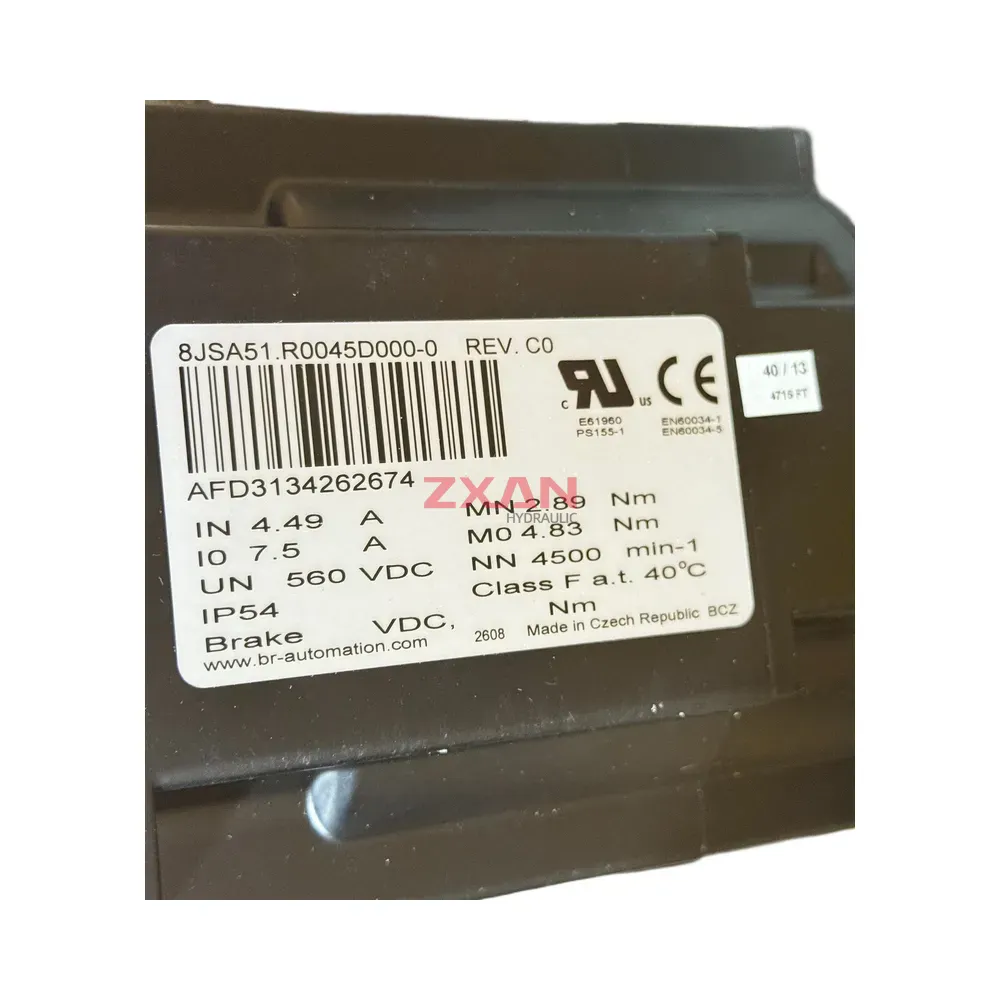

Technical Specifications:
- Brand: B&R Industrial Automation
- Model: 8JSA51.R0045D000-0
- Motor Type: Synchronous Servo Motor
- Rated Voltage (UN): 560 VDC
- Nominal Current (IN): 4.49 A
- Stall Current (I0): 7.5 A
- Nominal Torque (MN): 2.89 Nm
- Stall Torque (M0): 4.83 Nm
- Nominal Speed (NN): 4500 min-1 (RPM)
- Protection Class: IP54
- Insulation Class: Class F at 40°C Ambient Temperature
- Additional Features: Integrated Brake
- Certifications: CE (EN60034-1, EN60034-5), cRUus (E61960)
- Country of Origin: Made in Czech Republic
| Brand | B&R |
|---|---|
| Model | 8JSA51.R0045D000-0 |
