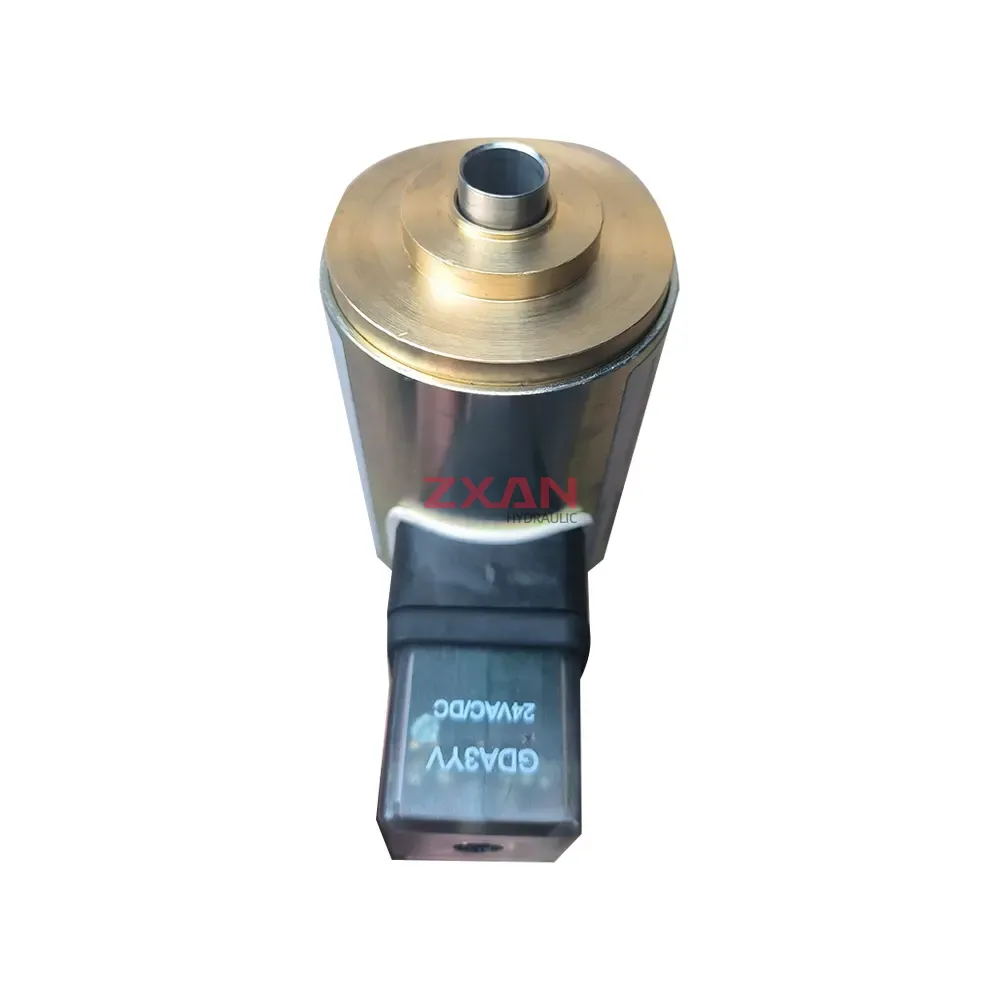

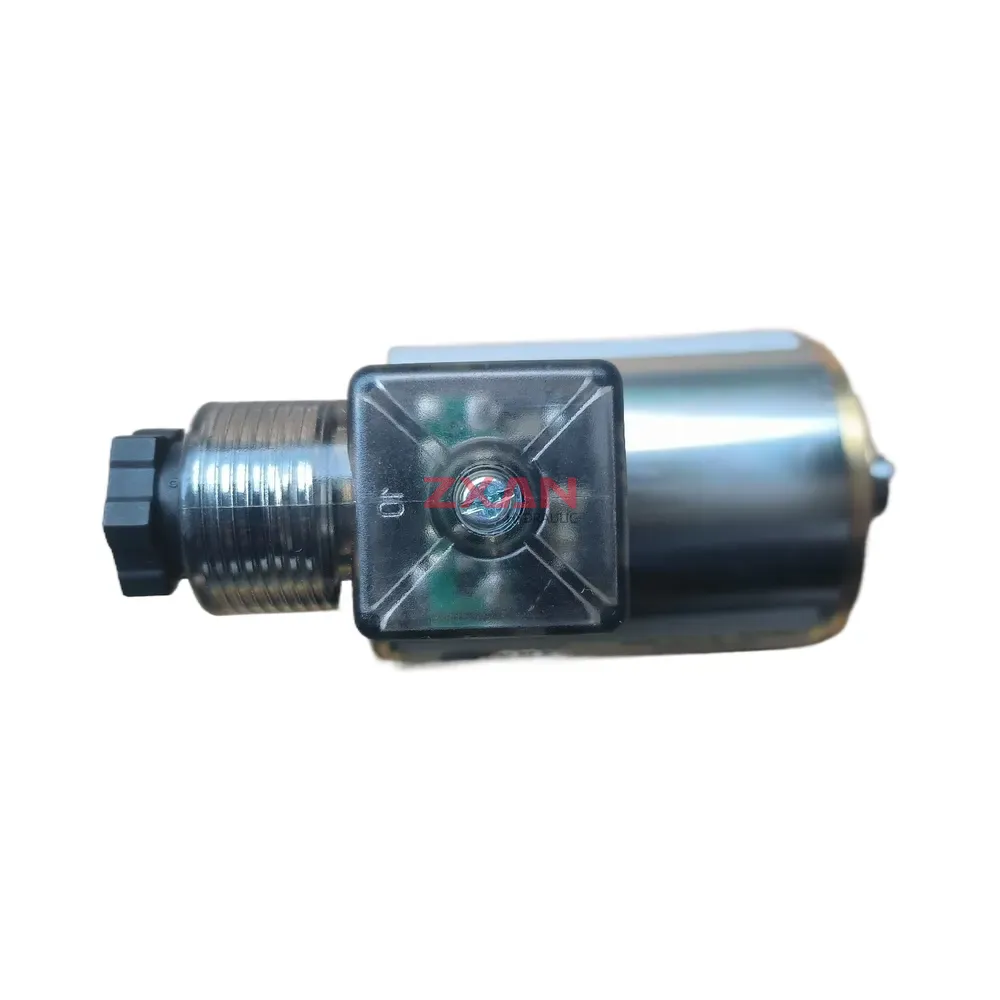

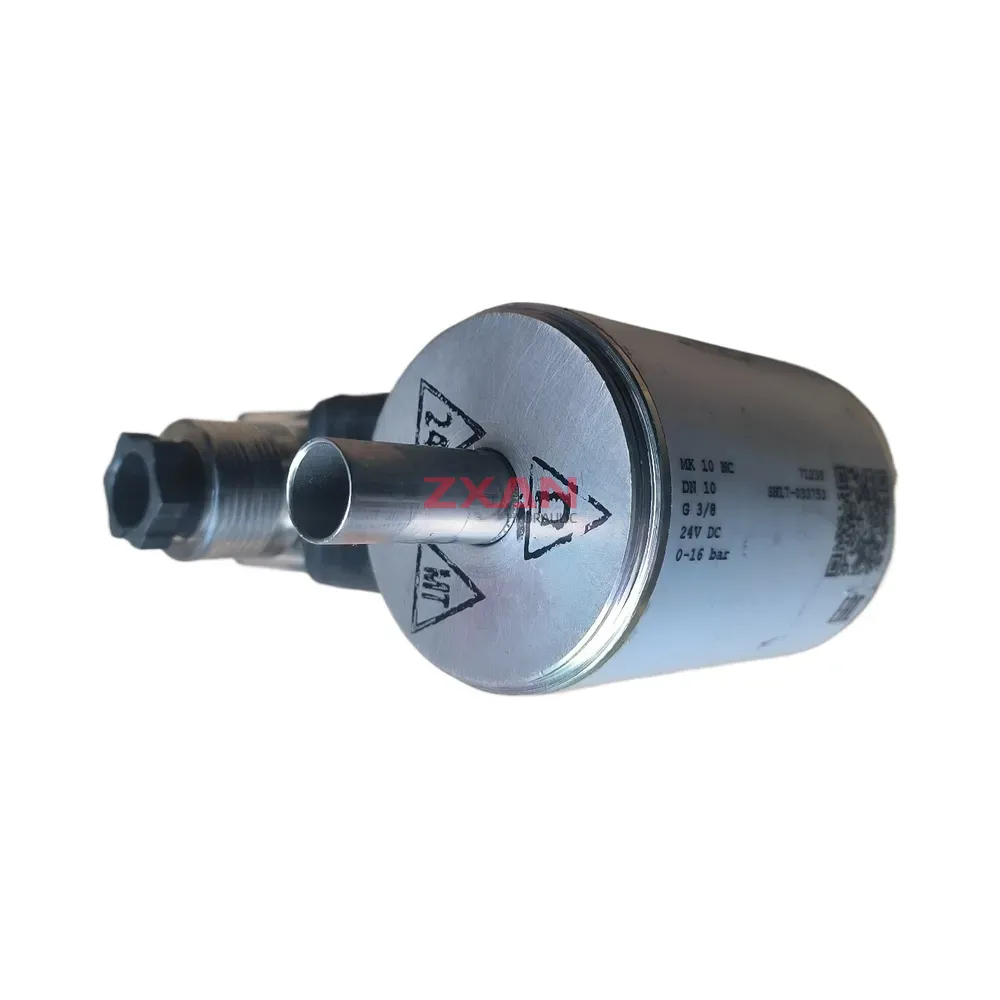

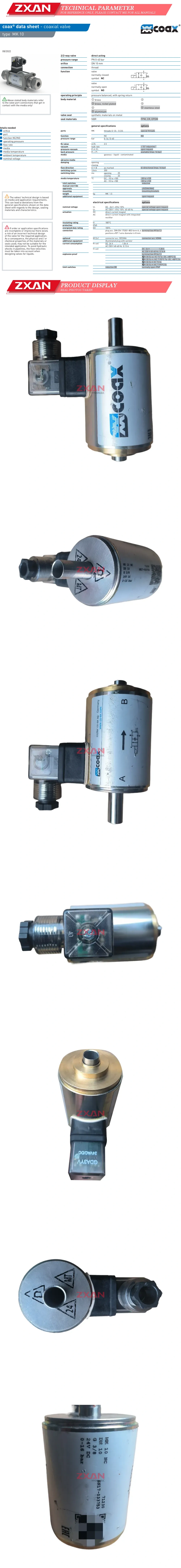

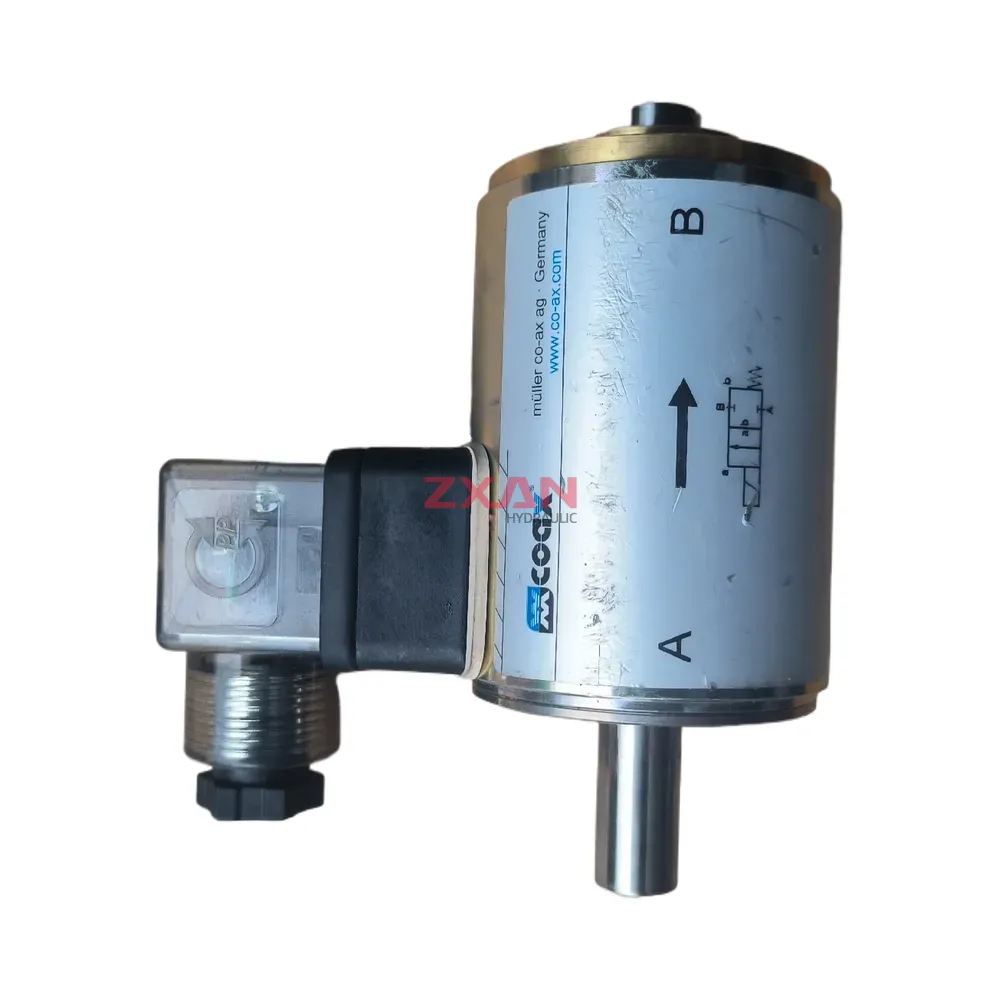

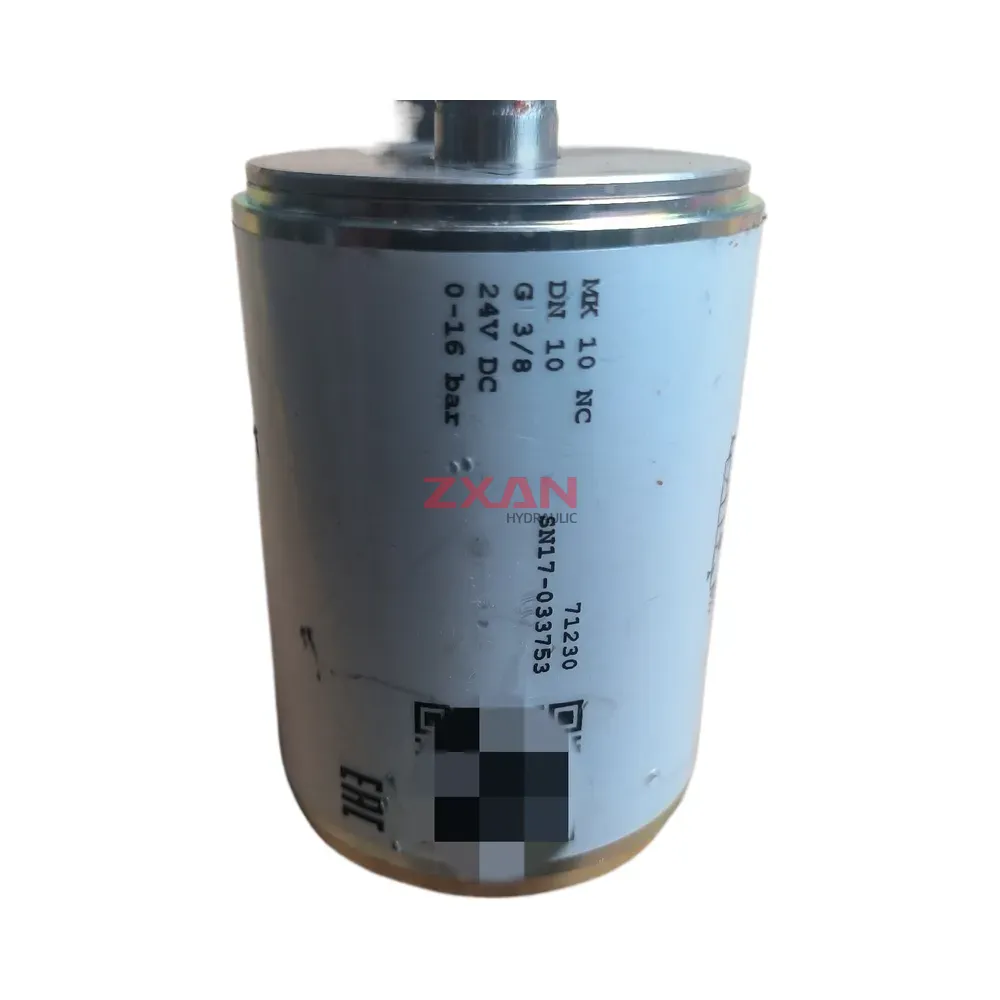

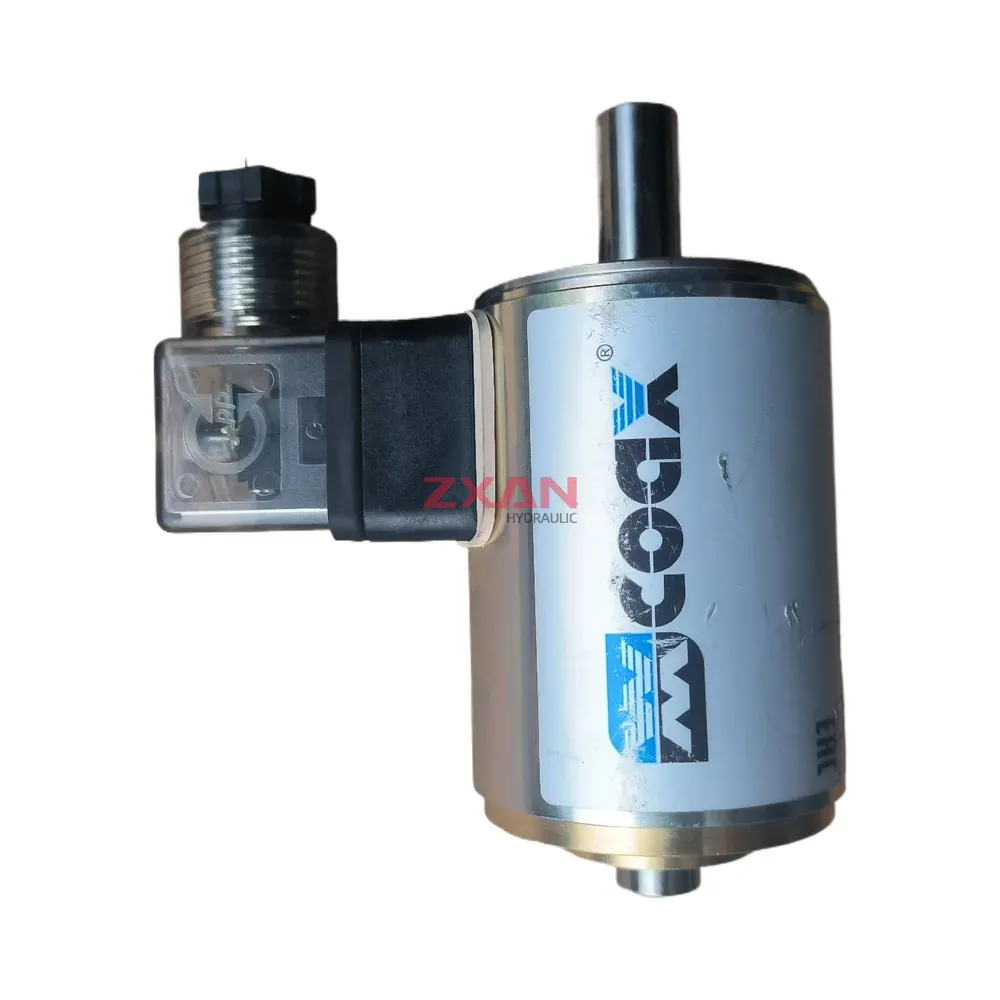

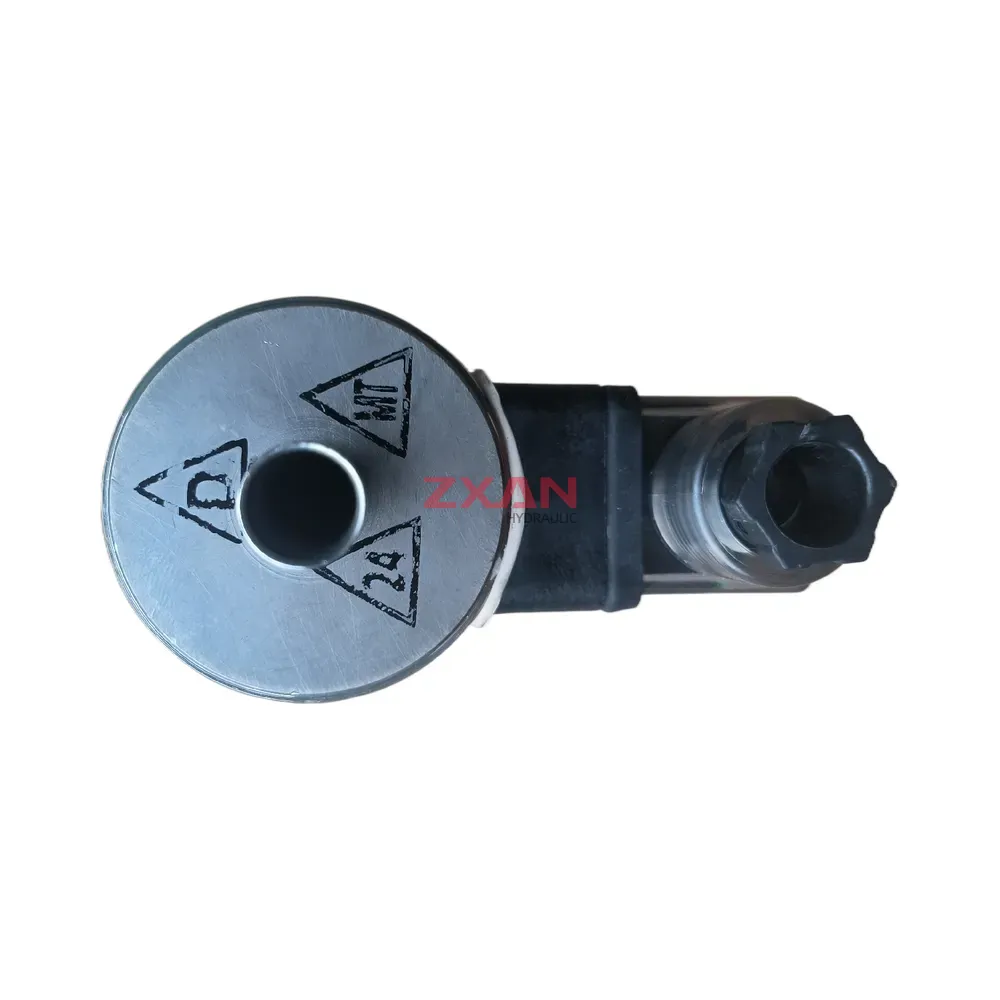

COAX MK 10 NC 71230
Discover the reliable COAX MK 10 NC 71230, a direct-acting 2/2-way normally closed coaxial valve. Engineered for high-pressure applications and versatile media control, it offers rapid response and a long, maintenance-free service life in a compact design.
COAX MK 10 NC 71230
The COAX MK 10 NC is a high-performance, direct-acting 2/2-way coaxial valve designed for demanding industrial applications. Its unique pressure-balanced design allows it to operate reliably from 0 bar up to high pressures, ensuring fast and consistent switching times. This normally closed (NC) valve is suitable for a wide range of media, including gaseous, liquid, viscous, and contaminated fluids. The compact and robust construction ensures a long service life and maintenance-free operation, making it an ideal choice for process control, machine building, and fluid power systems.
Technical Specifications:
- Function: 2/2 way, Normally Closed (NC)
- Orifice (DN): 10 mm
- Pressure Range: 0 – 100 bar (depending on configuration)
- Port Connection: G 3/8″ (standard, other options available)
- Body Material: Brass, Stainless Steel options available
- Seal Materials: NBR, PTFE, FPM, EPDM
- Kv-value: approx. 4.5 m³/h
| Brand | COAX |
|---|---|
| Model | MK 10 NC 71230 |
