Danfoss MBC 5100 1411-2DB04 061B010266
Type:Danfoss MBC 5100 1411-2DB04 061B010266
Danfoss MBC 5100 1411-2DB04 061B010266

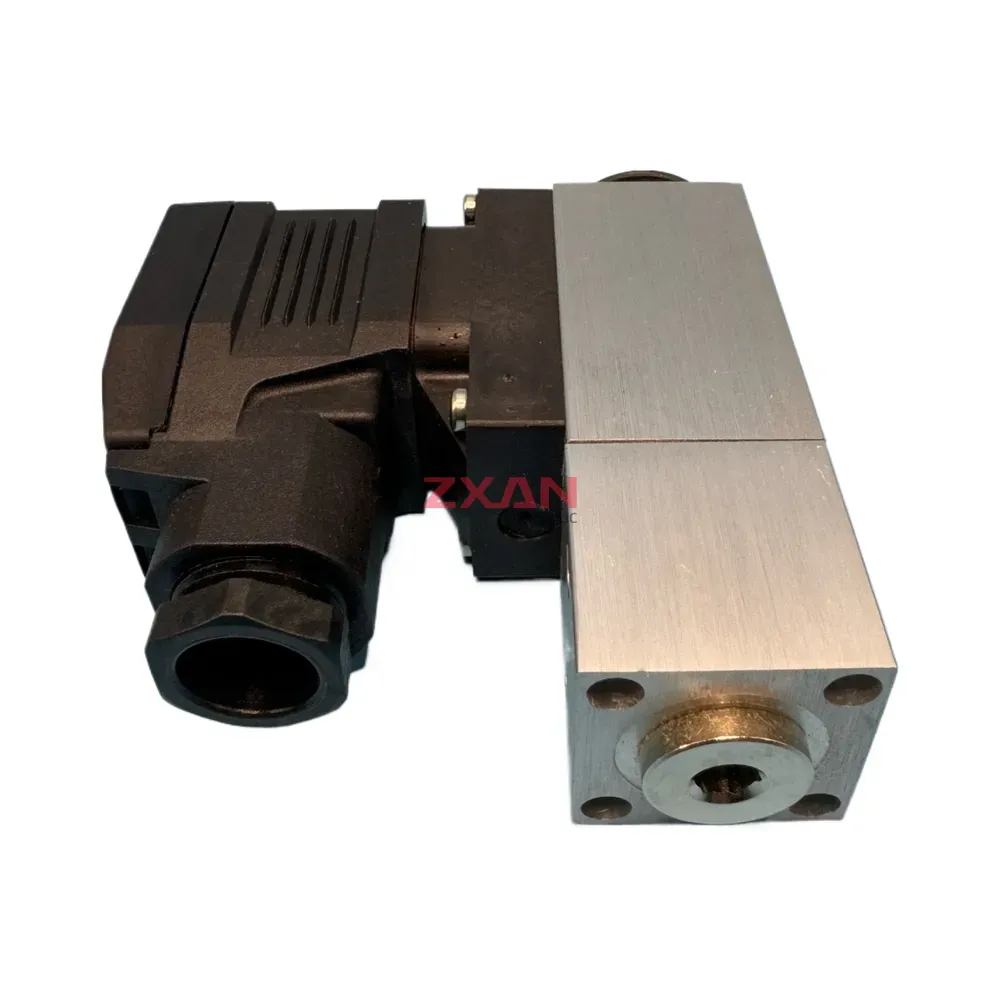

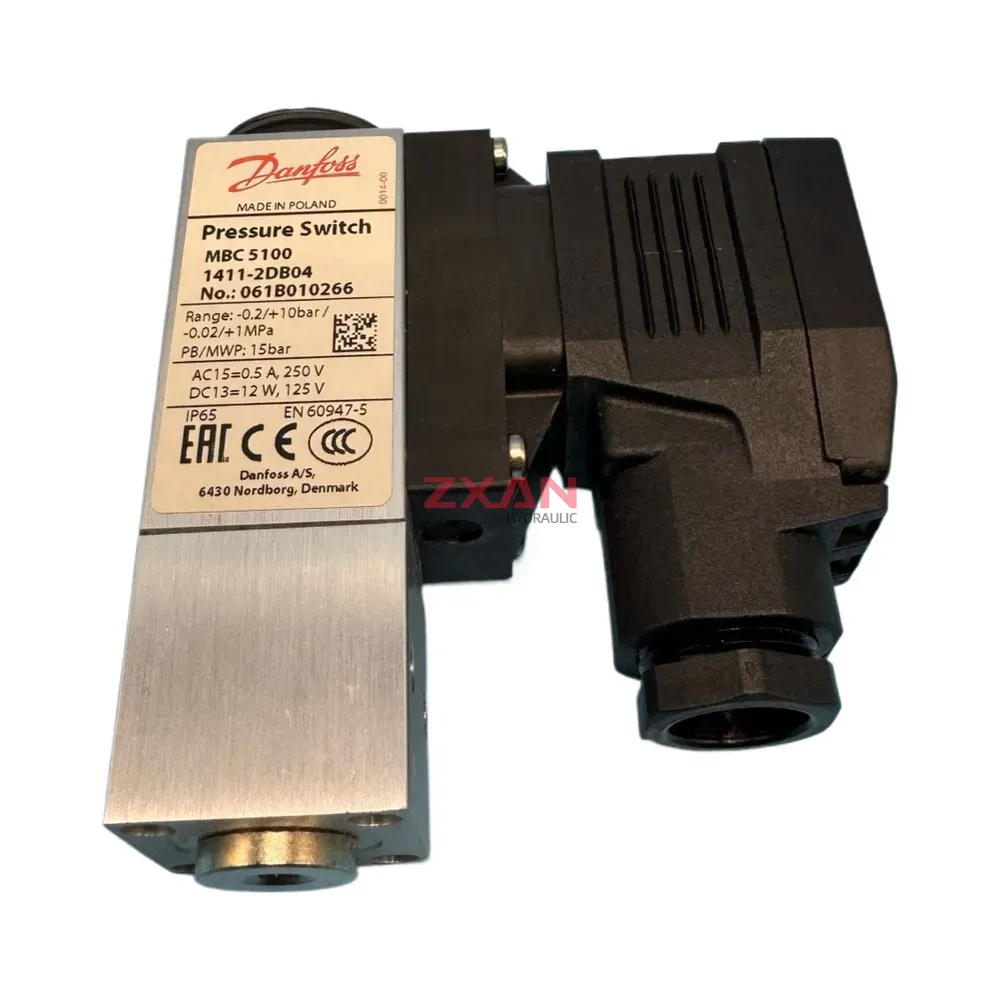

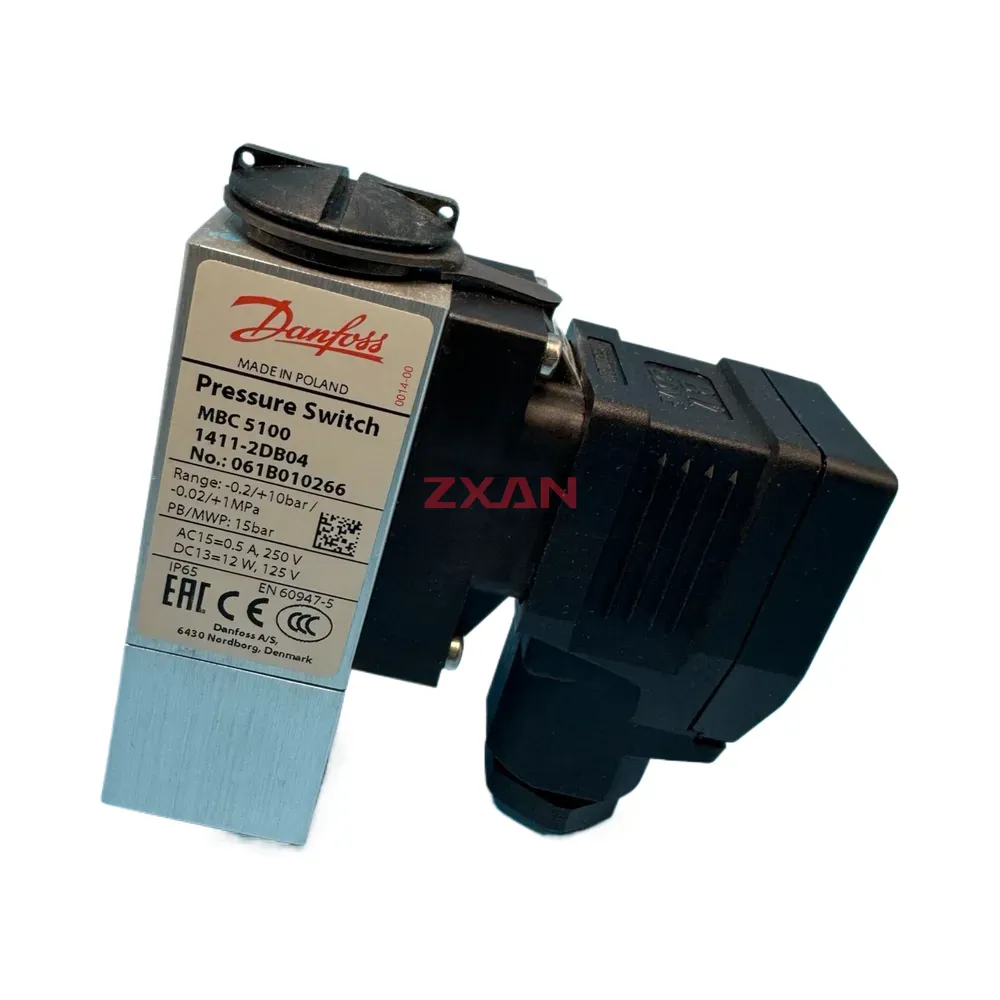

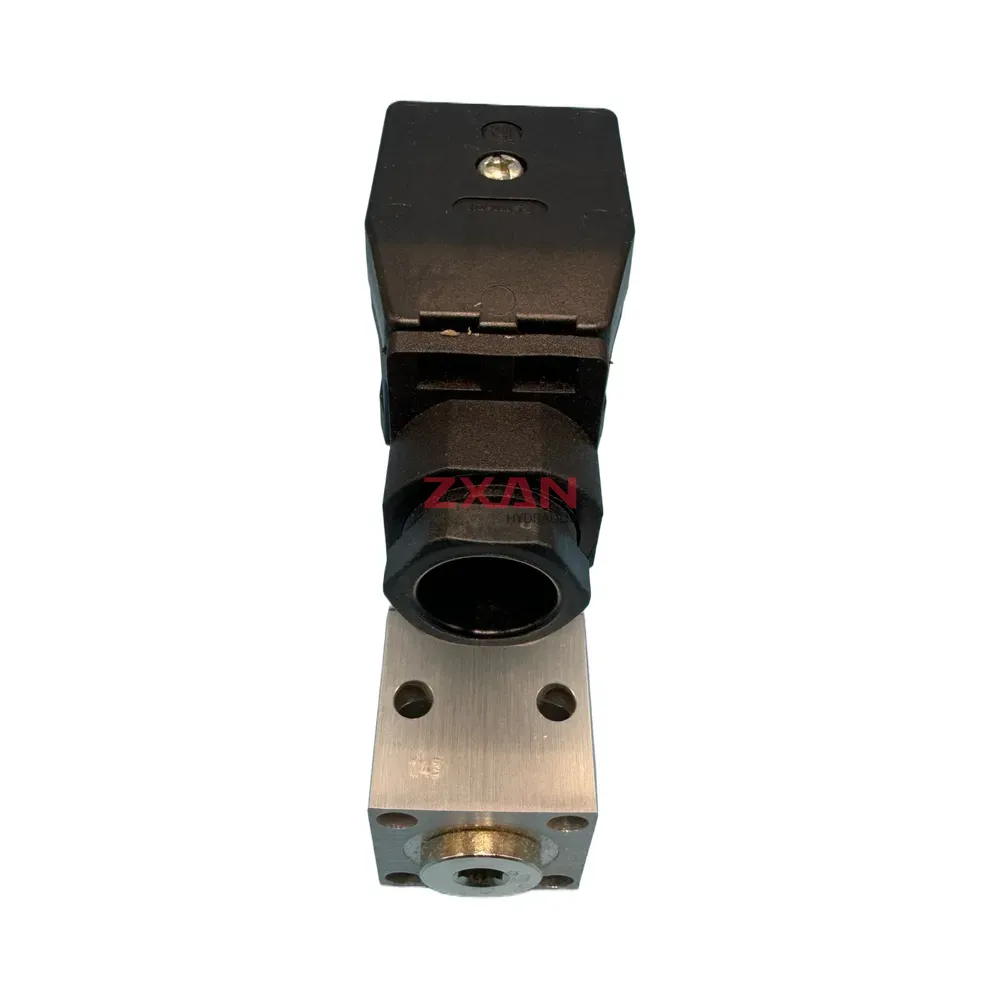

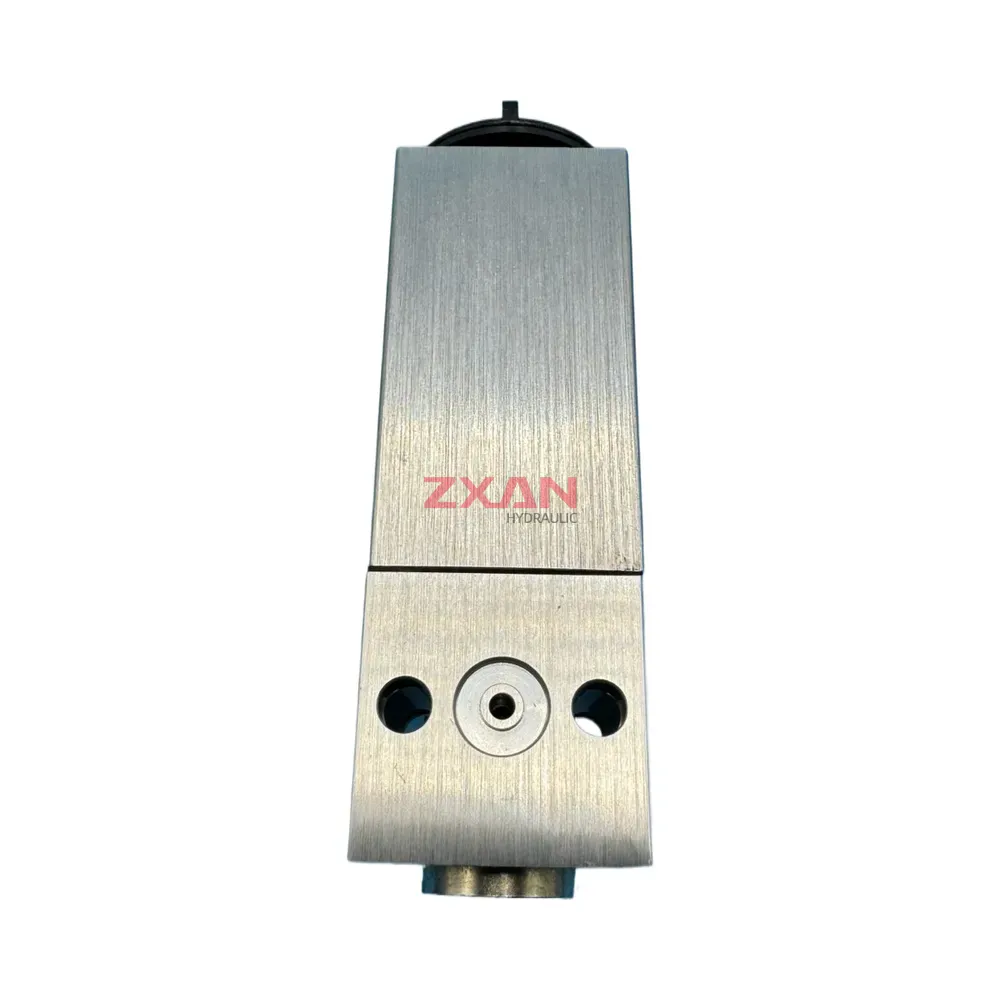

The Danfoss MBC 5100 is a compact block-type pressure switch, specifically engineered for demanding marine and hydraulic applications. Its robust design offers exceptional vibration resistance and reliability in harsh environments. The MBC 5100 is designed to withstand the rigorous conditions of ship engine rooms and has received all major marine approvals. Featuring a fixed, low differential, it ensures precise and accurate monitoring of critical pressures. This pressure switch is ideal for use in alarm and control systems for engines, pumps, compressors, and other industrial equipment where space and reliability are key considerations.
Technical Specifications:
- Type: MBC 5100
- Part Number: 061B010266
- Pressure Range: 10 to 100 bar (145 to 1450 psi)
- Differential: 4.0 bar (Fixed)
- Max. Working Pressure: 300 bar
- Contact Function: SPDT (Single Pole Double Throw)
- Pressure Connection: G 1/4″ Female (ISO 228/1)
- Electrical Connection: DIN 43650-A, Pg 11
- Enclosure Rating: IP65 (with appropriate plug)
- Contact Rating (AC): AC1 – 10A, 250V / AC15 – 4A, 250V
- Contact Rating (DC): DC13 – 12W, 125V
- Ambient Temperature Range: -40 to 85 °C
- Approvals: ABS, BV, DNV GL, KR, LR, NKK, RINA, RMRS
| Brand | Danfoss |
|---|---|
| Model | MBC 5100 1411-2DB04 061B010266 |
