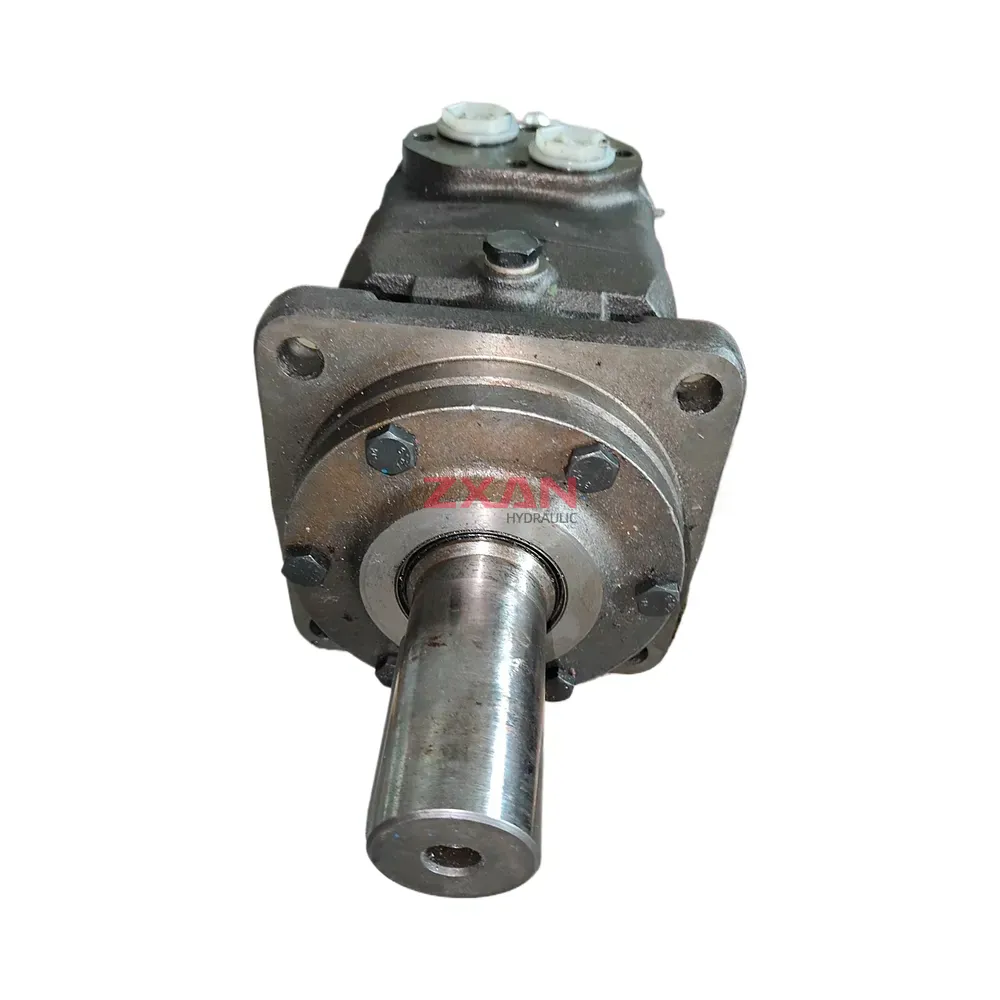

DANFOSS OMT250 151B3500
The Danfoss OMT 250, model 151B3500, is a high-torque, low-speed orbital hydraulic motor engineered for demanding applications. Featuring a robust gerotor design with a disc valve and tapered roller bearings, this motor delivers exceptional performance, high efficiency, and long service life. It is well-suited for continuous operation under heavy loads, offering high starting torque and the ability to withstand significant radial and axial forces. The OMT 250 is ideal for various industrial and mobile hydraulic systems requiring reliable and powerful rotary motion.
Technical Specifications:
- Model Number: 151B3500
- Series: OMT
- Displacement: 251.4 cm³/rev
- Max. Continuous Speed: 300 rpm
- Max. Continuous Torque: 690 Nm
- Max. Continuous Output Power: 20 kW
- Max. Continuous Pressure Drop: 200 bar
- Max. Continuous Oil Flow: 75 L/min
- Shaft Type: Cylindrical ø40 mm with parallel key A12 x 8 x 70 (DIN 6885)
- Port Connections: Main ports G 3/4 (BSP), Drain port G 1/4 (BSP)
- Mounting Flange: SAE C 4-bolt (ø127 mm pilot diameter)
- Valve Type: Disc valve
- Bearings: Tapered roller bearings
| Brand | Danfoss |
|---|---|
| Model | OMT250 151B3500 |
