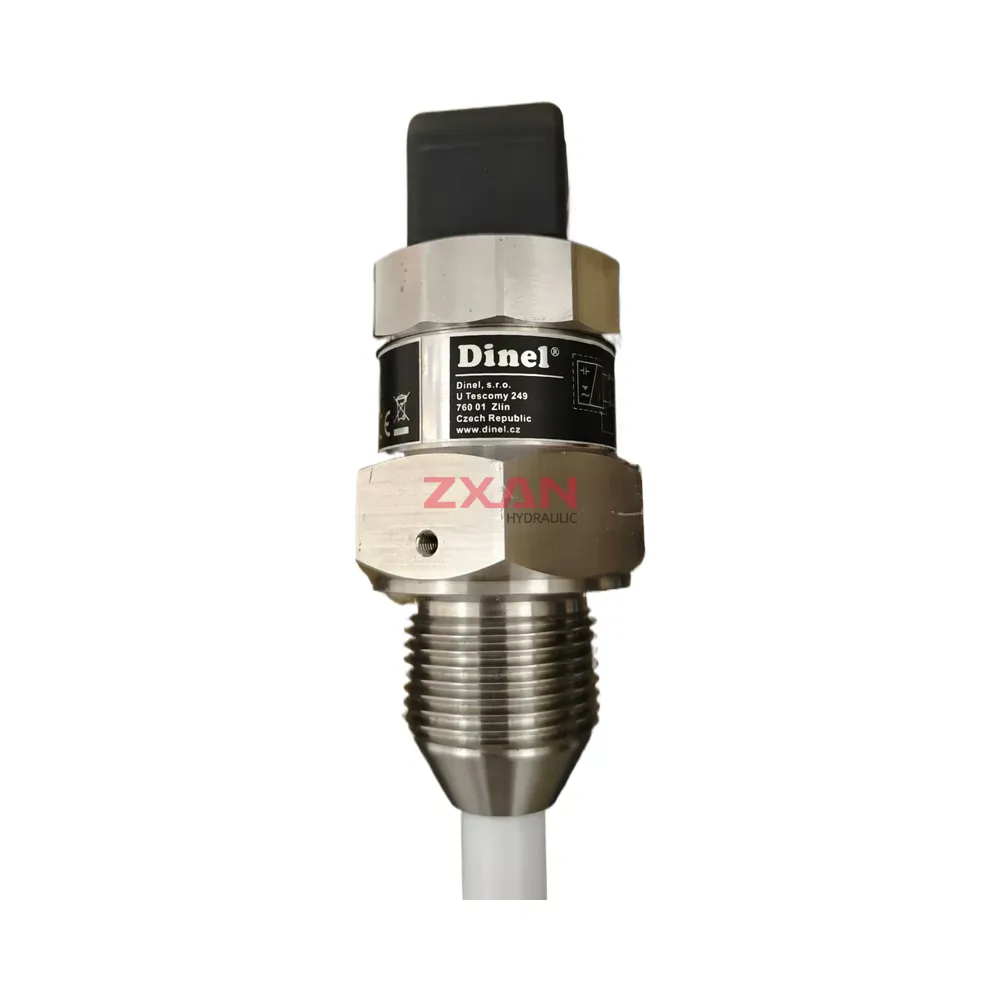

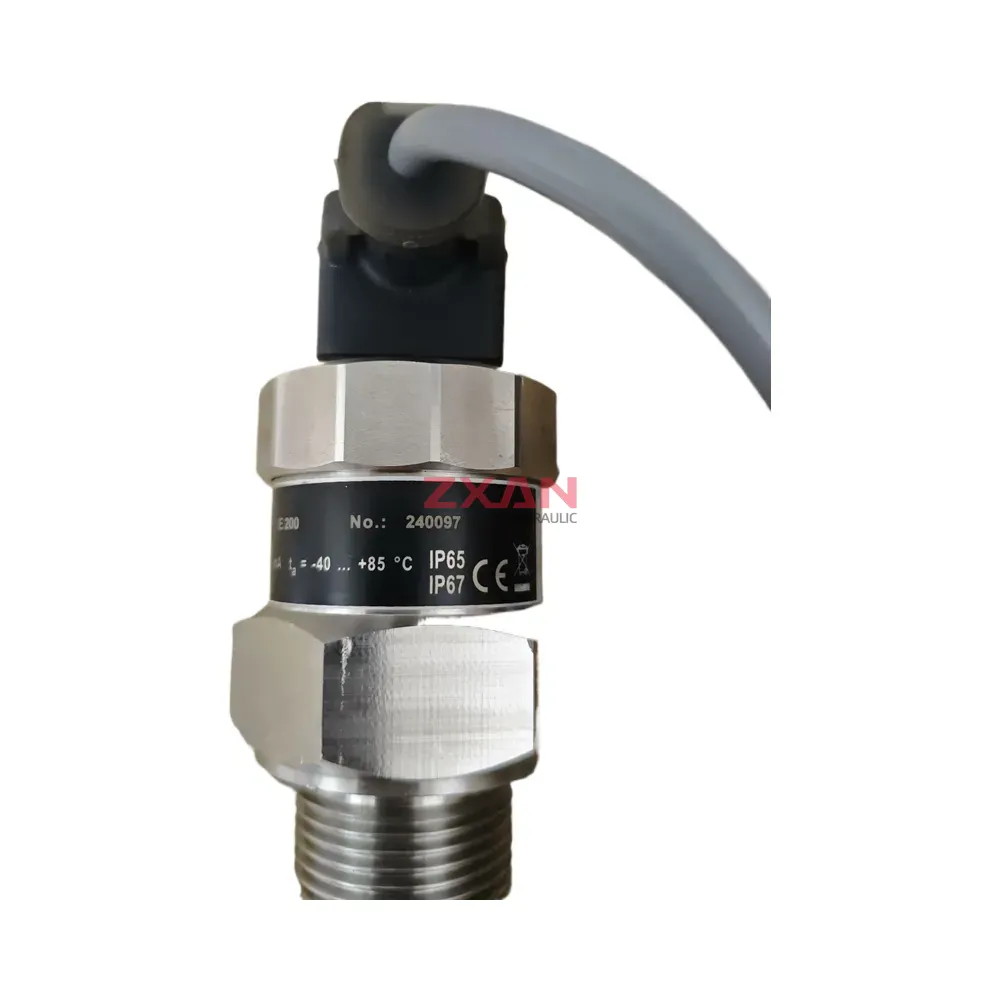

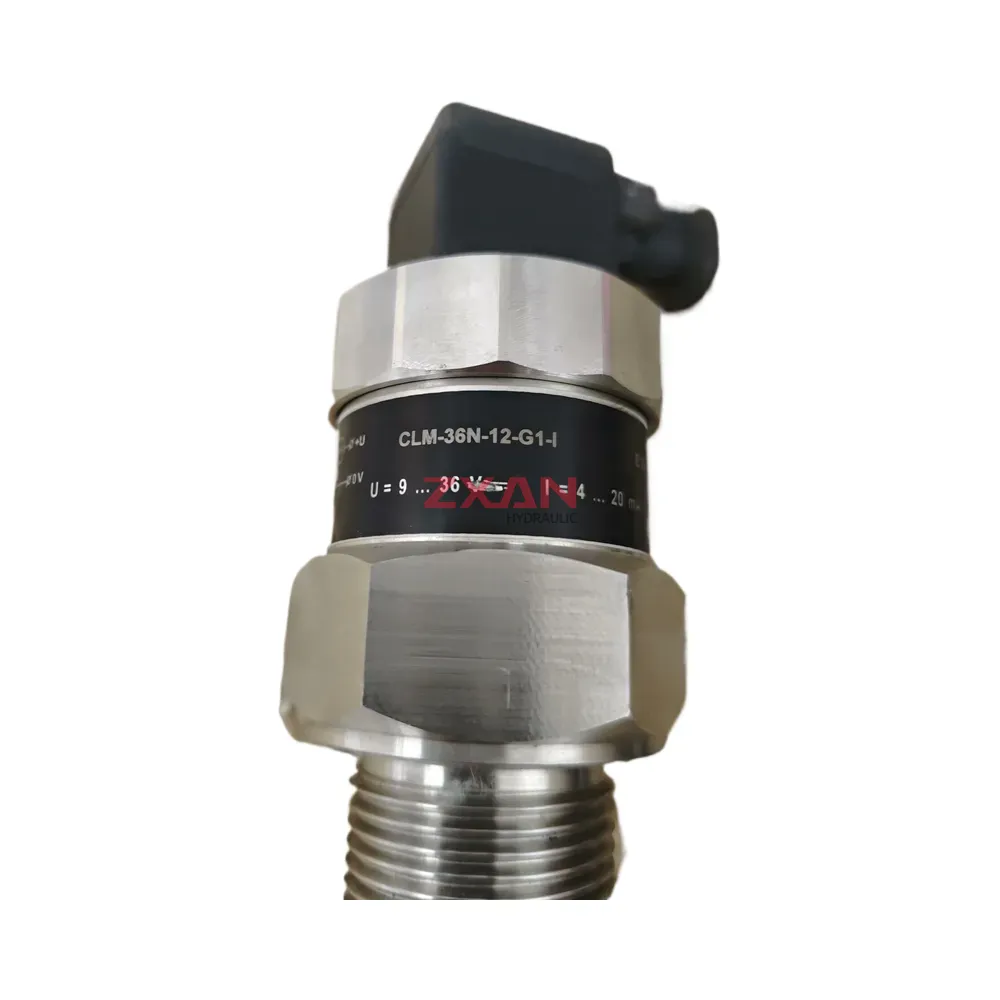

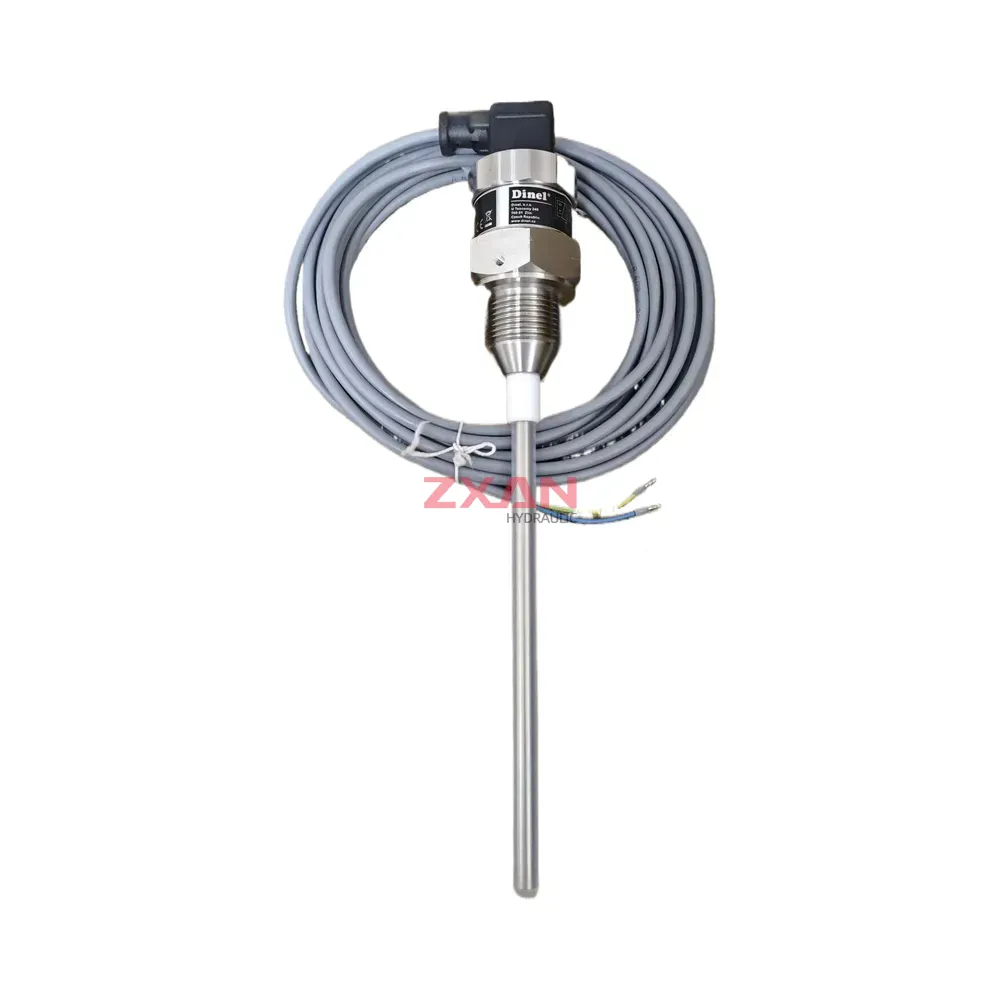

Dinel CLM-36N-12-G1-l Capacitive level meters
Discover the Dinel CLM-36N-12-G1-l, a reliable capacitive level meter for continuous monitoring of non-conductive liquids like oil and diesel. Features a 4-20mA output, G1″ process connection, and durable stainless steel construction.
Dinel CLM-36N-12-G1-l Capacitive level meters
The Dinel CLM-36N-12-G1-l is a robust capacitive level meter designed for continuous level measurement of non-conductive liquids, such as oils, diesel fuel, petrol, and other petroleum products. It is engineered for direct mounting into tanks, vessels, or sumps via its G1″ threaded connection. The sensor provides a stable 4-20 mA current output proportional to the liquid level, making it ideal for integration into various industrial control systems. Its stainless steel construction ensures durability and resistance to corrosion, while the simple setup via a magnetic pen allows for easy calibration and commissioning on-site.

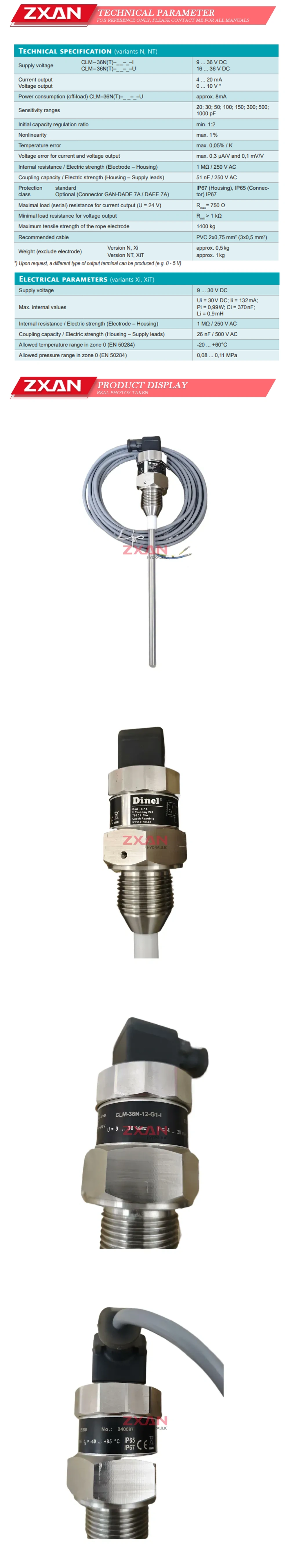

Technical Specifications:
- Supply Voltage: 10 … 30 V DC
- Output Signal: Current loop 4 … 20 mA
- Process Connection: G 1″ (BSP) thread
- Housing Material: Stainless steel W.Nr. 1.4301 (AISI 304)
- Electrode Material: Stainless steel W.Nr. 1.4404 (AISI 316L) with PFA insulation
- Operating Temperature: -25 °C to +80 °C
- Maximum Pressure: 3 MPa (30 bar)
- Ingress Protection: IP67
| Brand | Dinel |
|---|---|
| Model | CLM-36N-12-G1-l Capacitive level meters |
