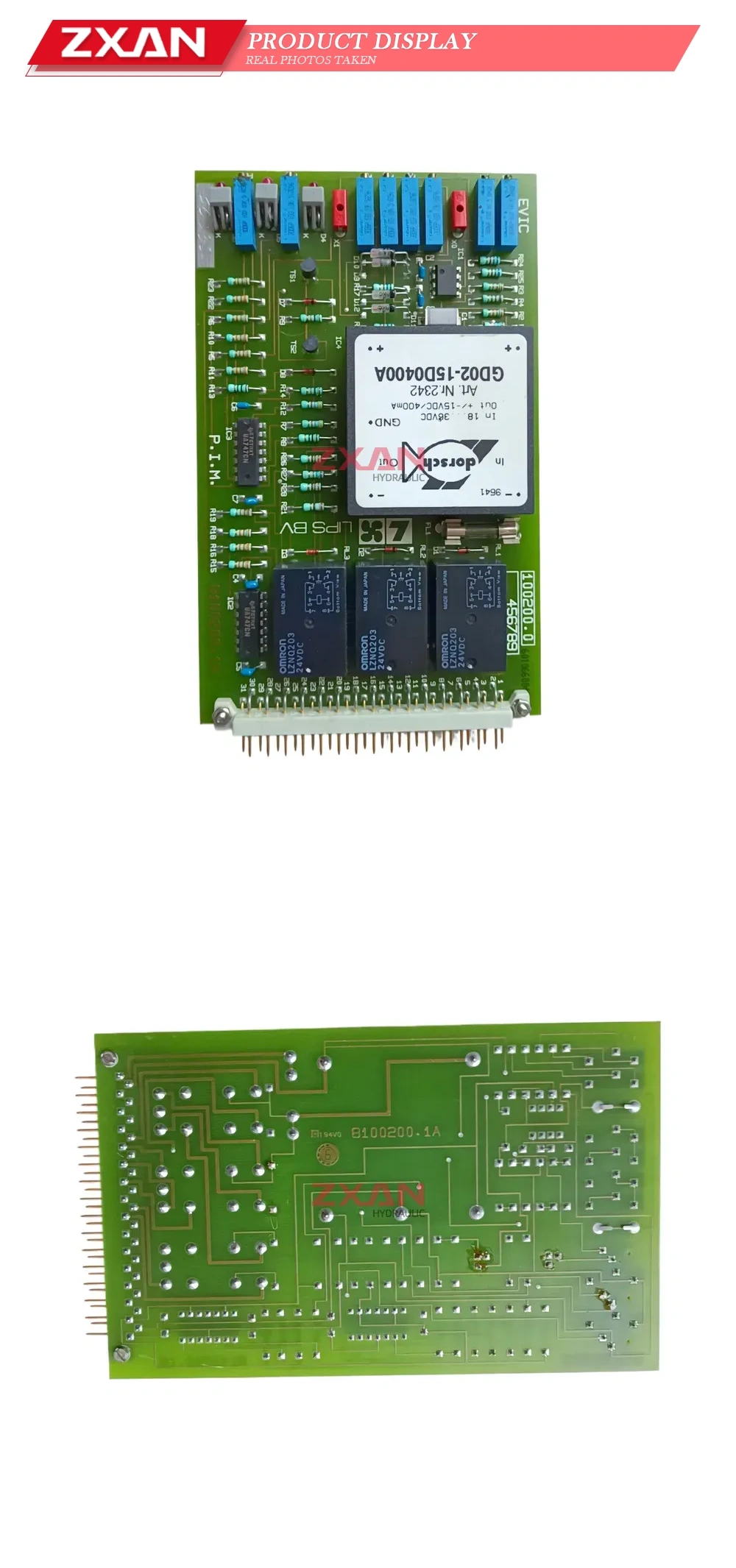

dorsch GD02-15D0400A DC-DC Converter Circuit Board
Shop the Dorsch GD02-15D0400A industrial DC-DC converter circuit board. This PCB assembly features an 18-36VDC input, a dual +/- 15VDC 400mA output, and three Omron 24VDC relays, perfect for power supply and control systems.
dorsch GD02-15D0400A DC-DC Converter Circuit Board

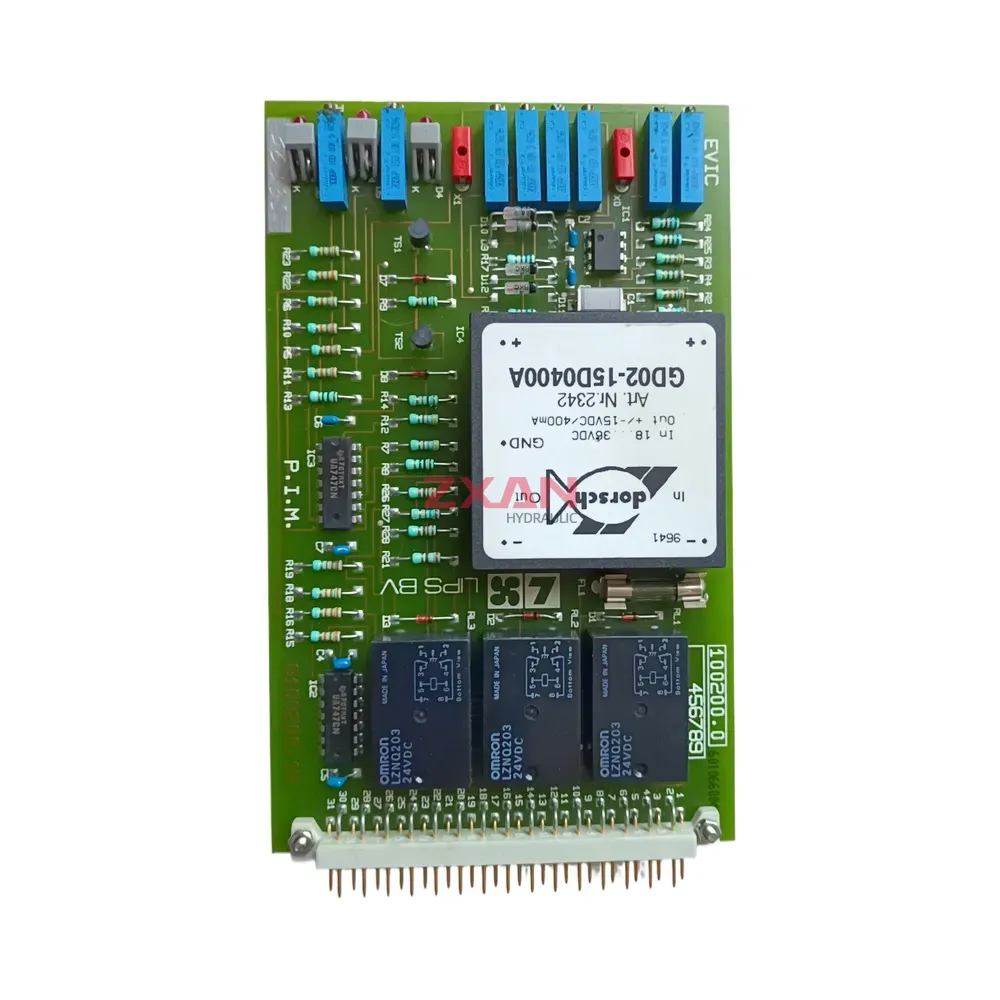

The dorsch GD02-15D0400A is a robust industrial printed circuit board (PCB) assembly designed for reliable power conversion. At its core is a high-quality Dorsch DC-DC converter module that efficiently transforms a wide input voltage range into a stable, dual-polarity output. This board is fully equipped for integration into control systems, featuring three Omron G2A-432A 24VDC relays, multiple screw-down terminal blocks for secure connections, and a pin header for additional interfacing. Identified by board numbers 100200-0 and B100200.1A, this assembly is an ideal solution for industrial automation, power supply, and control applications requiring a dependable +/- 15VDC source.
Technical Specifications:
- Brand: dorsch
- Model: GD02-15D0400A
- Input Voltage: 18 – 36VDC
- Output Voltage/Current: Dual +/- 15VDC at 400mA
- Onboard Relays: 3x Omron G2A-432A (24VDC Coil)

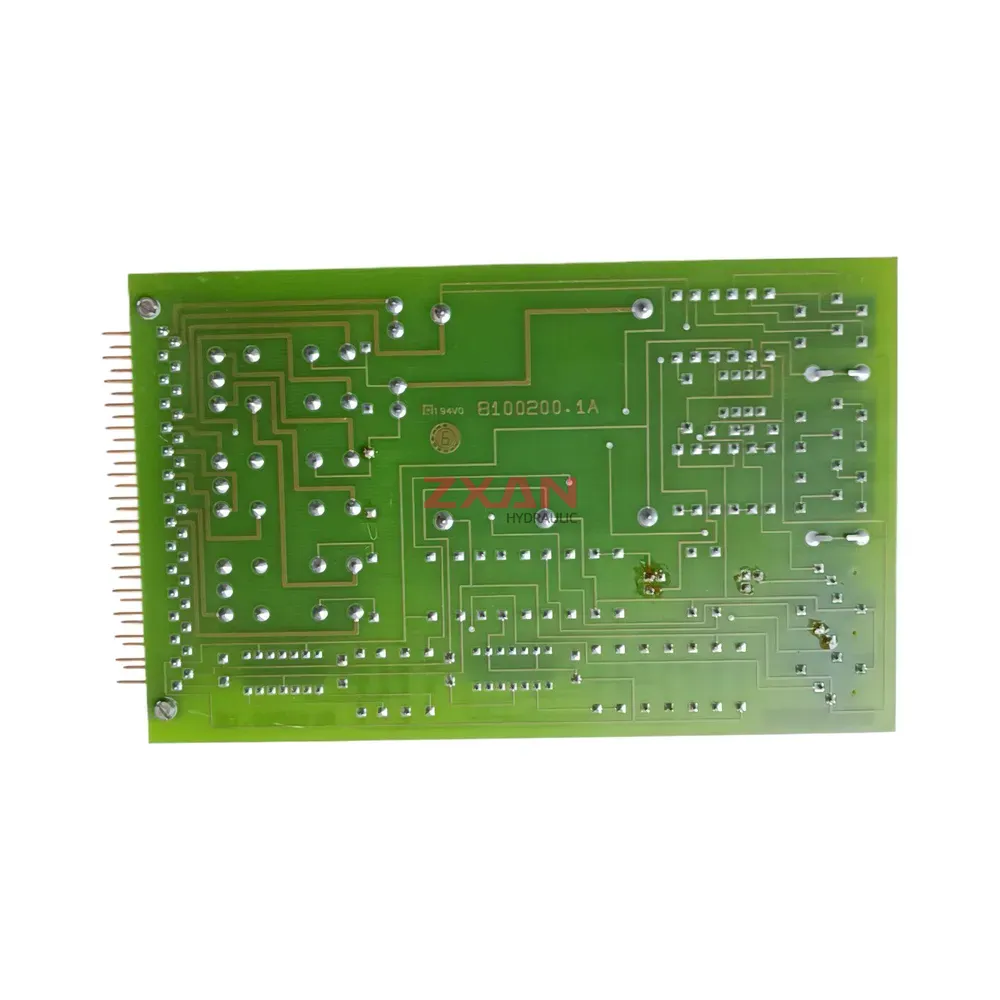

- Board Identification Numbers: 100200-0, B100200.1A
| Brand | dorsch |
|---|---|
| Model | GD02-15D0400A |
