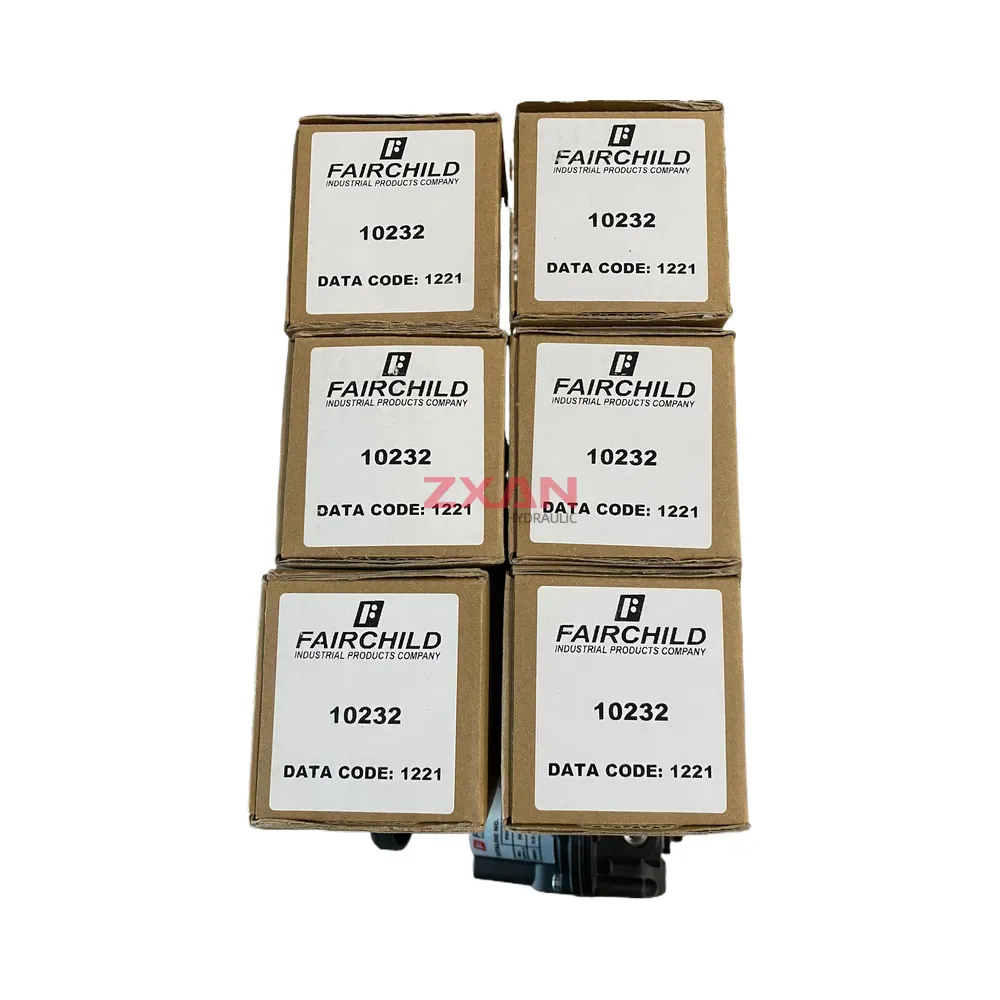

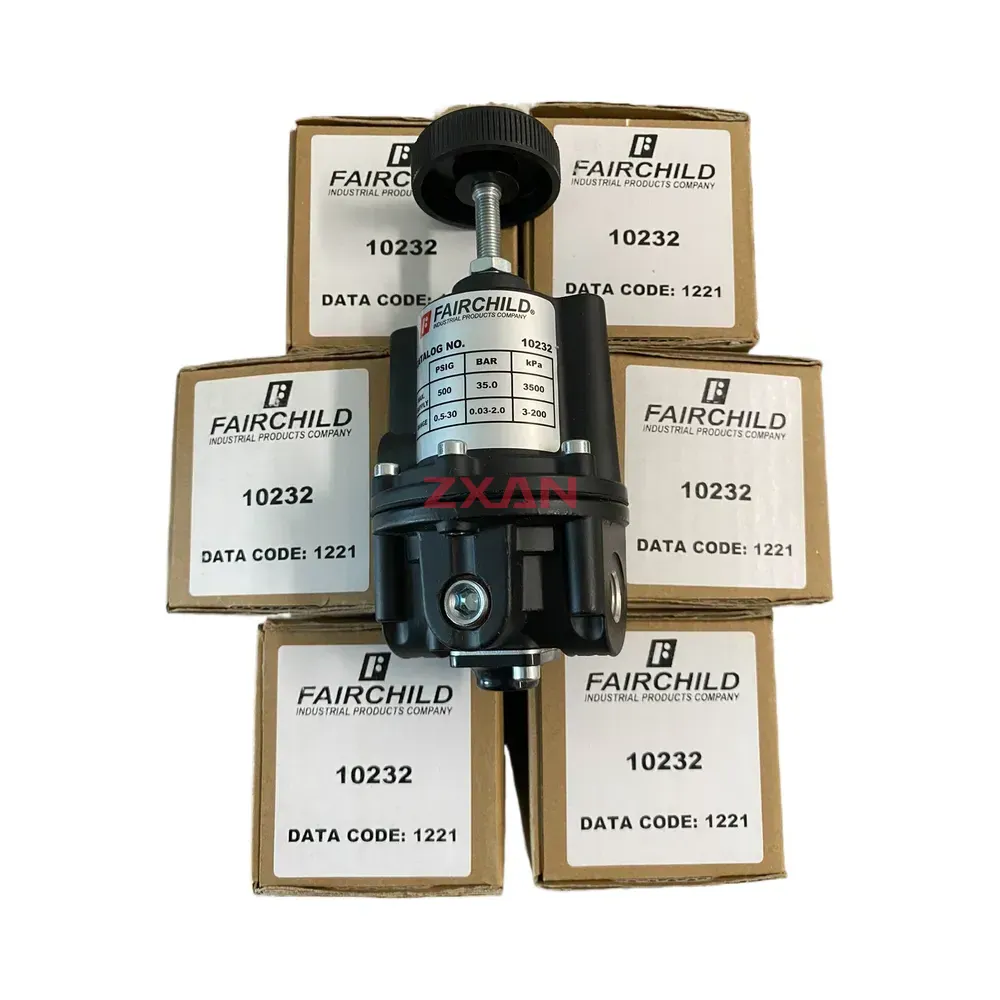

FAIRCHILD 10232 Precision Pressure Regulator
The Fairchild Model 10232 is a high-precision pressure regulator designed for applications requiring exceptional accuracy, sensitivity, and stability. It offers high flow capacity and minimal pressure droop under varying flow conditions. Engineered for reliability, it provides precise control of output pressure independent of supply pressure variations and flow changes. The sensitive valve mechanism and large diaphragm ensure responsive and accurate pressure regulation, making it suitable for demanding industrial control systems, instrumentation, and process control applications.
Technical Specifications:
- Model Series: Model 10
- Type: Precision Pressure Regulator
- Output Pressure Range: 0.5-30 psig (3.5-200 kPa / 0.035-2 BAR)
- Maximum Supply Pressure: 500 psig (35 BAR)
- Flow Capacity (SCFM): 40 SCFM (68 m³/hr) @ 100 psig supply, 20 psig set
- Sensitivity: 1/8 inch Water Column
- Supply Pressure Effect: Less than 0.1 psig (0.7 kPa) for 100 psig (7 BAR) change
- Port Size: 1/4″ NPT
- Adjustment: Knob (Standard)
- Ambient Temperature Range: -40°F to +200°F (-40°C to +93°C)
- Body Material: Aluminum
- Trim Material: Stainless Steel, Brass, Zinc Plated Steel
| Brand | Fairchild |
|---|---|
| Model | 10232 |
