FAIRCHILD 10282
Buy the Fairchild 10282 Precision Pressure Regulator, offering a 2-150 psig output range and 40 SCFM flow capacity. Ideal for high-precision control applications.
FAIRCHILD 10282

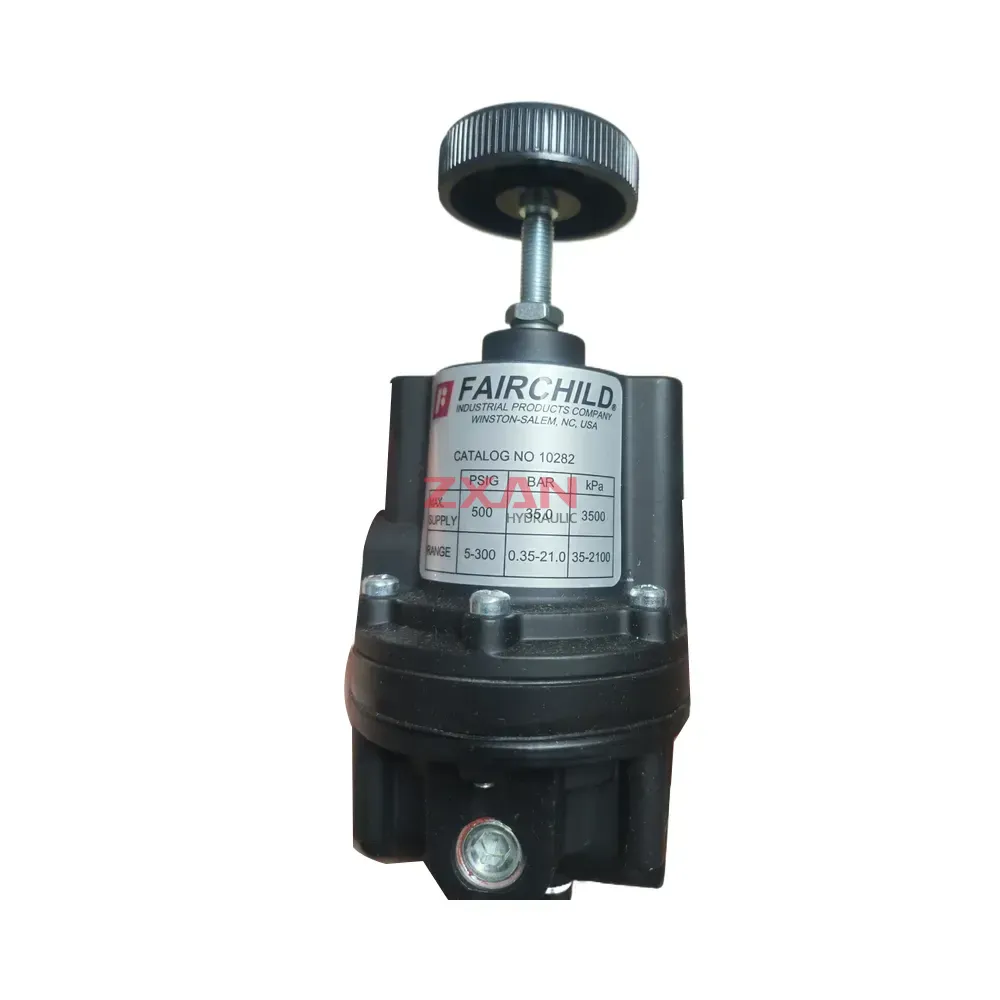

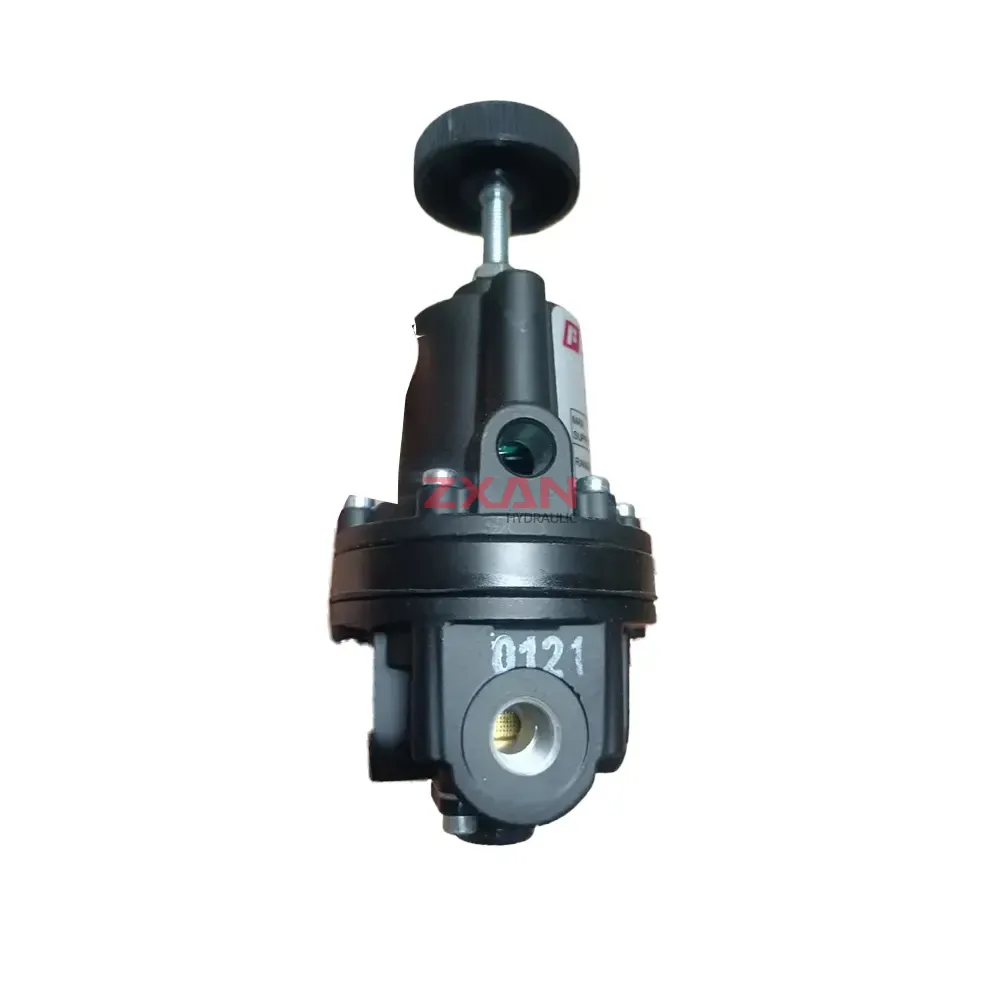

The FAIRCHILD 10282 is a high-precision pressure regulator engineered for applications demanding exceptional accuracy and reliability. As part of the renowned Model 10 series, this regulator provides superior control and stability, even with significant variations in supply pressure and flow conditions. Its design features a sensitive measuring diaphragm and a balanced main valve to virtually eliminate the effects of supply pressure changes, ensuring a consistent and precise output. The 10282 is ideal for use in test equipment, process control instrumentation, and other industrial applications where precise pressure regulation is critical for optimal performance.
Technical Specifications:
- Model: 10282
- Output Pressure Range: 2-150 psig (0.14-10.0 BAR)
- Maximum Supply Pressure: 250 psig (17.0 BAR)
- Flow Capacity: 40 SCFM (68 m³/hr)
- Port Size: 1/4″ NPT
- Sensitivity: 1/8″ Water Column
- Operating Temperature: -40°F to 200°F (-40°C to 93.3°C)
| Brand | Fairchild |
|---|---|
| Model | 10282 |
