FHT PAF060-5-S2-P2
Order the FHT PAF060-5-S2-P2 precision planetary gearbox. Features a 60mm frame, 5:1 ratio, and standard backlash (≤8 arcmin) for high-performance servo motor applications.

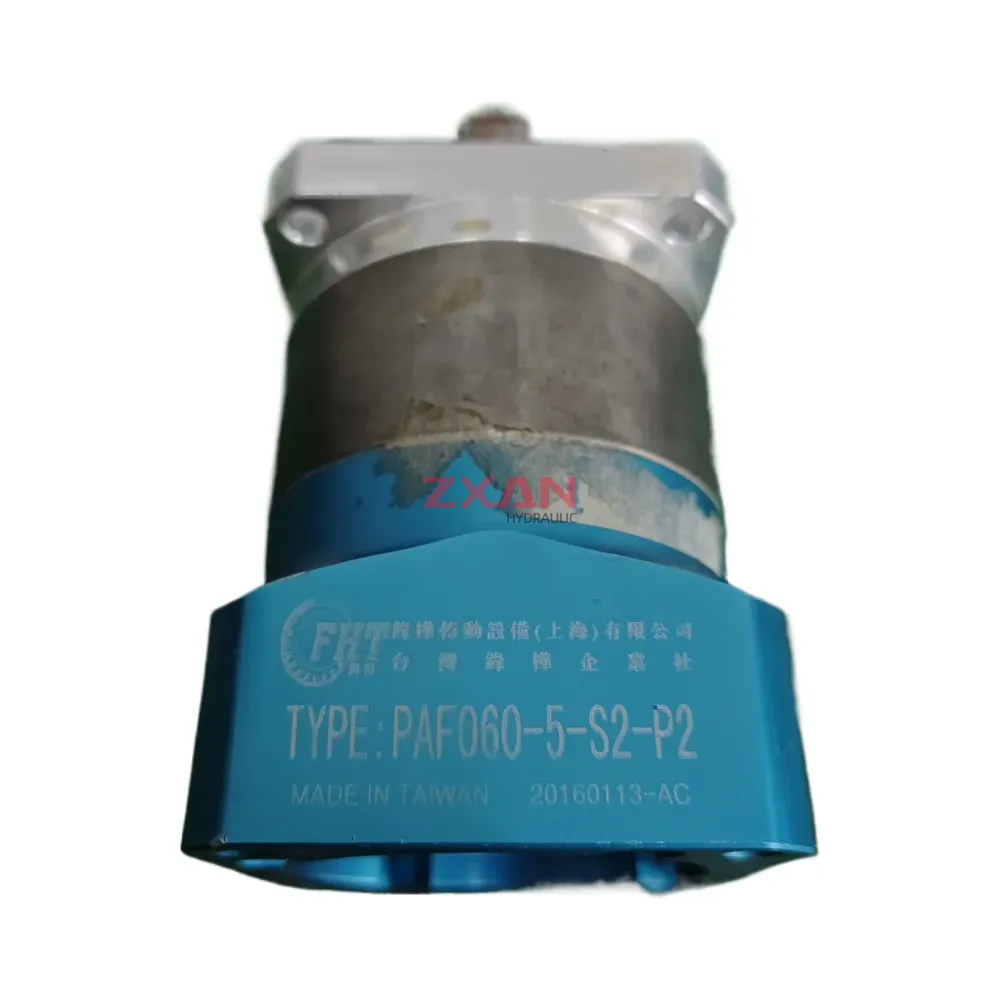

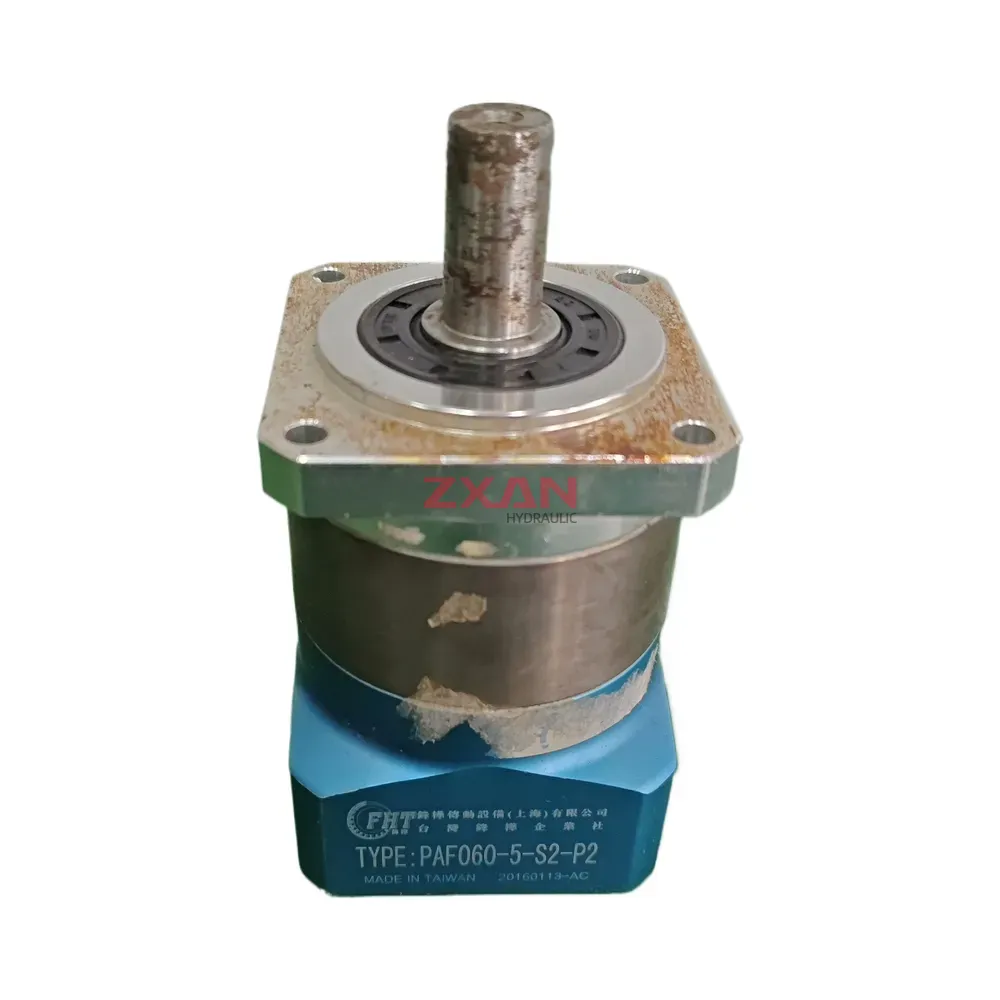

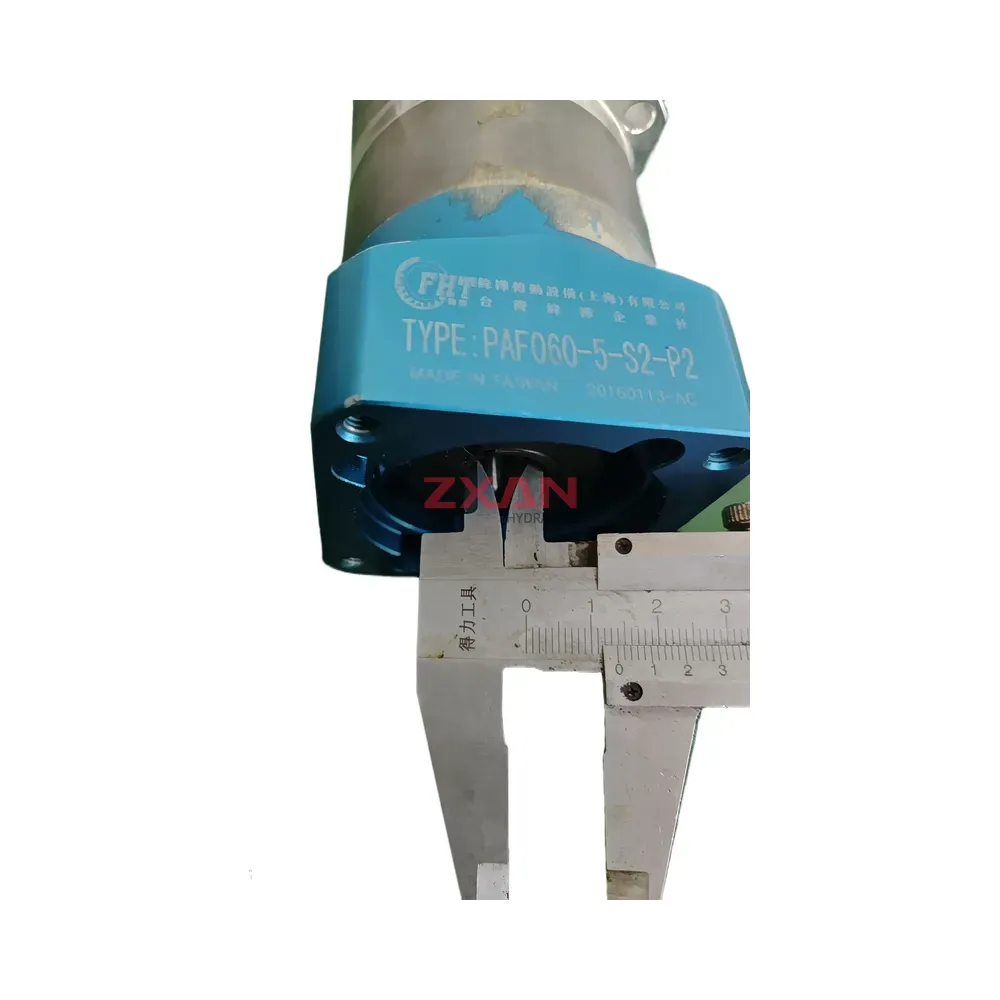

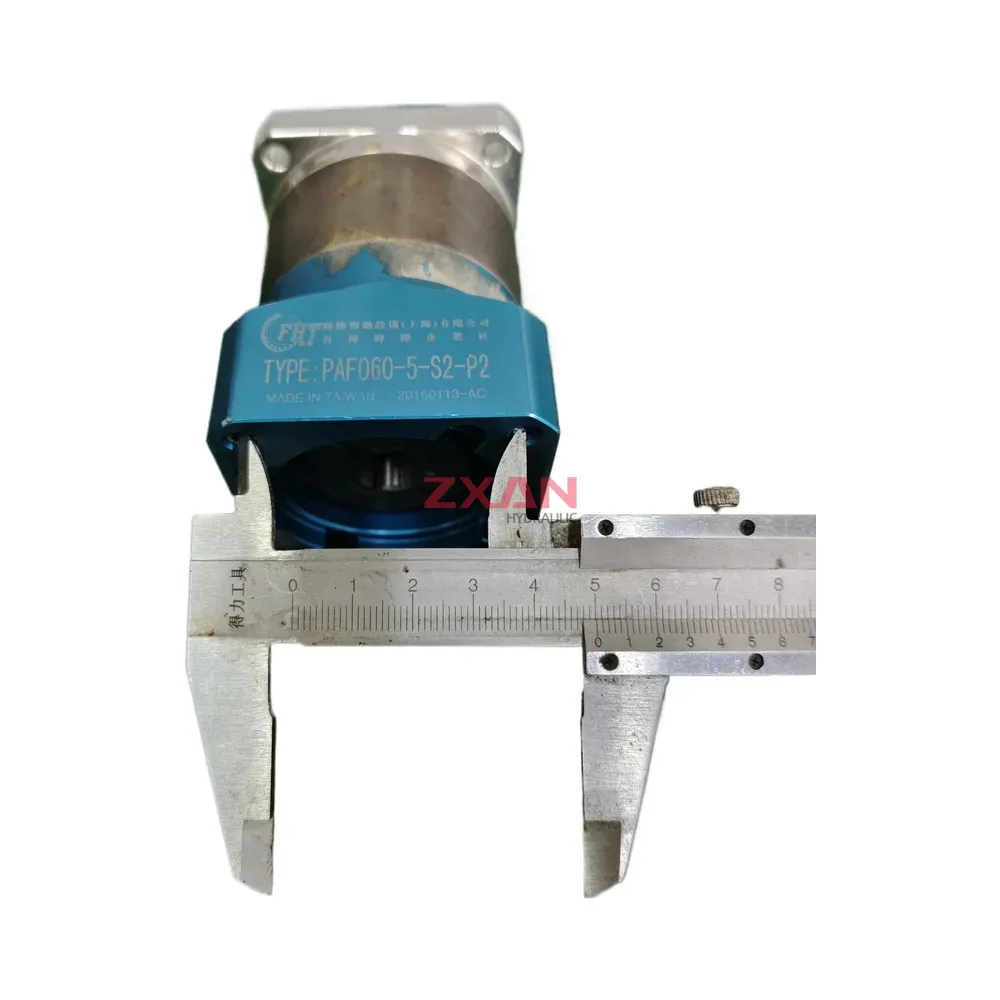

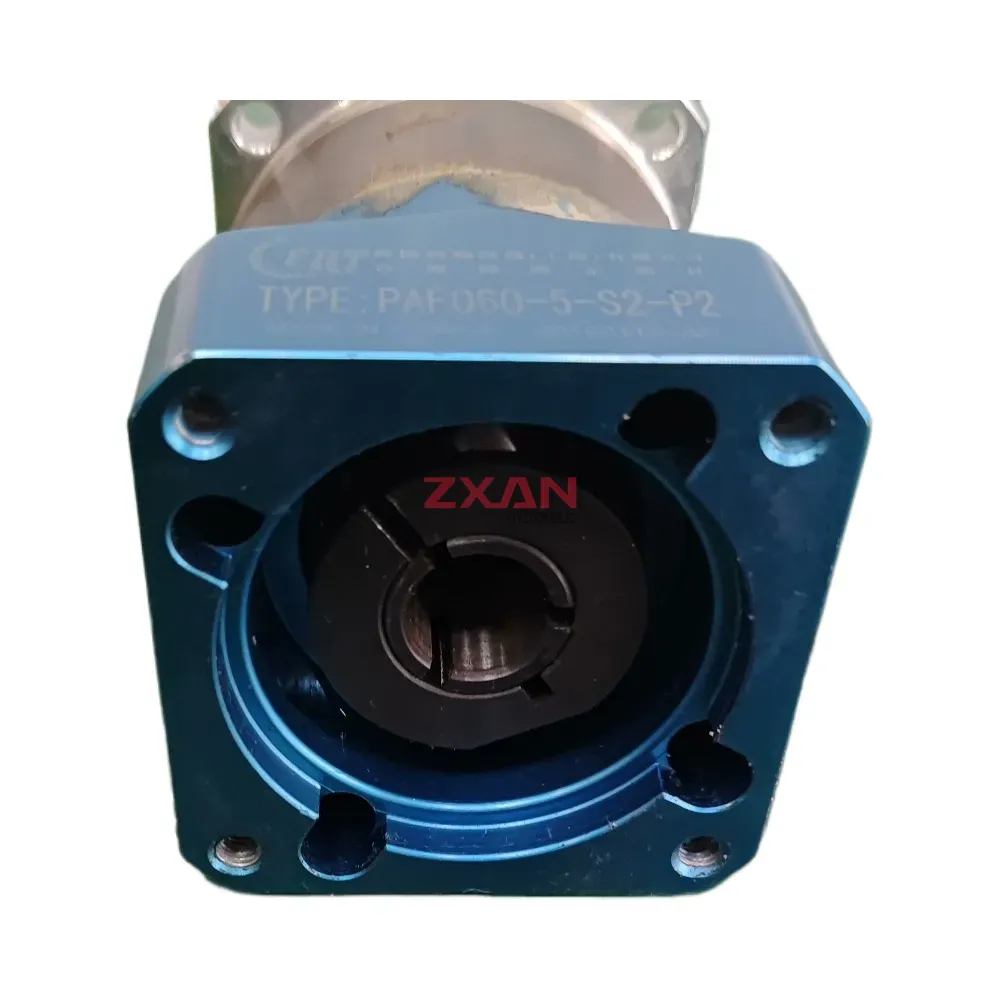

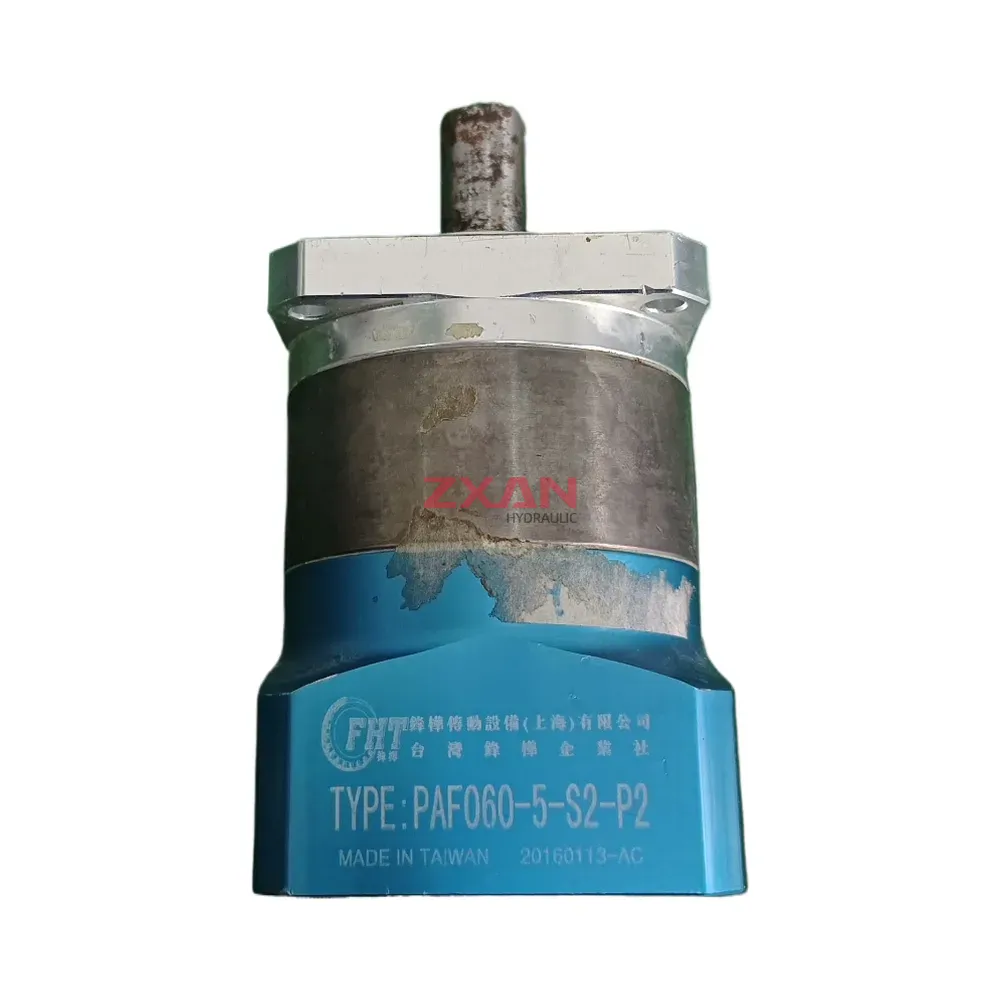

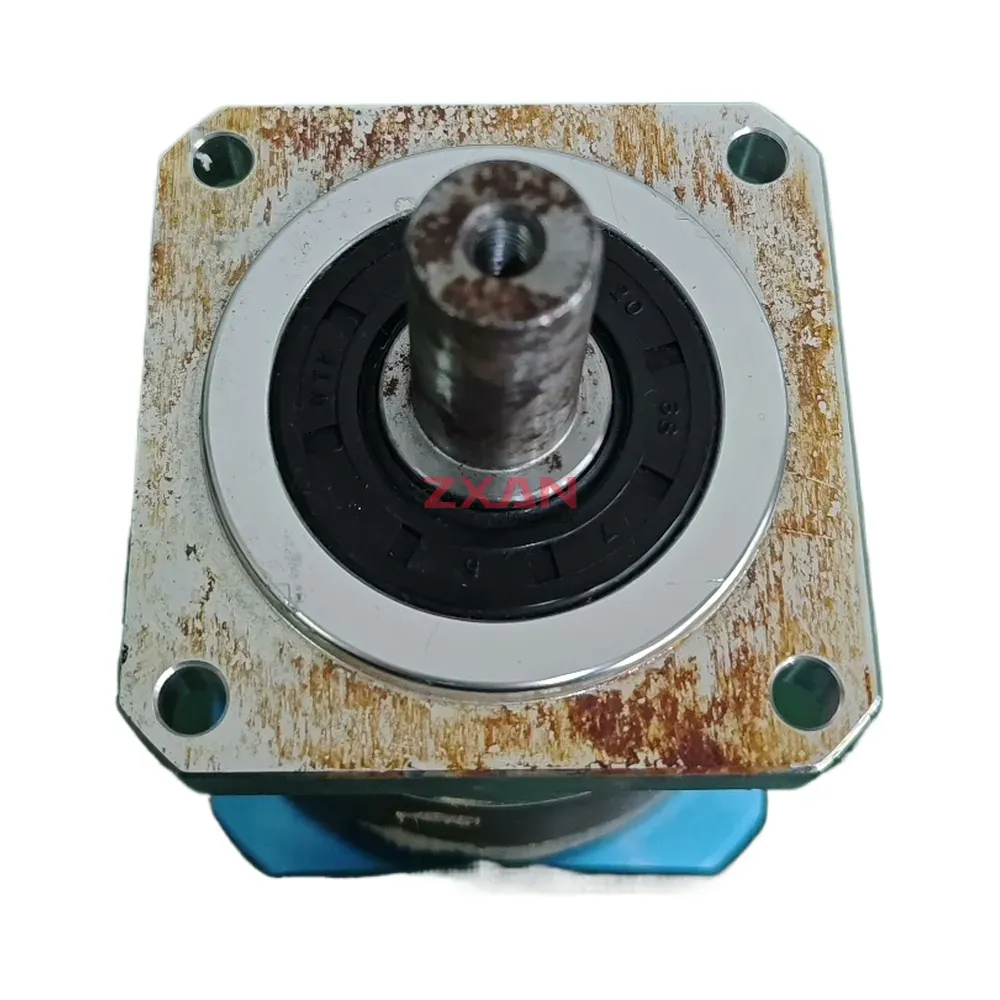

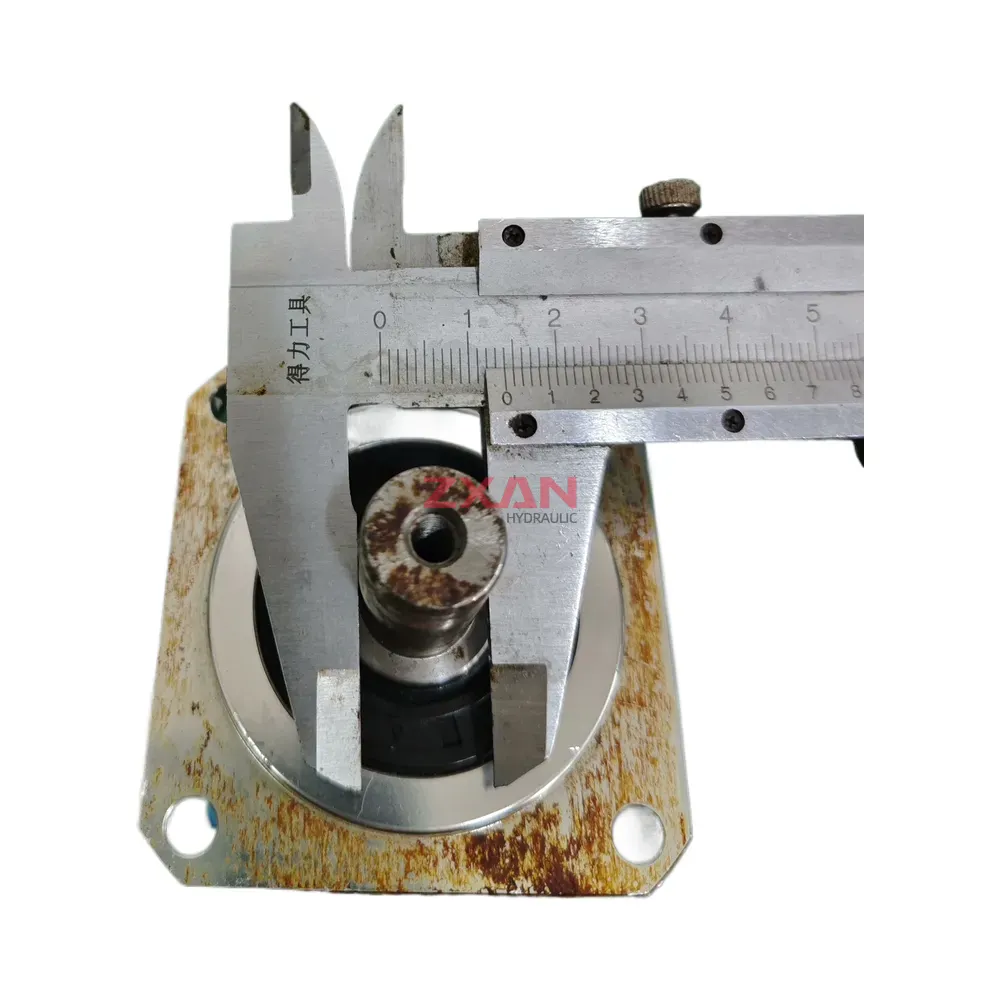

FHT PAF060-5-S2-P2 Planetary Gearbox
The FHT PAF060-5-S2-P2 is a high-precision planetary gearbox designed for demanding servo applications. It features a compact, robust design with a 60mm frame size and a round flange output for easy and secure mounting. Engineered for high torsional stiffness and low backlash, this gearbox ensures exceptional accuracy and repeatability in motion control systems. Its high-efficiency operation and maintenance-free design make it a reliable and cost-effective solution for automation, robotics, machine tools, and other industrial applications requiring precise power transmission.
Technical Specifications:
- Model: PAF060-5-S2-P2
- Frame Size: 60 mm
- Gear Ratio: 5:1
- Backlash: ≤8 arcmin (Standard)
- Nominal Output Torque: 20 Nm
- Max. Acceleration Torque: 40 Nm
- Torsional Rigidity: 2.8 Nm/arcmin
- Max. Input Speed: 8000 rpm
- Efficiency: ≥ 97%
- Protection Class: IP65
| Brand | FHT |
|---|---|
| Model | PAF060-5-S2-P2 |
