GW GPD-3303D
Discover the GW Instek GPD-3303D, a high-precision triple output programmable linear DC power supply. It offers two 0-30V/3A channels and a fixed 5V/3A output, with series/parallel tracking, a clear LCD display, and USB connectivity, making it ideal for electronics testing, R&D, and educational labs.
GW GPD-3303D Multiple Output Programmable Linear DC Power Supply

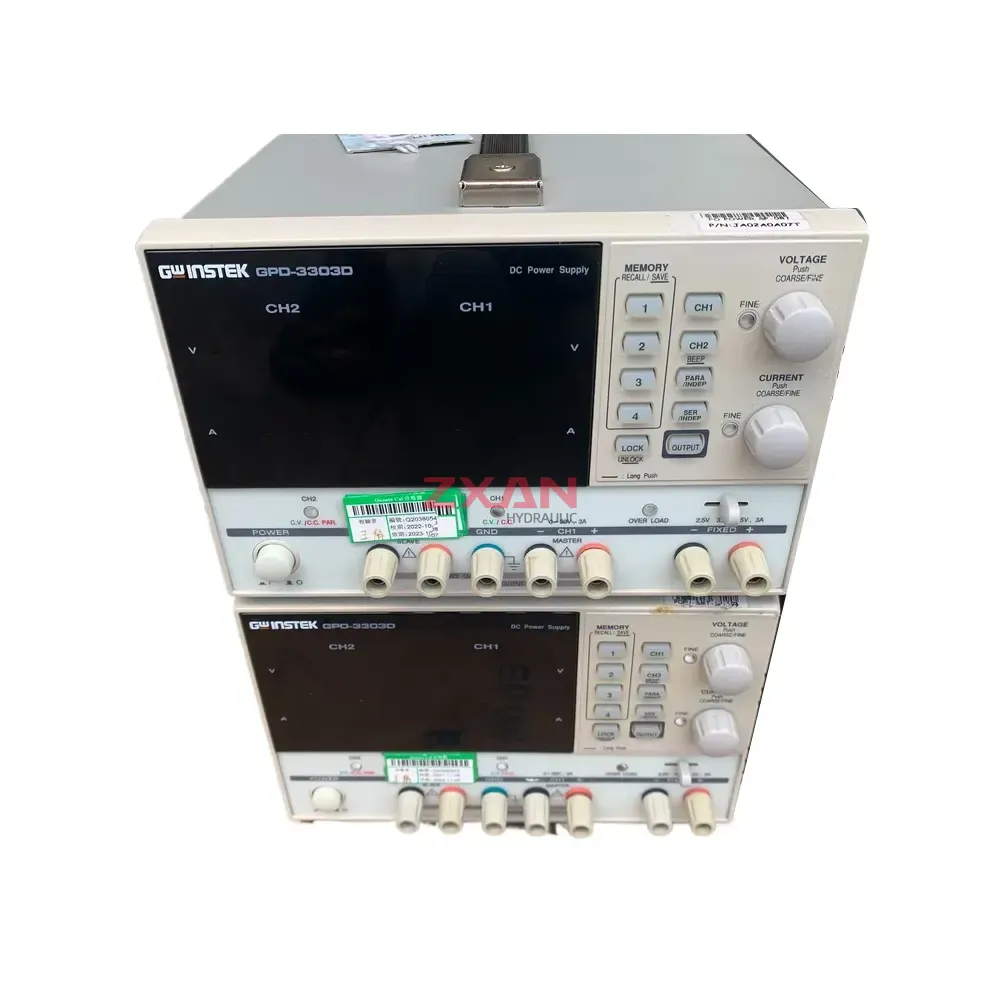

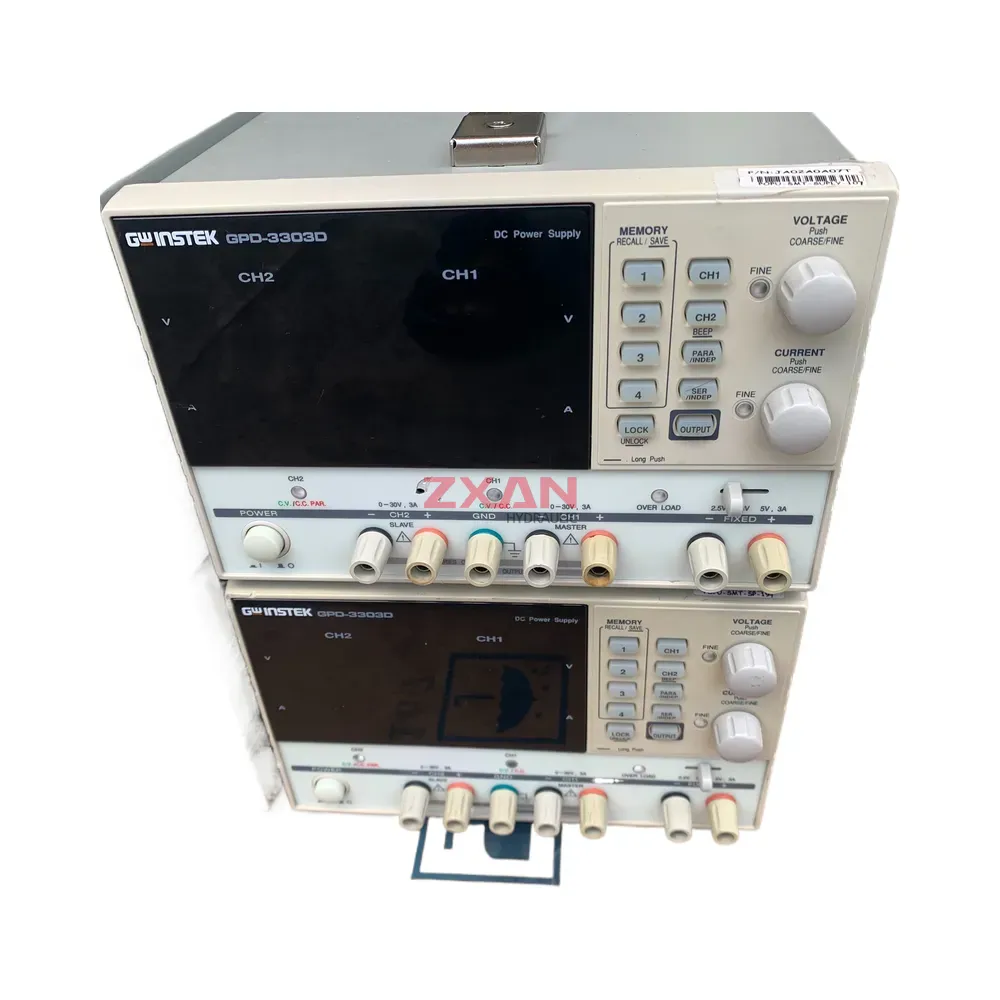

The GW Instek GPD-3303D is a high-performance, triple-output programmable linear DC power supply designed for a wide range of applications, from educational labs to industrial R&D. It features two fully adjustable 0-30V/0-3A channels and one fixed 5V/3A channel. The GPD-3303D offers excellent stability, low ripple and noise, and high resolution (1mV/1mA), ensuring precise power delivery for sensitive circuits. Its user-friendly interface includes a large 4.3-inch TFT LCD display, intuitive controls, and digital panel control. The two main channels can be operated independently or synchronized in series or parallel tracking modes to provide extended voltage or current outputs. With features like output on/off control, key lock function, and a USB interface for remote control, the GPD-3303D is a versatile and reliable tool for any electronics workbench.
Technical Specifications:
- Number of Channels: 3 (2 adjustable, 1 fixed)
- CH1/CH2 Output Voltage: 0 ~ 30V
- CH1/CH2 Output Current: 0 ~ 3A
- CH3 Output: Fixed 5V / 3A
- Tracking Operation: Series (0~60V/0~3A), Parallel (0~30V/0~6A)
- Load Regulation: Voltage: ≤0.01% + 3mV; Current: ≤0.2% + 3mA
- Line Regulation: Voltage: ≤0.01% + 3mV; Current: ≤0.2% + 3mA
- Ripple & Noise: Voltage: ≤ 1mVrms; Current: ≤ 3mArms
- Display: 4.3-inch TFT LCD
- Interface: USB Device Port
| Brand | GW |
|---|---|
| Model | GPD-3303D |
