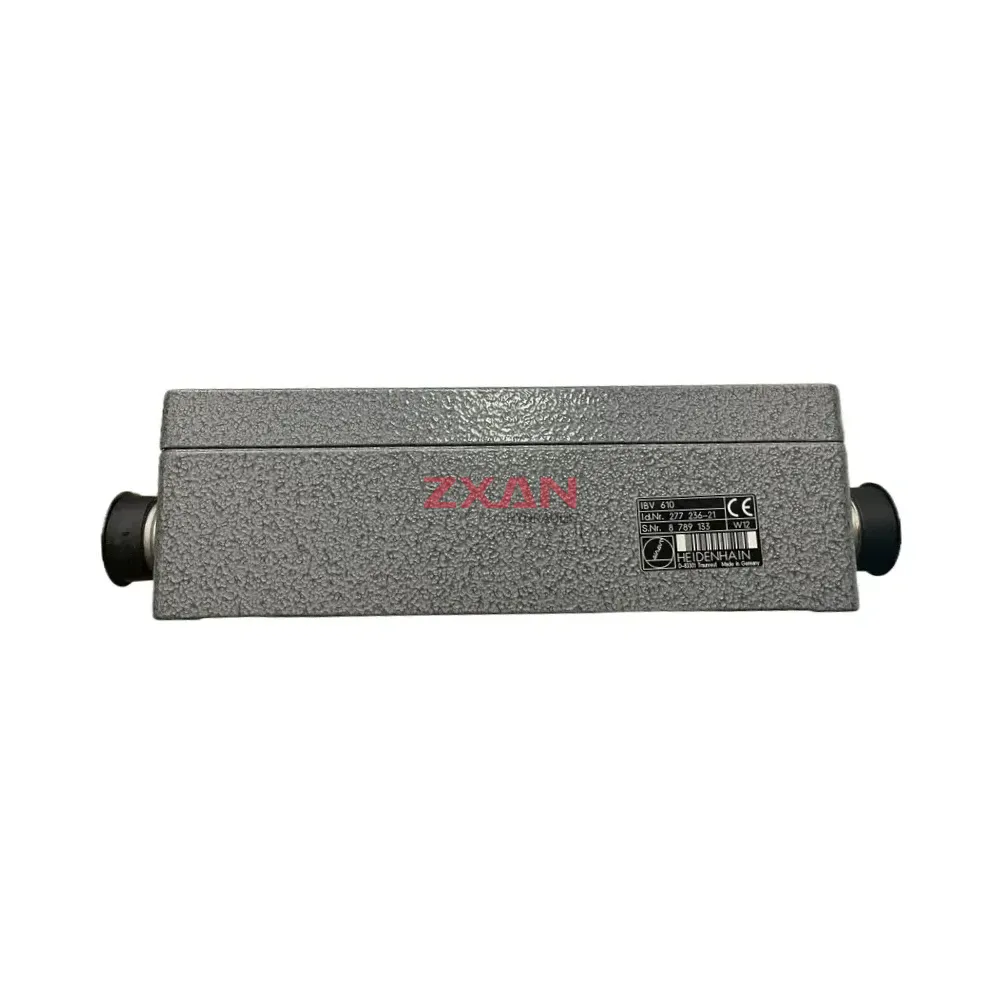

Heidenhain IBV 610 Interpolation and Digitizing Box
Enhance measurement accuracy with the Heidenhain IBV 610, a reliable interpolation and digitizing box that converts encoder sinusoidal signals into high-resolution TTL square-wave outputs for precision control systems.
Heidenhain IBV 610 Interpolation and Digitizing Box
The Heidenhain IBV 610 is a high-performance interpolation and digitizing box designed for signal processing with Heidenhain linear and rotary encoders. This robust unit excels at converting analog sinusoidal scanning signals (1 Vpp or 11 µApp) from an encoder into high-resolution, interference-immune TTL square-wave signals. By interpolating the input signal, the IBV 610 significantly increases the measurement resolution, allowing for greater precision in positioning and control applications. Housed in a durable metal enclosure, it is built to withstand industrial environments, making it an ideal solution for upgrading or integrating measurement systems with digital control electronics that require TTL-level inputs.
Technical Specifications:
- Input Signals: Sinusoidal voltage signals (1 Vpp) or sinusoidal current signals (11 µApp)
- Output Signals: TTL square-wave pulse trains, differential (RS-422 compliant)
- Interpolation Factor: Selectable up to 100-fold for increased resolution
- Power Supply: DC 5 V ± 5%
- Max. Input Frequency: Up to 100 kHz (for 1 Vpp)
- Housing: Compact and robust metal housing for industrial use
| Brand | HEIDENHAIN |
|---|---|
| Model | IBV 610 |
