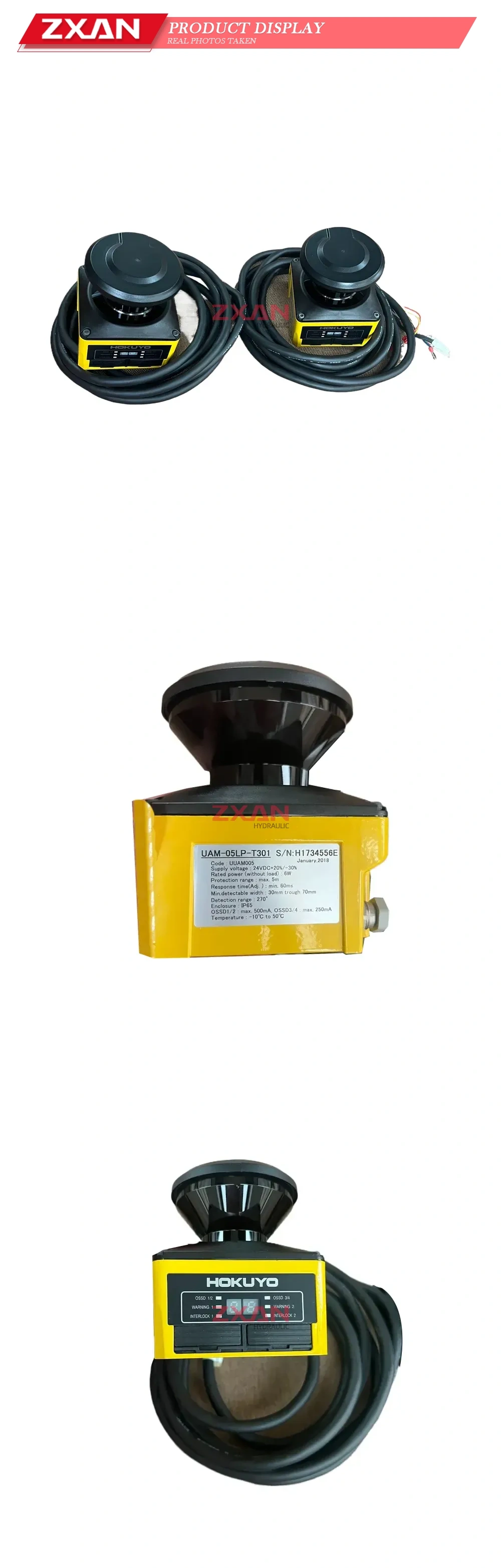

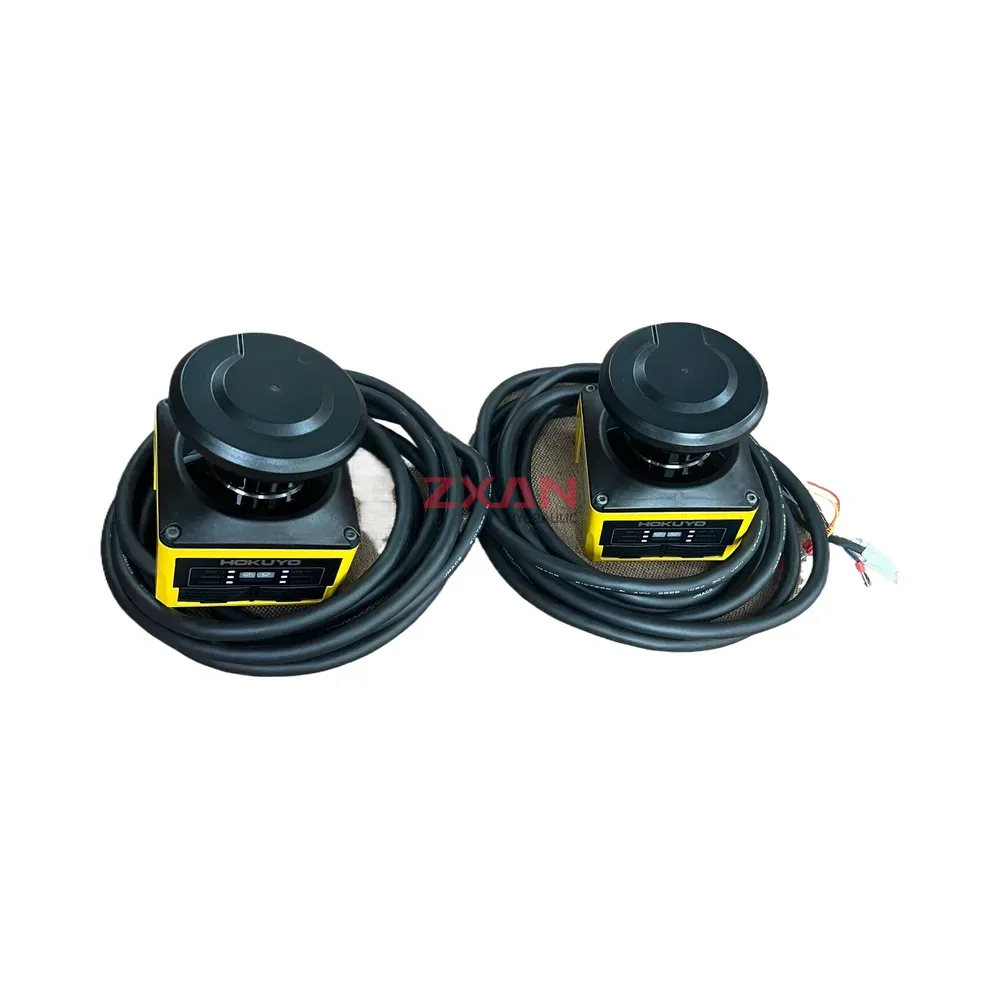

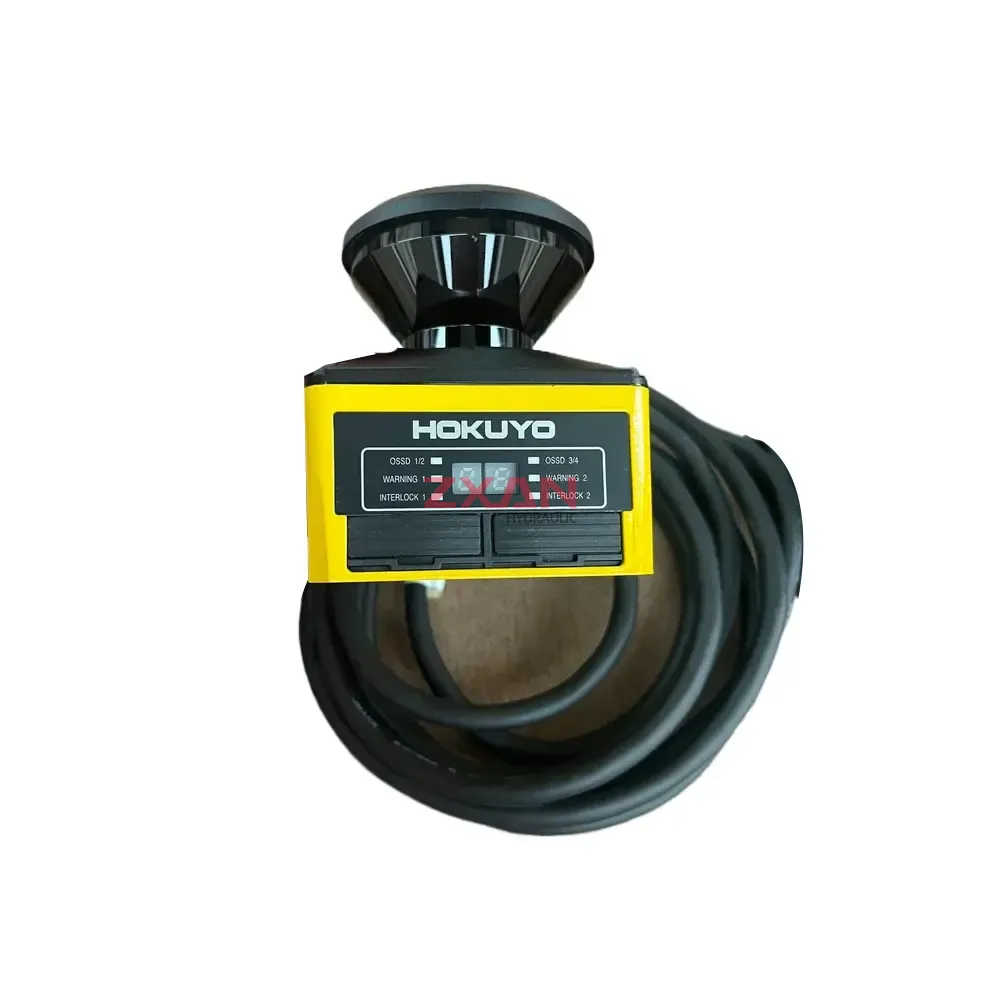

HOKUYO UAM-05LP-T301 Safety Laser Scanner
Shop the HOKUYO UAM-05LP-T301 Safety Laser Scanner for advanced industrial safeguarding. Features a 5m protection zone, 270° scanning angle, IP65 protection, and Type 3 / PL d safety compliance. Ideal for AGVs, robotics, and hazardous machinery monitoring.
HOKUYO UAM-05LP-T301 Safety Laser Scanner
The HOKUYO UAM-05LP-T301 is a highly reliable safety laser scanner engineered for industrial automation, robotics, and Automated Guided Vehicles (AGVs). Designed to prevent workplace accidents and protect personnel, it features an expansive 270° detection angle and a maximum protection range of 5 meters. This versatile scanner operates on a 24VDC power supply and is built to endure demanding industrial environments with an IP65-rated enclosure and a wide operating temperature range of -10°C to 50°C. Fully compliant with rigorous global safety standards, including Safety Category Type 3 (IEC61496-3), ISO13849-1 (PL d, Category 3), and IEC 61508 (SIL 2), the UAM-05LP-T301 ensures seamless integration into safety-critical applications through its configurable OSSD outputs and adjustable response times.

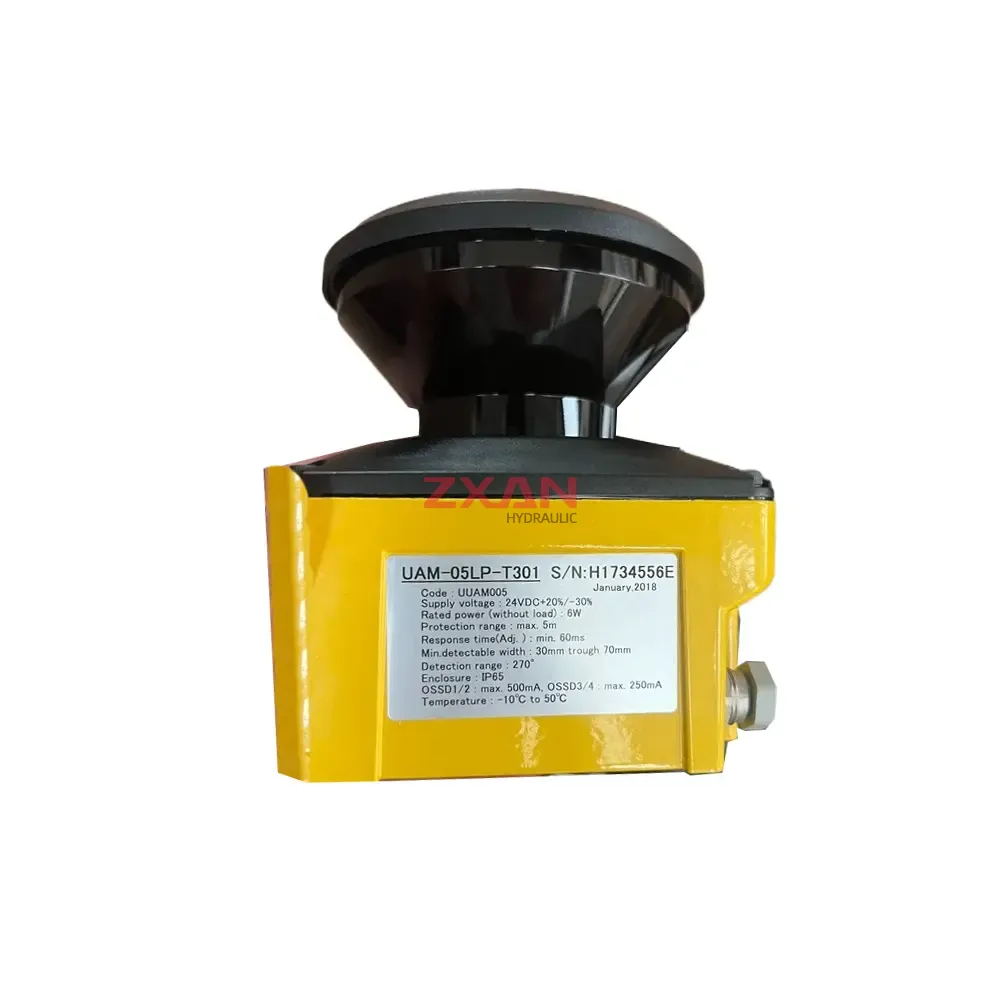

Technical Specifications:
- Brand: HOKUYO
- Model: UAM-05LP-T301 (Code: UUAM005)
- Supply Voltage: 24VDC +20% / -30%
- Rated Power: 6W (without load)
- Protection Range: Maximum 5m
- Detection Angle: 270°
- Minimum Detectable Width: 30mm through 70mm
- Response Time: Minimum 60ms (Adjustable)
- Safety Outputs (OSSD): OSSD1/2: max. 500mA | OSSD3/4: max. 250mA
- Safety Category: Type 3 (IEC61496-3), SIL 2 (IEC 61496), PL d Category 3 (ISO13849-1)
- Laser Class: Class 1 Laser Product (IEC60825-1)
- Enclosure Rating: IP65
- Operating Temperature: -10°C to 50°C
| Brand | HOKUYO |
|---|---|
| Model | UAM-05LP-T301 |
