Hydro Leduc MSi125 094080

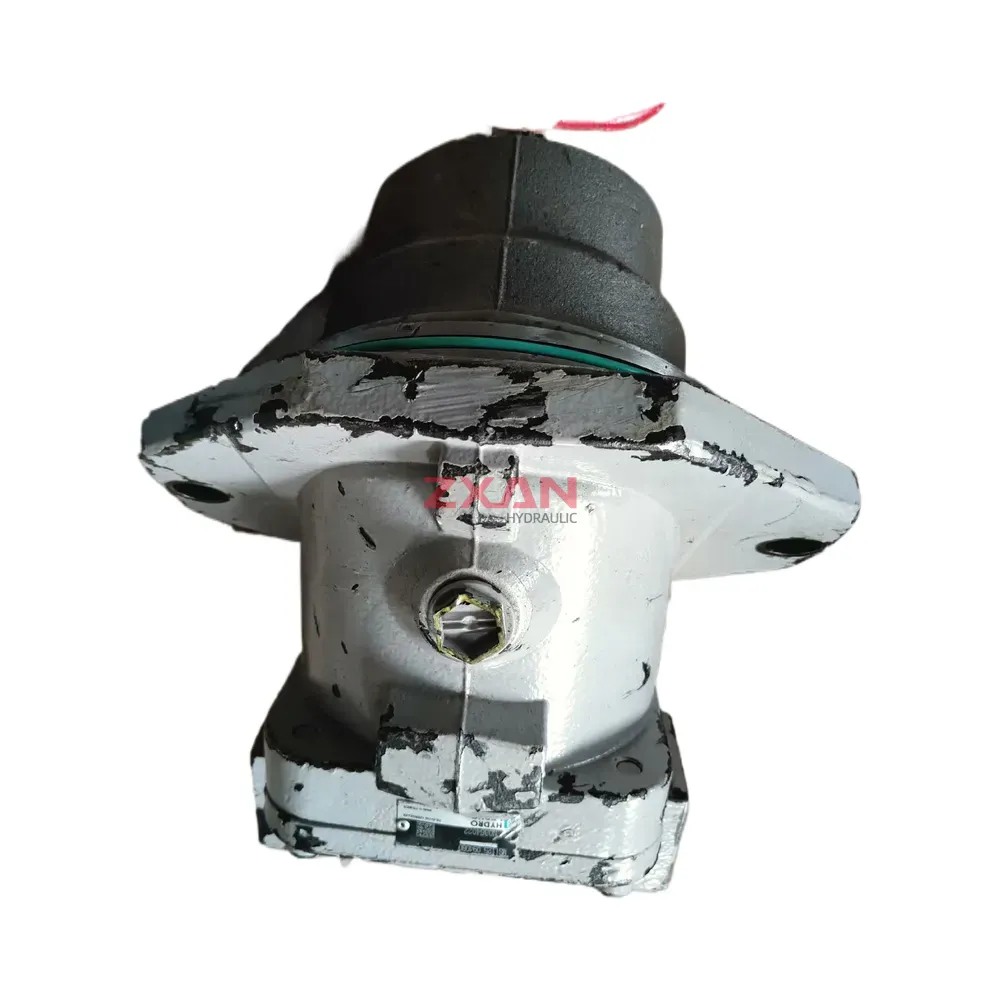

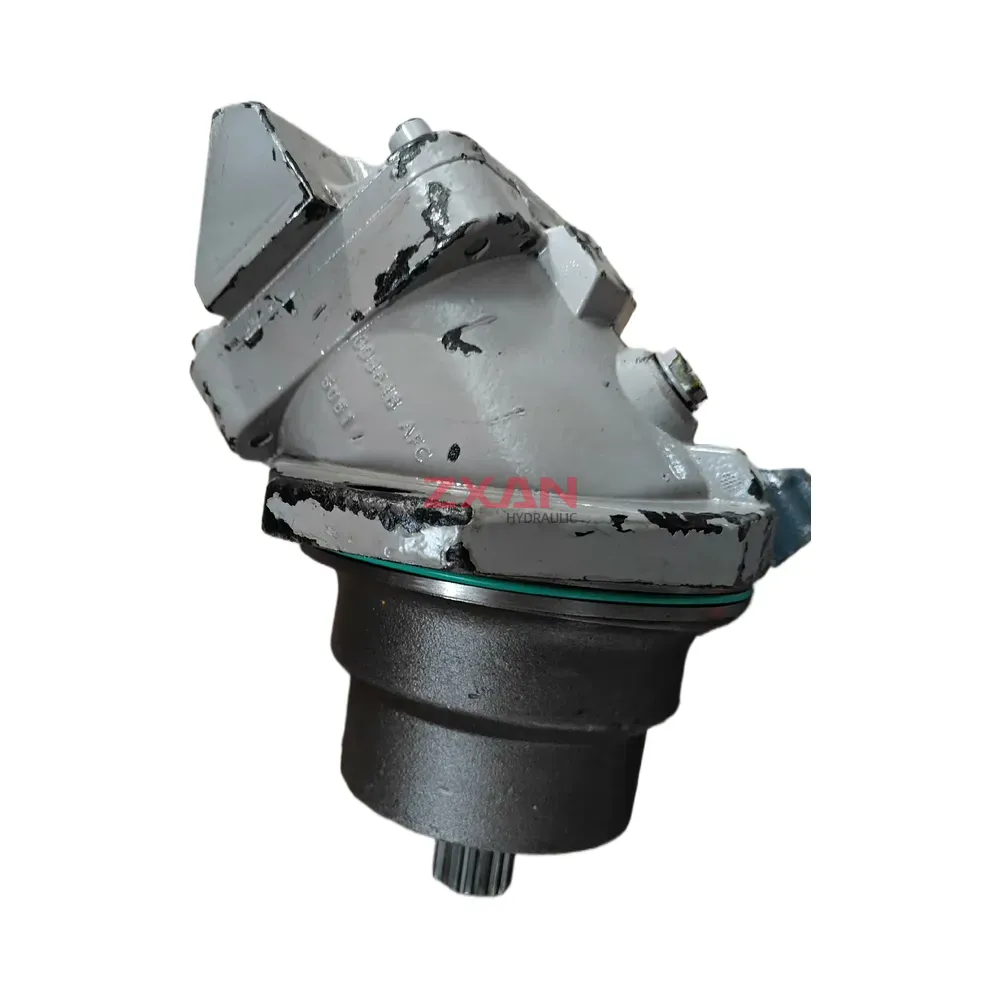

The Hydro Leduc MSi125 (part number 094080) is a high-performance fixed displacement axial piston hydraulic motor, utilizing a bent-axis design. Engineered for demanding mobile and industrial applications, it offers exceptional volumetric and mechanical efficiency. The MSi125 is renowned for its high power density, robust construction, excellent starting torque, and smooth operation over a wide speed range. This motor is a reliable choice for systems requiring precision, durability, and compact integration.
Technical Specifications:
- Model: MSi125

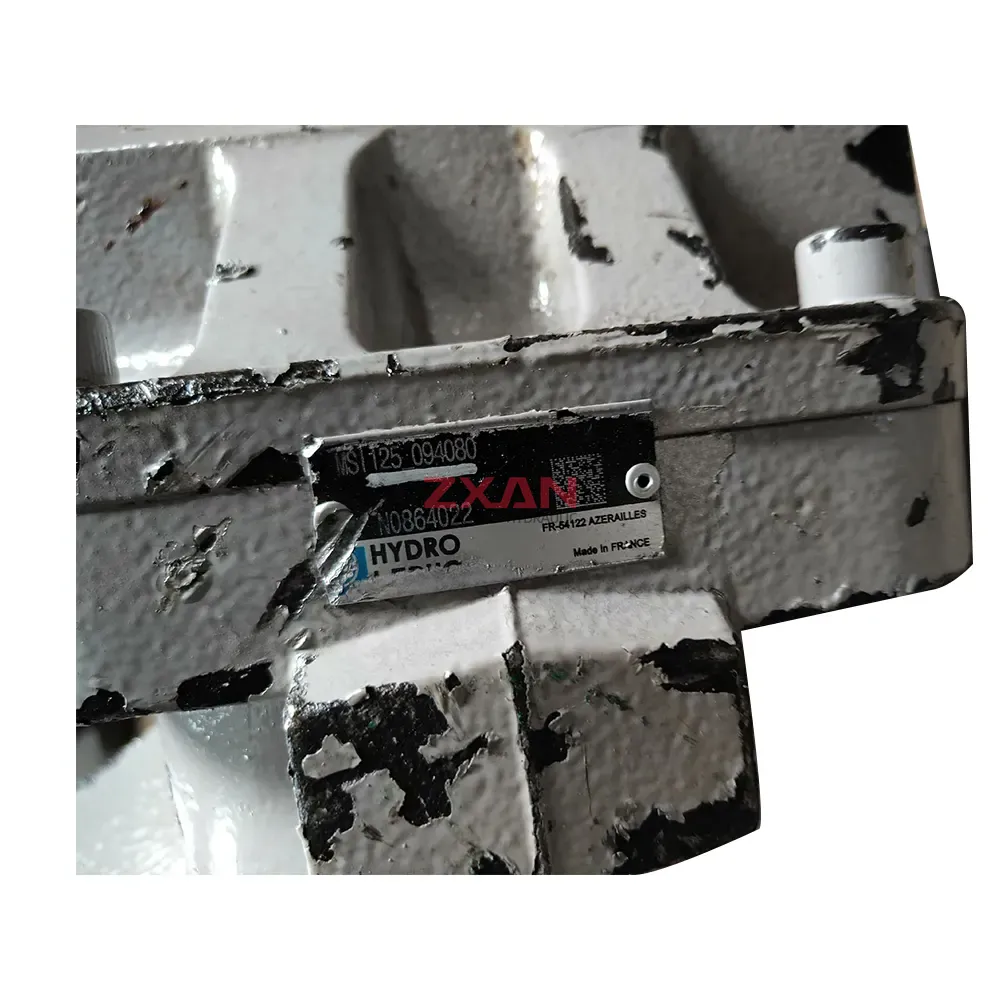

- Part Number: 094080
- Type: Fixed displacement axial piston motor (bent-axis)
- Geometric Displacement: 125.6 cm³/rev
- Maximum Continuous Operating Pressure: 350 bar (5075 psi)
- Maximum Peak Operating Pressure: 420 bar (6090 psi)
- Maximum Continuous Speed: Up to 2800 rpm (consult specific datasheet for pressure/speed envelope)
- Maximum Intermittent Speed: Up to 3200 rpm (consult specific datasheet for pressure/speed envelope)
- Direction of Rotation: Bidirectional
- Typical Mounting Flange: SAE (e.g., SAE C 4-bolt – specific to part number 094080 configuration)
- Typical Shaft Option: Splined (e.g., SAE C 14T – specific to part number 094080 configuration)
- Fluid Compatibility: Mineral oil based hydraulic fluids (HL, HLP)
| Brand | Hydro Leduc |
|---|---|
| Model | MSi125 094080 |
