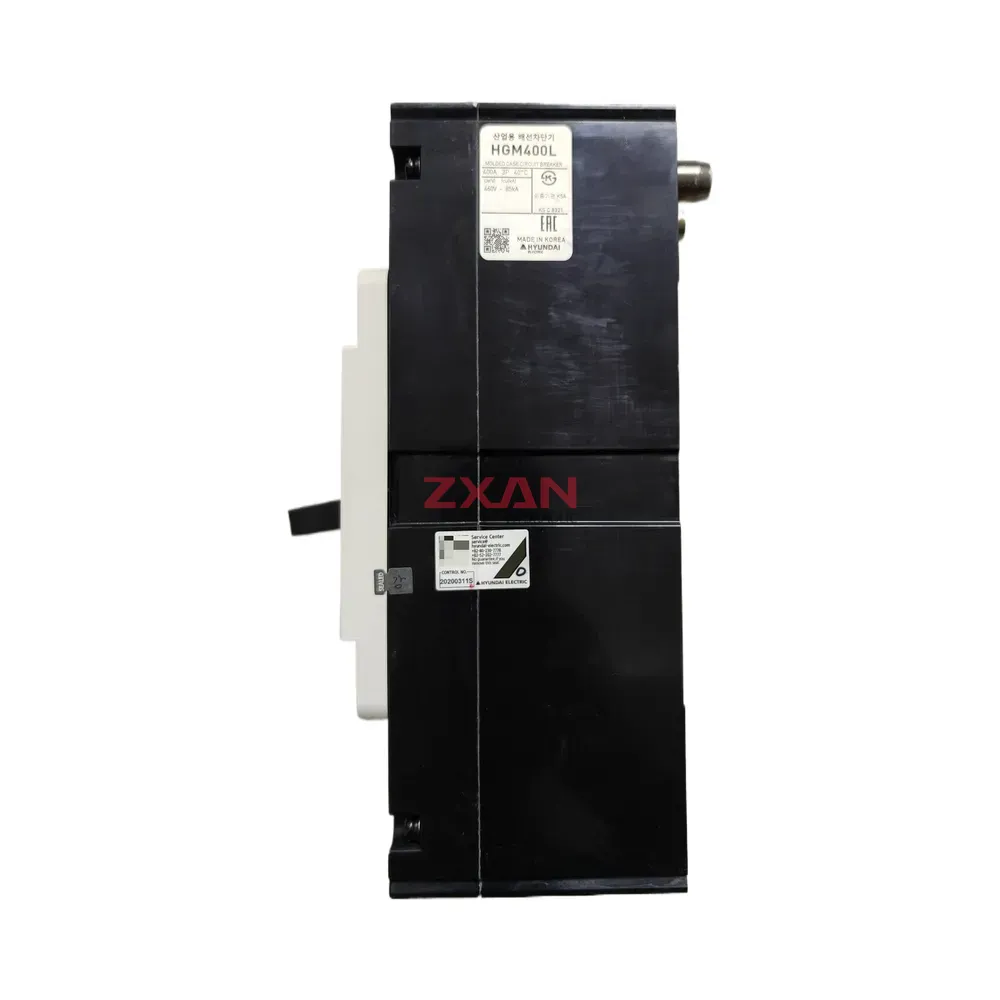

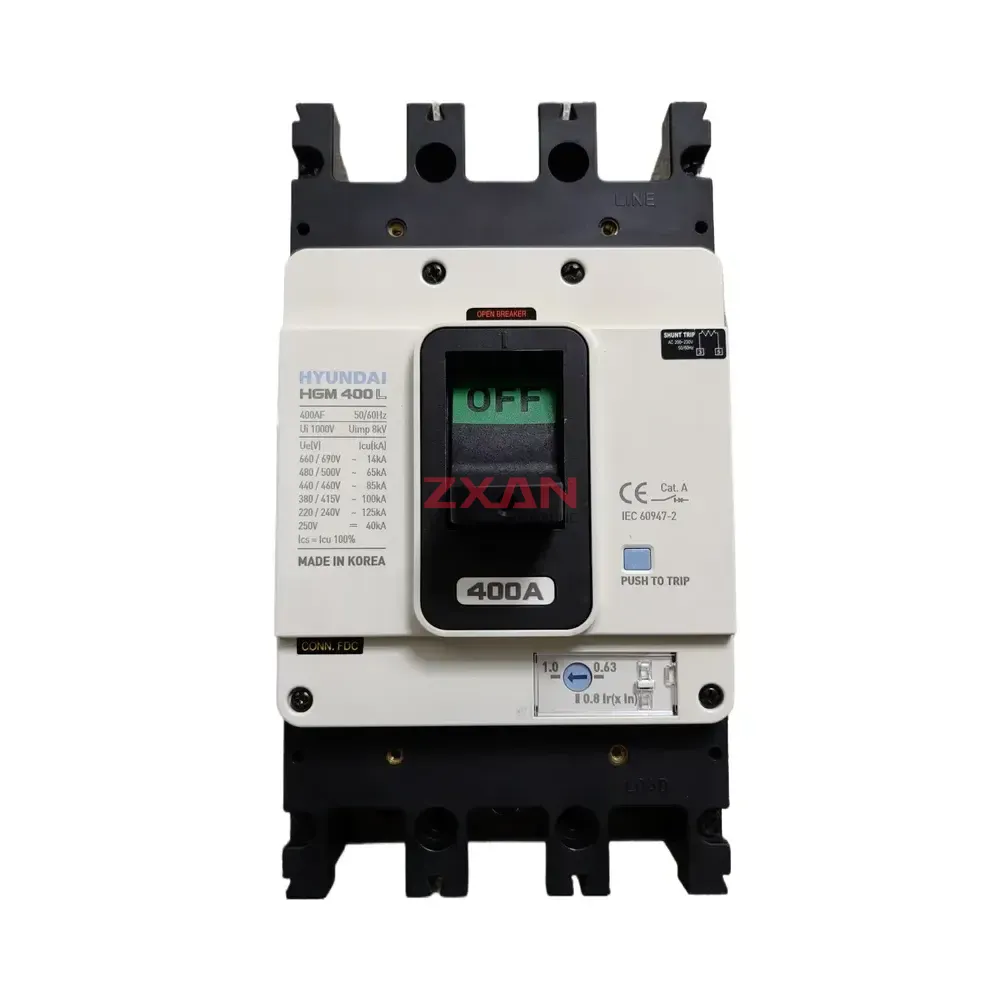

HYUNDAI HGM400L Molded Case Circuit Breaker
Secure your industrial power systems with the HYUNDAI HGM400L Molded Case Circuit Breaker. This 400A, 3-pole MCCB offers exceptional reliability with a 100kA breaking capacity at 380/415V, adjustable thermal settings (0.63-1.0xIn), and a built-in 200-250V AC shunt trip. CE and EAC certified to IEC 60947-2 standards.
HYUNDAI HGM400L Molded Case Circuit Breaker
The HYUNDAI HGM400L is a high-performance Molded Case Circuit Breaker (MCCB) designed to provide robust and reliable electrical protection for industrial and commercial power distribution systems. Built on a 400A frame (400AF) with a 3-pole configuration, this breaker effectively safeguards circuits against damaging overloads and short circuits. It features an adjustable thermal overload setting (0.63 to 1.0 x In) for precise protection tailoring, and boasts an impressive ultimate short-circuit breaking capacity (Icu) of up to 100kA at 380/415V. Fully compliant with IEC 60947-2 standards, the HGM400L comes factory-equipped with a 200-250V AC shunt trip and a push-to-trip test button, ensuring maximum safety, operational flexibility, and international regulatory compliance.
Technical Specifications:
- Brand: HYUNDAI
- Model: HGM400L
- Frame Size: 400AF
- Rated Current (In): 400A
- Number of Poles: 3-Pole (3P)
- Rated Frequency: 50/60Hz
- Rated Insulation Voltage (Ui): 1000V
- Rated Impulse Withstand Voltage (Uimp): 8kV
- Ultimate Short-Circuit Breaking Capacity (Icu): 125kA at 220/240V, 100kA at 380/415V, 85kA at 440/460V, 65kA at 480/500V, 14kA at 660/690V, 40kA at 250V
- Service Short-Circuit Breaking Capacity (Ics): 100% of Icu
- Overload Setting Range: Adjustable 0.63 – 1.0 x In
- Included Accessories: Shunt Trip (AC 200-250V 50/60Hz)
- Utilization Category: Category A
- Standards & Certifications: IEC 60947-2, CE, EAC
- Country of Origin: Made in Korea
| Brand | HYUNDAI |
|---|---|
| Model | HGM400L |
