HYUNDAI HIMAP-T Digital Protective Relay (Overcurrent / Differential / Ground Fault Protection Relay)
Protect your critical power systems with the HYUNDAI HIMAP-T Digital Protective Relay. This multi-function 1A relay provides comprehensive 87T, OCR, and SGR protection, featuring a versatile 95V-250V AC/DC control voltage, digital LCD interface, and secure panel-mount design for demanding industrial applications.

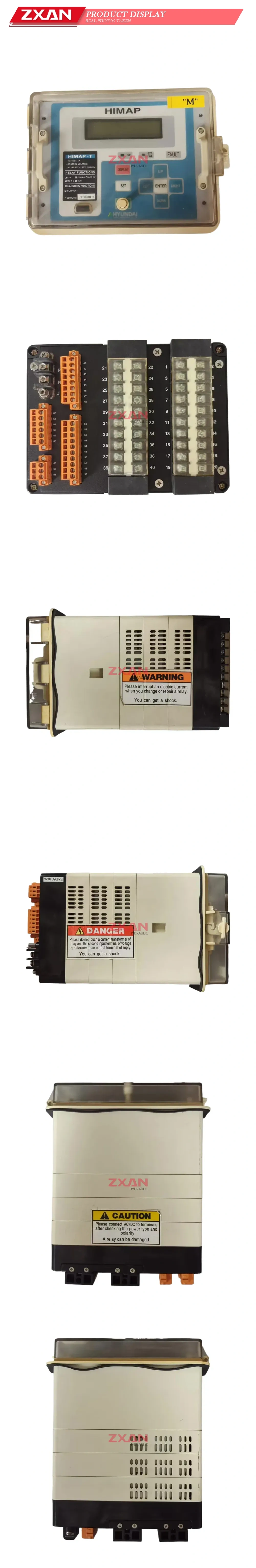

HYUNDAI HIMAP-T Digital Protective Relay
The HYUNDAI HIMAP-T is a highly reliable, multi-function digital protective relay engineered for advanced power system and transformer protection. It integrates essential relay functions including Transformer Differential (87T), Primary and Secondary Overcurrent (OCR P-1, OCR P-2, OCR S), and Sensitive Ground Relay (SGR) into a single, compact unit. The relay features a user-friendly front panel equipped with a clear LCD display, an intuitive 7-button membrane keypad, and LED status indicators (OP, SYS FAIL, FAULT) for precise real-time monitoring and configuration. Housed in a durable flush panel-mount case with a transparent hinged protective cover, the HIMAP-T ensures secure operation and offers easy installation via rear plug-in numbered screw terminals.
Technical Specifications:
- Brand / Model: HYUNDAI / HIMAP-T
- Rated Current: 1A
- Control Voltage: AC/DC 95V-250V, 50/60Hz
- Relay Functions: 87T (Transformer Differential), OCR P-1, OCR P-2 (Overcurrent Primary), OCR S (Overcurrent Secondary), SGR (Sensitive Ground Relay)
- Measuring Functions: Current

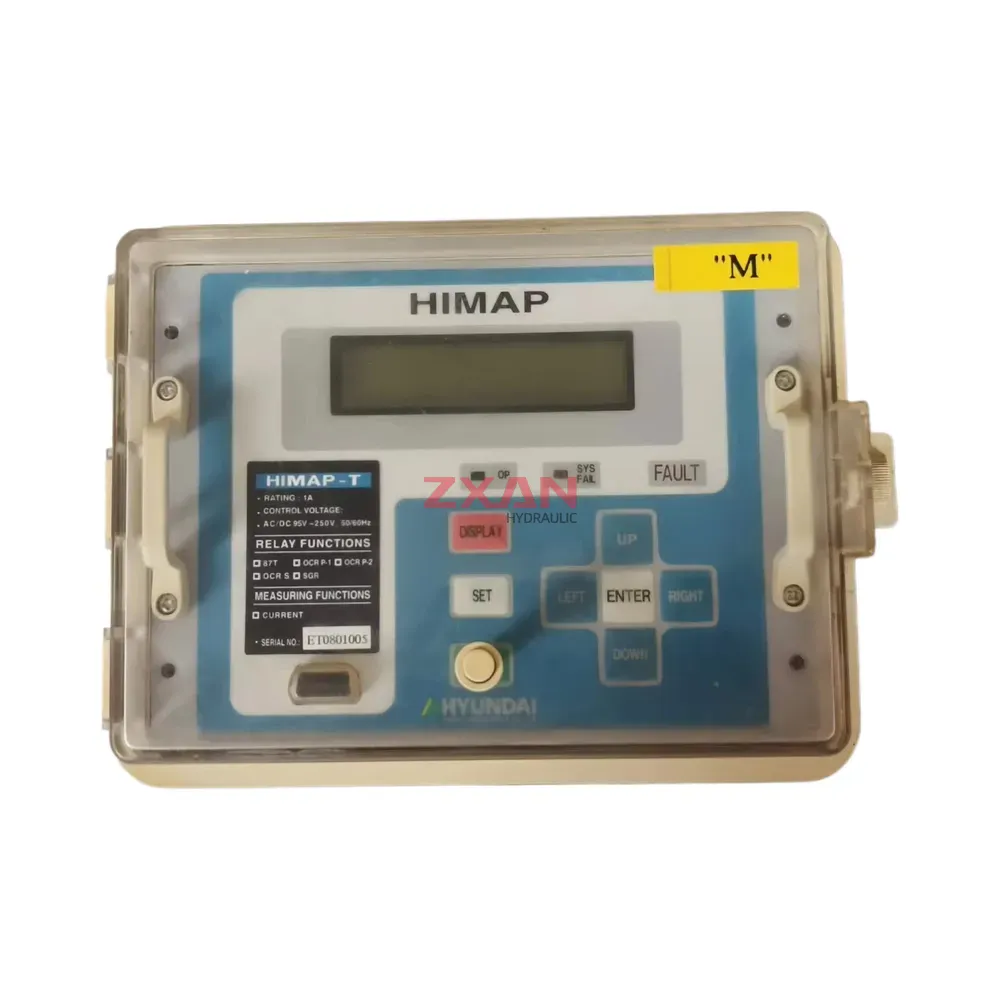

- User Interface: LCD display, keypad (DISPLAY, SET, UP, DOWN, LEFT, RIGHT, ENTER), LED indicators (OP, SYS FAIL, FAULT)

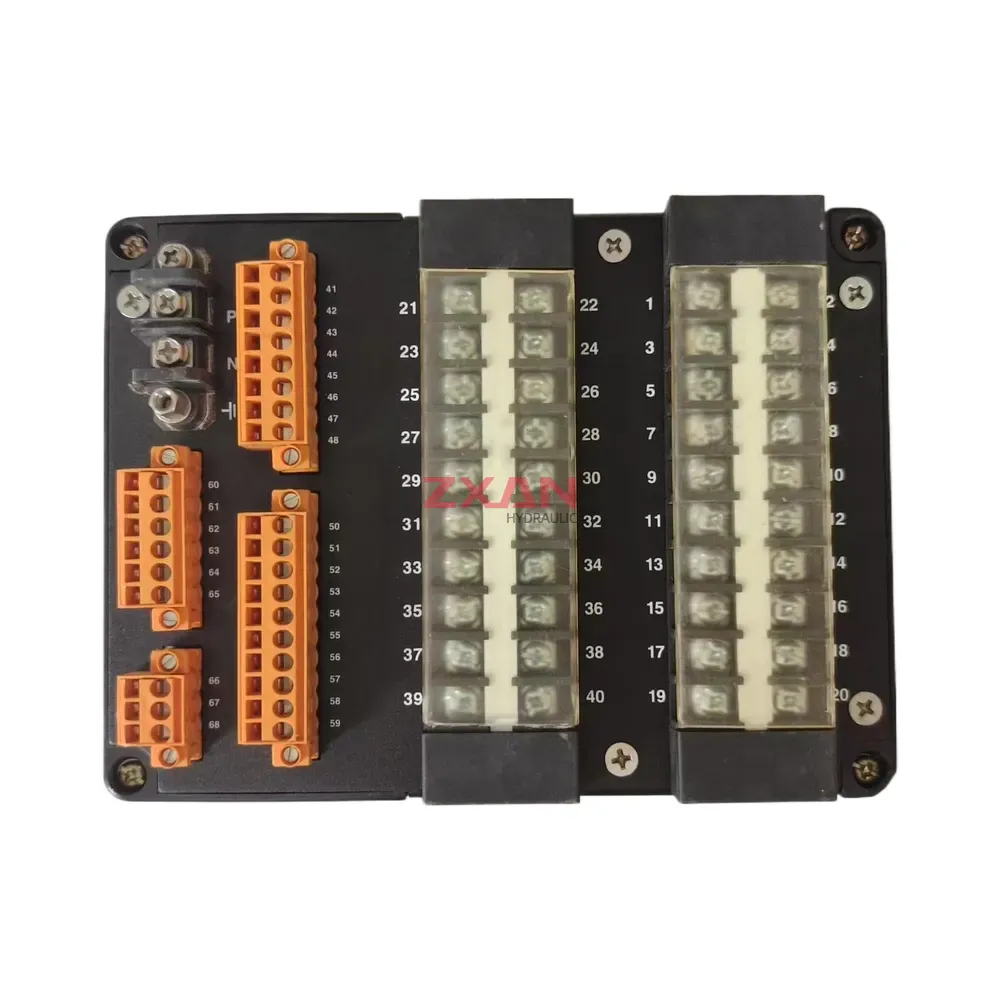

- Mounting & Connections: Flush panel-mount with transparent hinged cover; rear plug-in terminal blocks (Terminals 1-68)
| Brand | HYUNDAI |
|---|---|
| Model | HIMAP-T |
