INOVANCE MS1H4-75B30CB-T331Z
Discover the INOVANCE MS1H4-75B30CB-T331Z, a high-inertia 750W AC servo motor with a 3000 rpm rated speed. Features a 23-bit absolute encoder and an integrated brake for superior precision and safety in industrial automation.
INOVANCE MS1H4-75B30CB-T331Z

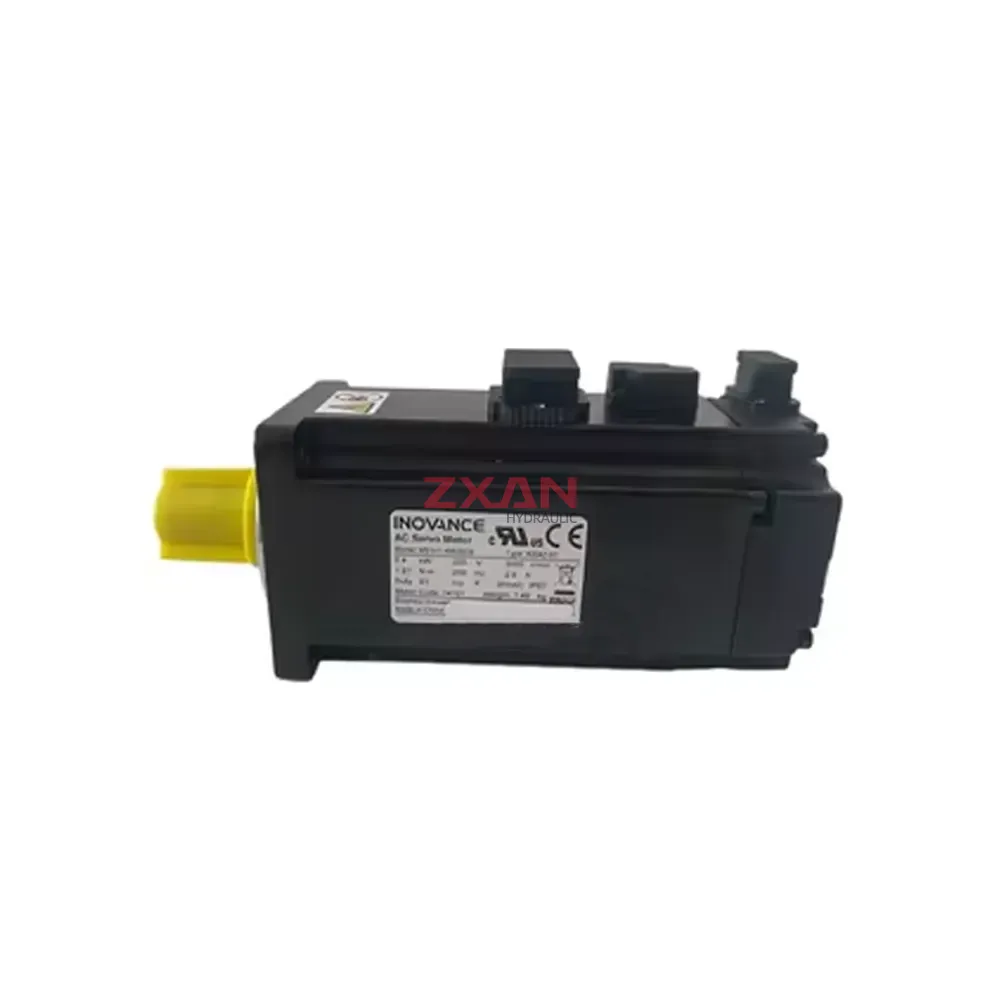

The INOVANCE MS1H4-75B30CB-T331Z is a high-performance, high-inertia AC servo motor designed for demanding industrial automation applications. Part of the MS1 series, this motor delivers 750W of rated power and a rated speed of 3000 rpm, ensuring robust and dynamic performance. It is equipped with a high-resolution 23-bit absolute magnetic encoder for exceptional positioning accuracy and control. The integrated 24VDC brake provides reliable holding torque for vertical load applications or when power is disengaged. With its rugged IP65-rated construction and a keyway shaft with an oil seal, the MS1H4-75B30CB-T331Z is built for durability and reliability in challenging industrial environments, making it an ideal choice for CNC machinery, robotics, packaging, and material handling systems.
Technical Specifications:
- Model Series: MS1 High Inertia Servo Motor
- Rated Power: 750W (0.75kW)
- Rated Speed: 3000 rpm
- Rated Torque: 2.39 Nm
- Encoder Type: 23-bit Absolute Magnetic Encoder
- Voltage Class: 220V
- Brake: Yes (24VDC)
- Flange Size: 100mm
- Shaft Type: Keyway with oil seal
- Protection Class: IP65
| Brand | INOVANCE |
|---|---|
| Model | MS1H4-75B30CB-T331Z |
