JYF710A Industrial Control Circuit Board
Optimize your industrial automation system with the JYF710A Industrial Control Circuit Board. Featuring dual LAFU DC/DC power converters, robust gold-plated edge connectors, and real-time LED diagnostics (RUN/TEST, ERR, DCM), this V1.5.006 module delivers reliable power and seamless signal transmission for your critical DCS and factory control applications.
JYF710A Industrial Control Circuit Board

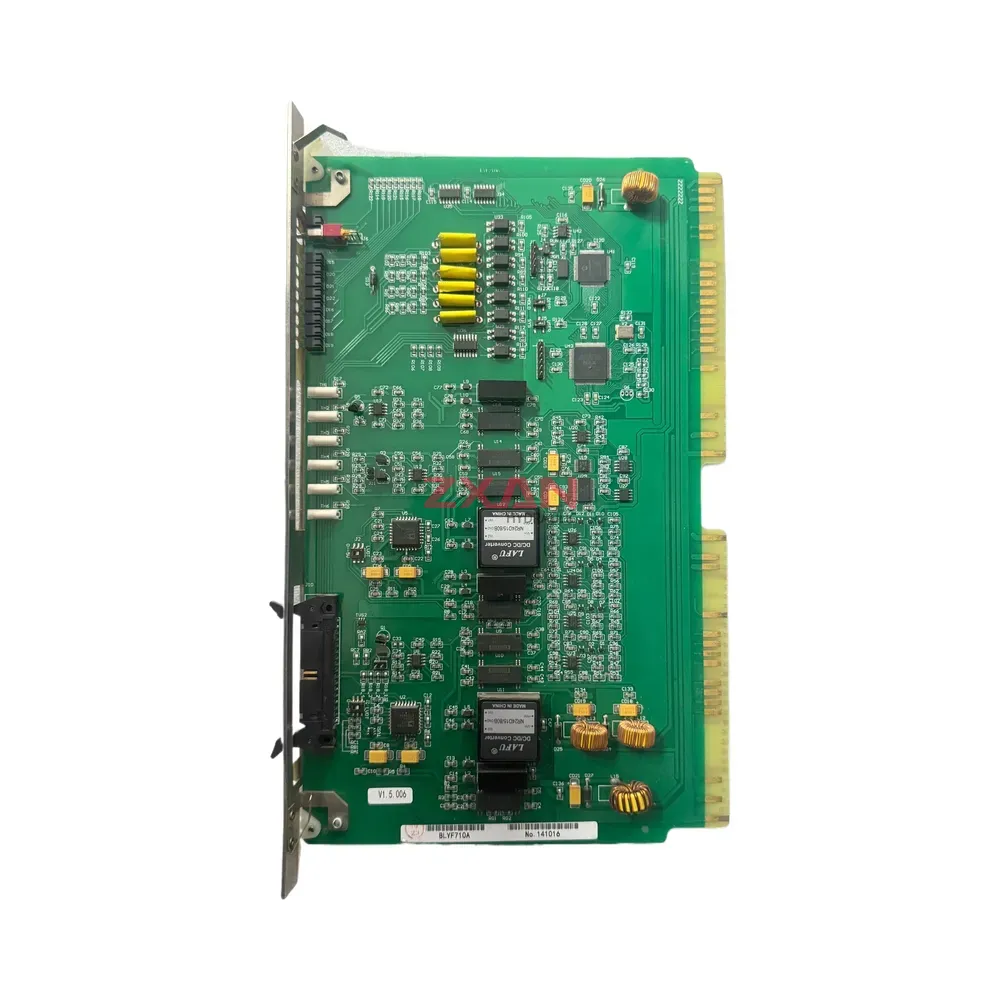

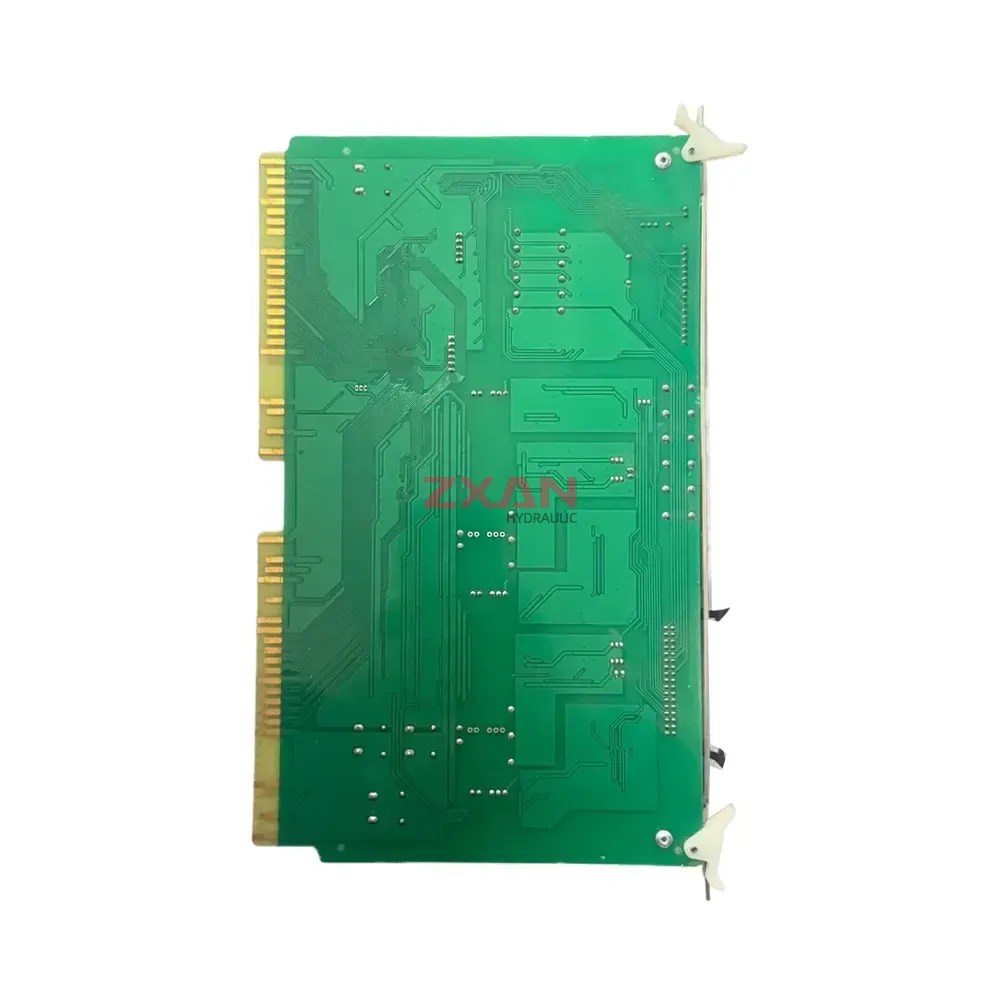

The JYF710A is a robust industrial control circuit board module designed for reliable performance in demanding automation and Distributed Control System (DCS) environments. This high-quality green printed circuit board (PCB) features gold-plated edge connectors to ensure secure, oxidation-resistant, and consistent signal transmission. It is equipped with premium onboard components, including multiple integrated circuits, capacitors, inductors, and dual LAFU DC/DC converter modules (Model: NR24D15/80B) for highly stable power regulation. The module’s side metal panel provides clear, real-time diagnostic feedback via status LEDs for RUN/TEST, ERR, and DCM, alongside standard terminal markings (0, 1, 2, 3, P, N). Built to hardware version V1.5.006, the JYF710A is engineered for seamless integration, minimal downtime, and long-lasting durability in critical industrial control applications.
Technical Specifications:
- Model: JYF710A
- Hardware Version: V1.5.006 (Board No. 6.17710A)

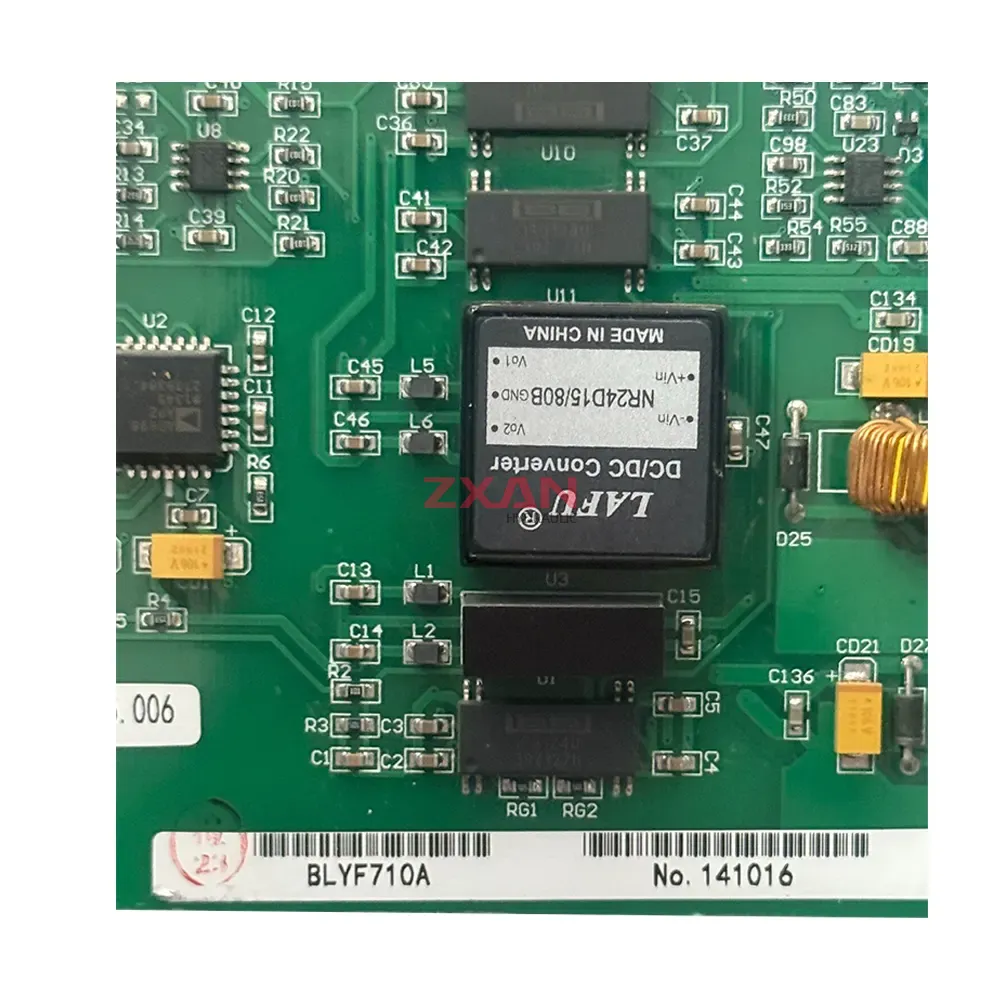

- Power Modules: 2x LAFU DC/DC Converters (Model: NR24D15/80B) with -Vin, +Vin, GND, Vo2, Vo1 terminals
- Diagnostic Indicators: Front-panel status LEDs for DCM, ERR, and RUN/TEST
- Interface & Connectivity: Gold-plated edge connectors with metal side panel terminal markings (0, 1, 2, 3, P, N)
| Model | JYF710A |
|---|
