KEYENCE FS-N18N
Discover the KEYENCE FS-N18N, a high-speed digital fiber optic sensor amplifier. This main unit features NPN output, a dual digital display, and user-friendly one-click setup for reliable and precise industrial sensing applications.
KEYENCE FS-N18N

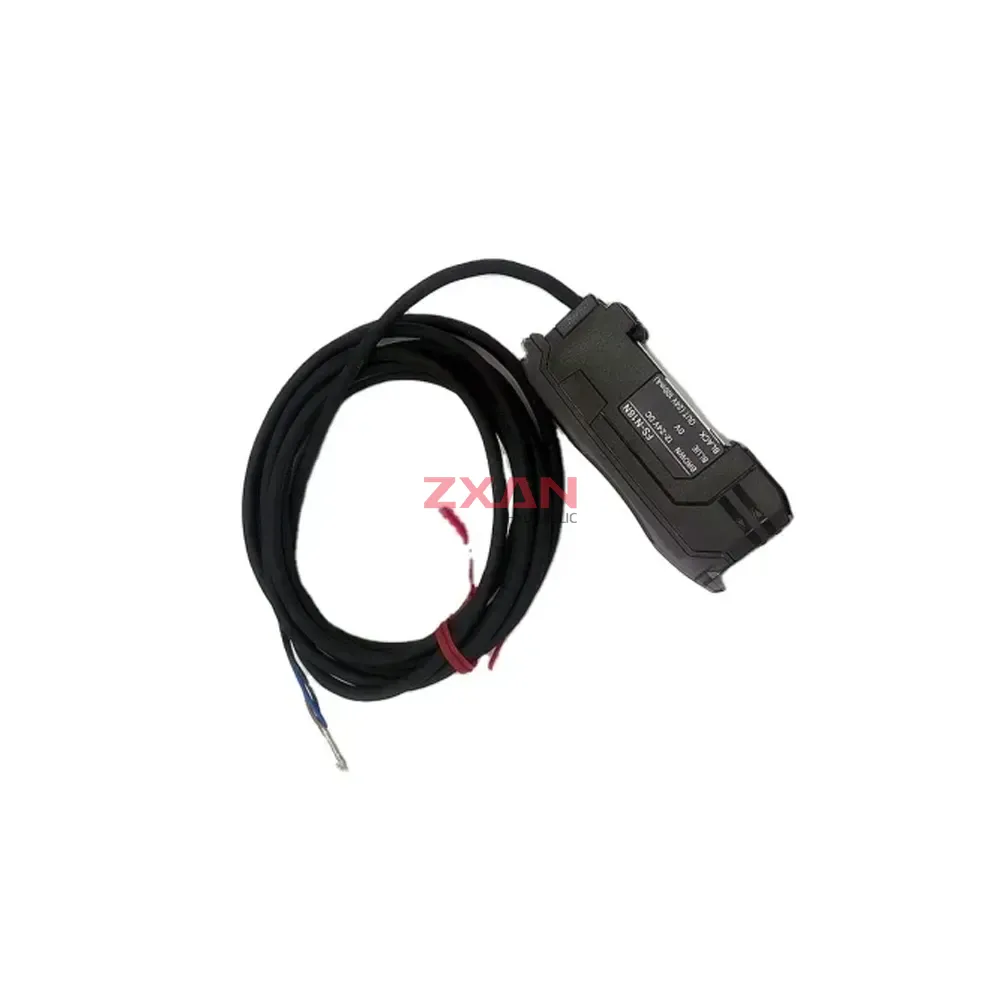

The KEYENCE FS-N18N is a high-performance digital fiber optic sensor amplifier from the NEO series. It features a main unit configuration with NPN output and is designed for exceptional stability and ease of use. Equipped with a powerful red LED light source and a dual digital display, the FS-N18N allows for intuitive setup and real-time monitoring of detection values. Its one-click calibration simplifies installation, while multiple response speed modes (from HIGH SPEED to MEGA) provide the versatility needed for a wide range of industrial automation applications, ensuring reliable detection even in challenging environments.

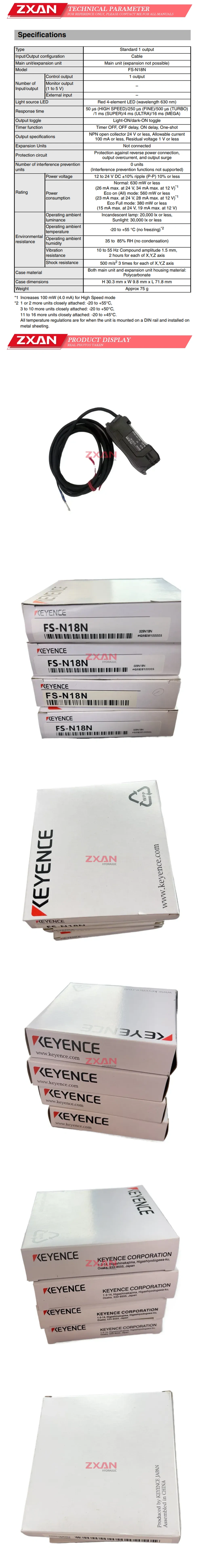

Technical Specifications:
Model: FS-N18N
Type: Amplifier Unit, Main unit, NPN
Light Source: Red, 4-element LED (Wavelength: 630 nm)
Control Output: NPN open collector 24 V; max. 100 mA per output, max. 200 mA total for 2 outputs
Power Voltage: 12 to 24 VDC ±10 %, Ripple (P-P) 10 % or less
Response Time: 50 µs (HIGH SPEED) / 250 µs (FINE) / 500 µs (TURBO) / 1 ms (SUPER) / 4 ms (ULTRA) / 16 ms (MEGA)
Display: Dual digital display (7-segment display with red and green LEDs)
| Brand | KEYENCE |
|---|---|
| Model | FS-N18N |
