Keyence LJ-X8060
Explore the Keyence LJ-X8060, a high-speed, high-precision 2D/3D laser profiler for advanced industrial inspection. Features a blue laser for stable measurement on diverse surfaces, ideal for automated quality control.

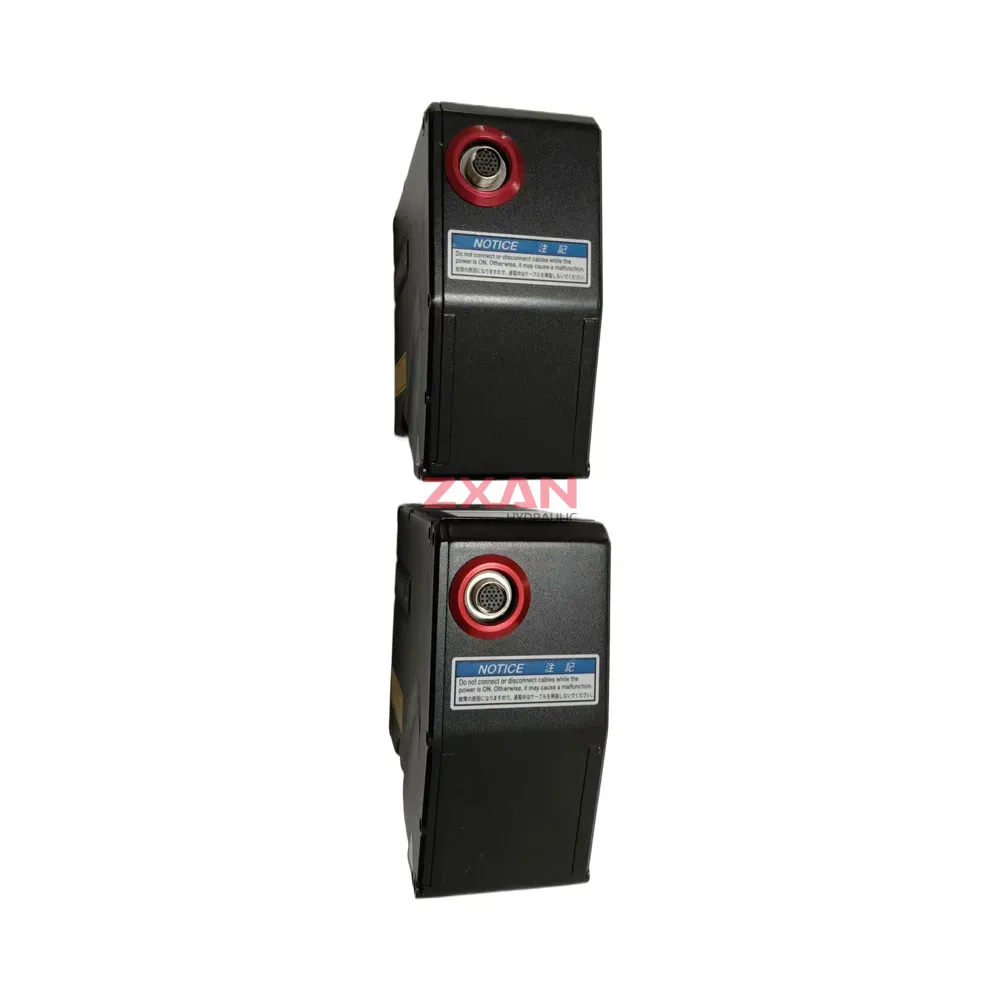

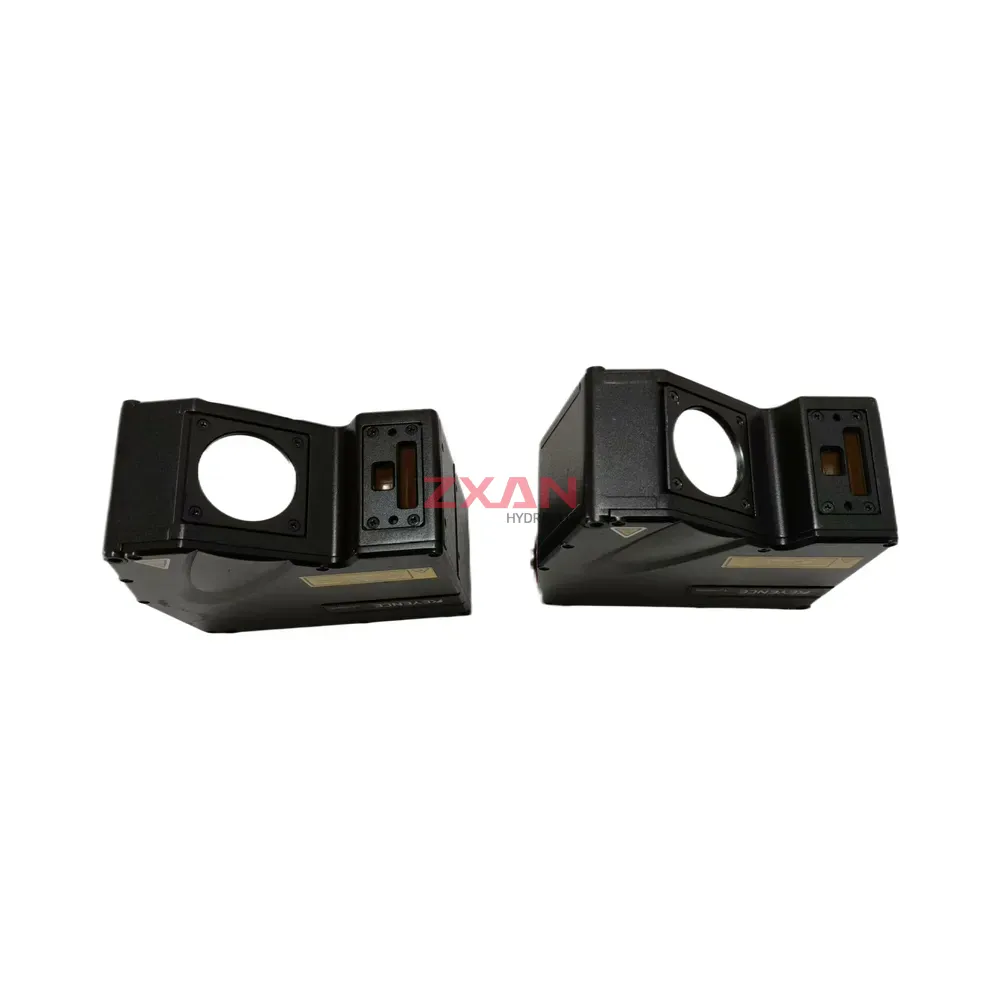

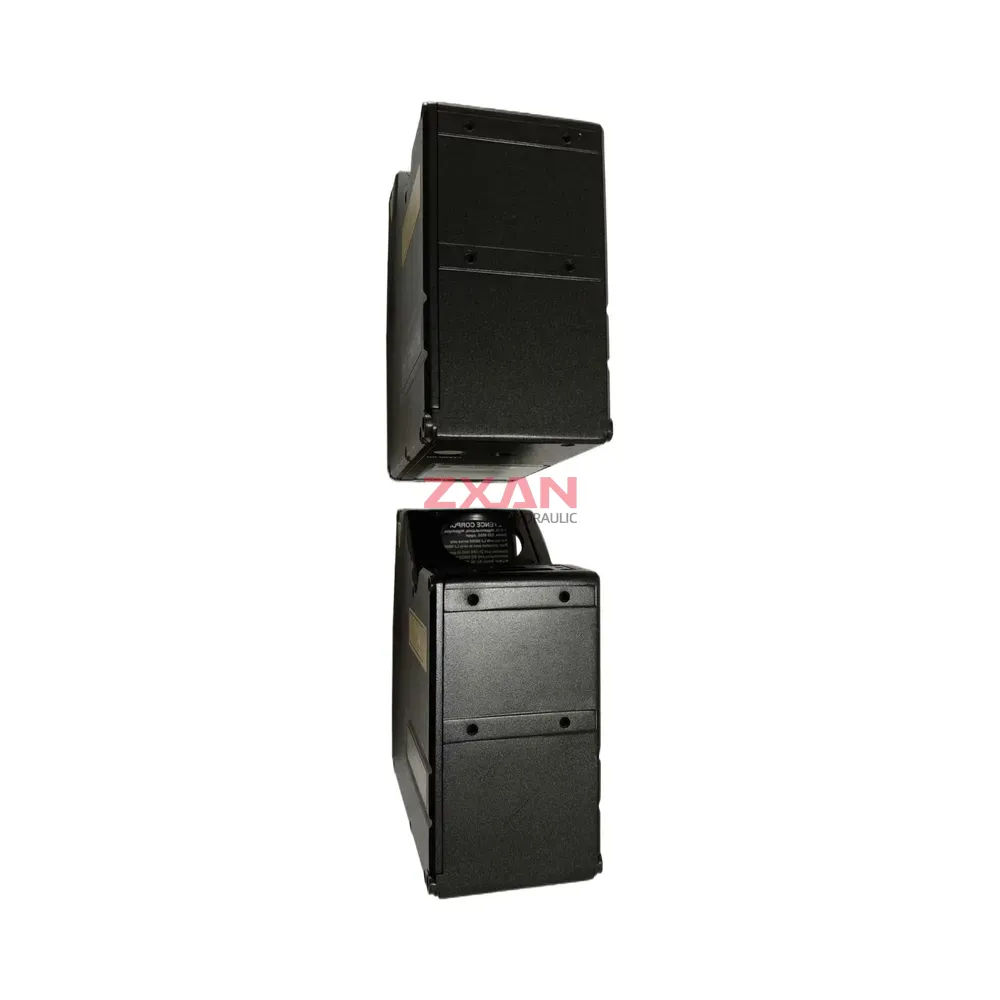

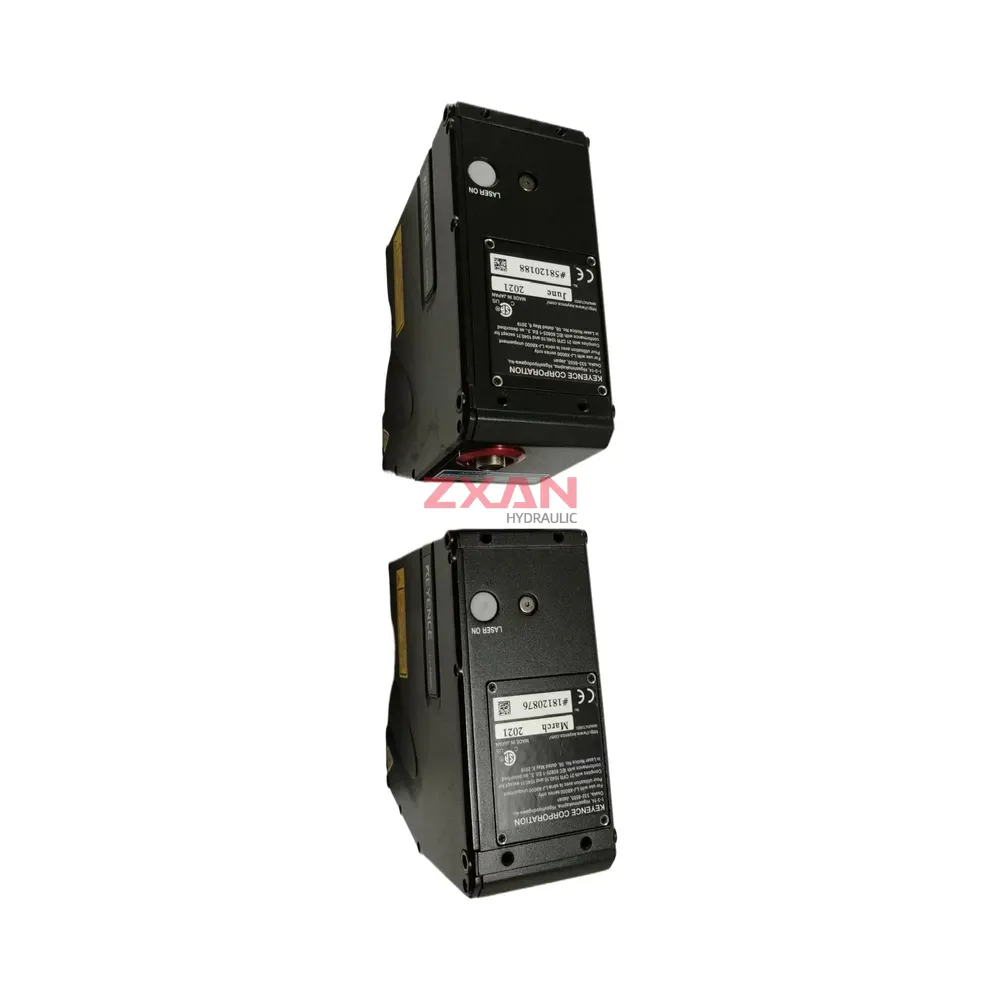

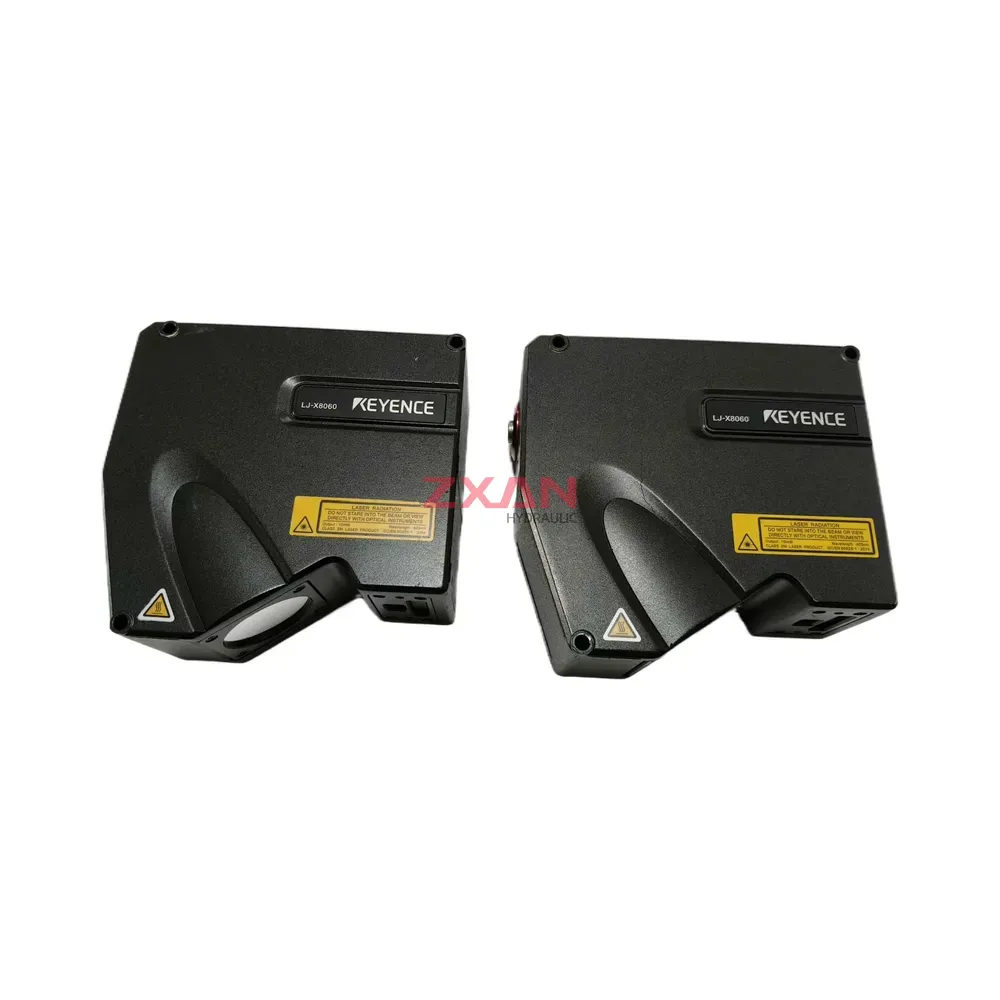

Keyence LJ-X8060 2D/3D Laser Profile Sensor Head
The Keyence LJ-X8060 is a high-performance 2D/3D laser profile sensor head designed for demanding industrial inspection and measurement applications. It utilizes a state-of-the-art blue laser and a 4096x oversampling E3-CMOS sensor to deliver exceptional stability and accuracy, even on challenging surfaces like metal or black materials. With a maximum sampling frequency of 16 kHz and 3200 data points per profile, the LJ-X8060 captures detailed surface information at high speeds, making it ideal for in-line quality control, defect detection, and dimensional gauging in automated manufacturing environments. Its robust IP67-rated housing ensures reliable operation in harsh industrial conditions.

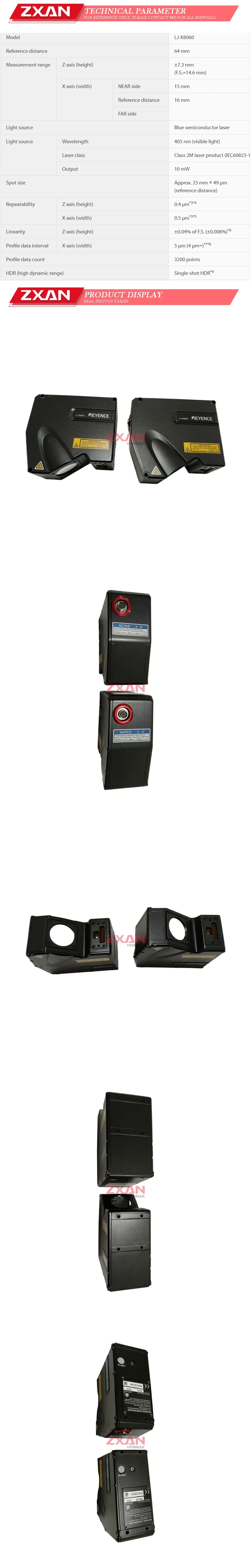

Technical Specifications:
- Model: LJ-X8060
- Measurement Range (Z-axis): ±13 mm (at reference distance 60 mm)
- Measurement Range (X-axis): 22 mm (Near) to 44 mm (Far)
- Light Source: Blue semiconductor laser (Wavelength: 405 nm), Class 2M Laser Product
- Repeatability (Z-axis): 0.4 µm
- Repeatability (X-axis): 2.5 µm
- Profile Data Points: 3200 points/profile
- Max Sampling Frequency: 16 kHz (62.5 µs)
- Environmental Resistance: IP67 (IEC60529)
| Brand | KEYENCE |
|---|---|
| Model | LJ-X8060 |
