Krom Schroder IFD 258-5/1W Ignition Controller
Optimize your industrial combustion systems with the Krom Schroder IFD 258-5/1W Ignition Controller (Order No. 84621630). This 230 VAC gas burner control unit features advanced flame monitoring, single-electrode operation support, IP54 protection, and CE/CSA/FM approvals for maximum safety and reliability.
Krom Schroder IFD 258-5/1W Ignition Controller

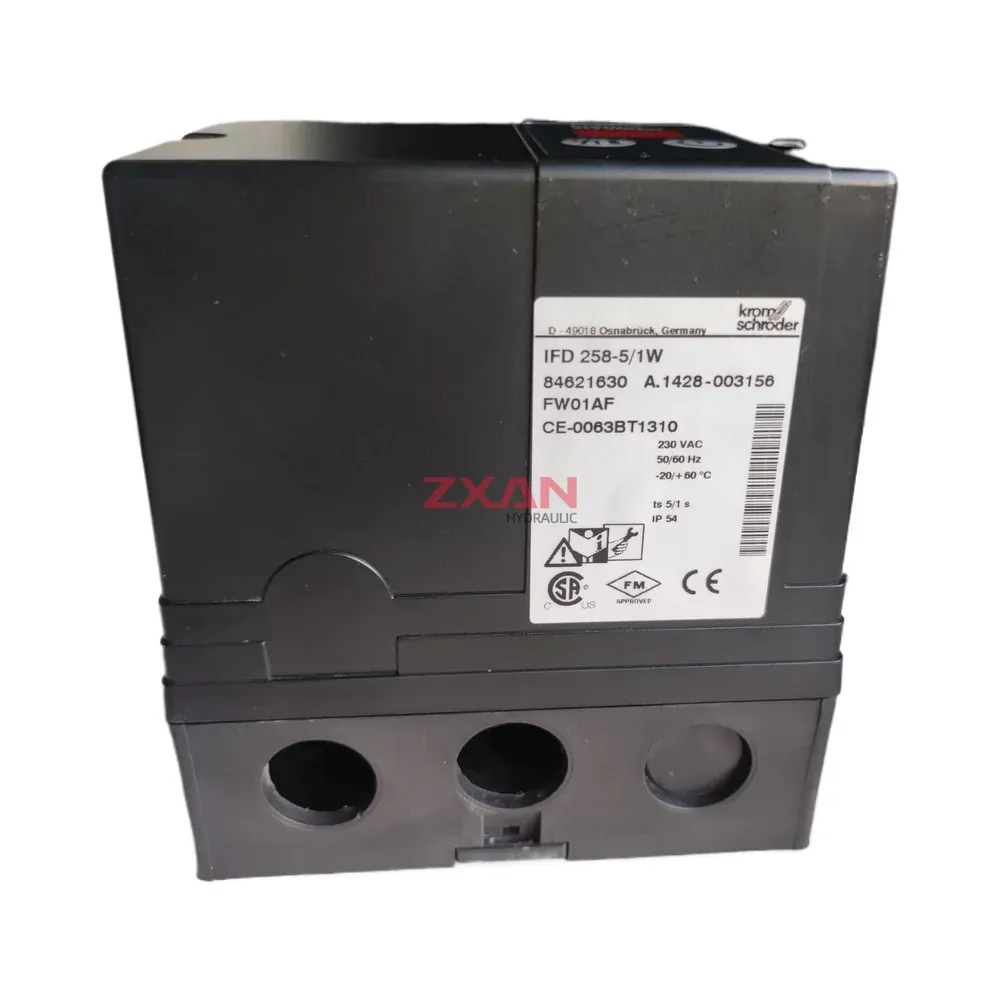

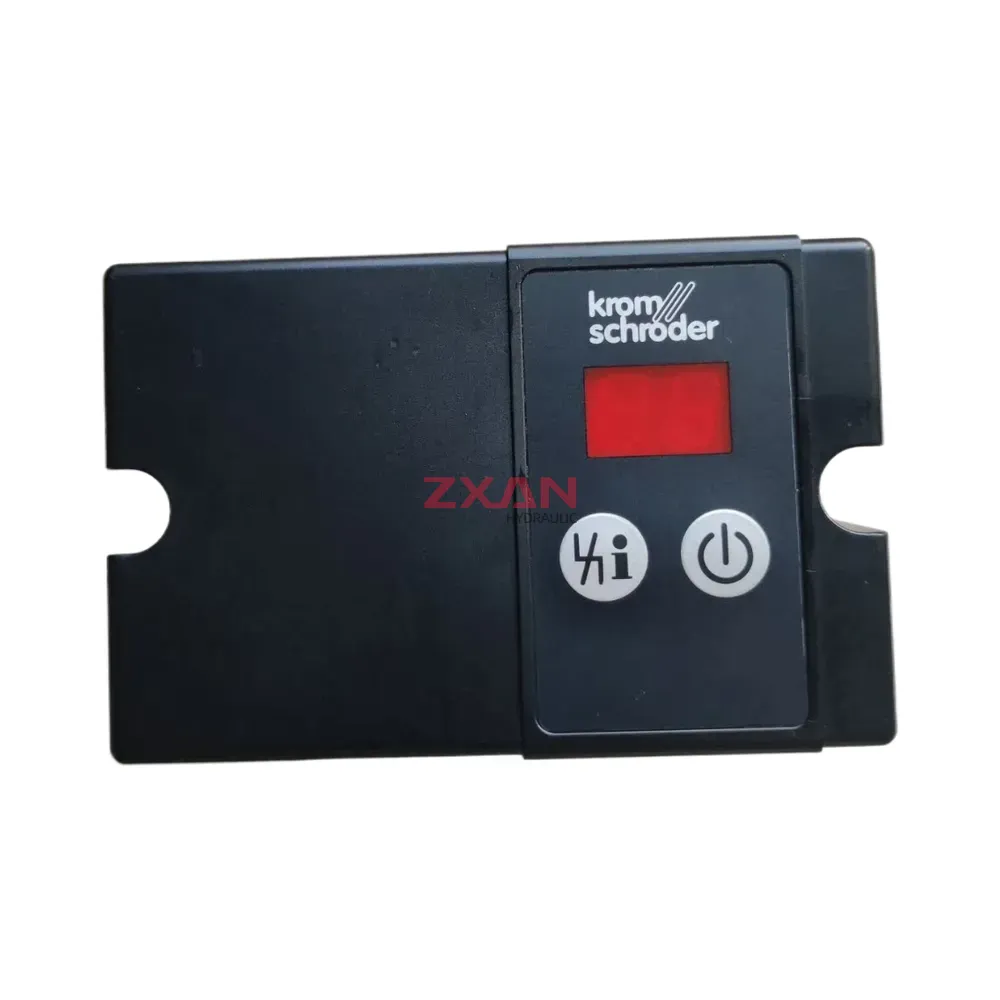

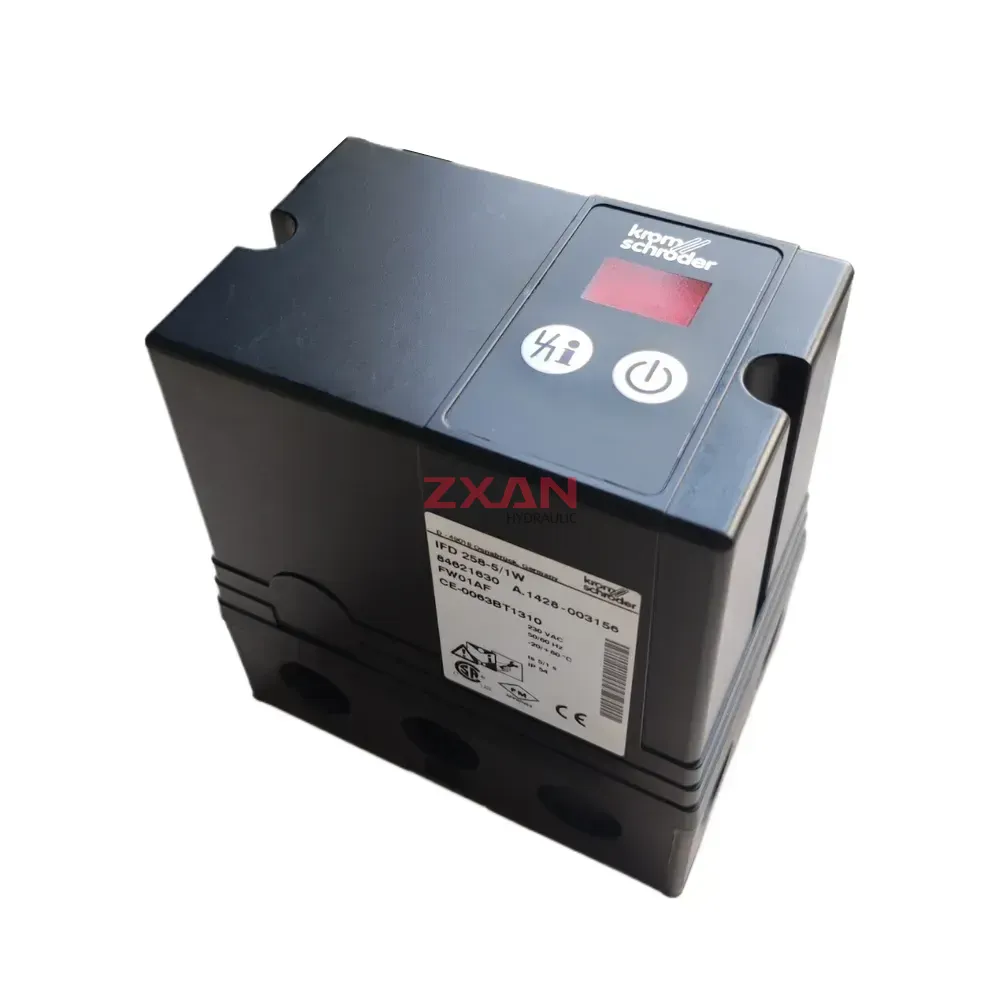

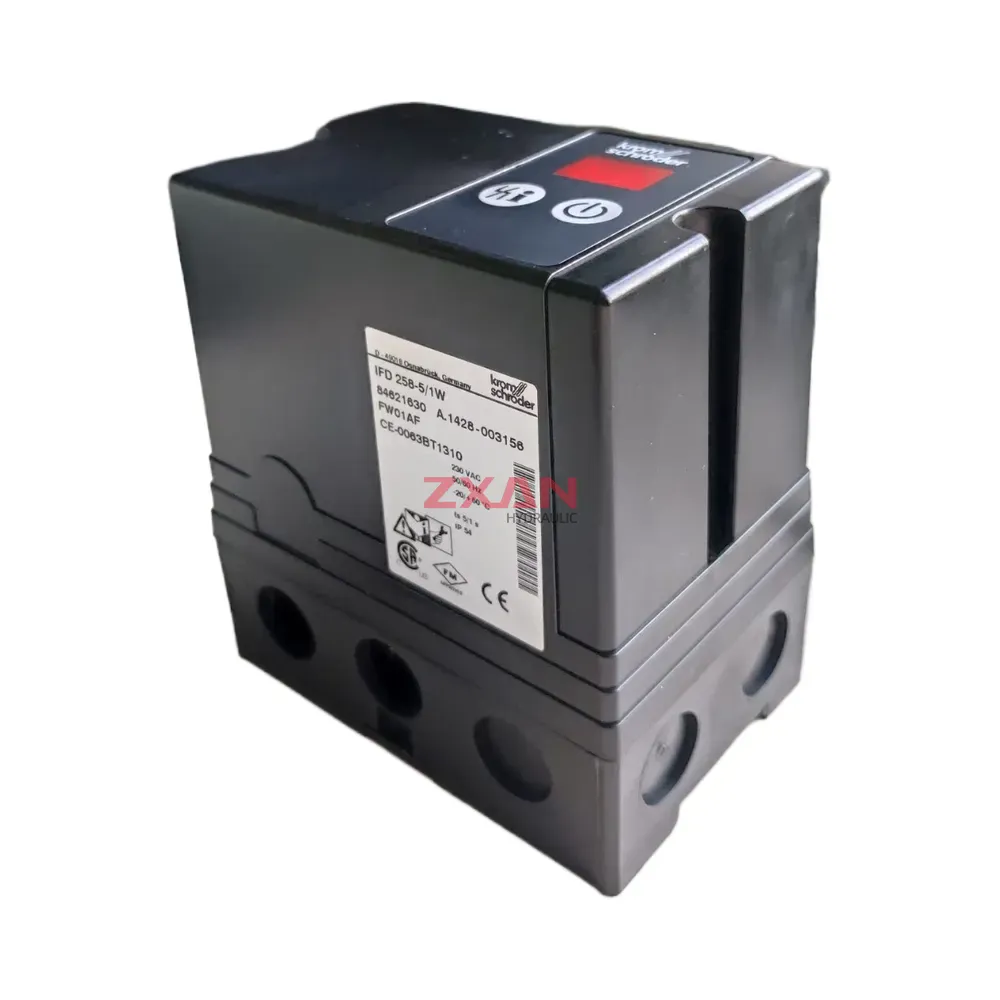

The Krom Schroder IFD 258-5/1W is a highly reliable automatic burner control unit designed for the precise ignition and flame monitoring of industrial gas burners. Featuring an integrated LED display and convenient reset/power buttons, it provides seamless operation and immediate status diagnostics. This robust controller supports single-electrode operation and utilizes microampere flame signal measurement (adjustable 2-20 µA DC) for accurate flame detection. Built for demanding industrial environments, the IFD 258-5/1W boasts an IP54 enclosure protection rating and operates efficiently within a temperature range of -20 to +60 °C. Fully certified with CE, CSA (C/US), and FM approvals, this ignition controller ensures top-tier safety and compliance for your critical combustion applications.
Technical Specifications:
- Brand: Krom Schroder
- Model: IFD 258-5/1W
- Order Number: 84621630
- Rated Voltage: 230 VAC, 50/60 Hz
- Ignition / Safety Time (ts): 5/1 seconds
- Ambient Temperature Range: -20 °C to +60 °C
- Enclosure Protection: IP 54
- Flame Signal Measurement: 2-20 µA (DC)
- Internal Fuse: T3.15A H

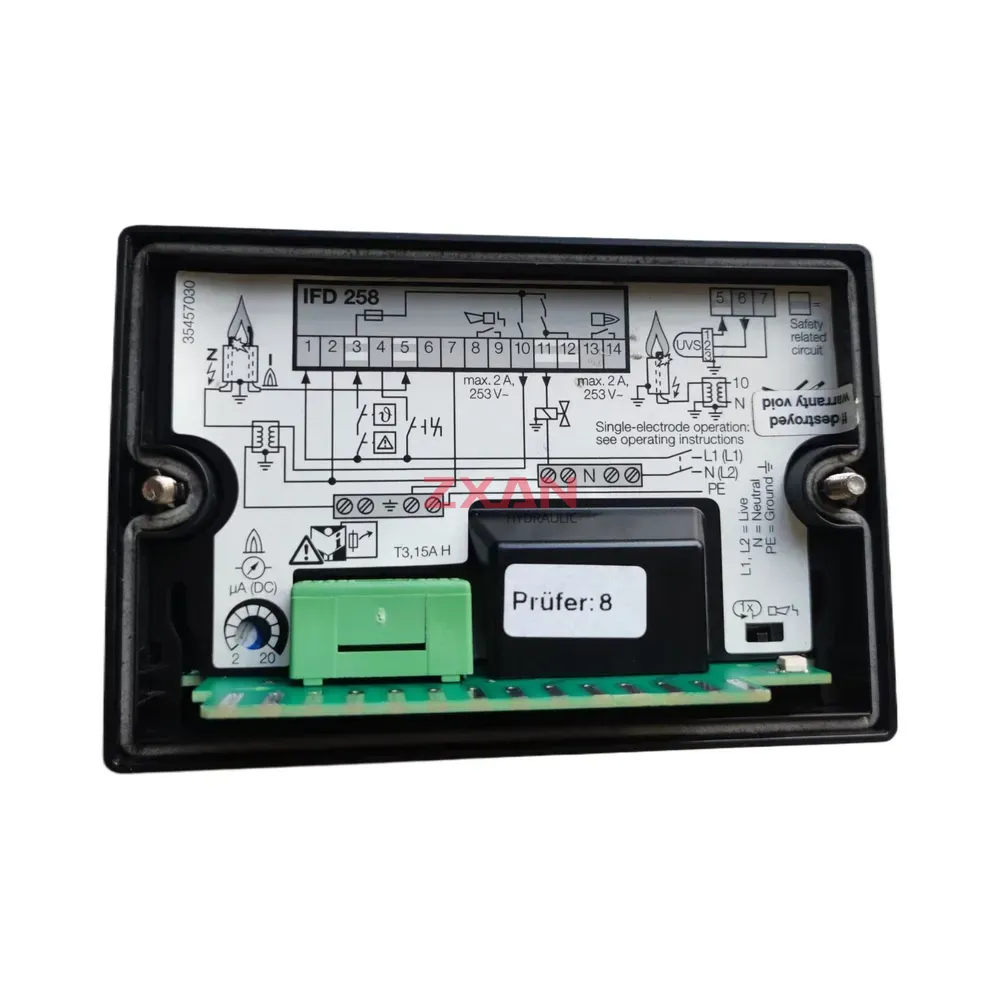

- Terminal Contact Rating: Max. 2 A, 253 V~ (Terminals 1-14)
- Certifications: CE (CE-0063BT1310), CSA (C/US), FM Approved
| Brand | Krom schroder |
|---|---|
| Model | IFD 258-5/1W |
