KSR KUEBLER ER24 Set Point Relay
Discover the KSR KUEBLER ER24, a high-performance industrial set point relay for precise level control. Features adjustable sensitivity (5-150kΩ), selectable output modes, and robust DC/AC output ratings. Ideal for automation and process control systems.

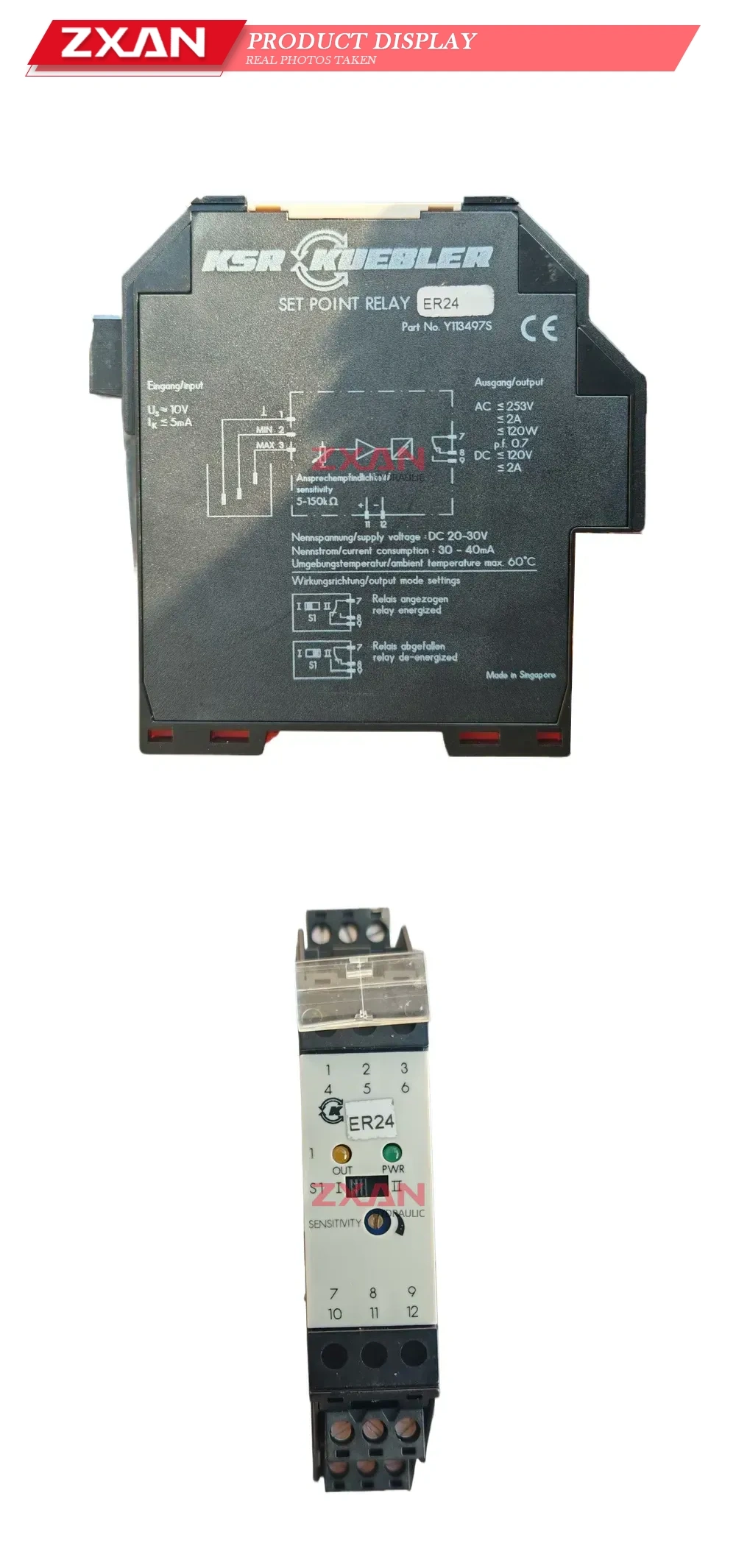

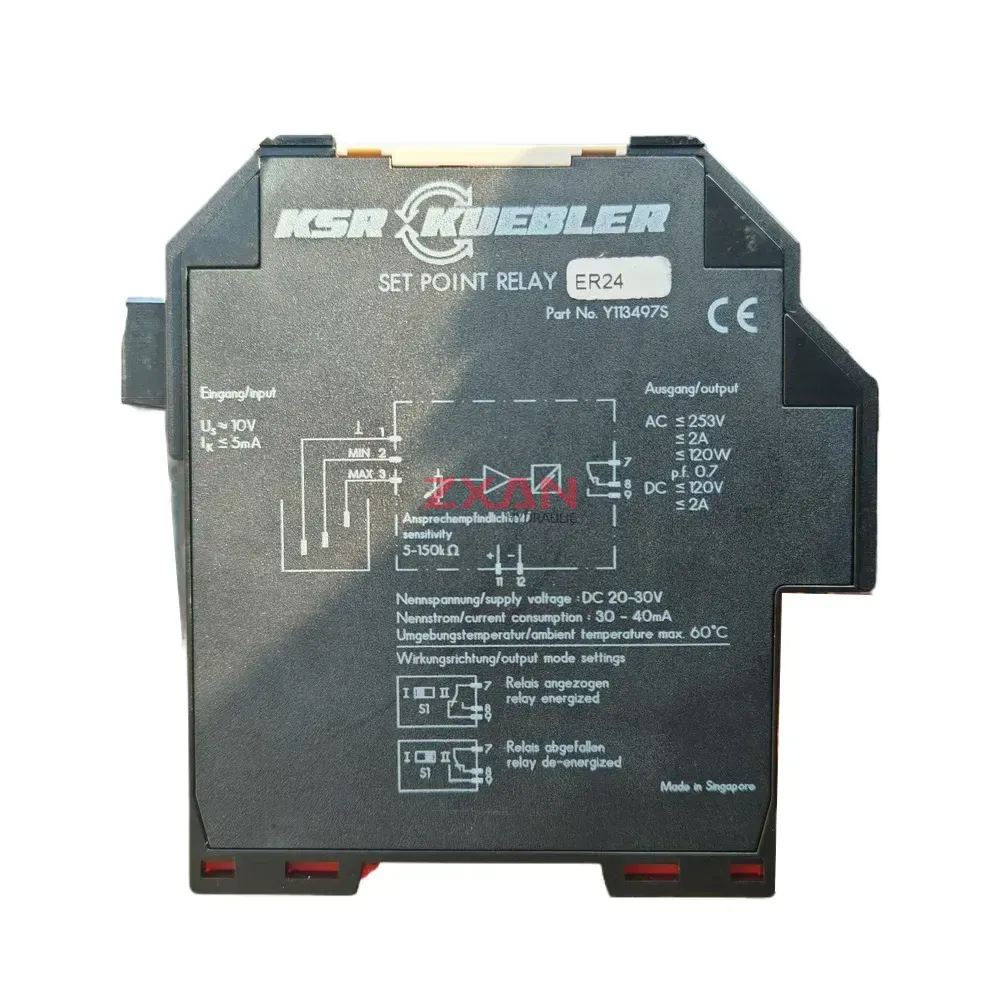

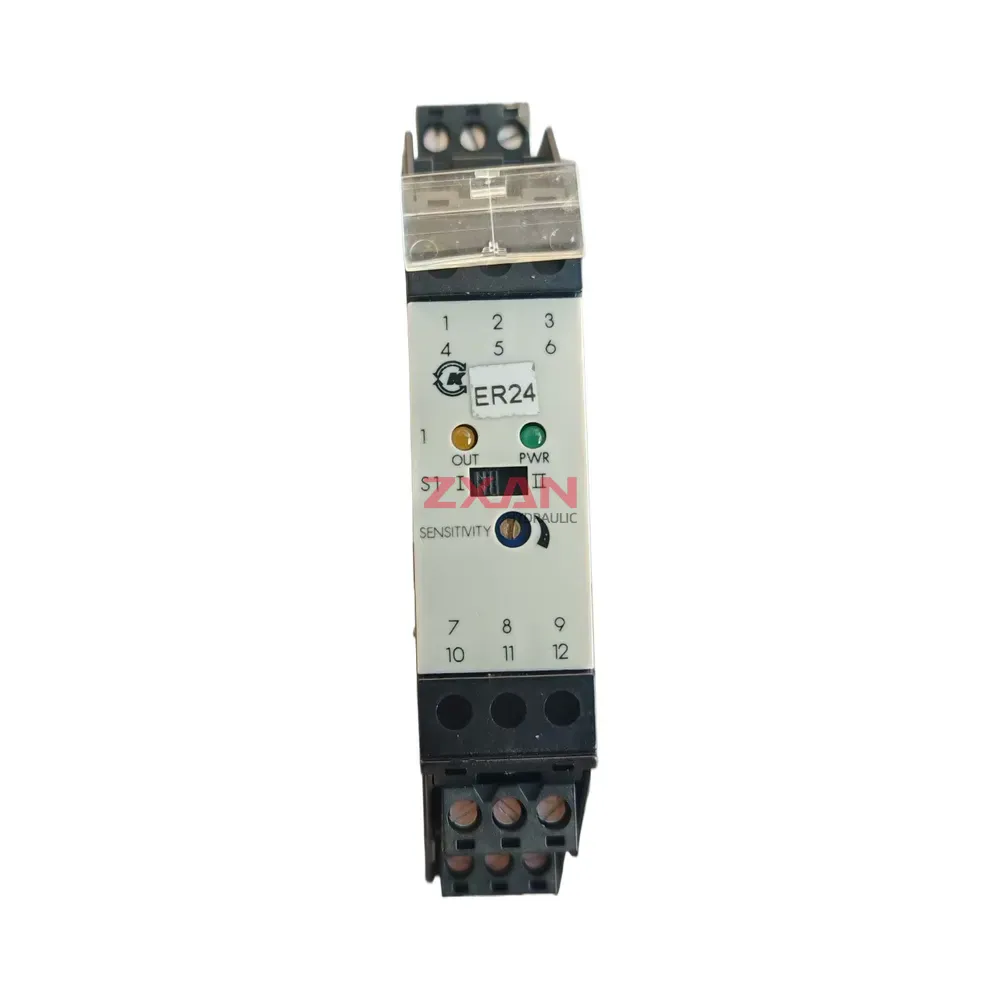

KSR KUEBLER ER24 Set Point Relay
The KSR KUEBLER ER24 is a versatile and reliable set point relay designed for industrial control and monitoring applications, particularly for level control with conductive probes. This compact module functions as a limit switch or controller, featuring an adjustable sensitivity range from 5kΩ to 150kΩ to accommodate various liquid conductivities. It offers user-selectable output modes, allowing the relay to be configured as either energized or de-energized when the set point is reached. Built for demanding environments, the ER24 operates reliably in ambient temperatures up to 60°C, making it an ideal solution for tank filling, emptying, and alarm systems in process automation.
Technical Specifications:
- Model: ER24
- Part Number: YT13497S
- Supply Voltage: DC 20-30V
- Current Consumption: 30 – 40mA
- Input: Ue = 10V, Ie ≤ 5mA
- AC Output Rating: ≤ 253V, ≤ 2A, ≤ 120W (p.f. 0.7)
- DC Output Rating: ≤ 120V, ≤ 2A
- Sensitivity Adjustment: 5 kΩ – 150 kΩ
- Max. Ambient Temperature: 60°C
- Output Mode: Selectable (Relay energized / Relay de-energized)
| Brand | KSR KUEBLER |
|---|---|
| Model | ER24 |
