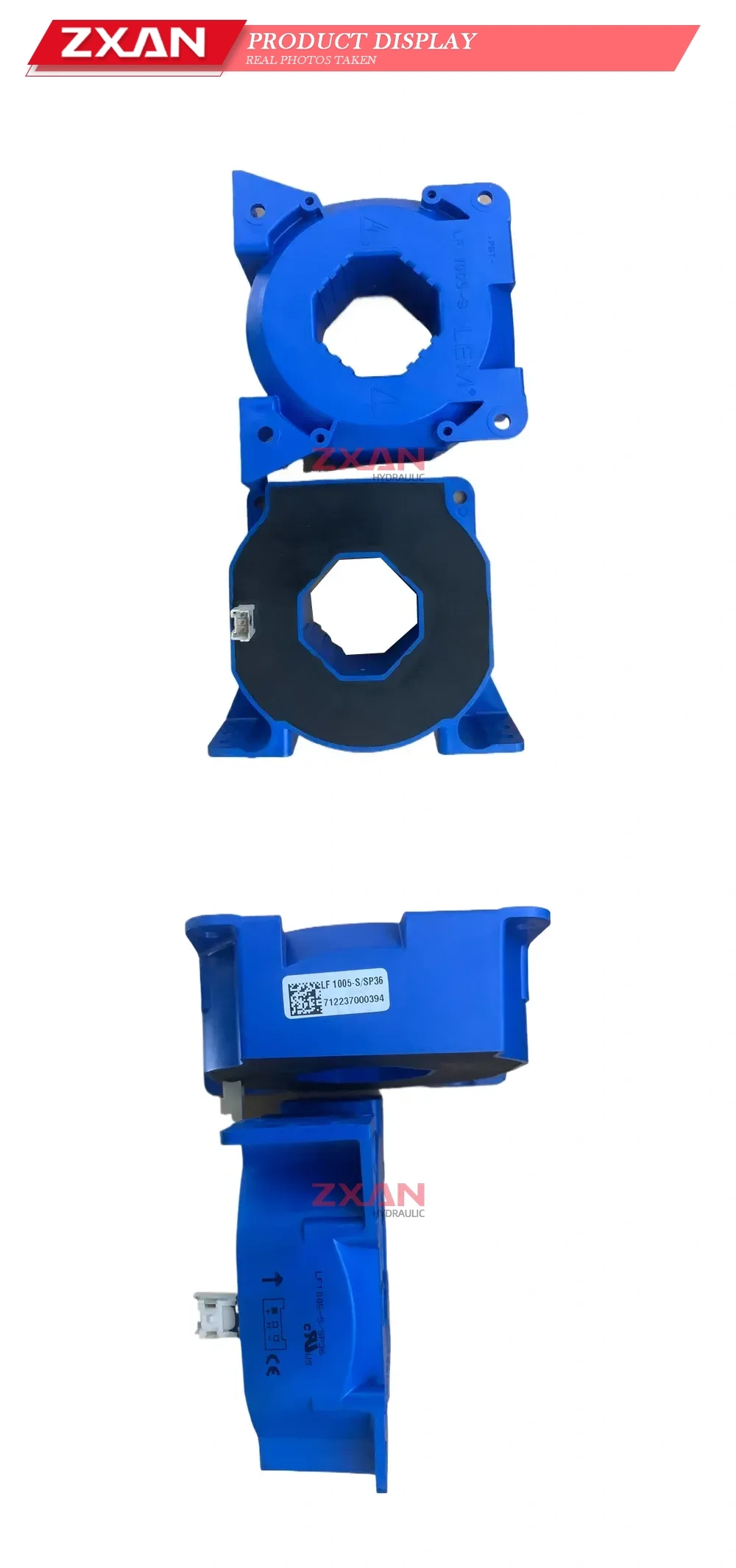

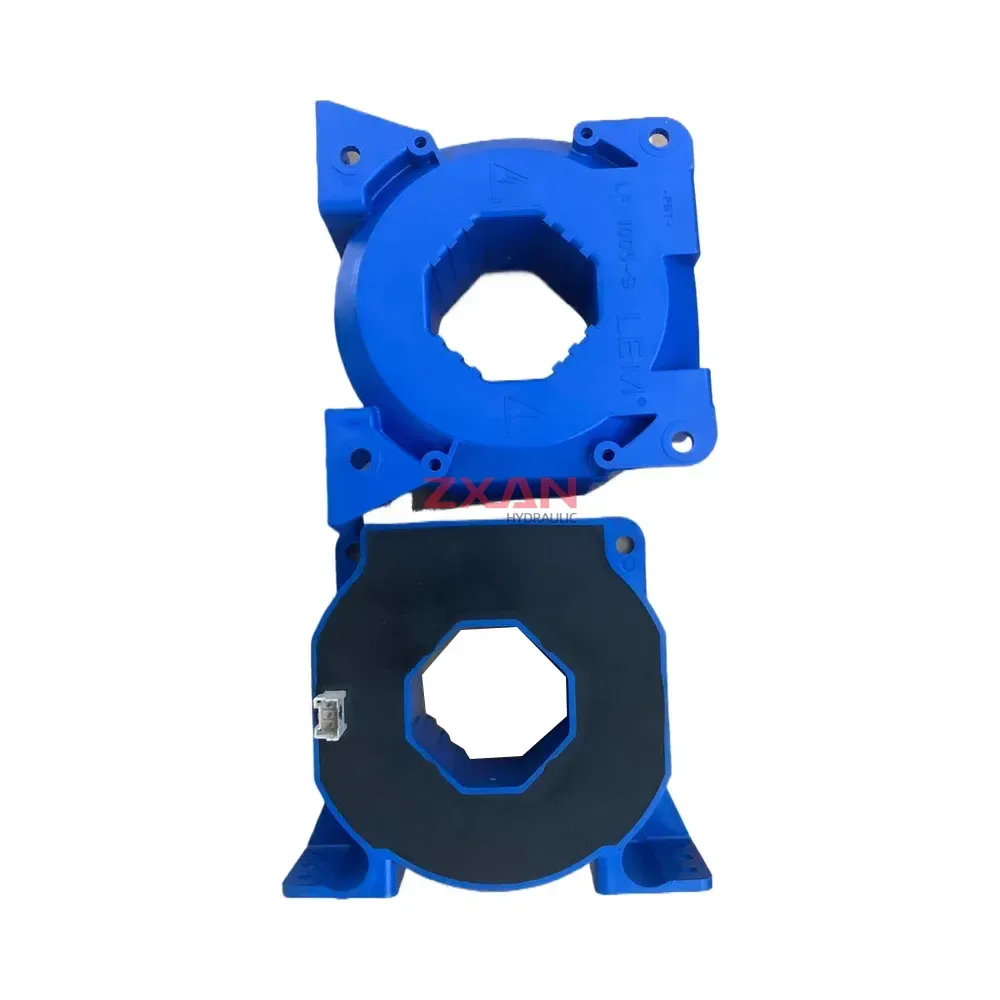

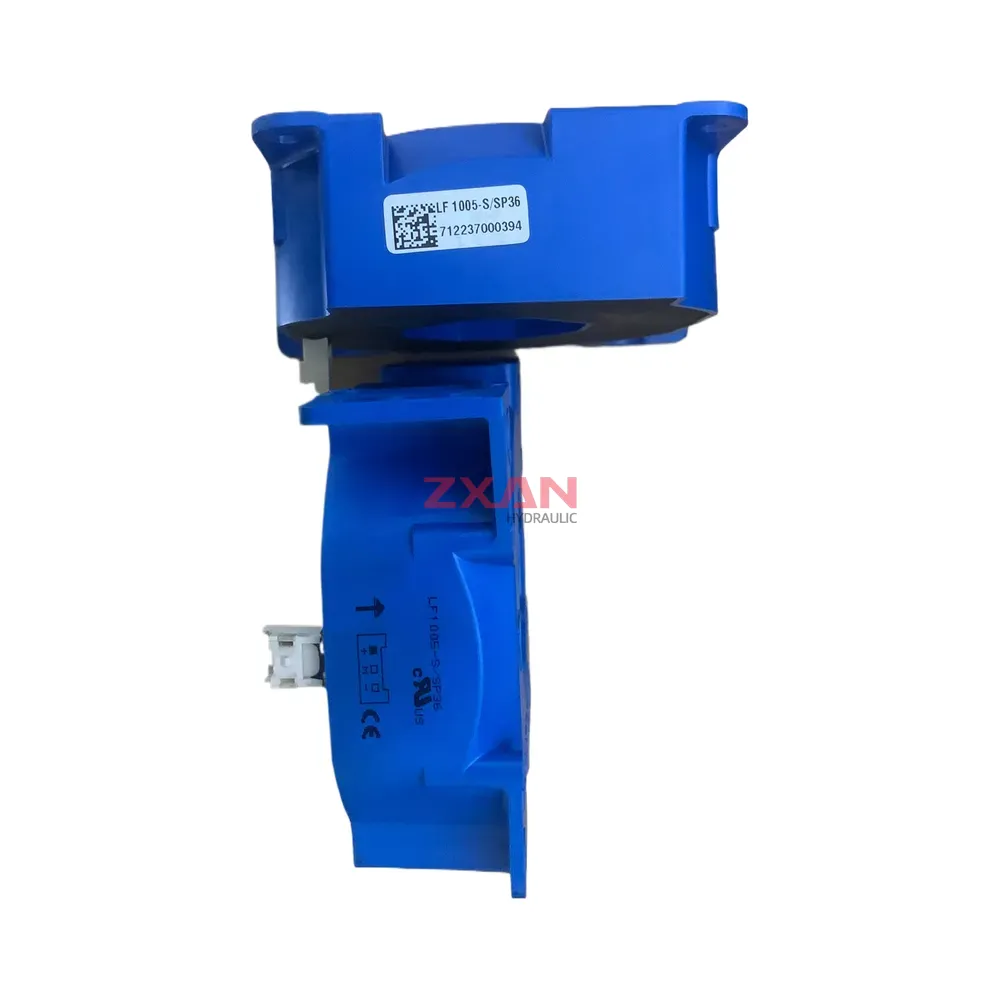

LEM LF 1005-S/SP36 Current Transducer
Buy the LEM LF 1005-S/SP36, a high-accuracy 1000A closed-loop Hall effect current transducer for precise measurement of DC, AC, and pulsed currents in industrial and power electronics applications.
LEM LF 1005-S/SP36 Current Transducer
The LEM LF 1005-S/SP36 is a high-performance, closed-loop current transducer designed for the precise electronic measurement of DC, AC, and pulsed currents. Utilizing advanced Hall effect technology, it provides complete galvanic separation between the primary circuit (the current being measured) and the secondary circuit (the output signal), ensuring safety and signal integrity. This transducer is engineered for high accuracy and excellent linearity, making it ideal for demanding industrial applications such as variable speed drives, power supplies for welding applications, battery-supplied systems, and uninterruptible power supplies (UPS). Its robust PBT housing and wide operating temperature range ensure reliable performance in harsh environments.
Technical Specifications:
- Primary Nominal RMS Current (I_PN): 1000 A
- Primary Current Measuring Range (I_PM): 0 … ±1500 A
- Technology: Closed loop Hall effect
- Supply Voltage (V_C): ±15 V to ±24 V (±5%)
- Overall Accuracy @ I_PN, T_A = 25°C: ±0.4%
- Response Time (@ 90% of I_PN): < 1 µs
- Operating Temperature Range: -40°C to +85°C
- Aperture for Primary Conductor: Ø 40.2 mm
| Brand | LEM |
|---|---|
| Model | LF 1005-S/SP36 |
