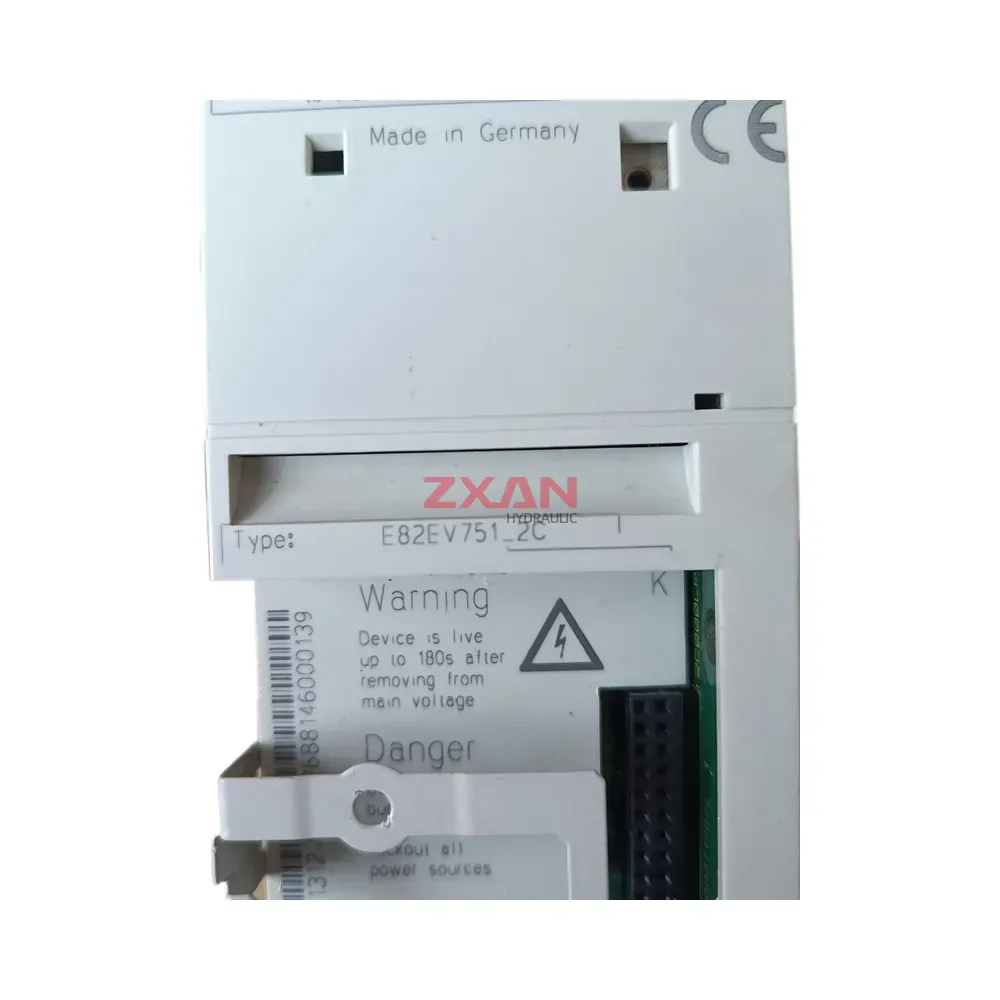

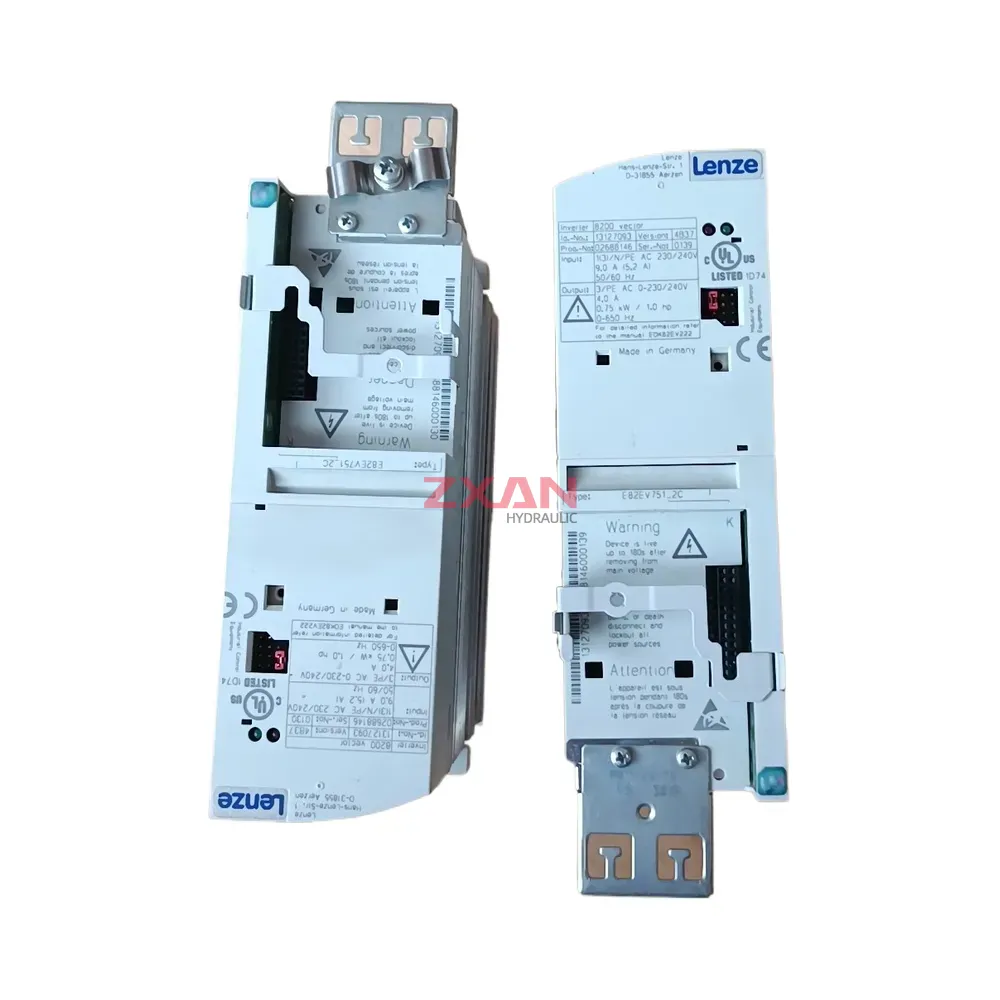

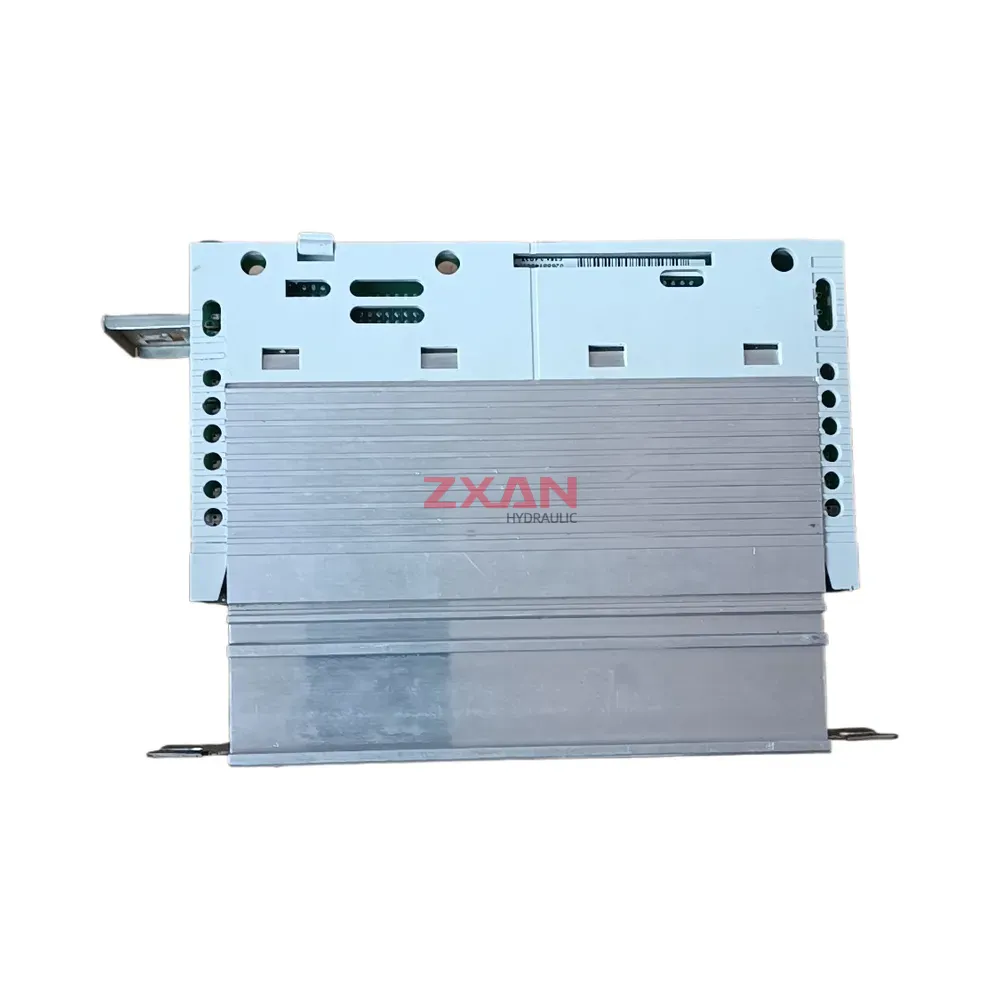

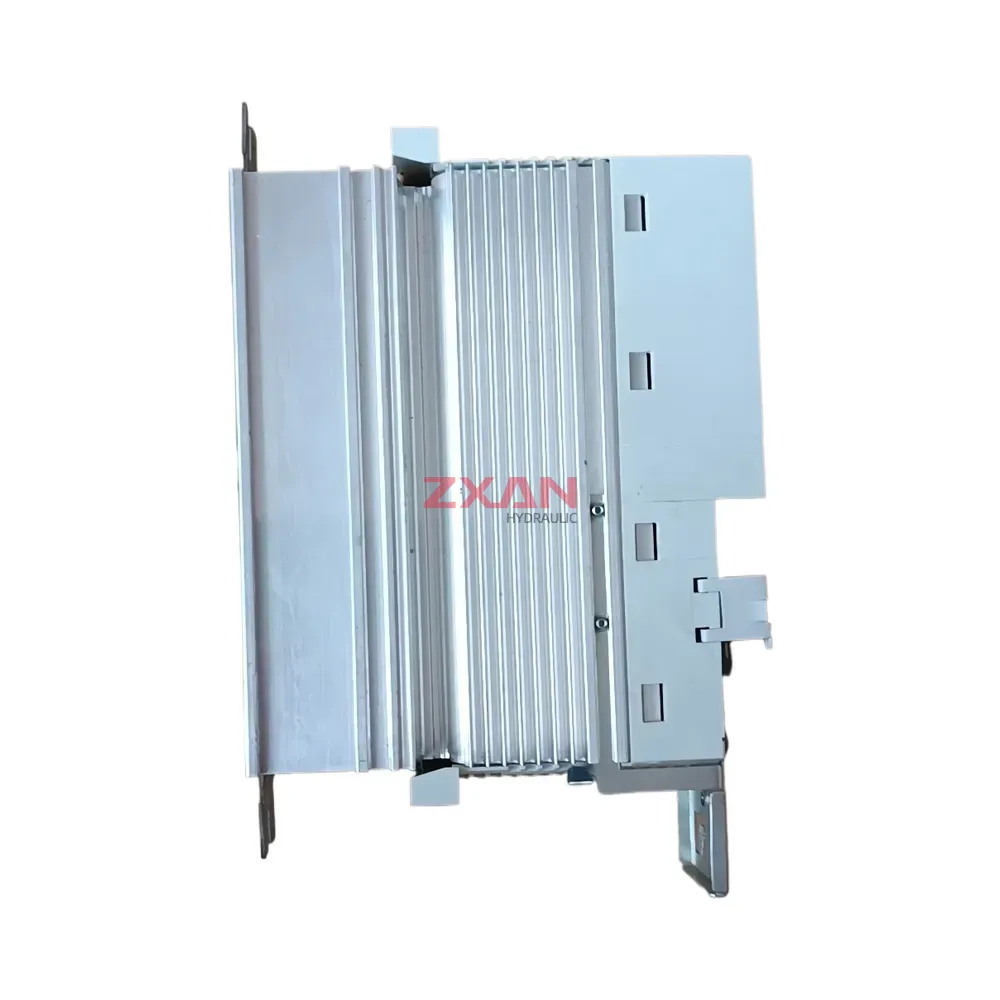

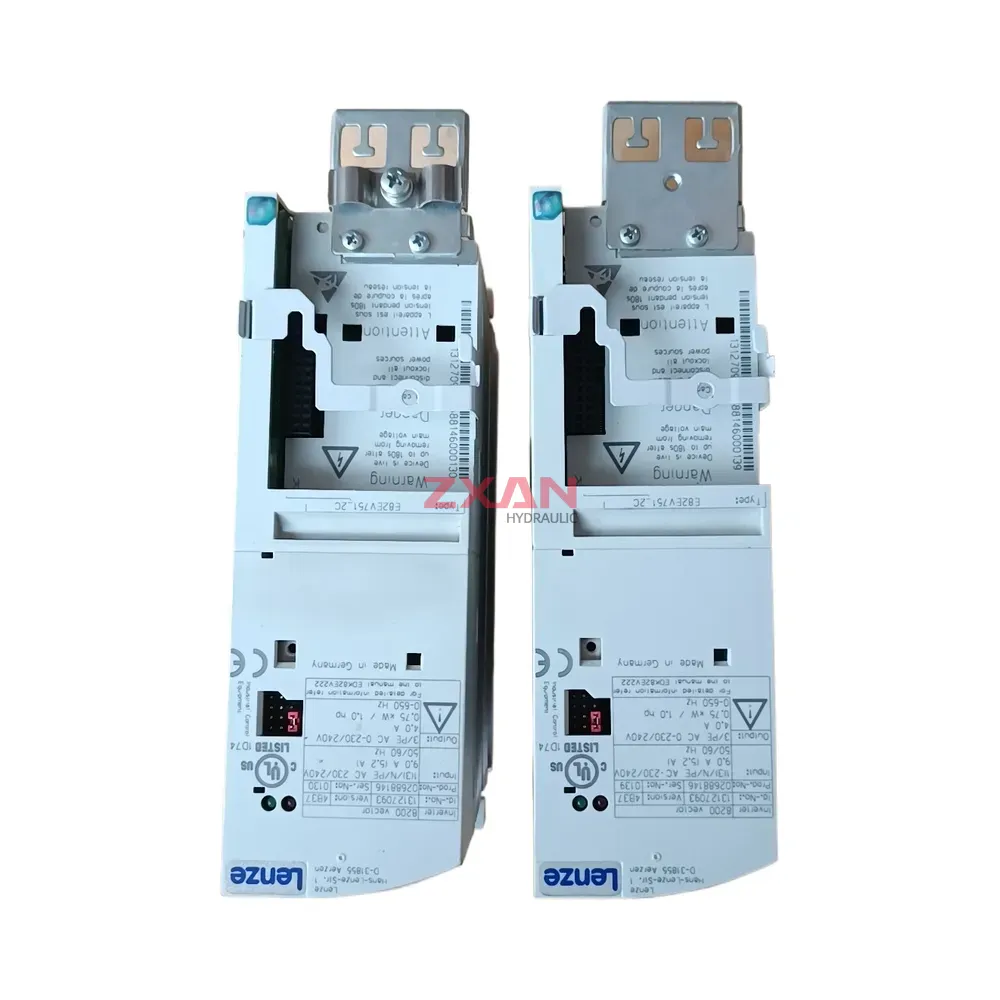

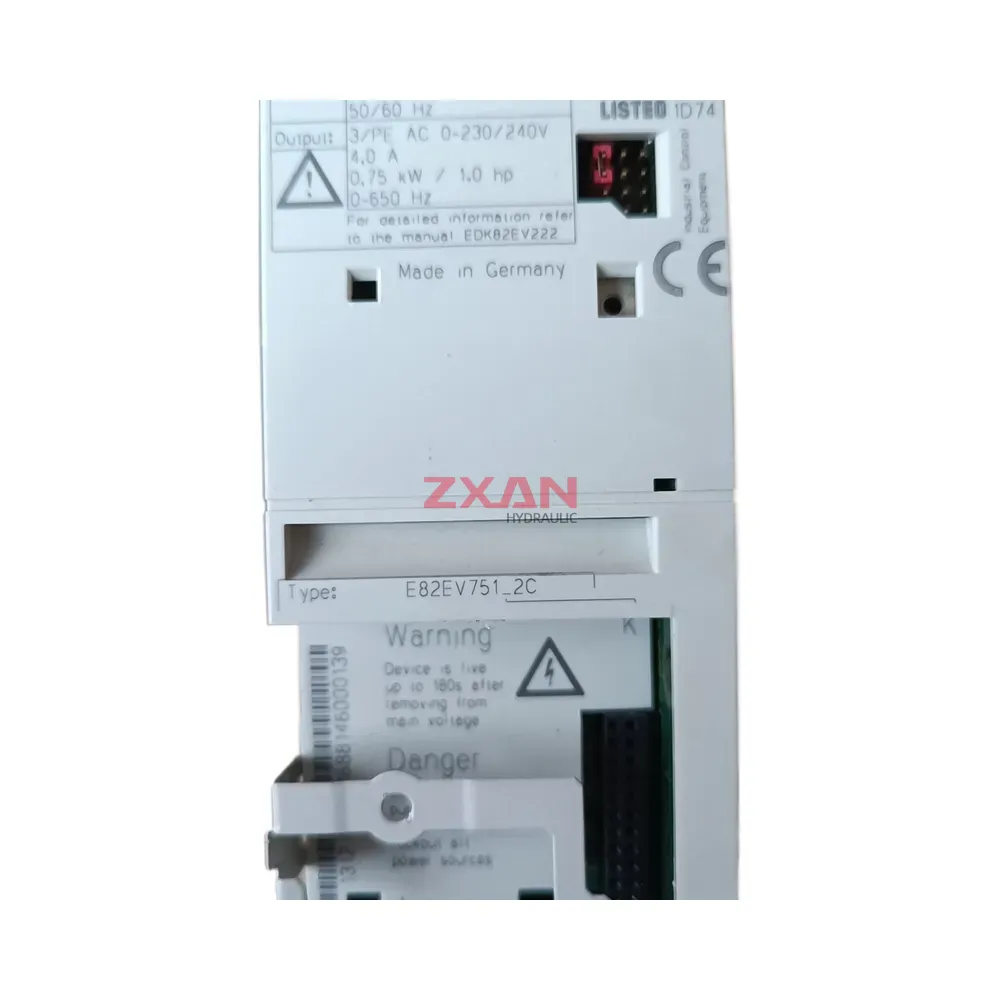

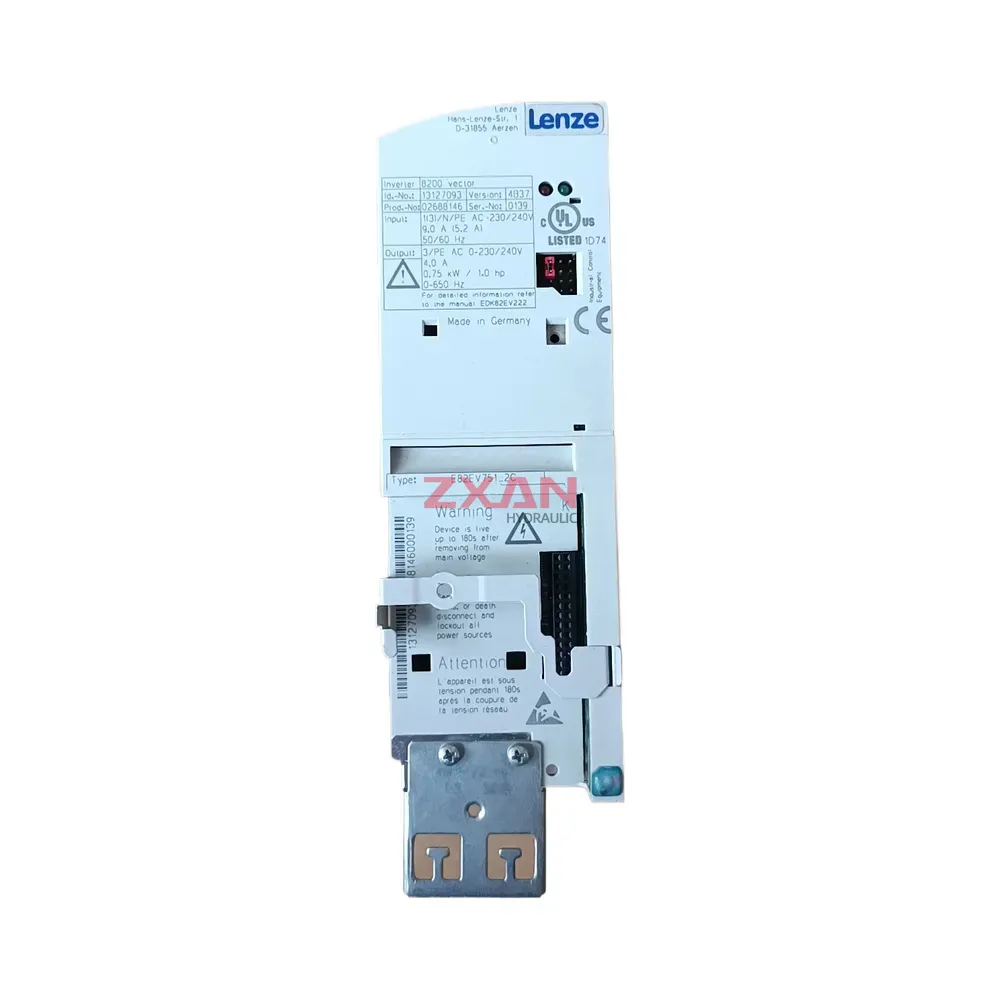

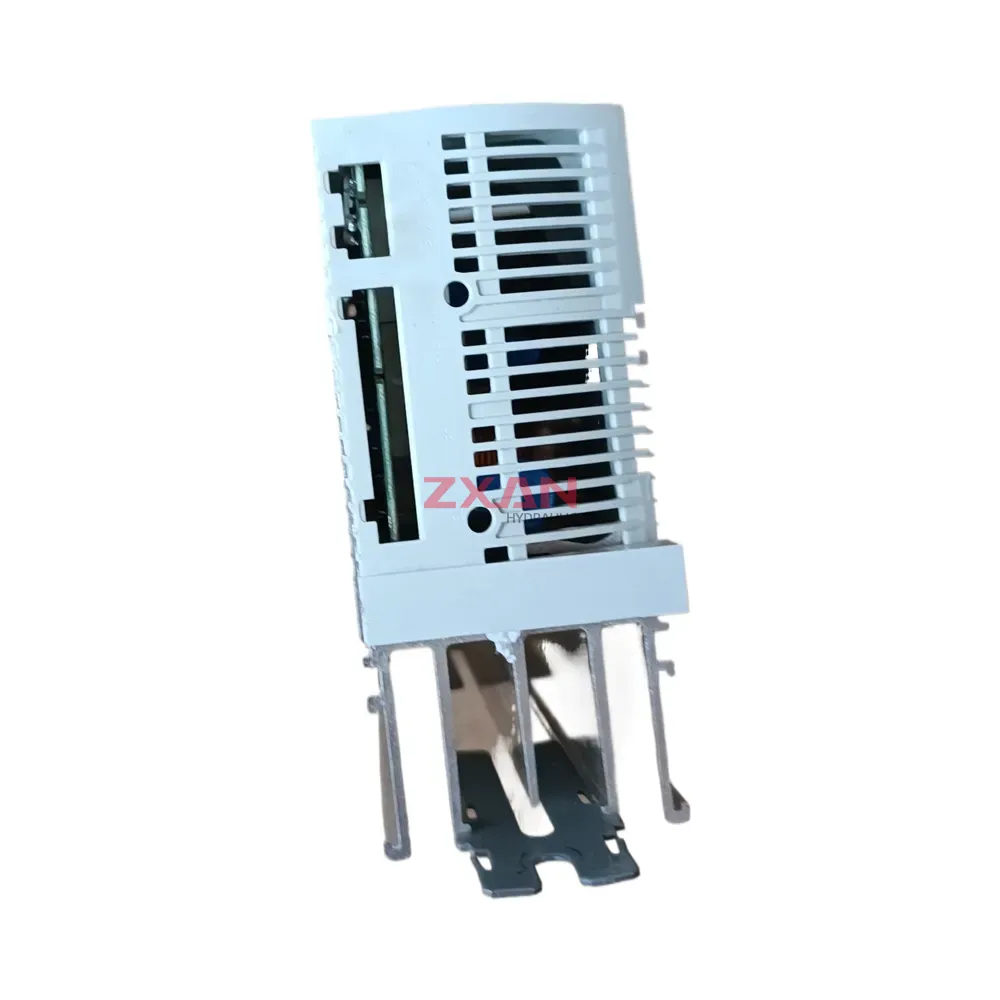

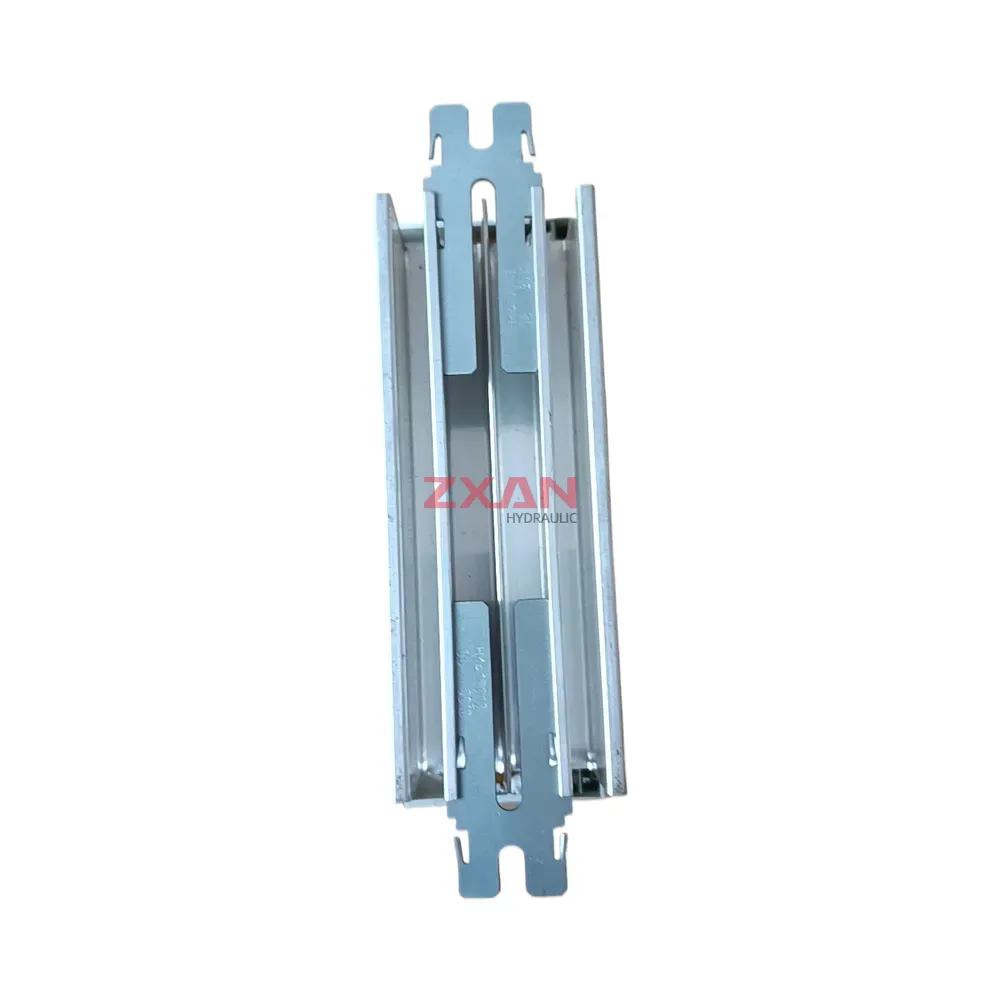

Lenze E82EV751-2C
The Lenze E82EV751-2C is a versatile and compact frequency inverter from the 8200 vector series, specifically designed for precise and dynamic speed control of three-phase AC motors. It is well-suited for a wide range of industrial applications, including pumps, fans, conveyors, packaging machines, and general machinery. This drive features advanced sensorless vector control (SLVC) for excellent motor performance and torque response, even at low speeds. The E82EV751-2C is known for its robust construction, user-friendly commissioning, and modular design, which allows for easy integration of optional communication and I/O modules to adapt to specific application needs and enhance system connectivity.
Technical Specifications:
- Model: E82EV751-2C
- Series: 8200 Vector
- Rated Power: 0.75 kW (1.0 HP)
- Input Voltage: 3-phase 200/230V AC (-15% / +10%)
- Input Frequency: 50/60 Hz (±5%)
- Output Voltage: 3-phase 0 – Input Voltage
- Rated Output Current: 4.0 A (at 4 kHz switching frequency, for 230V input)
- Maximum Output Current: 7.2 A (180% of rated current for 60 seconds)
- Output Frequency Range: 0 – 650 Hz
- Control Modes: V/f linear, V/f quadratic, Sensorless Vector Control (SLVC), V/f with encoder feedback (optional)
- Braking Chopper: Integrated
- EMC Filter: Integrated (Radio Interference Class A according to EN 55011, or Category C2/C3 according to EN 61800-3, depending on installation and cable lengths)
- Degree of Protection: IP20
- Ambient Operating Temperature: 0°C to +40°C (without derating), up to +55°C (with derating)
- Overload Capacity: 180% of rated output current for 60 seconds
- Switching Frequency: 2, 4, 8, 16 kHz (default 4 kHz)
- Approvals: CE, UL, cUL, C-Tick
- Communication Interfaces: Standard with RS485 (Modbus RTU). Optional pluggable function modules for fieldbuses (e.g., CANopen, PROFIBUS DP, DeviceNet, EtherCAT, EtherNet/IP, POWERLINK)
| Brand | Lenze |
|---|---|
| Model | E82EV751-2C |
