Mastech HY3003F-3
Discover the reliable Mastech HY3003F-3, a versatile triple output DC power supply. Featuring two variable 0-30V/3A channels and a fixed 5V/3A output, it’s the perfect solution for electronics testing, lab work, and educational purposes.
Mastech HY3003F-3 Triple Output DC Power Supply
The Mastech HY3003F-3 is a high-quality, regulated triple output DC power supply, designed for reliability and precision in a variety of applications. It features two fully adjustable outputs, each capable of providing 0-30V at 0-3A, and an additional fixed output of 5V at 3A. The two main channels can be operated independently, or combined in series to deliver up to 60V, or in parallel for up to 6A. With its clear dual 3-digit LED displays for voltage and current, coarse and fine adjustment knobs, and excellent load and line regulation, the HY3003F-3 is an essential tool for electronics laboratories, repair workshops, production lines, and educational institutions.
Technical Specifications:
- Output Voltage (CH1, CH2): 0 – 30V DC Variable
- Output Current (CH1, CH2): 0 – 3A DC Variable
- Output (CH3): Fixed 5V DC at 3A
- Operating Modes: Independent, Series (0-60V/0-3A), and Parallel (0-30V/0-6A)
- Load Regulation: CV ≤ 0.01% + 3mV, CC ≤ 0.2% + 3mA
- Ripple & Noise: CV ≤ 1mVrms, CC ≤ 3mArms

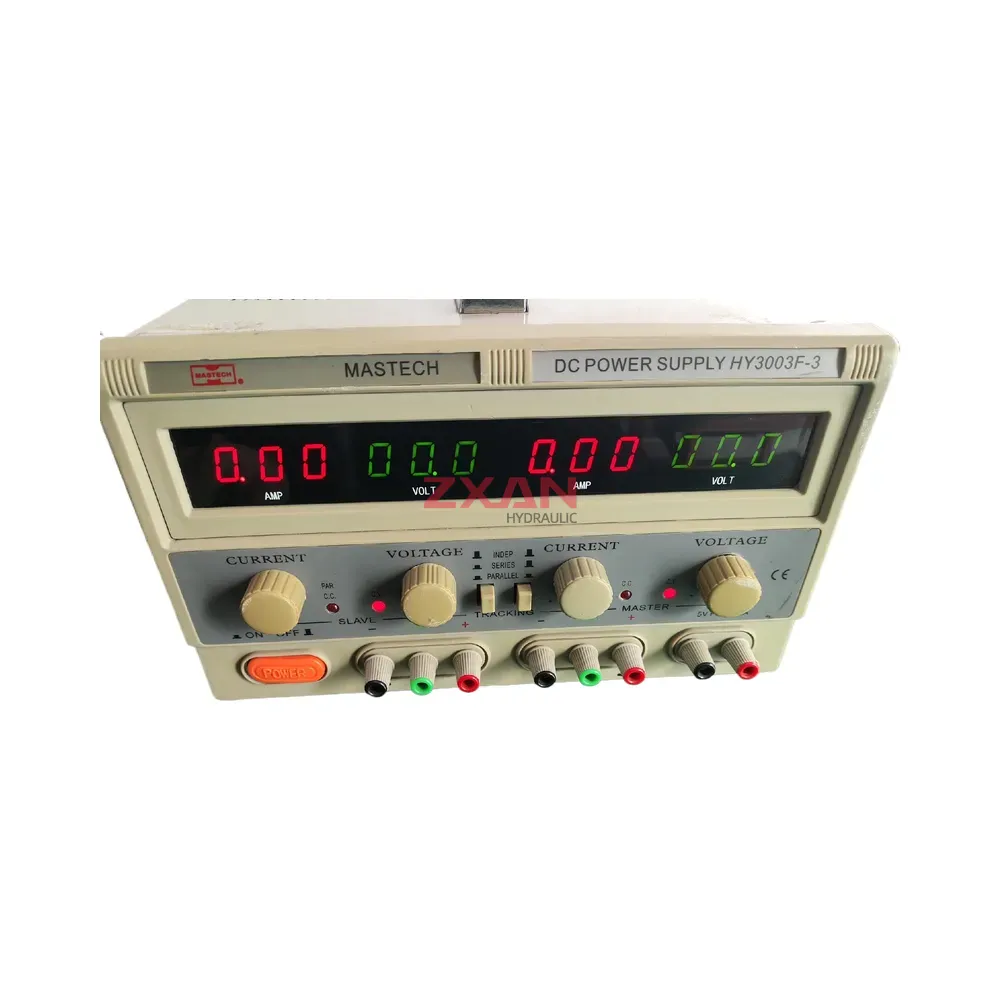

- Display: Dual 3-digit LED for Voltage and Current (for CH1 & CH2)

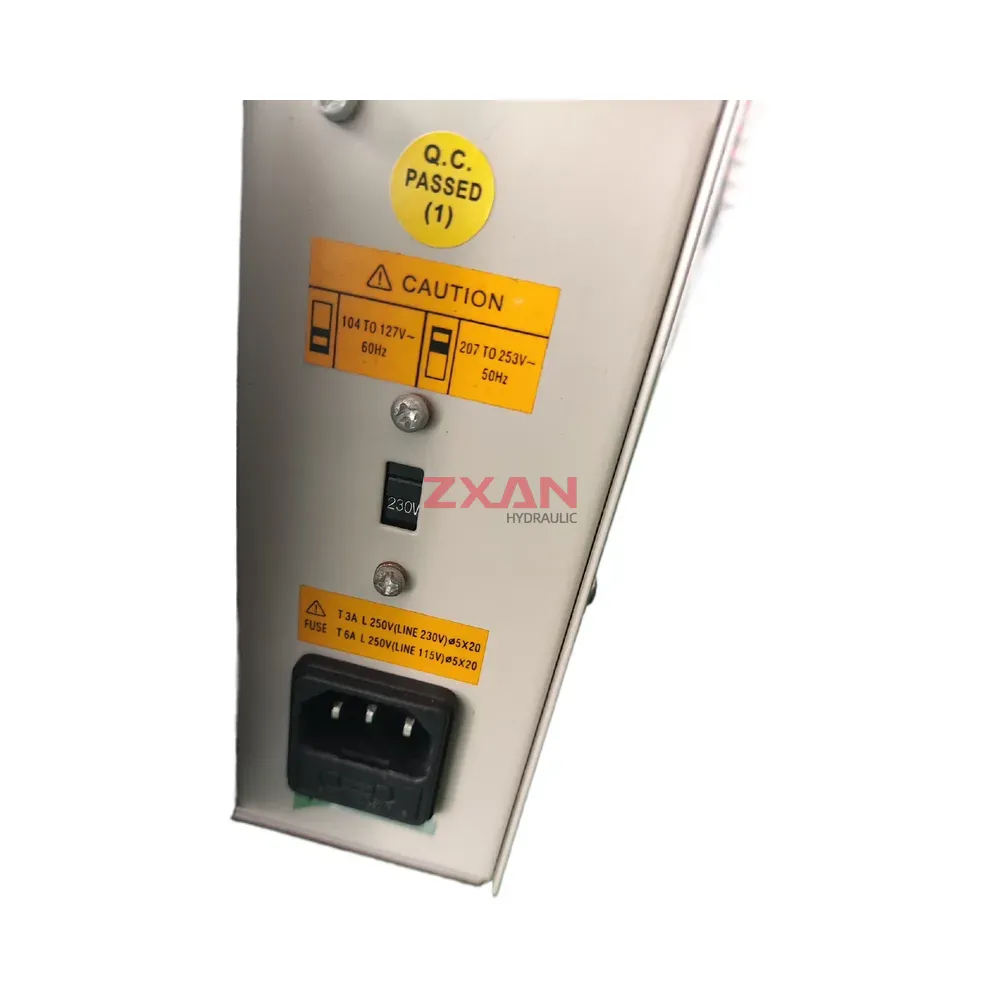

- Input Voltage: 110V/220V AC (Switchable), 50/60Hz
| Brand | Mastech |
|---|---|
| Model | HY3003F-3 |
