Microsonic hps+35/DIU/TC/E/G1
Buy the Microsonic hps+35/DIU/TC/E/G1, a chemical and pressure-resistant ultrasonic sensor for accurate non-contact level measurement in tanks. Features stainless steel housing, G1 connection, and dual analog/digital outputs.
Microsonic hps+35/DIU/TC/E/G1
The Microsonic hps+35/DIU/TC/E/G1 is a high-performance, chemical-resistant ultrasonic sensor designed for demanding industrial applications. Encased in a robust stainless steel housing with a G1 process connection, this sensor is built to withstand harsh environments. Its transducer is protected by a PTFE film, making it resistant to aggressive media. The sensor is pressure-resistant up to 6 bar, making it ideal for non-contact level measurement in pressurized tanks and containers. It offers both a switching output and a configurable analog output (4-20 mA or 0-10 V), providing versatile integration options. With built-in temperature compensation, the hps+35 ensures high accuracy and reliable measurements even with fluctuating ambient temperatures.

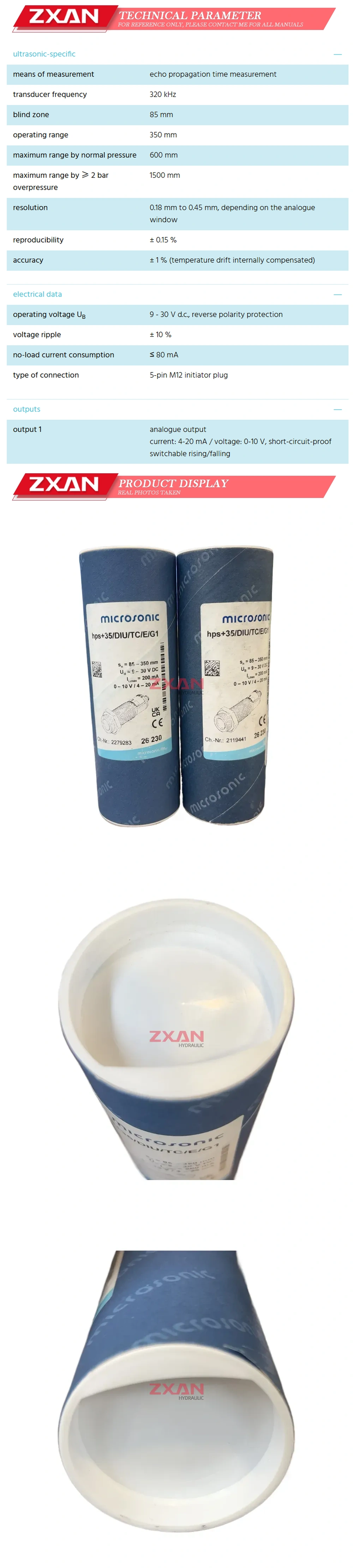

Technical Specifications:
Detection Range: 350 mm – 5,000 mm
Operating Voltage: 9 – 30 V DC
Outputs: 1x Push-Pull (pnp/npn) switching output, 1x Analog output (4–20 mA / 0–10 V)
Housing Material: Stainless steel 1.4571 (V4A) with PTFE-protected transducer
Process Connection: G1 threaded sleeve
Pressure Rating: Up to 6 bar overpressure
Protection Class: IP 68
Operating Temperature: -25 °C to +70 °C
| Brand | Microsonic |
|---|---|
| Model | hps+35/DIU/TC/E/G1 |
