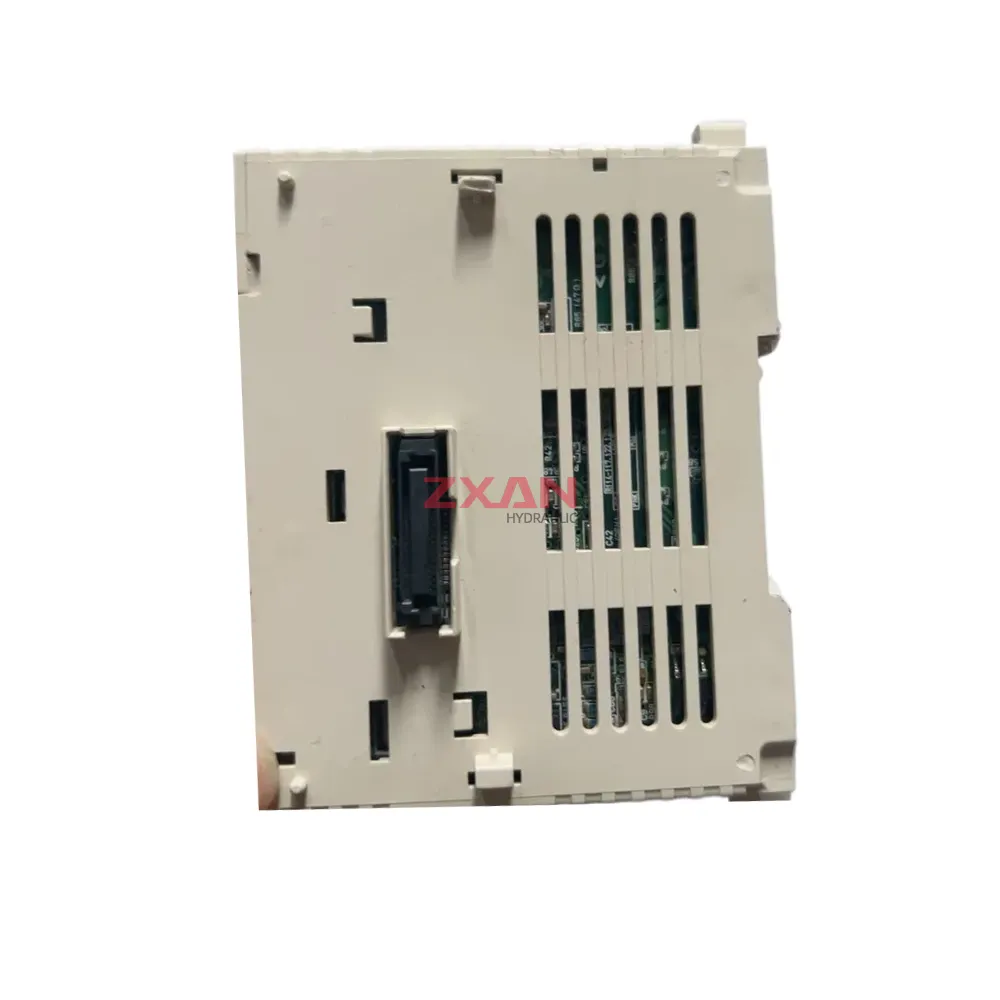

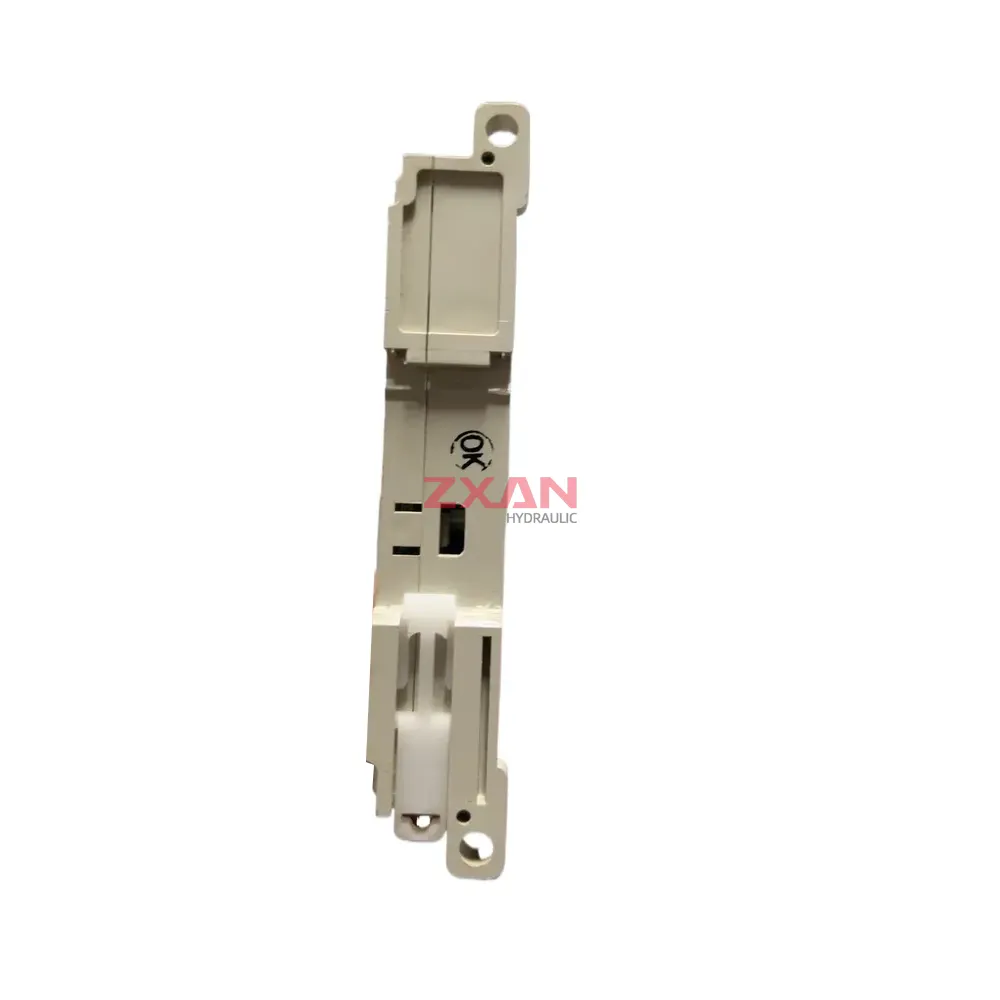

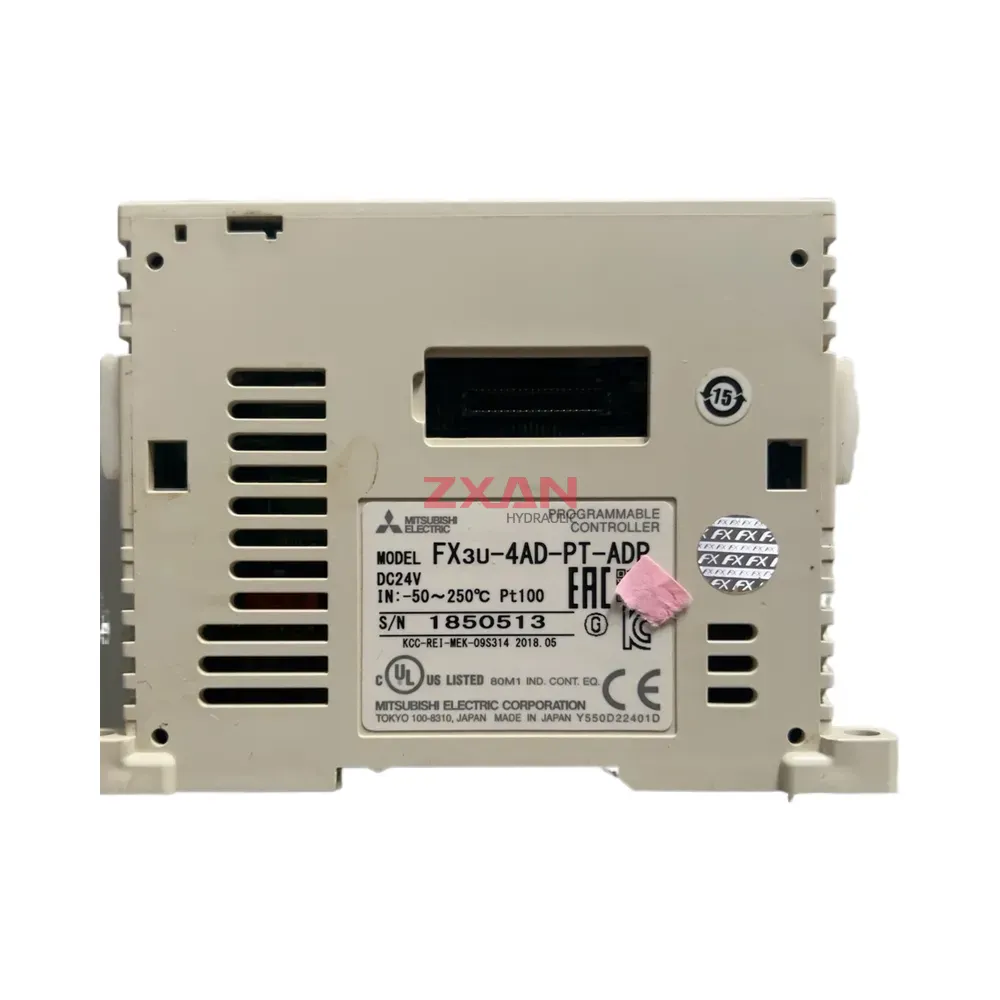

MITSUBISHI FX3U-4AD-PT-ADP
The Mitsubishi FX3U-4AD-PT-ADP is a specialized analog input adapter designed for the MELSEC FX3U and FX3UC series programmable logic controllers. It provides four channels for connecting Pt100 3-wire Resistance Temperature Detectors (RTDs), allowing for precise temperature measurement and integration into automation systems. This adapter expands the PLC’s input capabilities, enabling direct monitoring and control based on temperature readings from industrial processes.
Technical Specifications:
- Product Series: MELSEC FX3U
- Module Type: Analog Input Adapter (Temperature)
- Number of Input Channels: 4
- Input Sensor Type: Pt100 (3-wire) RTD (JIS C1604-1997, IEC 751 1995)
- Temperature Measuring Range: -100 to +600 °C (-148 to +1112 °F)
- Digital Output Resolution: 14 bits + sign bit
- Resolution: 0.1 °C (0.18 °F)
- Overall Accuracy: ±1.0% of full scale (600 °C)
- Conversion Speed: 20 ms per channel
- Isolation: Photocoupler isolation between input terminals and PLC
- Power Supply: Supplied from PLC base unit (5V DC, 24V DC)
- Current Consumption (5V DC): 30 mA
- Current Consumption (24V DC): 60 mA
- Applicable PLC: FX3U, FX3UC (requires FX2NC-CNV-IF or FX3UC-1PS-5V)

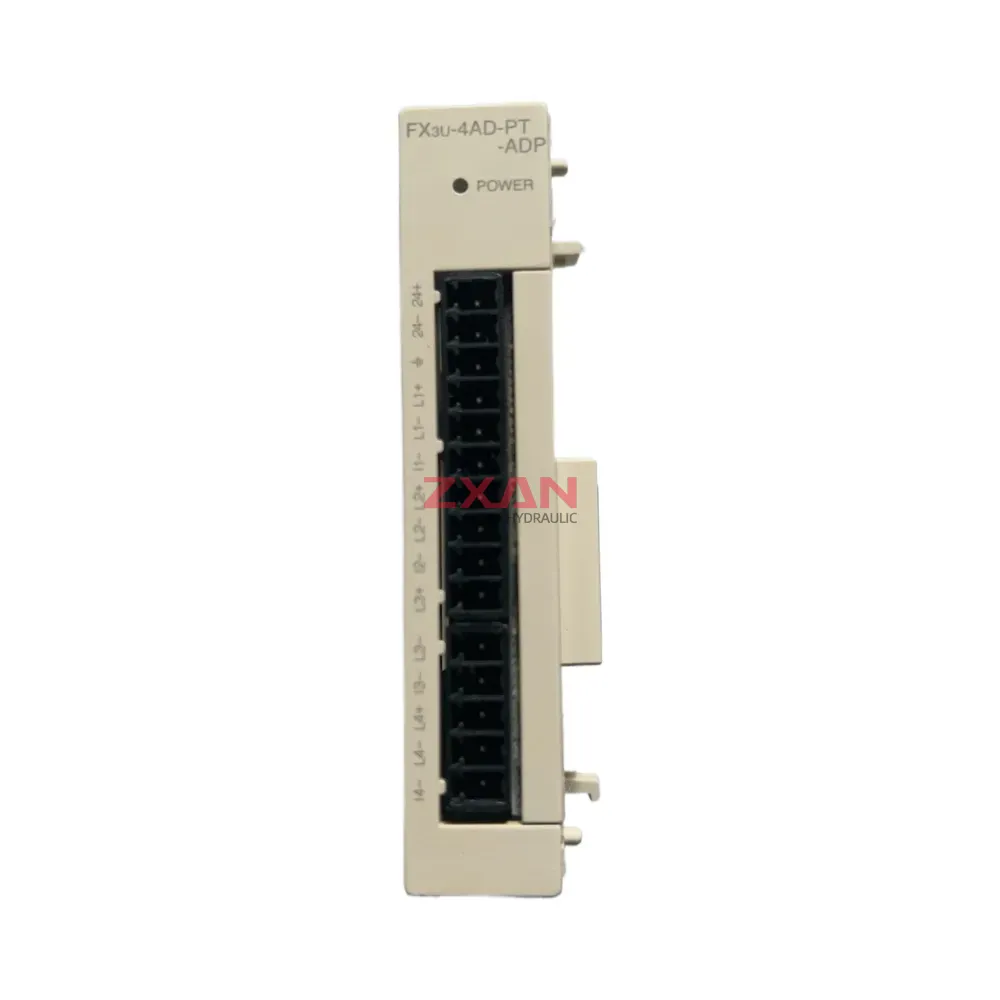

- Connection: Terminal Block
| Brand | Mitsubishi |
|---|---|
| Model | FX3U-4AD-PT-ADP |
