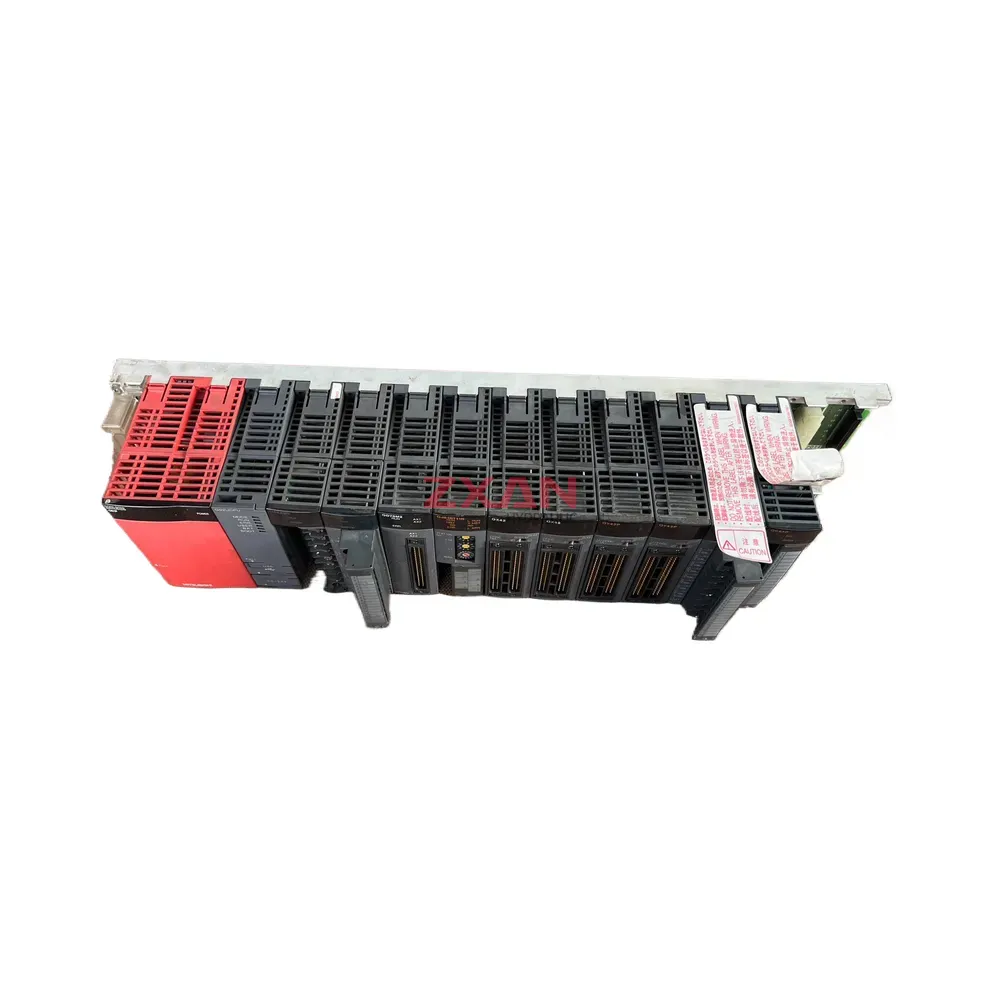

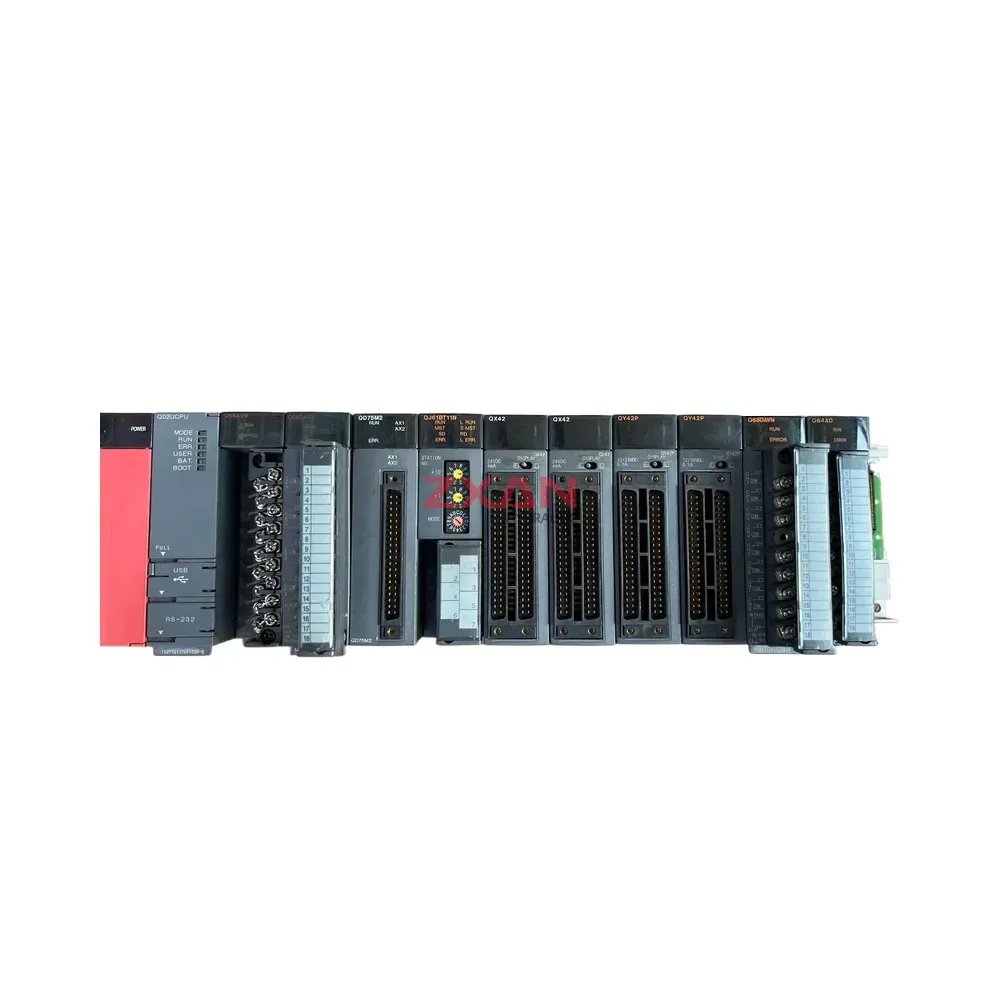

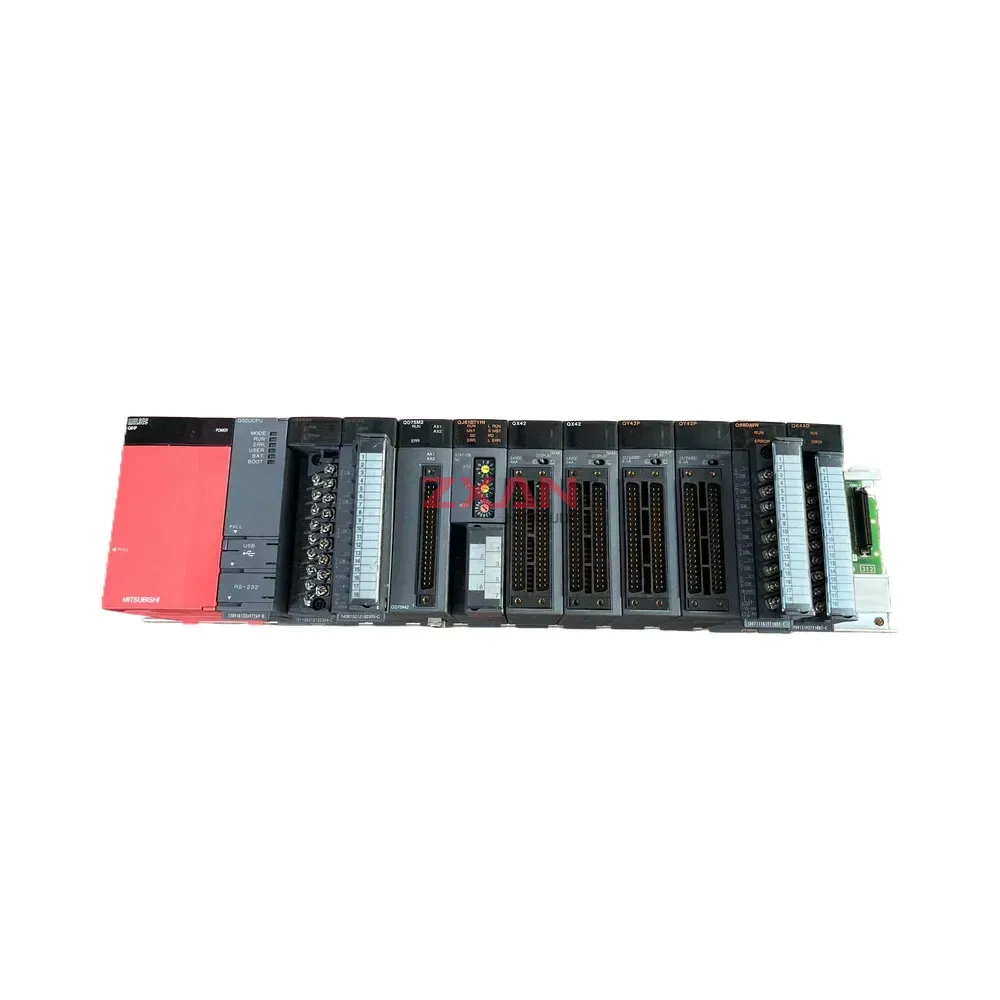

Mitsubishi MELSEC-Q Series PLC Module Assembly
Upgrade your industrial automation with the versatile Mitsubishi MELSEC-Q Series PLC Module Assembly. This high-performance, multi-slot modular system features a USB/RS-232 capable CPU, QD75M2 motion control, CC-Link networking, and a full suite of high-density digital and analog I/O modules to deliver precise, high-speed control for complex manufacturing environments.
Mitsubishi MELSEC-Q Series PLC Module Assembly
The Mitsubishi MELSEC-Q Series PLC Module Assembly is a high-performance, highly scalable programmable logic controller system engineered for advanced industrial automation. Mounted on a robust multi-slot base unit, this configuration delivers exceptional processing speed, flexibility, and reliability. The core of the system is a powerful CPU module featuring built-in USB and RS-232 ports for streamlined programming, monitoring, and diagnostics. To handle diverse and complex control requirements, the assembly integrates a QD75M2 motion control module for precise 2-axis positioning and a QJ61BT11N CC-Link module for seamless, high-speed fieldbus networking. Comprehensive I/O management is achieved through high-density digital input (QX42) and digital output (QY42P, QY82P) modules, alongside highly accurate analog-to-digital (Q64AD) and digital-to-analog (Q68DAVN) converters. This complete, ready-to-deploy modular assembly is the ideal solution for demanding manufacturing lines, robotics, and process control applications.
Technical Specifications:
- Brand / Series: Mitsubishi Electric / MELSEC-Q Series
- CPU Interfaces: Built-in USB and RS-232 communication ports for programming and HMI connectivity
- Motion & Networking: Includes QD75M2 (2-Axis Positioning Module) and QJ61BT11N (CC-Link Master/Local Network Module)
- Digital I/O Configuration: QX42 (64-Point DC Input), QY42P (64-Point Transistor Output, Sink), QY82P (64-Point Transistor Output, Source)
- Analog I/O Configuration: Q64AD (4-Channel Analog-to-Digital Converter) and Q68DAVN (8-Channel Digital-to-Analog Converter)
| Brand | Mitsubishi |
|---|---|
| Model | MELSEC-Q Series |
