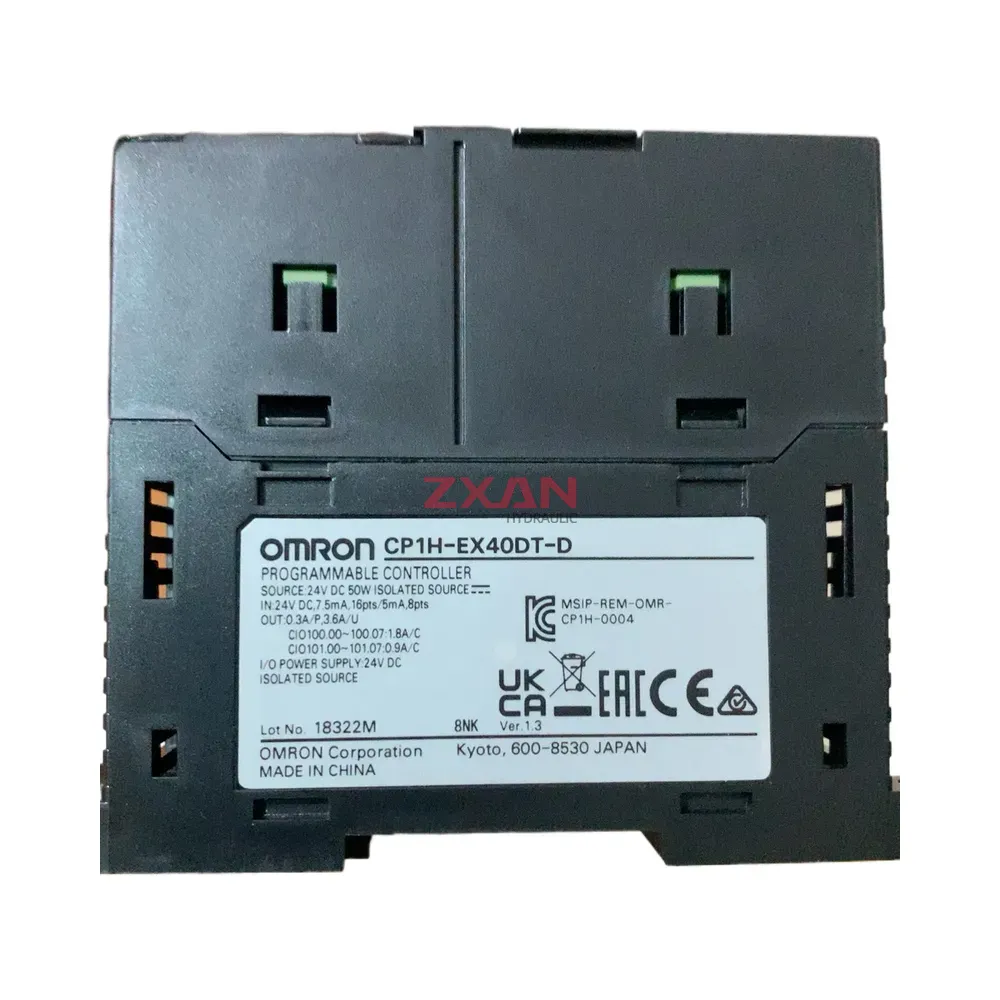

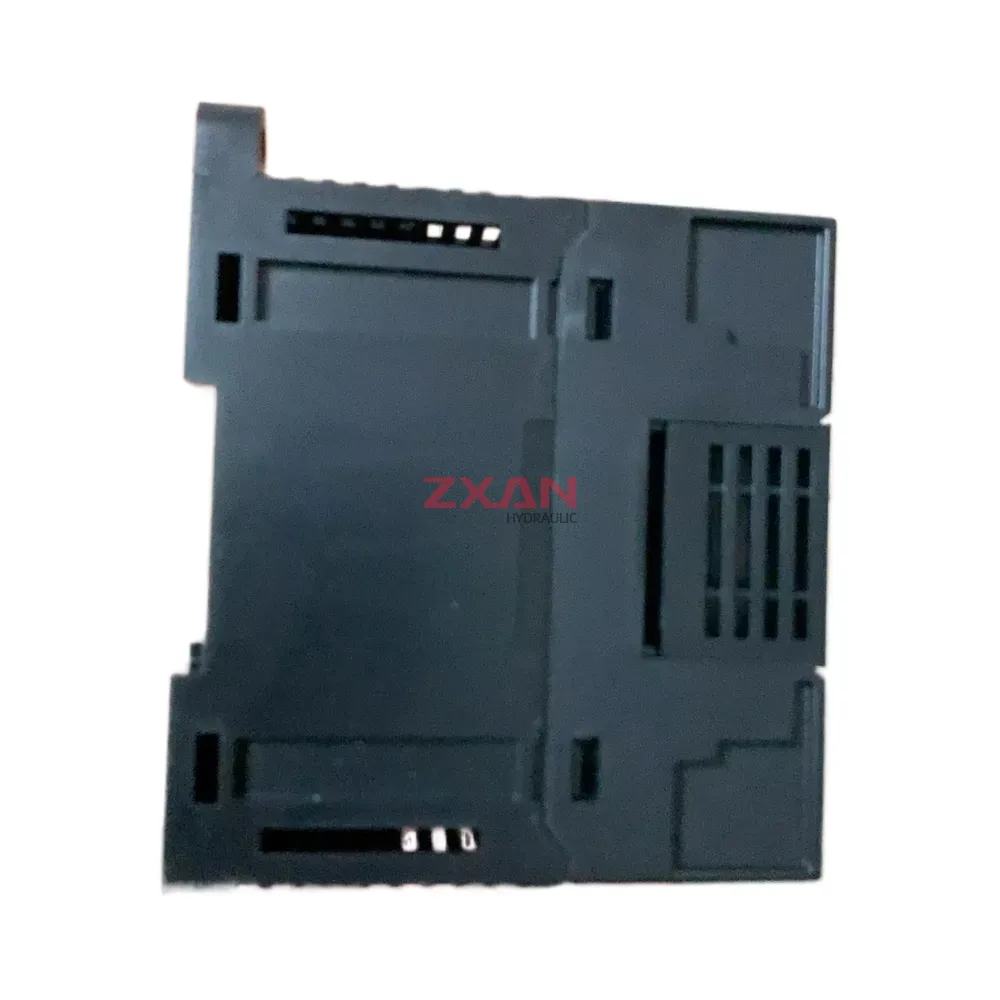

OMRON CP1H-EX40DT-D
The OMRON CP1H-EX40DT-D is a high-performance, compact Programmable Logic Controller (PLC) designed for advanced machine control applications. Part of the CP1H series, it combines the capabilities of a modular PLC with the simplicity of a compact unit. This specific model features built-in digital I/O, integrated high-speed counters and pulse outputs, USB connectivity for easy programming, and includes built-in analog inputs and outputs, making it suitable for tasks requiring speed, flexibility, and analog signal processing without needing additional expansion modules for basic analog control. It operates on a 24 VDC power supply.
Technical Specifications:
- Product Series: SYSMAC CP1H
- Type: CPU Unit (X Type with built-in Analog I/O)
- Power Supply: 24 VDC
- Programming Language: Ladder Logic
- Program Capacity: 20 Ksteps
- Data Memory Capacity: 32 Kwords
- Digital Inputs: 24 (DC Sink/Source)
- Digital Outputs: 16 (Transistor Sinking/NPN)
- Analog Inputs: 2 (Built-in, 0-10V, 0-5V, 1-5V, 4-20mA)
- Analog Outputs: 2 (Built-in, 0-10V)
- High-speed Counters: 4 axes (100 kHz single phase, 50 kHz differential phase)
- Pulse Outputs: 4 axes (100 kHz)
- Communication Ports: Built-in USB (Type B), 2 Option Board Slots (for RS-232C, RS-422/485, Ethernet, LCD)
- Expansion: Supports CP1W expansion units (Digital I/O, Analog I/O, Temperature Control, etc.)
- Execution Speed: LD instruction 0.1 µs
- Operating Temperature: 0 to 55 °C
| Brand | OMRON |
|---|---|
| Model | CP1H-EX40DT-D |
