OMRON H3BA-N Time Relay (Solid-State Timer)
Shop the OMRON H3BA-N Solid-State Time Relay for precise industrial automation control. Features a 220VAC power supply, wide 1.2s to 300h timing range, 5A contact rating, Mode A operation, and an 11-pin panel-mount design. Ideal for reliable control circuit timing.
OMRON H3BA-N Time Relay (Solid-State Timer)

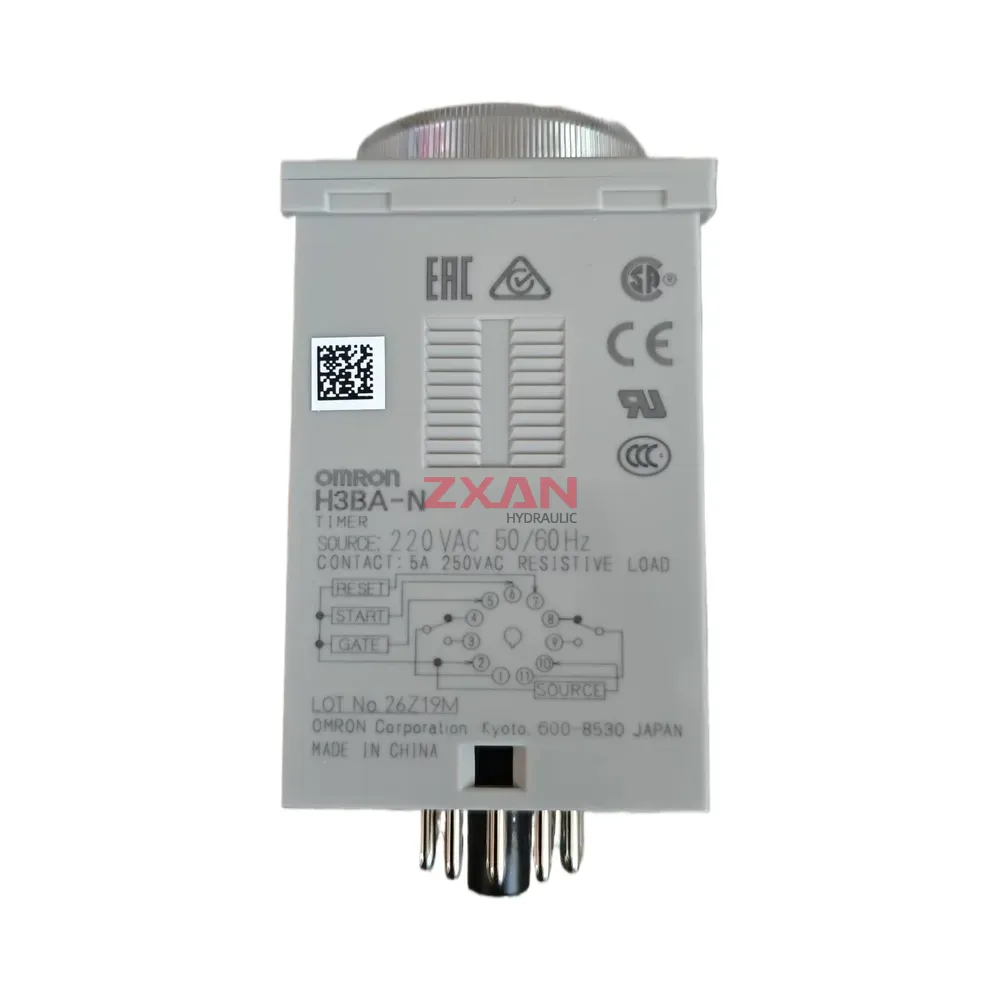

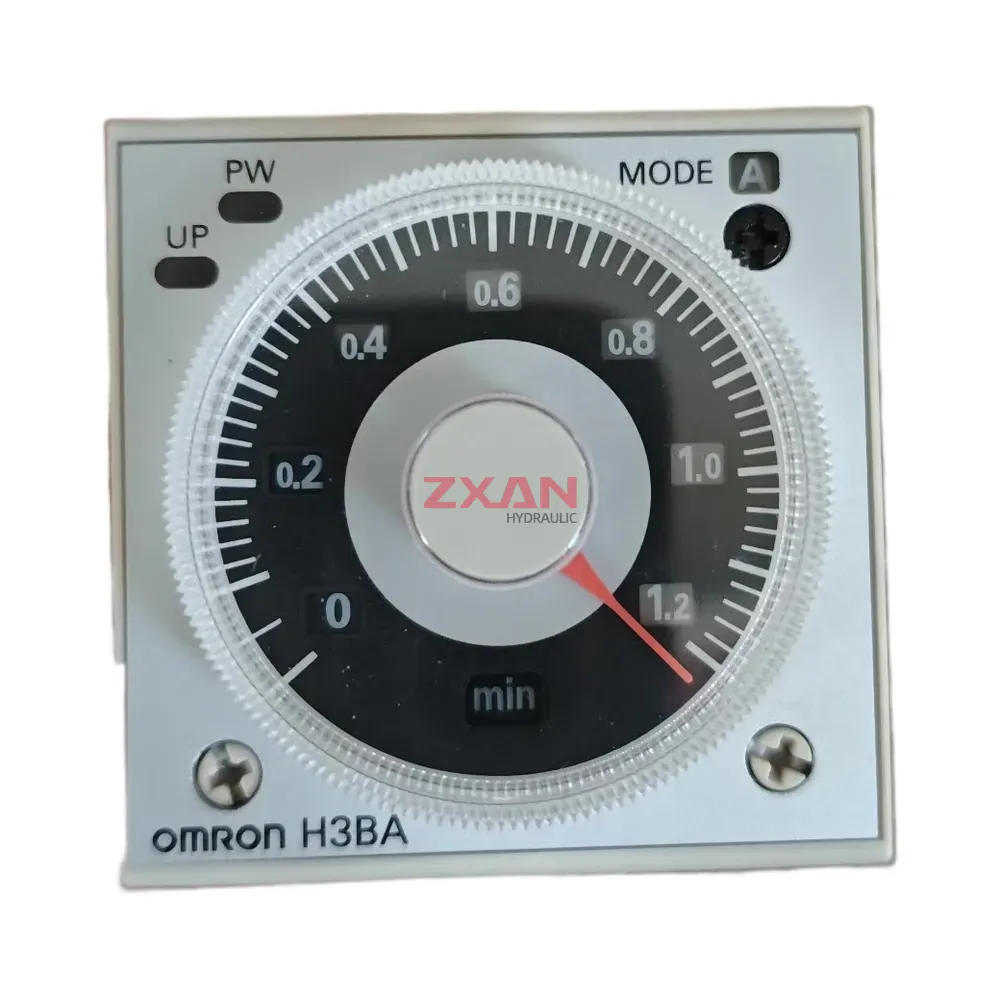

The OMRON H3BA-N is a highly reliable, multi-range solid-state timer relay engineered for precision timing and control in industrial automation environments. Operating on a 220 VAC (50/60 Hz) power supply, this versatile timer offers an expansive time setting range from 1.2 seconds up to 300 hours to accommodate a wide variety of applications. It features an intuitive dial-type interface with a minute scale for easy adjustments, alongside clear PW (Power) and UP (Output) LED indicators for real-time status monitoring. Operating in Mode A, the H3BA-N is equipped with dedicated RESET, START, and GATE control inputs, a robust 5A 250VAC resistive load contact rating, and an 11-pin circular terminal designed for secure panel mounting.
Technical Specifications:
- Brand: OMRON
- Model: H3BA-N
- Product Type: Solid-State Time Relay
- Supply Voltage: 220 V AC, 50/60 Hz

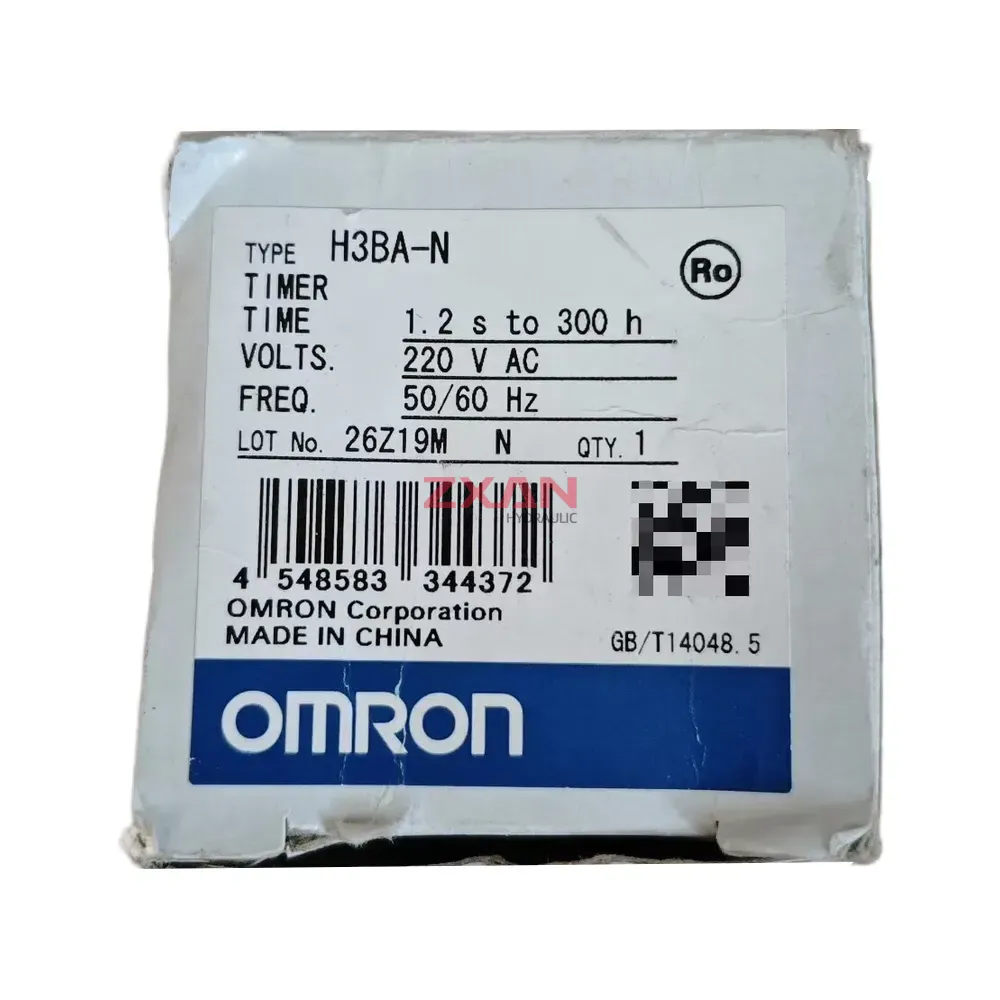

- Time Setting Range: 1.2 s to 300 h
- Contact Rating: 5 A, 250 VAC (Resistive Load)
- Operation Mode: Mode A
- Control Inputs: RESET, START, GATE
- Indicators: PW (Power) and UP (Output) LEDs
- Connection Type: 11-pin circular terminal
- Mounting: Panel-mount design
- Standards Compliance: GB/T14048.5
| Brand | OMRON |
|---|---|
| Model | H3BA-N |
