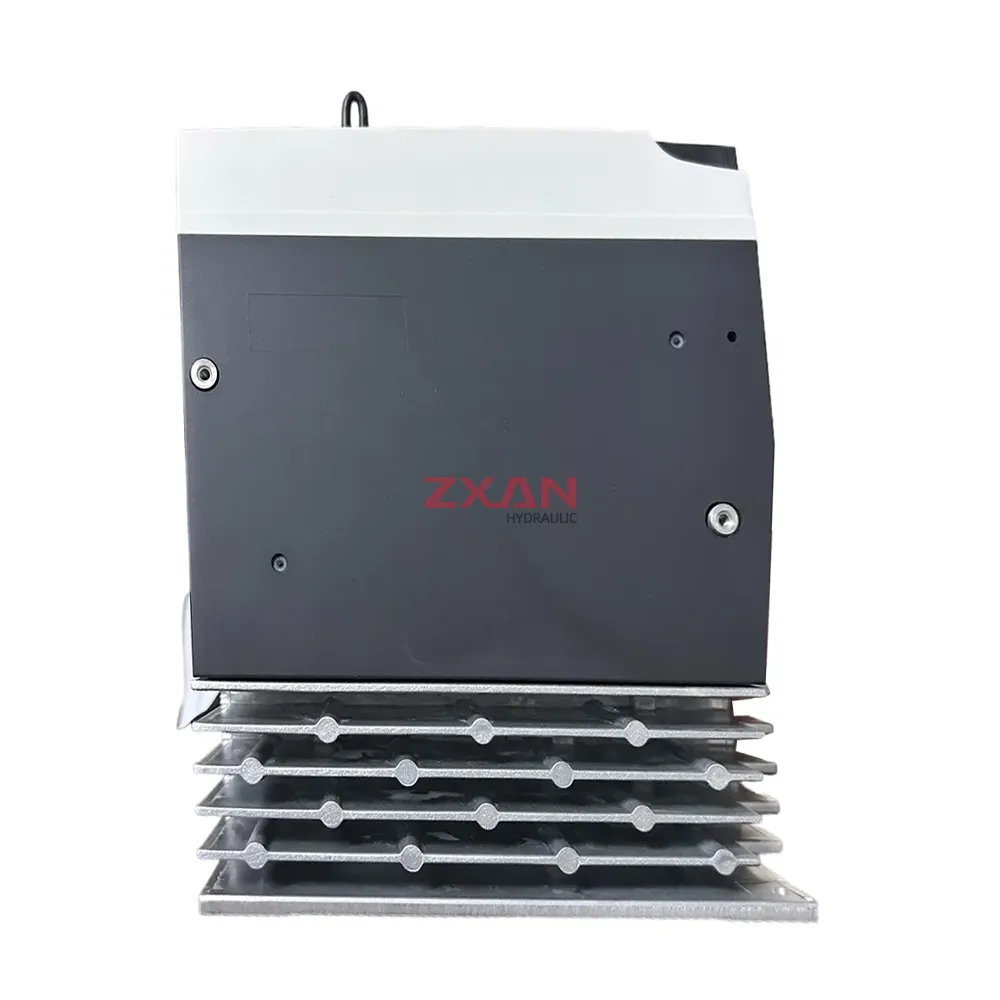

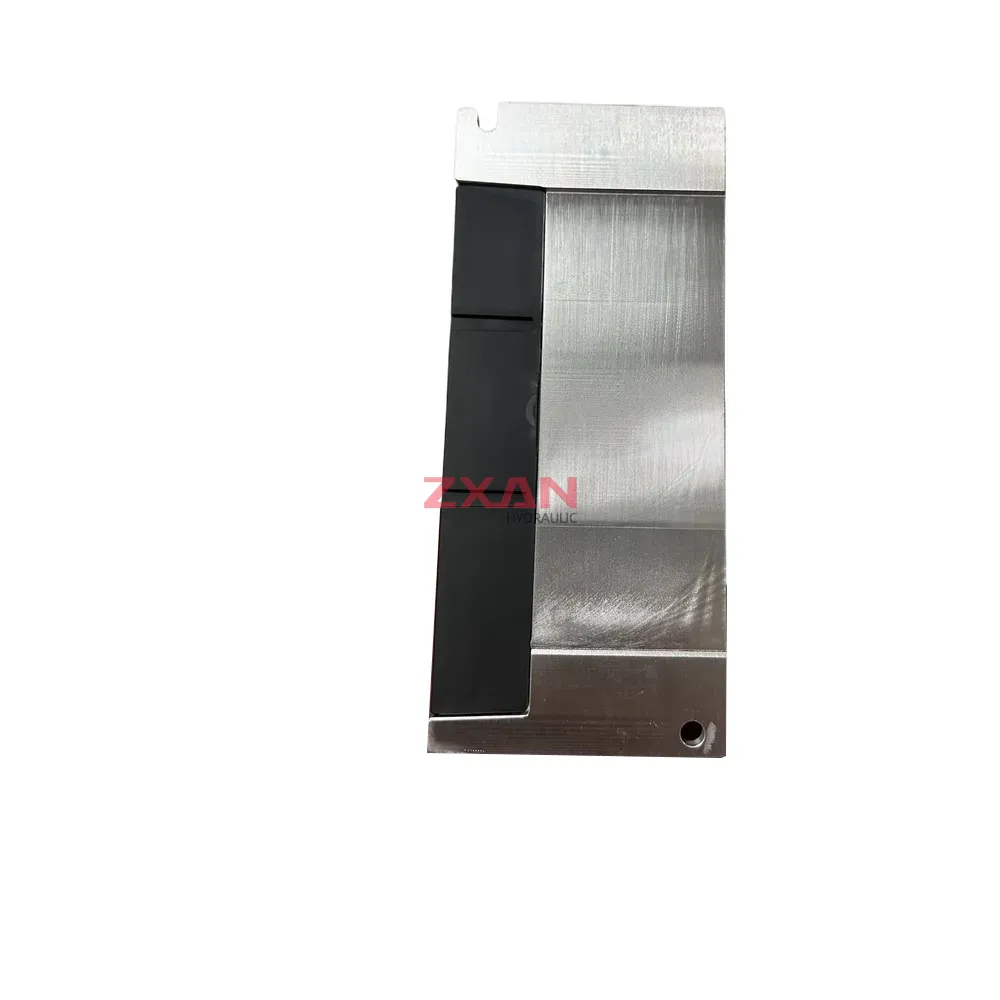

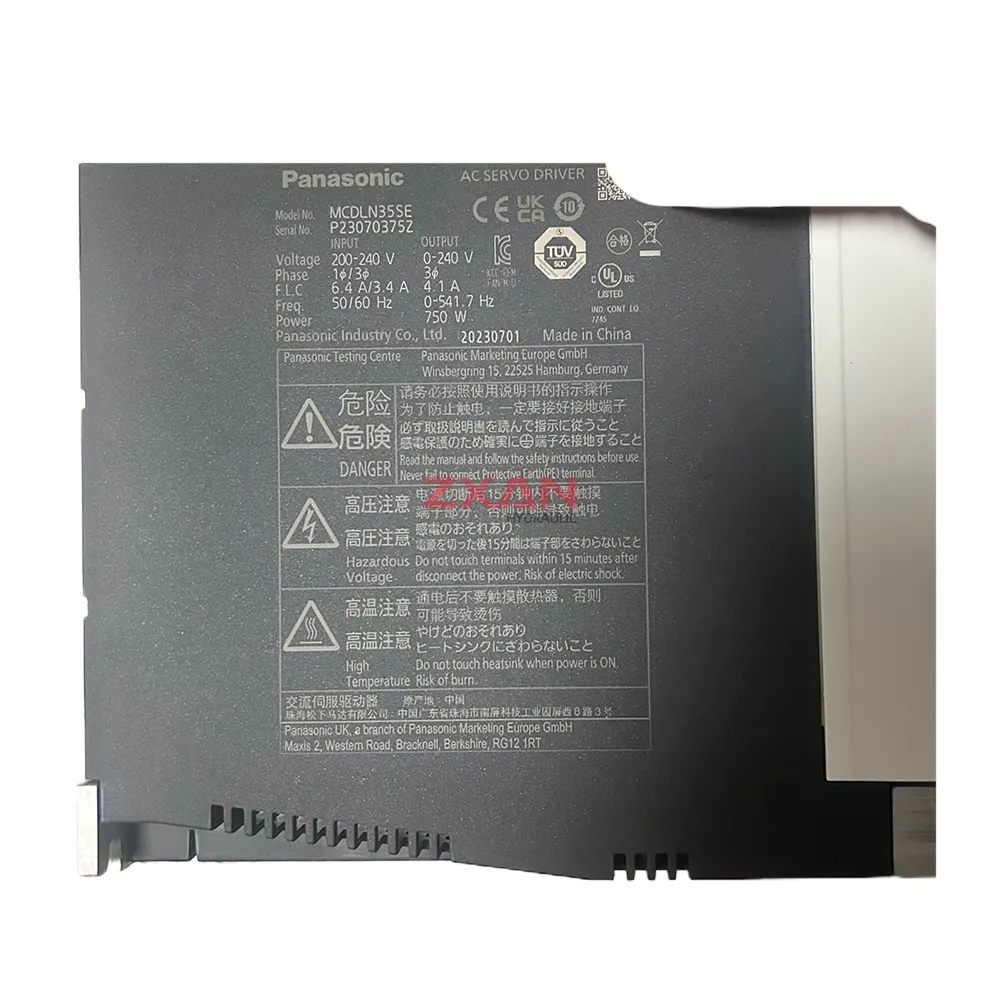

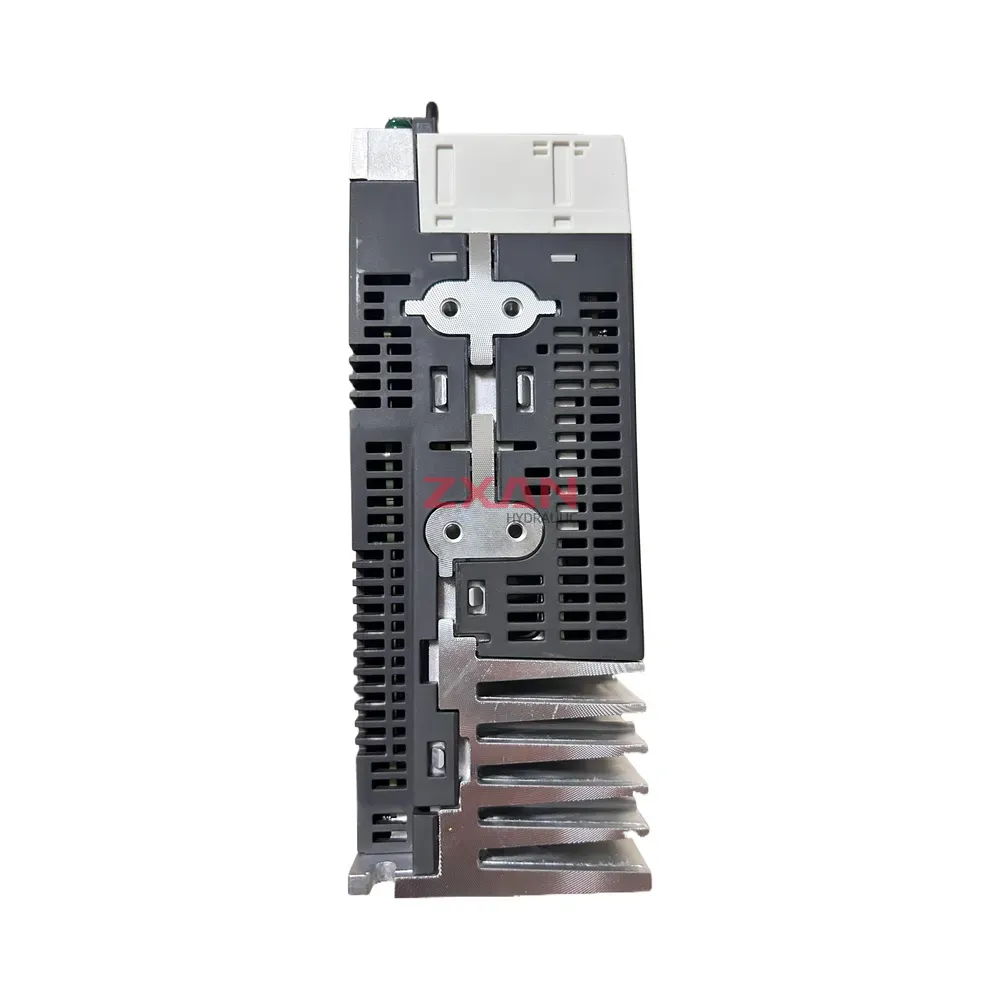

Panasonic MINAS A6 Servo Driver MCDLN35SE
The Panasonic MCDLN35SE is a high-performance AC servo driver belonging to the MINAS A6 family, specifically designed for network integration using the EtherCAT communication protocol. It offers precise motion control for demanding industrial automation applications. This driver supports single-phase or three-phase 200V input and is capable of driving servo motors up to 750W. Featuring a high-speed frequency response of 3.2 kHz and supporting high-resolution encoders (up to 23-bit), it enables extremely accurate positioning, velocity, and torque control. Integrated safety features, including Safe Torque Off (STO), enhance machine safety compliance.
Technical Specifications:
- Series: MINAS A6 Network Type (A6N)
- Model No.: MCDLN35SE
- Type: AC Servo Driver
- Input Power Supply: Single/3-phase 200 V to 240 V AC (+10% / -15%), 50/60 Hz
- Applicable Motor Output: 750 W or less
- Rated Output Current: 5.0 A (RMS)
- Max. Peak Current: 18.0 A
- Control Method: Position control, Velocity control, Torque control, Full-closed loop control
- Communication Interface: EtherCAT (CoE with CANopen profile CiA402)
- Frequency Response: 3.2 kHz
- Supported Encoders: 23-bit Absolute/Incremental, 17-bit Absolute/Incremental
- Safety Function: STO (Safe Torque Off) SIL3 / PL e / Cat.3
- Regenerative Discharge Resistor: Built-in (External optional)
| Brand | Panasonic |
|---|---|
| Model | MCDLN35SE |
