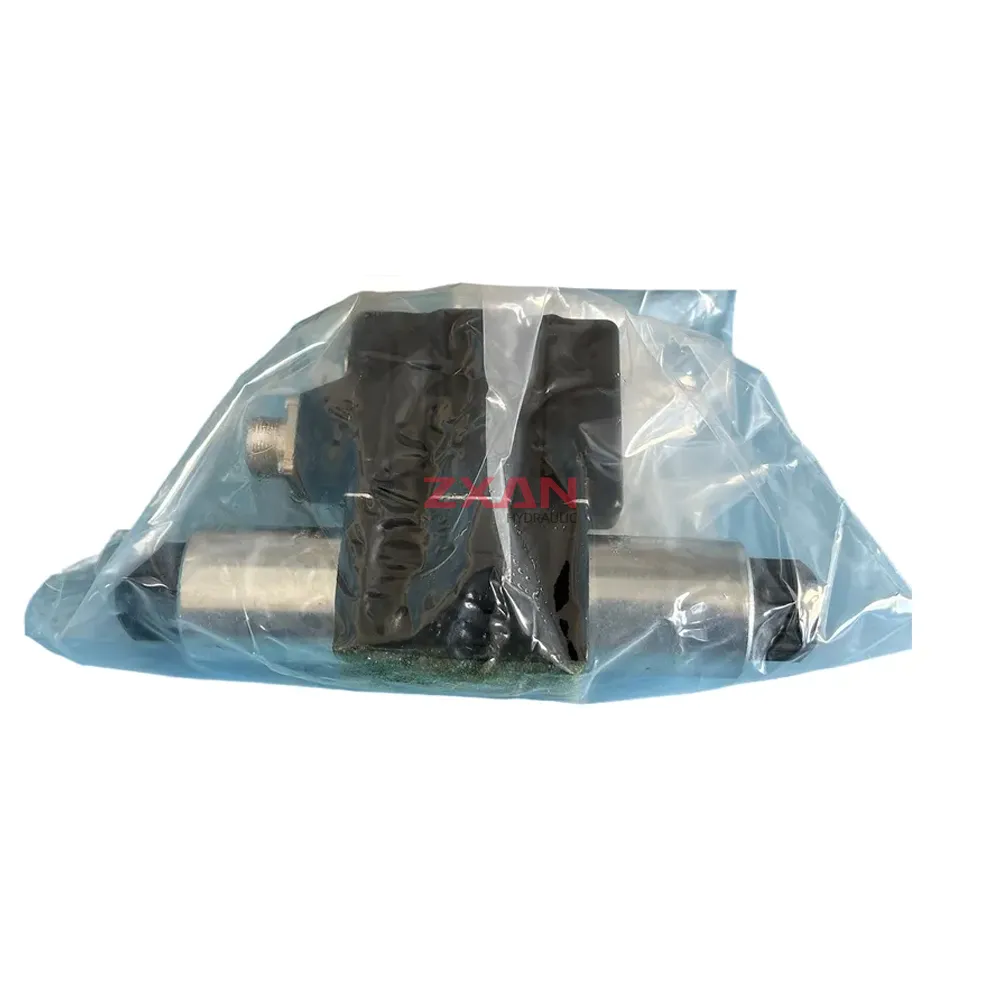

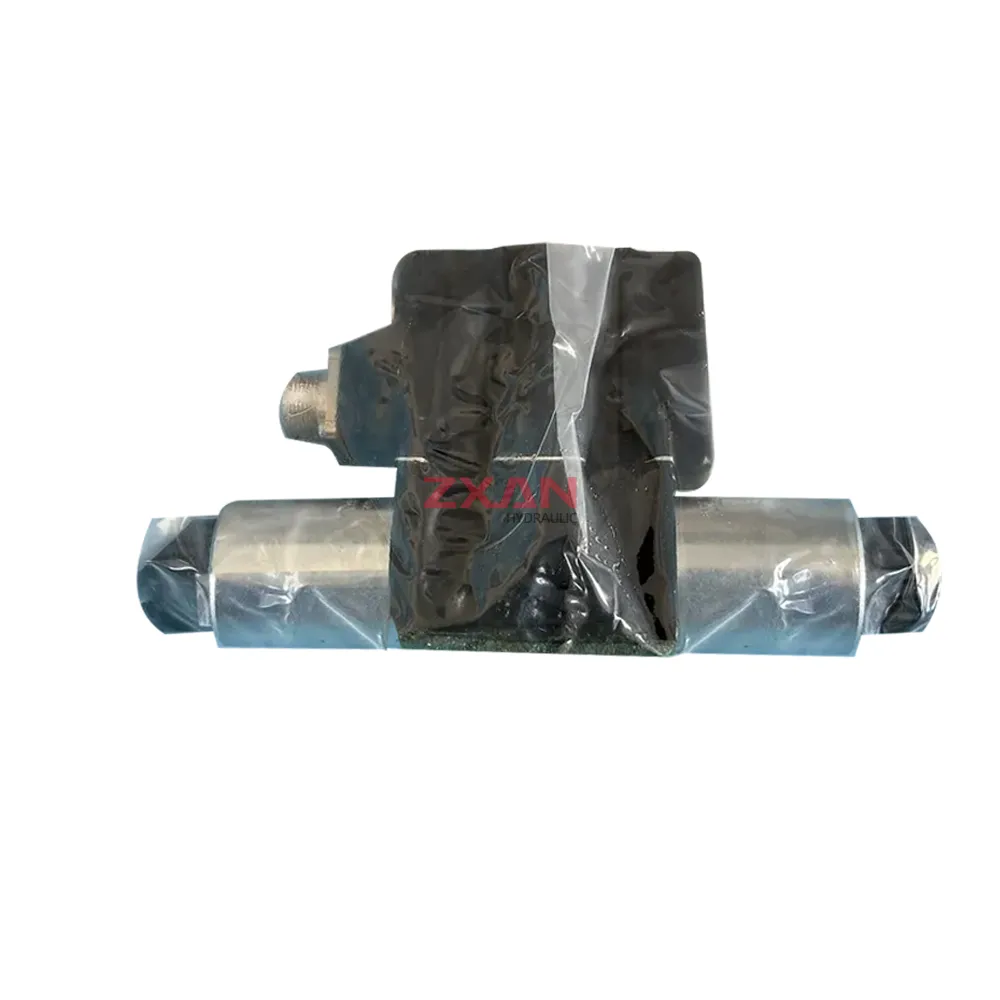

Parker D1FPE50MA9NB0047
The Parker D1FPE50MA9NB0047 is a direct operated proportional directional control valve from the highly regarded D1FP series. Specifically designed for NG6 (CETOP 03 / NFPA D03) manifold mounting, this valve provides precise and responsive control over the direction and magnitude of hydraulic fluid flow. It features a spring-centered ‘E’ type spool, which in its neutral position blocks all ports (P, A, B, T closed), ensuring system integrity when not actuated. This configuration allows for flow from P to B and A to T, or P to A and B to T, depending on solenoid energization. Engineered for demanding applications, it operates with a 24VDC supply and is typically supplied without an electrical connector, allowing for customized wiring solutions to suit specific installation requirements.
Technical Specifications:
- Series: D1FP
- Type: Proportional Directional Control Valve, Direct Operated
- Mounting Interface: NG6 / CETOP 03 / NFPA D03
- Spool Type: E (4-Way, 3-Position, Spring Centered, P-A-B-T Closed Center)
- Nominal Flow Rate: 50 l/min (at 10 bar total pressure drop, 5 bar per land)
- Seal Material: NBR (Nitrile Rubber)
- Actuation: Proportional Solenoid
- Spool Return: Spring Centered
- Coil Voltage: 24VDC
- Electrical Connection: Without plug (connector to be ordered separately, typically to DIN EN 175301-803 Form A)
- Maximum Operating Pressure (Ports P, A, B): 350 bar (5075 PSI)
- Maximum Operating Pressure (Port T – Tank): 210 bar (3045 PSI) (with internal drain)
- Fluid Temperature Range: -20°C to +70°C (-4°F to +158°F) with NBR seals
- Hydraulic Fluid: Mineral oil based (HL, HLP) according to DIN 51524
- Viscosity Range: 10 to 400 mm²/s (cSt)
- Design Series: 47
| Brand | Parker |
|---|---|
| Model | D1FPE50MA9NB0047 |
