Parker D1SE 83 BNJW

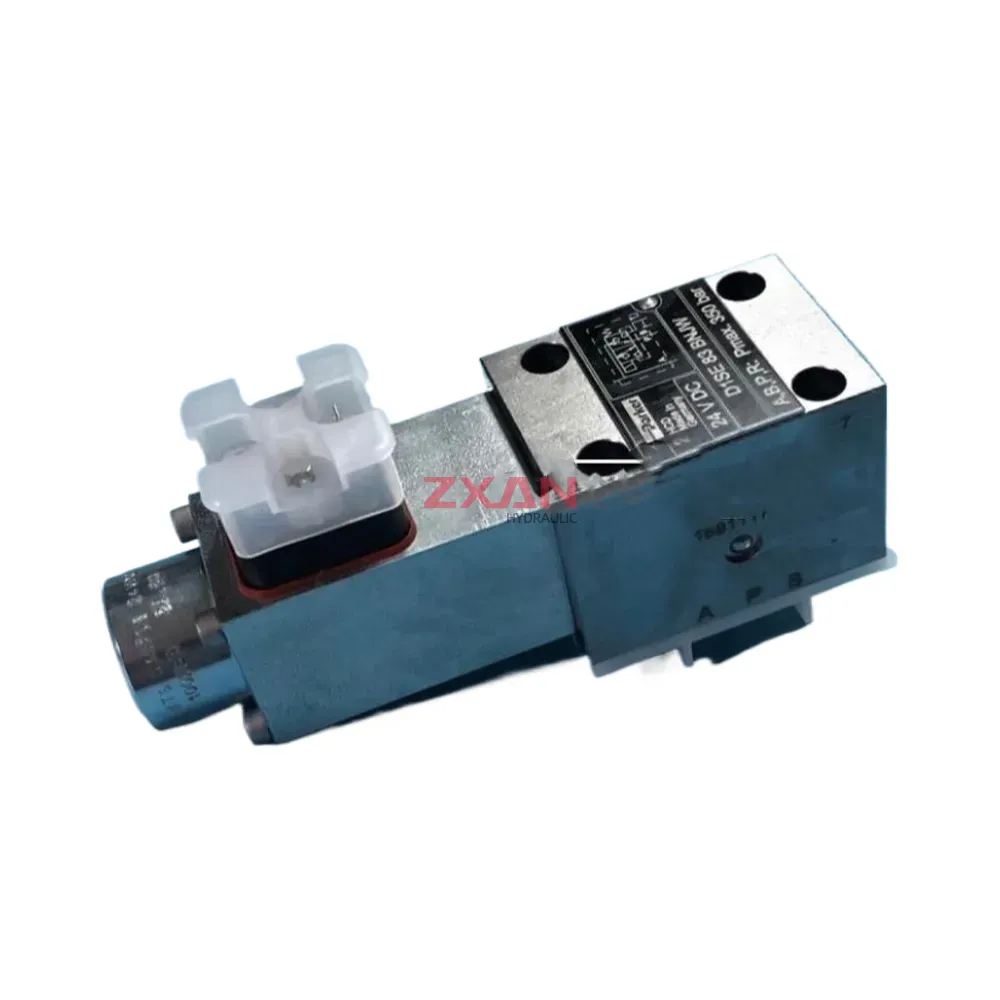

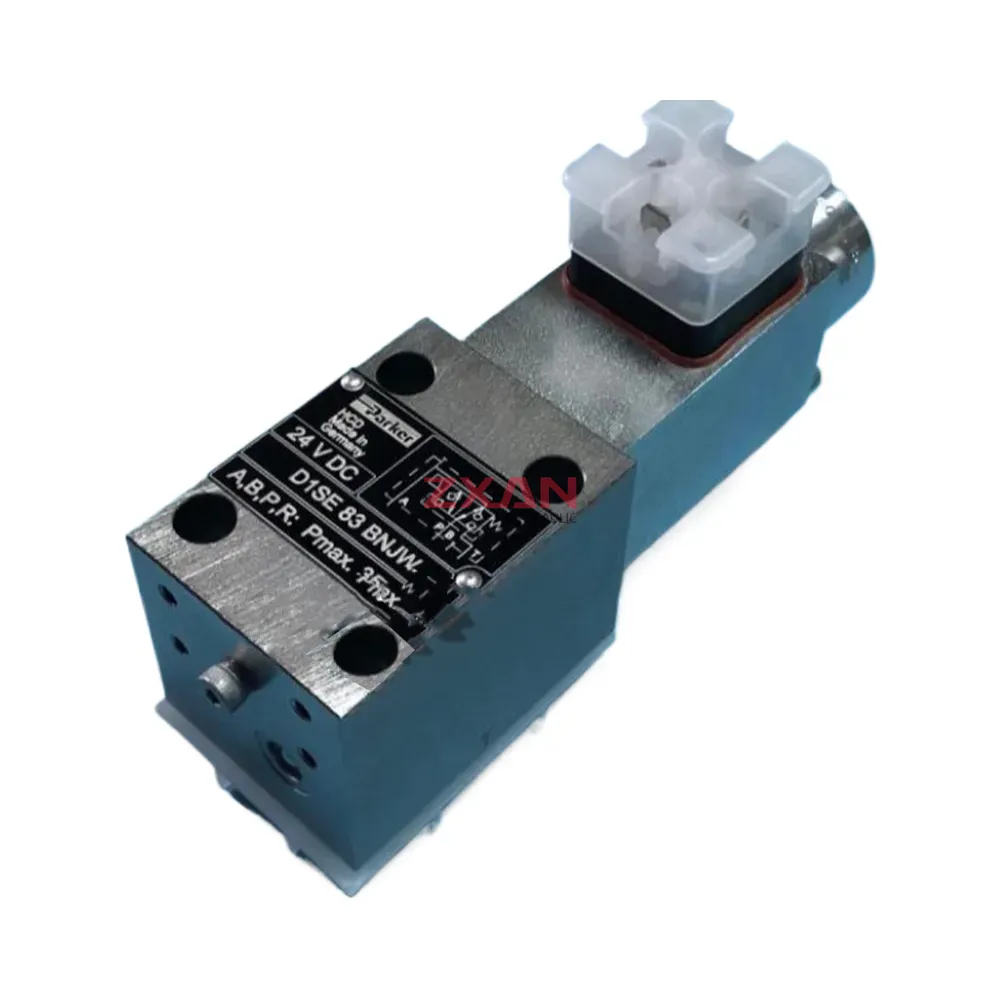

The Parker D1SE 83 BNJW is a high-performance, direct-operated solenoid directional control valve conforming to the NG03 (CETOP 03) mounting standard. This 4-way, 3-position valve features a tandem center spool (type 83), where in the neutral position, port P is connected to T, and ports A and B are blocked. It is actuated by a 24V DC solenoid and equipped with NBR seals, making it suitable for various industrial hydraulic applications. The valve is designed for reliable switching and control of hydraulic fluid flow. This specific model (BNJW) comes without a manual override and is prepared for an electrical connection via a DIN 43650 Form A connector (plug typically not included).
Technical Specifications:
- Product Series: D1SE
- Valve Type: Solenoid Operated Directional Control Valve
- Actuation: Direct Operated
- Mounting Standard: NG03 (CETOP 03, ISO 4401-03-02-0-94)
- Spool Configuration: 4-Way, 3-Position
- Spool Type: 83 (Tandem Center: P → T; A & B blocked in center position)
- Solenoid Voltage: 24V DC
- Electrical Connector Interface: DIN 43650 Form A (EN 175301-803 A) – Connector plug to be ordered separately
- Seal Material: NBR (Nitrile Rubber)
- Manual Override: No (N)
- Maximum Operating Pressure (Ports P, A, B): 350 bar (5075 psi)
- Maximum Operating Pressure (Port T): 210 bar (3045 psi)
- Nominal Flow Rate: Up to 40 l/min (10.6 GPM)
- Fluid Temperature Range (NBR seals): -20°C to +70°C (-4°F to +158°F)
- Compatible Hydraulic Fluid: Mineral oil based (HL, HLP) according to DIN 51524; other fluids on request
| Brand | Parker |
|---|---|
| Model | D1SE 83 BNJW |
