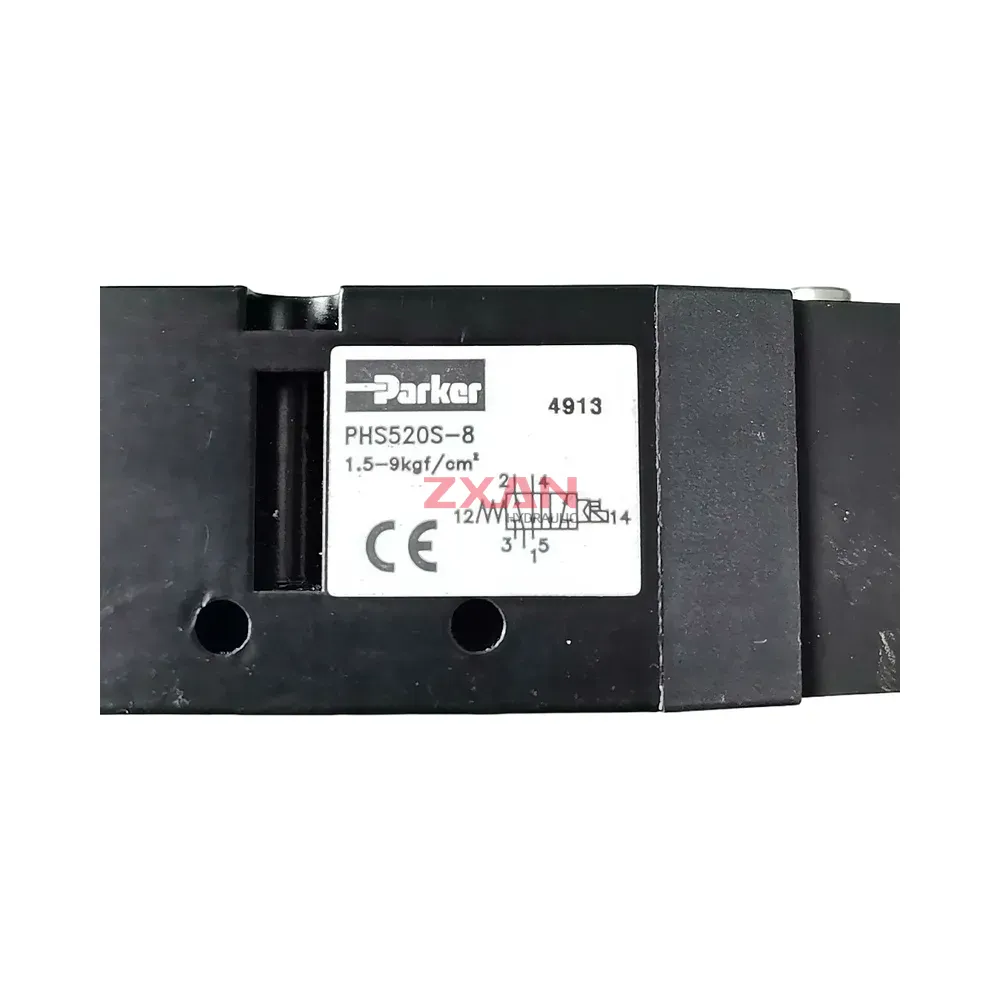

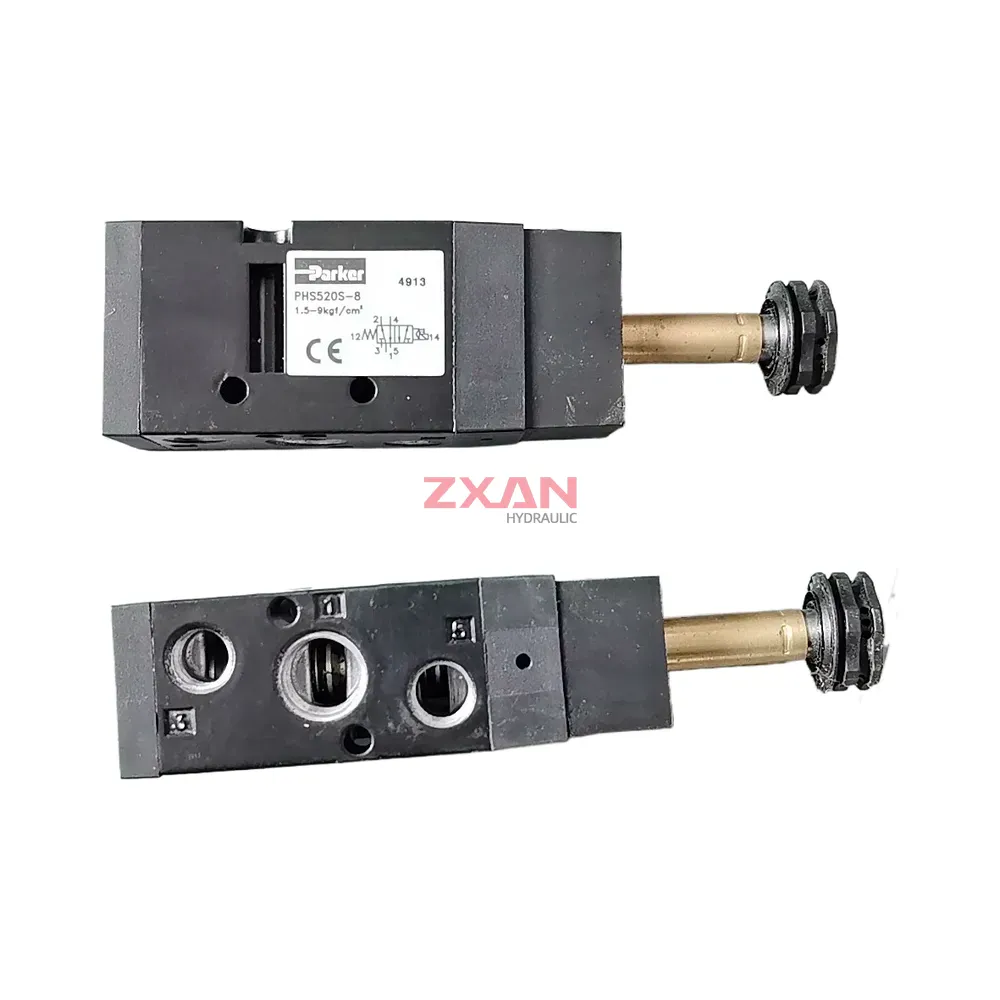

Parker PHS520S-8
The Parker PHS520S-8 is a robust and reliable 5/2 way single solenoid actuated spool valve, part of Parker’s PHS series. Designed for industrial pneumatic applications, it offers precise control of air flow to actuators such as cylinders. Featuring G1/4 (BSPP) port connections, it provides a common interface for various pneumatic systems. The valve’s durable aluminum alloy body and NBR seals ensure longevity and consistent performance in demanding environments. It is suitable for use with filtered compressed air, which can be either lubricated or non-lubricated.
Technical Specifications:
- Valve Series: PHS520
- Part Number: PHS520S-8
- Function: 5/2 Way, Single Solenoid, Spring Return
- Port Connections: G1/4 (BSPP)
- Actuation Type: Solenoid (Coil to be ordered separately)
- Operating Pressure Range: 1.5 to 8 bar (0.15 to 0.8 MPa)
- Nominal Flow Rate (Cv): 0.8
- Effective Orifice: 16 mm²
- Medium: Compressed Air (filtered to 40µm)
- Lubrication: Not required; if used, compatible with ISOVG32 turbine oil
- Ambient and Fluid Temperature Range: -10°C to +50°C
- Body Material: Aluminum Alloy
- Seal Material: NBR (Nitrile Rubber)
- Manual Override: Standard, Push Non-Locking Type
- Coil Compatibility: Parker P2E Series Coils (voltage to be specified upon coil order)
| Brand | Parker |
|---|---|
| Model | PHS520S-8 |
