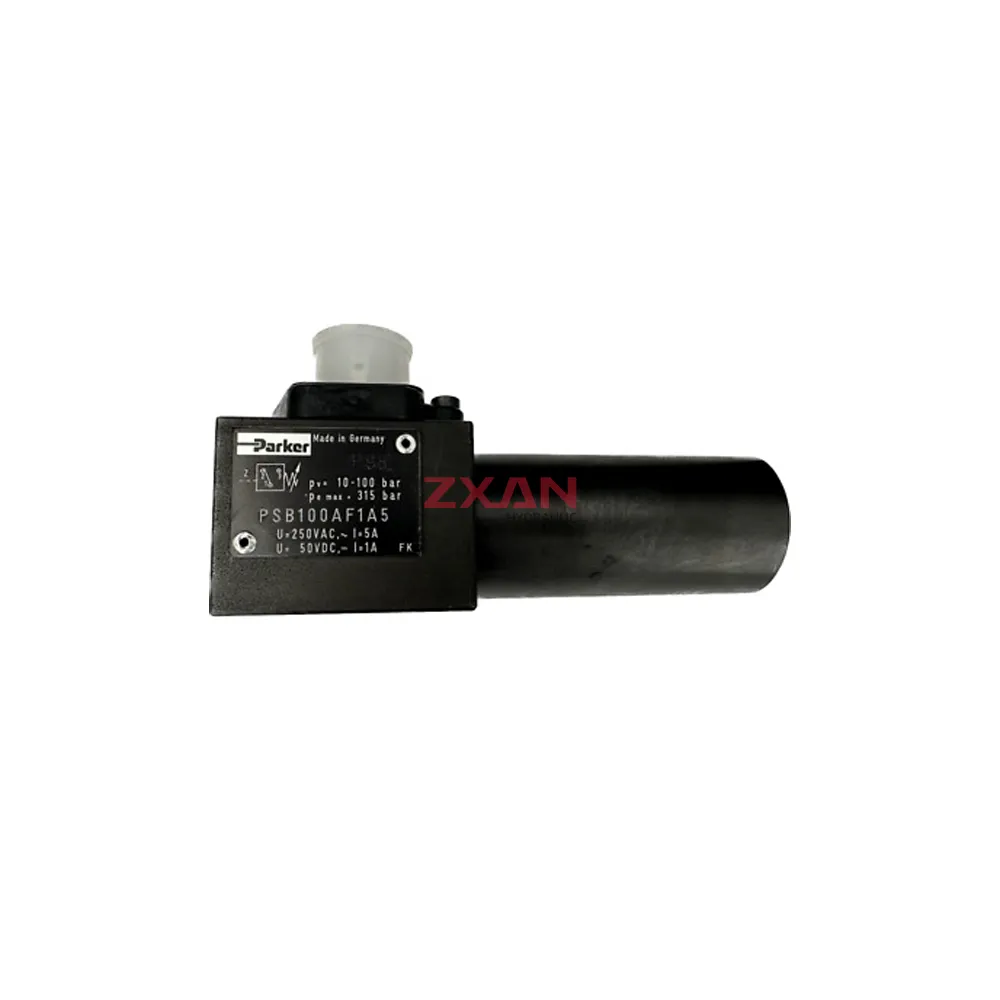

Parker PSB100AF1A5
The Parker PSB100AF1A5 is a high-performance proportional directional control valve belonging to Parker’s PS Series. These valves are designed for precise control of flow and direction in demanding hydraulic applications. The PSB100AF1A5 model typically features a blocked center spool, hydraulic pilot actuation, and an integrated LVDT for accurate spool position feedback, ensuring responsive and reliable operation. It is suitable for various industrial machinery requiring precise motion control and high dynamic performance.
Technical Specifications:
- Series: PS Proportional Directional Control Valve
- Valve Type: Spool Type, Subplate Mounted
- Model Code: PSB100AF1A5
- Spool Type (B): Blocked Center
- Nominal Flow Rate (100): 100 l/min (26.4 GPM)
- Actuator Type (A): Hydraulic Pilot
- Pilot Pressure Range (F): 7-35 bar (100-500 psi)
- Spool Position Sensor (1): LVDT (Linear Variable Differential Transformer)
- Electrical Connection (A): 6+PE DIN Connector (EN175201-804, formerly DIN 43563 form A)
- Seal Material (5): NBR (Nitrile Butadiene Rubber)
- Maximum Operating Pressure (P, A, B ports): 350 bar (5075 psi)
- Maximum Tank Port Pressure (T port, static): 210 bar (3045 psi)
- Mounting Interface: ISO 4401-07-07-0-94, NFPA D07, CETOP RP121H-R07
- Fluid Temperature Range (NBR seals): -20°C to +80°C (-4°F to +176°F)
| Brand | Parker |
|---|---|
| Model | PSB100AF1A5 |
