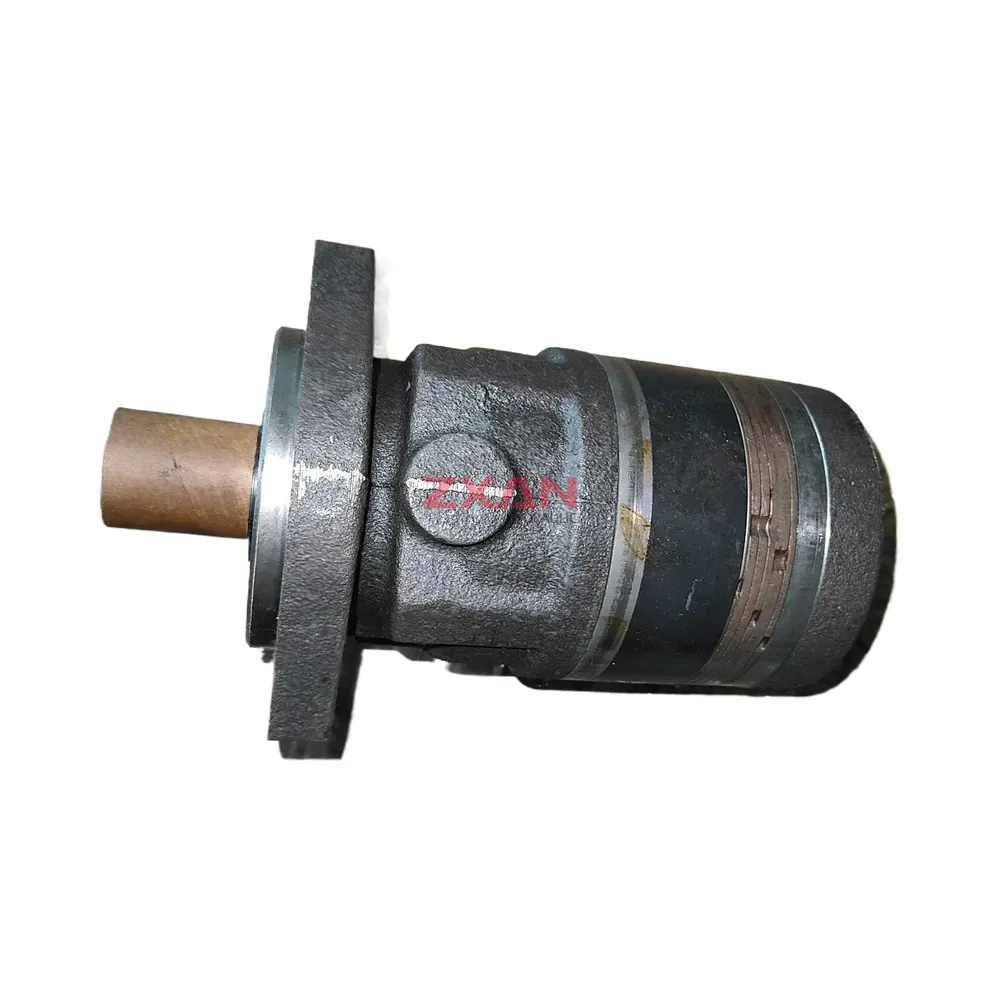

Parker Torqmotor TE Series Hydraulic Motor TE0130CW260AA
The Parker Torqmotor™ TE Series is a durable low-speed, high-torque (LSHT) hydraulic motor known for its robust construction and reliable performance in demanding applications. Featuring superior bearing life and the ability to handle high pressure and side loads, the TE Series utilizes a Gerotor design with high-efficiency spool valve flow. This specific model, TE0130CW260AA, offers a specific combination of displacement, mounting, shaft, and port options suitable for various industrial and mobile equipment, such as augers, conveyors, winches, and machine tools.
Technical Specifications:
- Series: TE
- Displacement: 7.9 cu.in./rev (130 cm³/rev)
- Mounting Type: 4-Bolt Magneto Flange

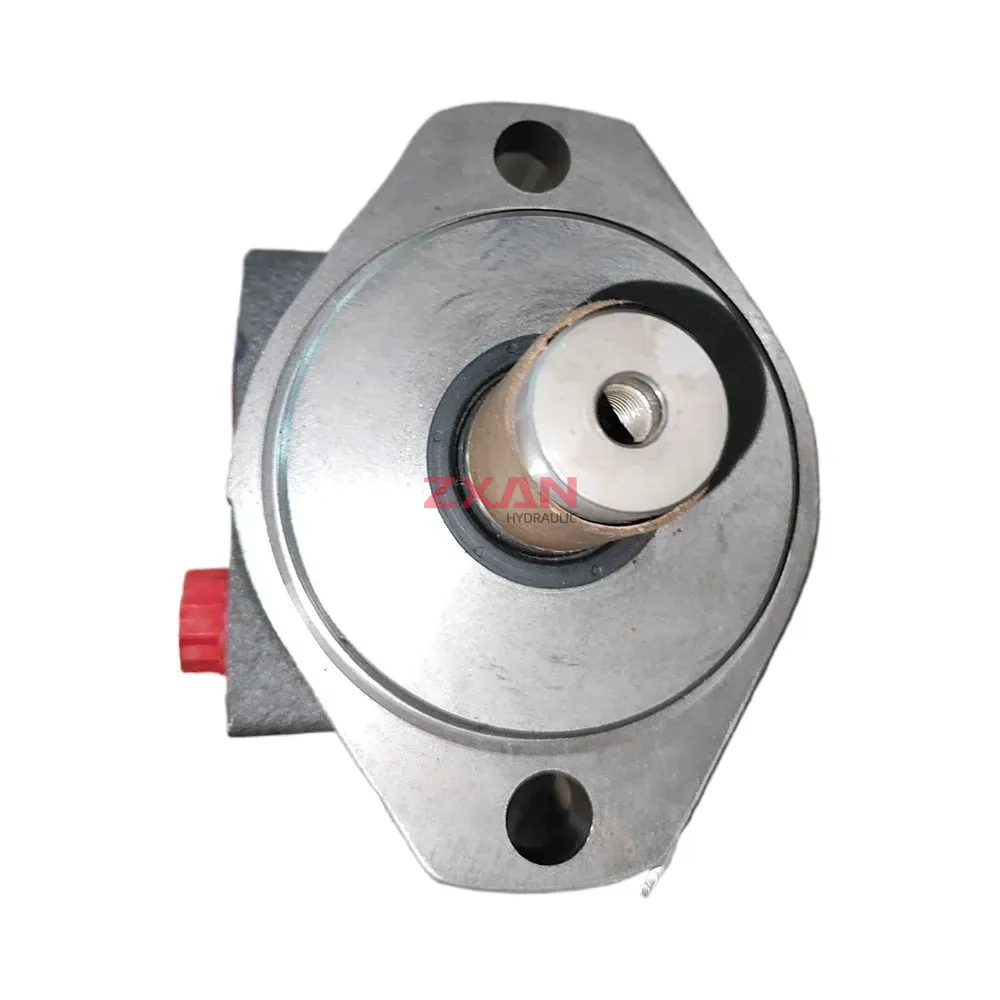

- Shaft Type: 1 inch Diameter Straight Shaft with Woodruff Key

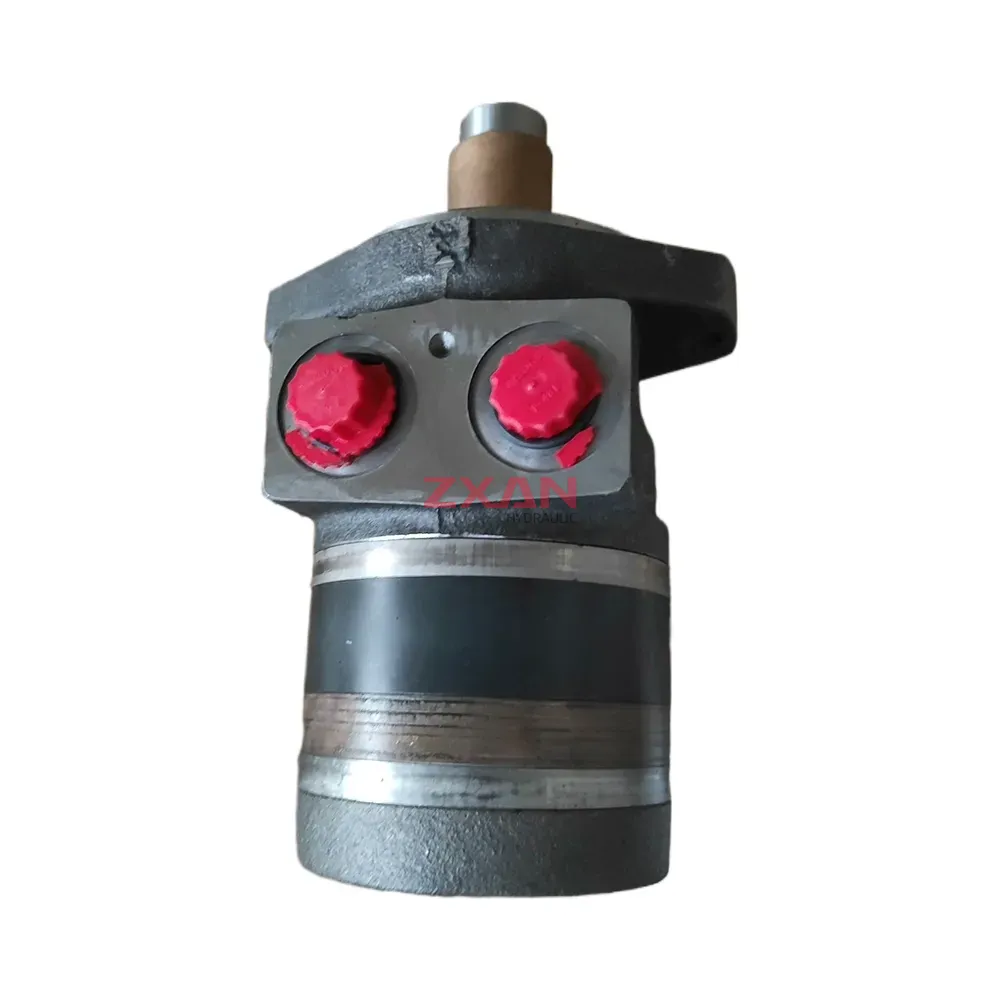

- Port Type: 7/8-14 UNF-2B SAE O-Ring Staggered Ports
- Max Continuous Pressure: 2000 PSI (138 bar)
- Max Continuous Torque: 2560 lb-in (289 Nm)
- Max Continuous Speed: 457 RPM
- Max Continuous Flow: 15 GPM (57 LPM)
- Rotation: Standard
| Brand | Parker |
|---|---|
| Model | TE0130CW260AA |
