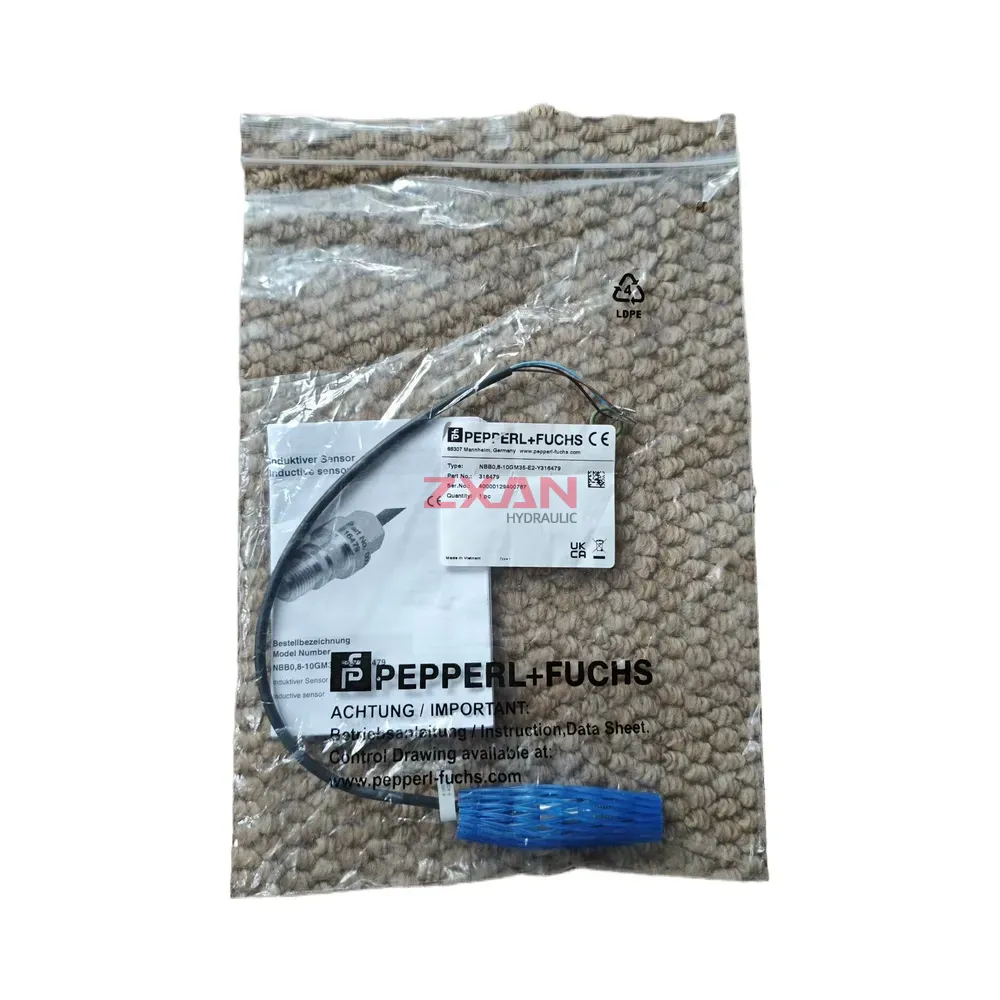

PEPPERL+FUCHS NBB0,8-10GM35-E2-Y316479 Feedback probe
Discover the PEPPERL+FUCHS NBB0,8-10GM35-E2-Y316479 inductive feedback probe. This M10 flush-mountable sensor provides a 0.8mm sensing range, PNP NO output, and a robust stainless steel housing, making it ideal for precise position detection in industrial automation.
PEPPERL+FUCHS NBB0,8-10GM35-E2-Y316479 Feedback probe
The PEPPERL+FUCHS NBB0,8-10GM35-E2-Y316479 is a high-performance inductive proximity sensor designed for reliable, non-contact detection of metallic objects in industrial automation applications. As a feedback probe, it is exceptionally suited for precise position monitoring, such as verifying valve positions or detecting machine components. Housed in a rugged M10 stainless steel body, this sensor offers a flush-mountable design and a 0.8 mm sensing distance. Its PNP normally open (NO) output and high switching frequency make it a versatile solution for demanding environments, ensuring long-term stability and operational accuracy.

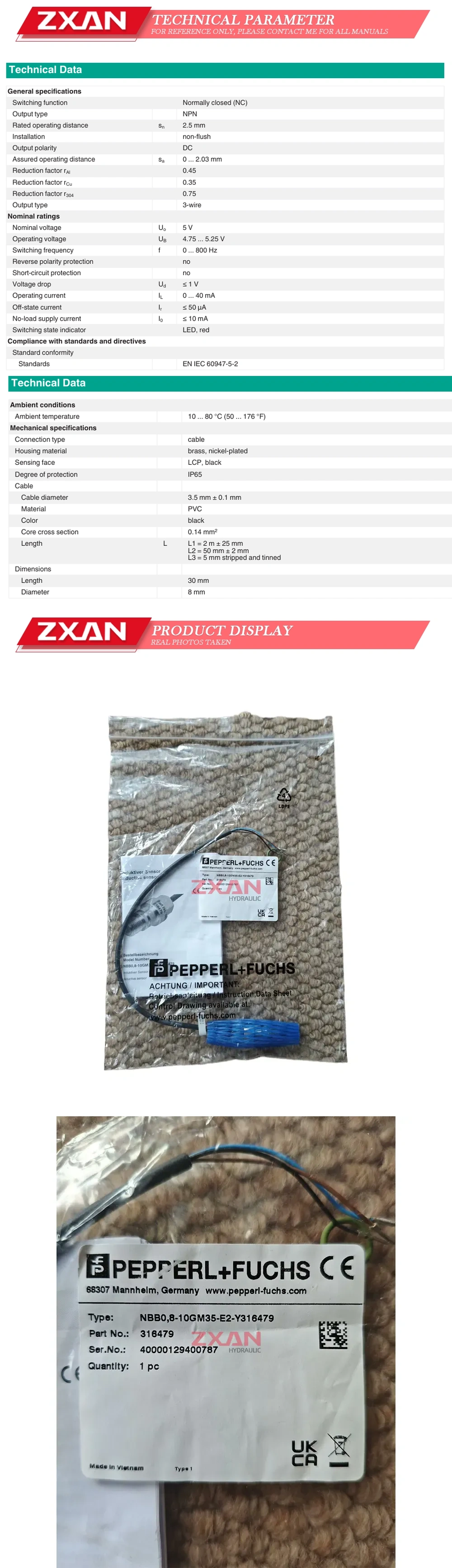

Technical Specifications:
- Model: NBB0,8-10GM35-E2-Y316479
- Sensing Range (Rated Operating Distance): 0.8 mm
- Installation: Flush mountable
- Output Type: PNP, Normally Open (NO)
- Operating Voltage: 10 … 30 V DC
- Switching Frequency: 0 … 5000 Hz
- Housing: M10 x 1 threaded barrel, Stainless steel (1.4305 / AISI 303)
- Connection: 2 m PVC cable
- Degree of Protection: IP67
| Brand | Pepperl+Fuchs |
|---|---|
| Model | NBB0,8-10GM35-E2-Y316479 Feedback probe |
