Pepperl+Fuchs R3-SP-IBD12 Foundation Fieldbus Segment Protector
Optimize your industrial automation network with the Pepperl+Fuchs R3-SP-IBD12 FieldConnex Segment Protector. This 12-channel FOUNDATION Fieldbus module features advanced DART technology and reliable short-circuit isolation to ensure continuous plant uptime and secure field device connectivity.
Pepperl+Fuchs R3-SP-IBD12 Foundation Fieldbus Segment Protector

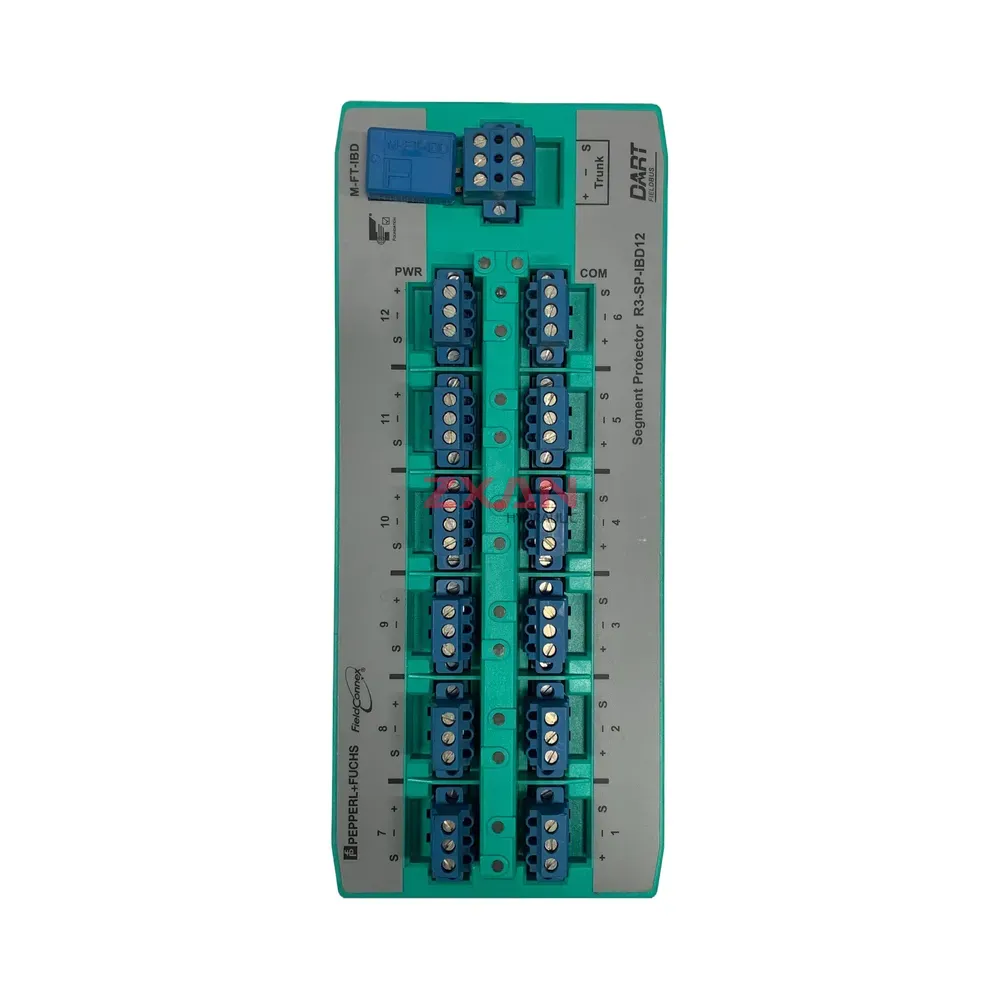

The Pepperl+Fuchs R3-SP-IBD12 is a highly reliable 12-channel segment protector engineered specifically for FOUNDATION Fieldbus networks. As a core component of the advanced FieldConnex series, this device integrates DART (Dynamic Arc Recognition and Termination) Fieldbus technology to ensure maximum safety and network integrity in demanding industrial environments. It features dedicated terminals for Power (PWR) and Trunk/Communication (COM), alongside 12 individual spur segments. Each of the 12 segments is equipped with positive (+), negative (-), and shield (S) connections, providing robust and organized wiring for field devices. Designed to isolate short circuits on the spur level, the R3-SP-IBD12 prevents segment-wide communication failures, ensuring continuous, seamless, and safe plant operations.
Technical Specifications:
- Brand: Pepperl+Fuchs
- Model: R3-SP-IBD12
- Product Type: Segment Protector
- Number of Channels: 12 Individual Spur Segments
- Supported Protocol: FOUNDATION Fieldbus
- Product Series: FieldConnex / DART Fieldbus

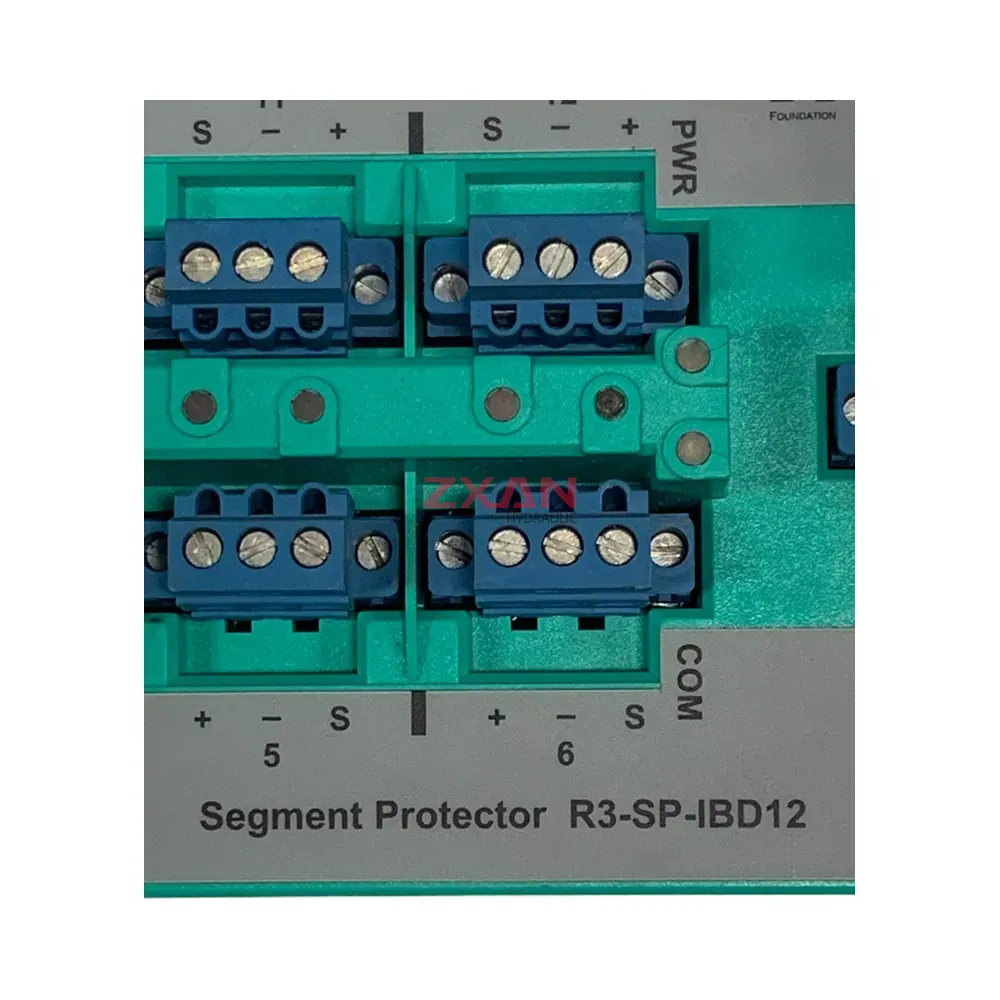

- Terminal Connections: Positive (+), Negative (-), and Shield (S) per segment (1-12), plus Power (PWR) and Trunk (COM)
| Brand | Pepperl+Fuchs |
|---|---|
| Model | R3-SP-IBD12 |
