Phoenix Contact UNO-DIODE/5-24DC/2×10/1×20 Redundancy Module (Diode Module)
Shop the Phoenix Contact UNO-DIODE/5-24DC/2×10/1×20 (2905489) redundancy module. This compact, DIN rail-mounted diode module features a 5-24V DC input (2x10A) and a 20A output, ensuring secure power supply decoupling and maximum system reliability for your industrial control applications.
Phoenix Contact UNO-DIODE/5-24DC/2×10/1×20 Redundancy Module

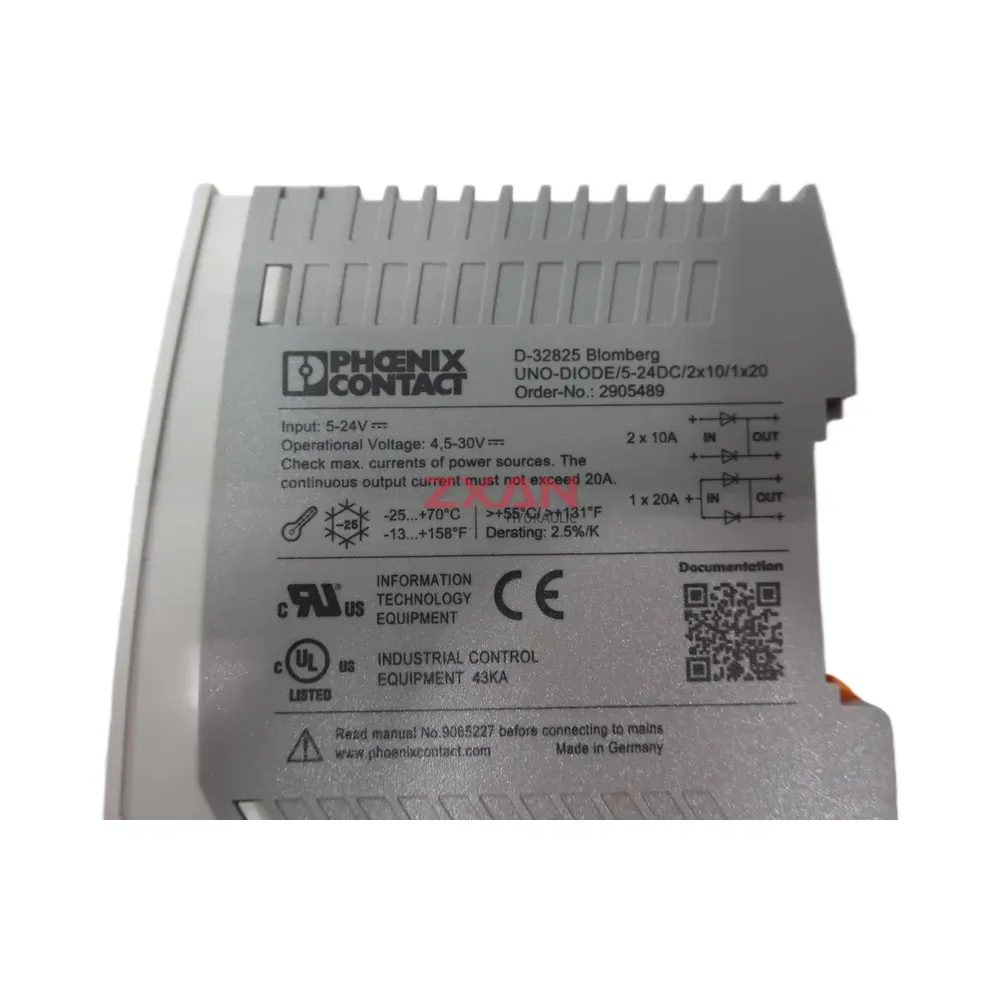

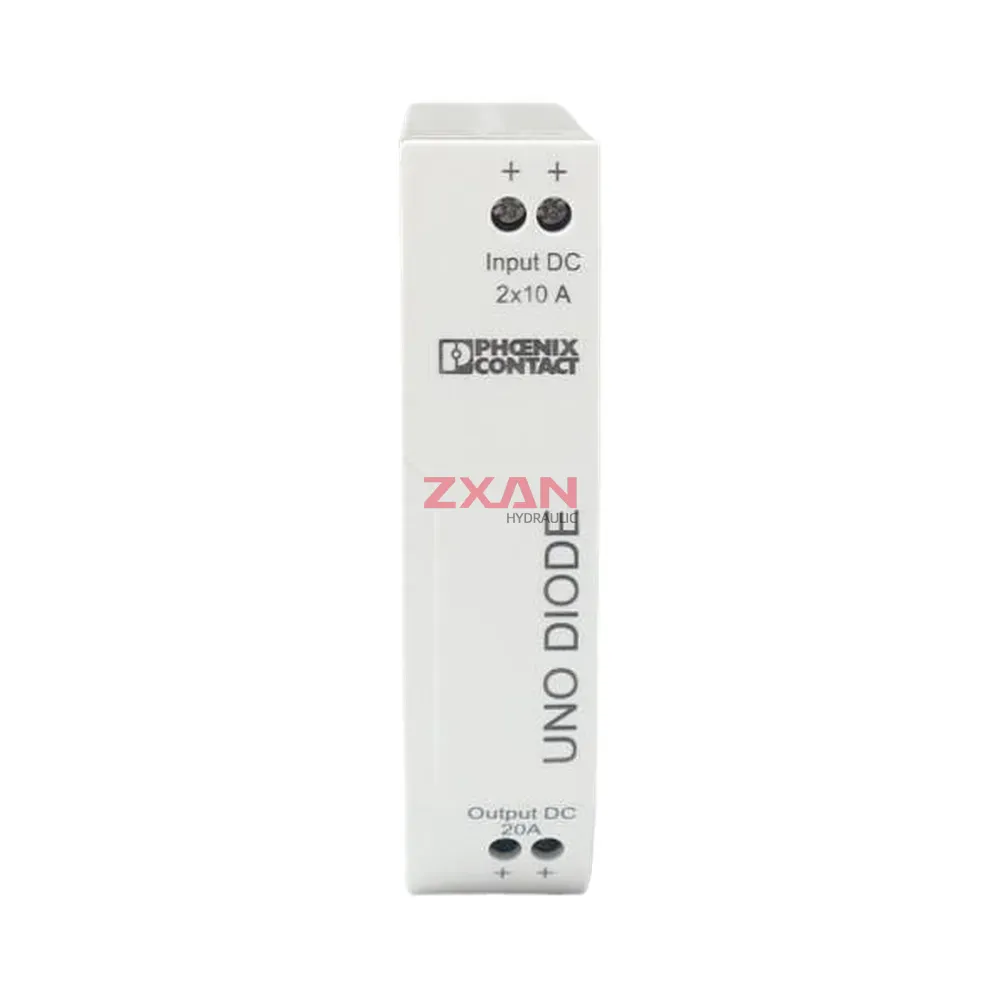

The Phoenix Contact UNO-DIODE/5-24DC/2×10/1×20 (Order No. 2905489) is a highly reliable diode-based redundancy module designed for DIN rail mounting. It ensures maximum system availability by decoupling two parallel power supplies, preventing short circuits or power failures from affecting the overall load. Featuring an input voltage range of 5-24 V DC, it accommodates two 10 A inputs and safely combines them into a single 20 A output. With a robust operating temperature range of -25°C to +70°C and a space-saving compact design, it is ideal for demanding industrial control and information technology applications. Made in Germany, this module is CE marked and UL/cULus listed, guaranteeing top-tier safety, efficiency, and performance.
Technical Specifications:
- Brand / Model: Phoenix Contact UNO-DIODE/5-24DC/2×10/1×20 (Order-No.: 2905489)
- Input Voltage: 5-24 V DC (Operational Voltage: 4.5-30 V DC)
- Input Current: 2 x 10 A
- Output Current: 1 x 20 A (Continuous output must not exceed 20 A)
- Operating Temperature: -25°C to +70°C (-13°F to +158°F)
- Derating: 2.5%/K above +55°C (+131°F)
- Mounting: DIN rail mountable
- Certifications & Standards: CE marked, UL/cULus Listed (Industrial Control Equipment / Information Technology Equipment)
- Country of Origin: Made in Germany
| Brand | PHOENIX CONTACT |
|---|---|
| Model | UNO-DIODE/5-24DC/2×10/1×20 |
