Pilz PNOZ XV3.1P Safety Relay
Shop the Pilz PNOZ XV3.1P (777538) Safety Relay featuring a 24-240 VAC/DC supply and adjustable time delay up to 300s. Equipped with 3 NO, 1 NC, and 2 time-delayed NO contacts for reliable industrial safety automation. UL, TUV, and CE certified.
Pilz PNOZ XV3.1P Safety Relay

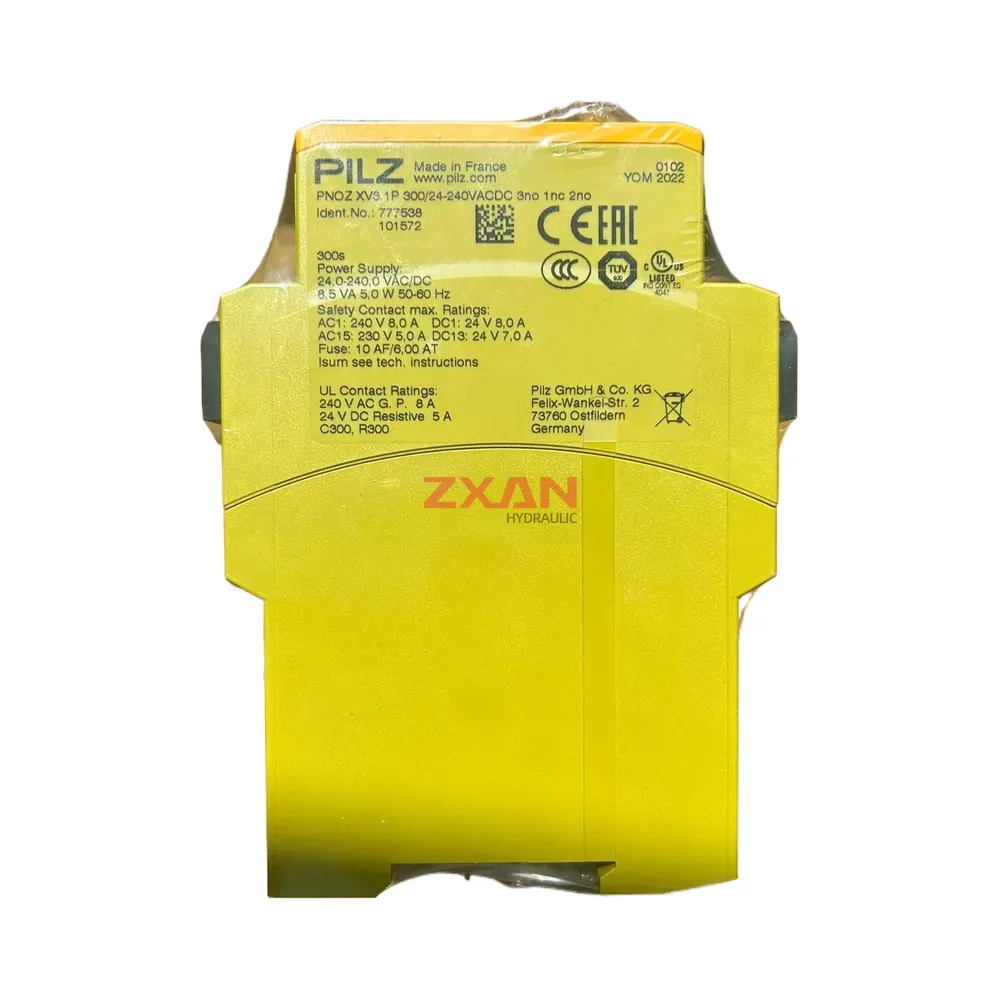

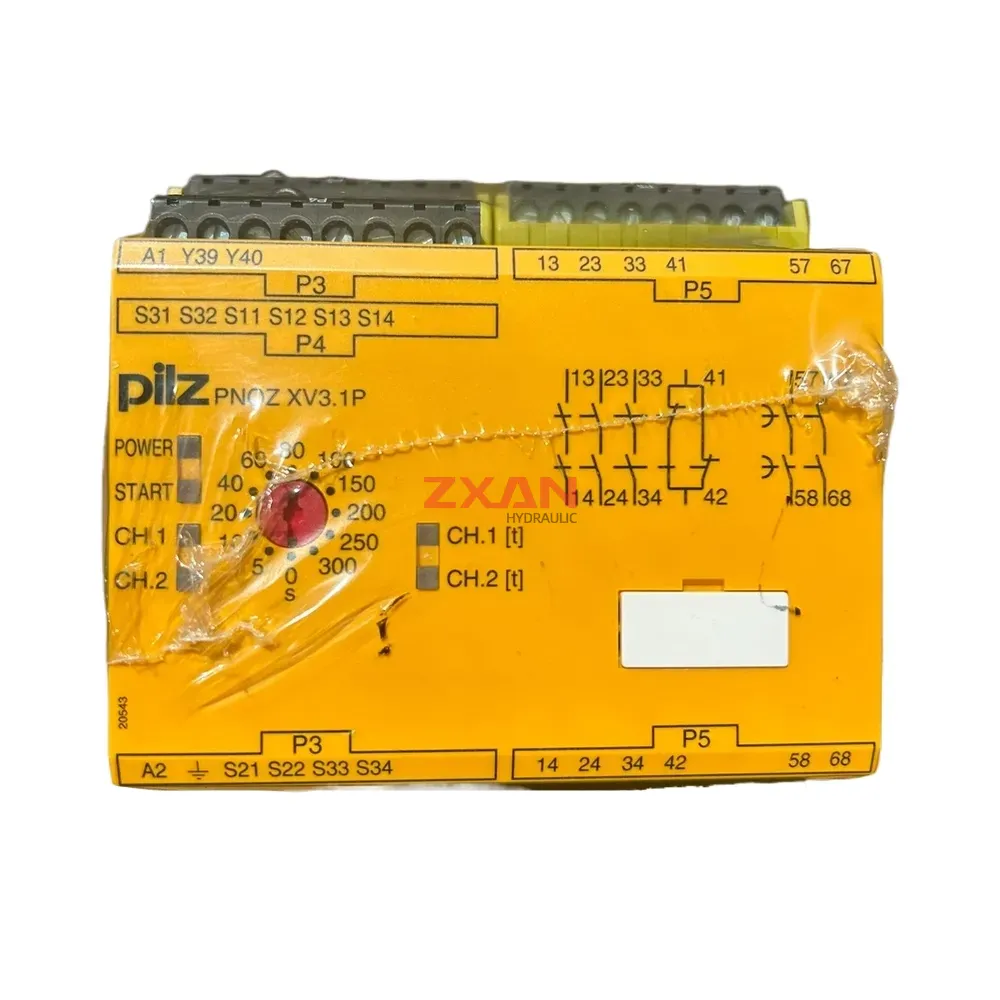

The Pilz PNOZ XV3.1P (Ident. No. 777538) is a premium safety relay engineered to safeguard personnel and machinery in complex industrial automation environments. Designed to monitor emergency stops, safety gates, and light barriers, this versatile relay operates on a wide universal supply voltage of 24 to 240 VAC/DC. It features an integrated, adjustable time delay function of up to 300 seconds, configurable via a convenient rotary dial, allowing for the controlled and safe deceleration of hazardous machine movements. The unit provides robust switching capabilities with 3 normally open (NO) and 1 normally closed (NC) instantaneous contacts, plus 2 time-delayed NO contacts. Built to rigorous international standards, it carries CE, EAC, CCC, TUV, and UL certifications, ensuring global compliance, maximum safety, and ultimate reliability for your control systems.
Technical Specifications:
- Brand: Pilz
- Model: PNOZ XV3.1P
- Identification Number: 777538
- Supply Voltage: 24.0-240.0 VAC/DC (50-60 Hz) / 8.5 VA / 5.0 W
- Contact Configuration: 3 Normally Open (NO), 1 Normally Closed (NC), 2 Time-Delayed NO
- Time Delay Function: Adjustable up to 300 seconds (via rotary dial)
- Safety Contact Max. Ratings: AC1: 240 V 8.0 A | DC1: 24 V 8.0 A | AC15: 230 V 5.0 A | DC13: 24 V 7.0 A
- UL Contact Ratings: 240 V AC G. P. 8 A | 24 V DC Resistive 5 A | C300, R300
- Fuse Rating: 10 AF / 6.00 AT
- Indicators: LED status indicators for Power, Start, and Channels
- Certifications: CE, EAC, CCC, TUV, UL LISTED
| Brand | Pilz |
|---|---|
| Model | PNOZ XV3.1P |
