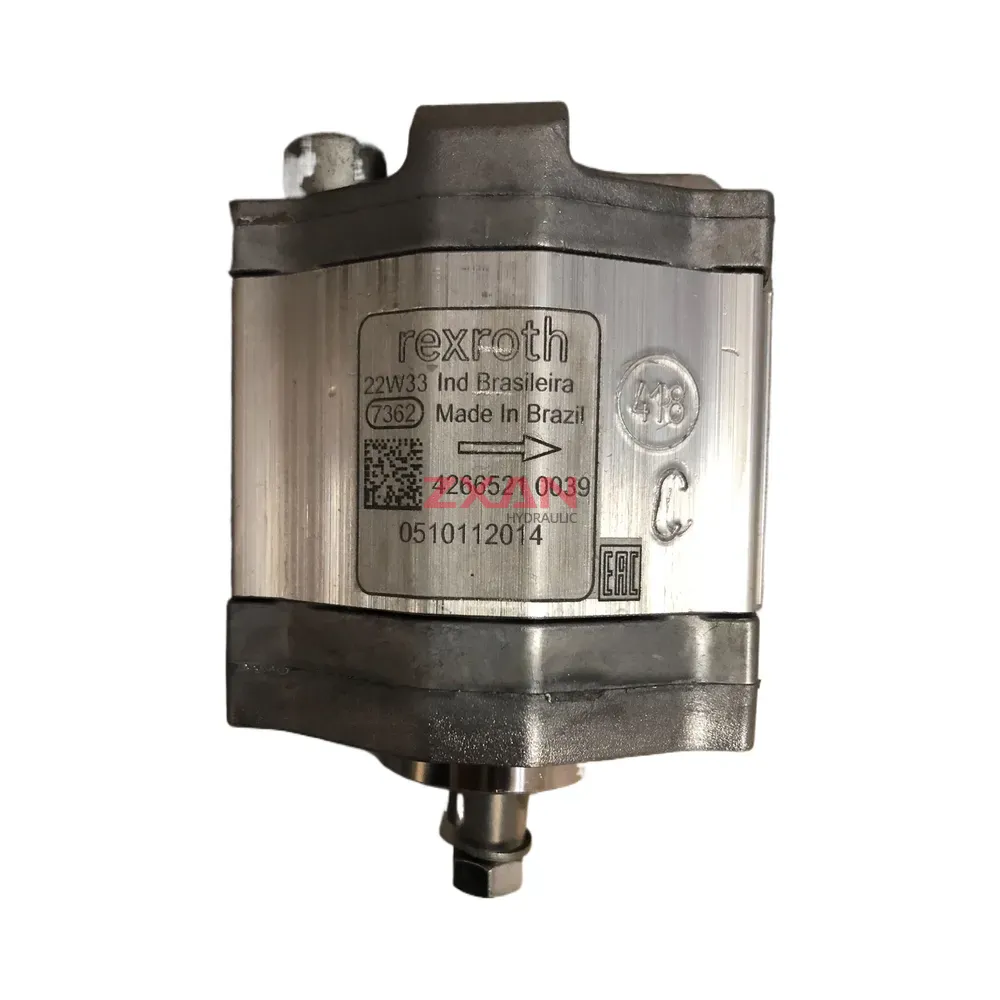

Rexroth 0510112014
The Rexroth 0510112014 is an external gear pump, specifically from the AZPF series. These pumps are known for their robust construction, high efficiency, and suitability for a wide range of mobile and industrial hydraulic applications. This particular model, often decoded as AZPF-10-004RSB20MB, offers a specific displacement and configuration designed for reliable performance. It features clockwise rotation, a tapered shaft, and SAE standard mounting and porting, making it versatile for integration into various hydraulic systems. It is designed for use with mineral oil-based hydraulic fluids.
Technical Specifications:
- Part Number: 0510112014
- Pump Type: External Gear Pump
- Series: AZPF-1X (specifically AZPF-10)
- Nominal Displacement: 4.0 cm³/rev (0.244 cu in/rev)
- Direction of Rotation: Clockwise (viewed from shaft end)
- Maximum Continuous Operating Pressure: 250 bar (3625 psi)
- Maximum Intermittent Operating Pressure: 280 bar (4061 psi)
- Speed Range (Continuous Operation): 600 – 3600 rpm (may vary with operating pressure)

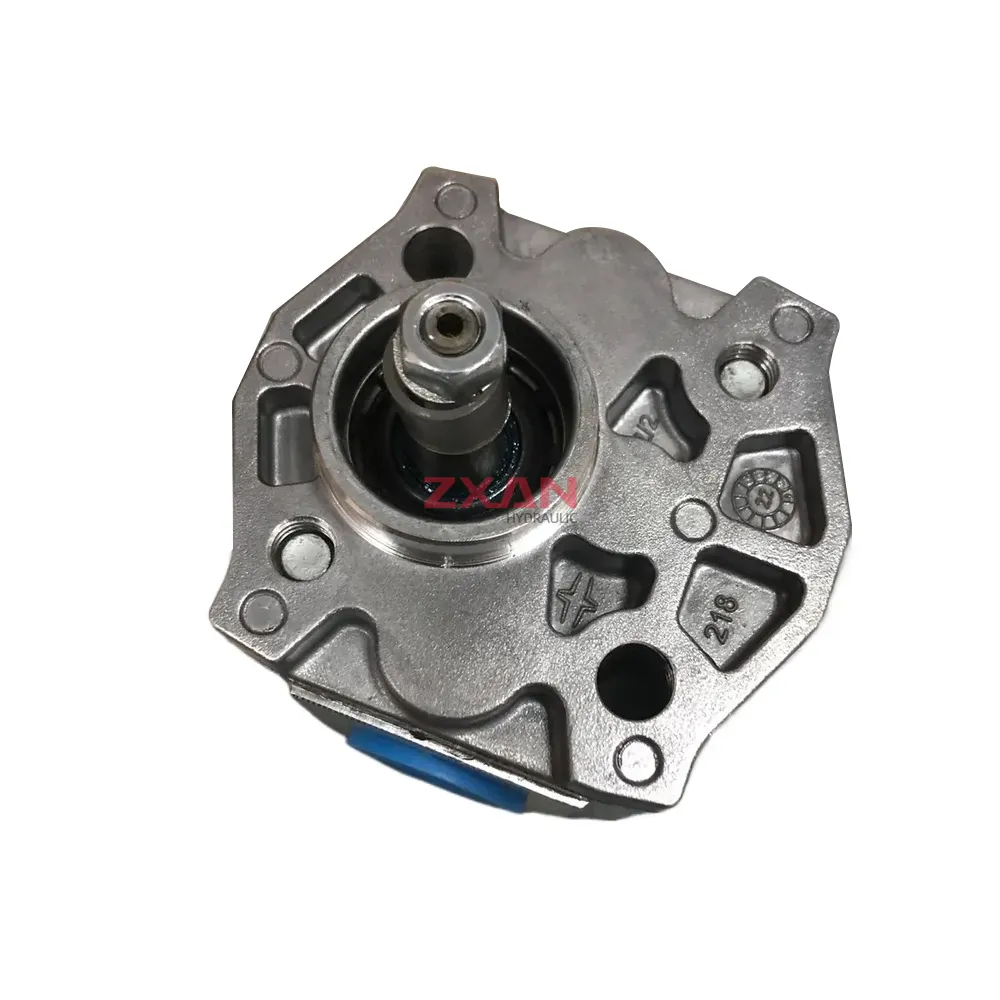

- Drive Shaft: Tapered 1:5 (SAE J501)
- Mounting Flange: SAE A 2-bolt
- Ports: SAE flanged connections
- Sealing Material: NBR (Nitrile Butadiene Rubber)
- Recommended Hydraulic Fluid: Mineral oil (HL, HLP) based fluids according to DIN 51524
- Viscosity Range: 10 to 300 mm²/s (cSt) recommended
- Fluid Temperature Range: -20°C to +80°C (-4°F to +176°F)
| Brand | Rexroth |
|---|---|
| Model | 0510112014 |
